Waveshare ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / Wifi/Bluetooth/Gnss Positioning Support, Global Coverage Multi Band, Suitable for 4G Portable Wifi, Onboard Camera/Antenna
Waveshare ESP32-S3 SIM7670G 4G Development Board, LTE Cat-1 / Wifi/Bluetooth/Gnss Positioning Support, Global Coverage Multi Band, Suitable for 4G Portable Wifi, Onboard Camera/Antenna
Brand: Waveshare
A$103.55

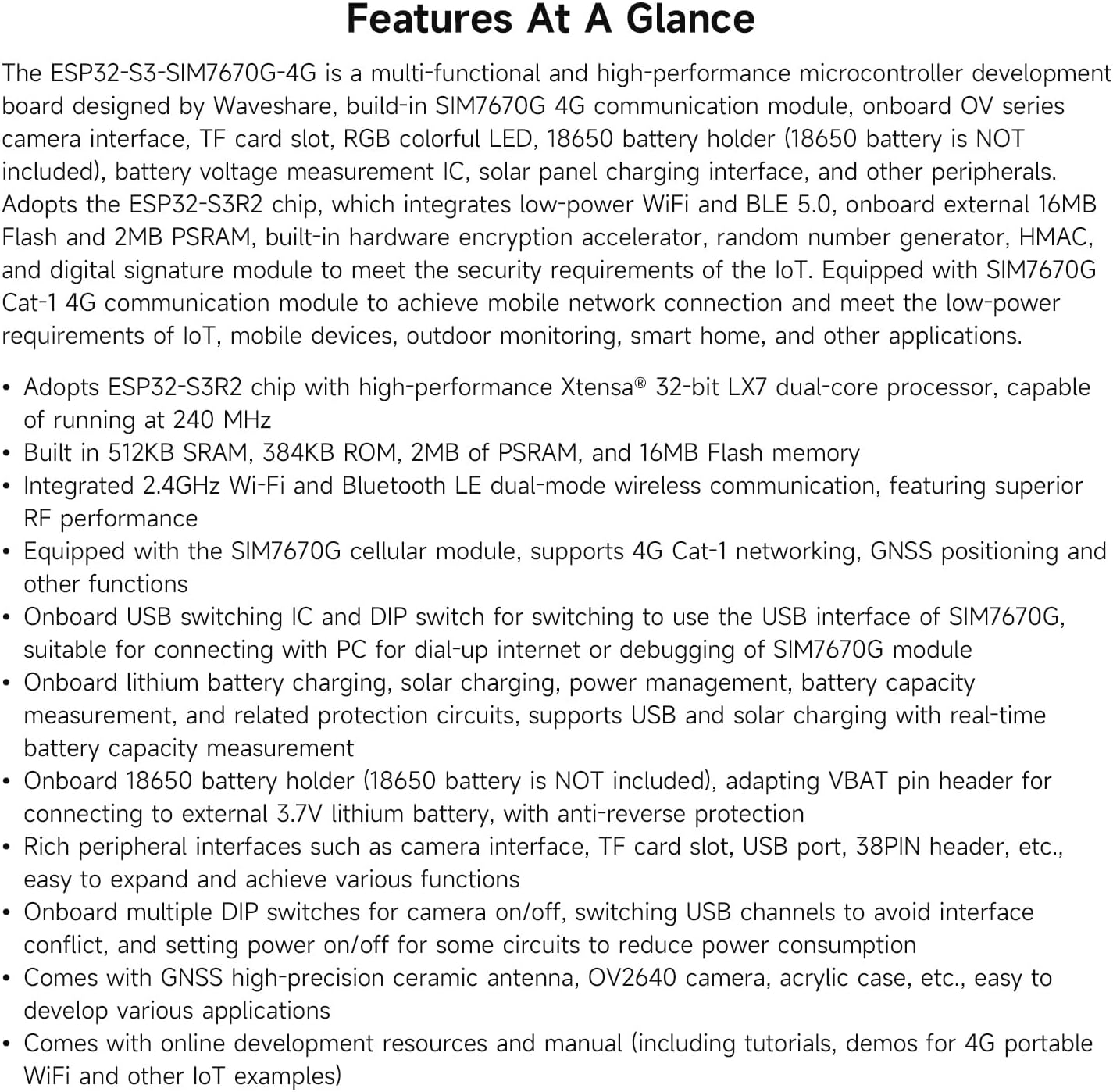

- Adopts ESP32-S3R2 chip with high-performance Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz.Built in 512KB SRAM, 384KB ROM, 2MB of PSRAM, and 16MB Flash memory. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, featuring superior RF performance .

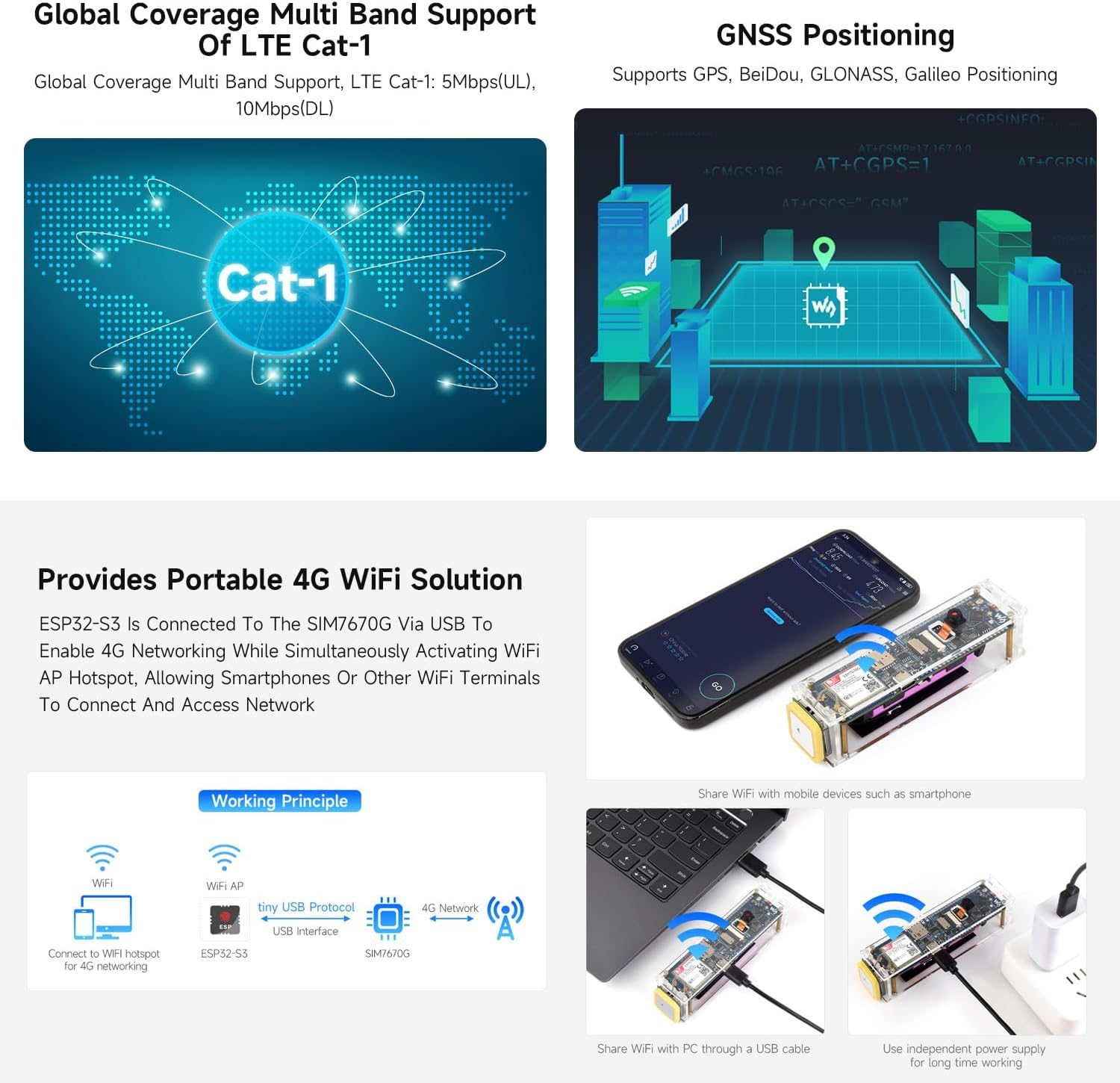

- Equipped with the SIM7670G cellular module, supports 4G Cat-1 networking, GNSS positioning and other functions. Onboard USB switching IC and DIP switch for switching to use the USB interface of SIM7670G, suitable for connecting with PC for dial-up internet or debugging of SIM7670G module.

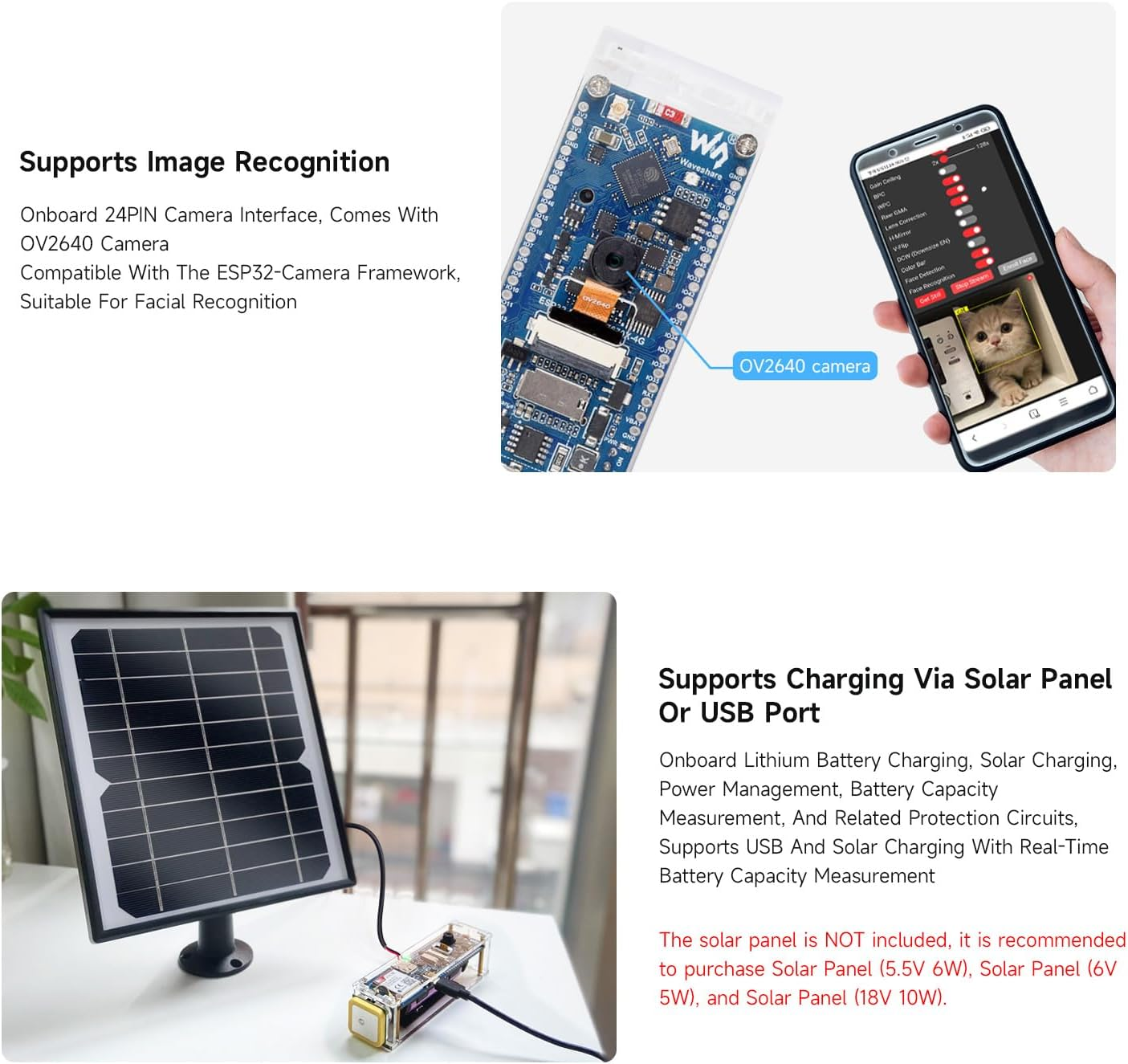

- Rich peripheral interfaces such as camera interface, TF card slot, USB port, 38PIN header, etc., easy to expand and achieve various functions. Onboard multiple DIP switches for camera on/off, switching USB channels to avoid interface conflict, and setting power on/off for some circuits to reduce power consumption.

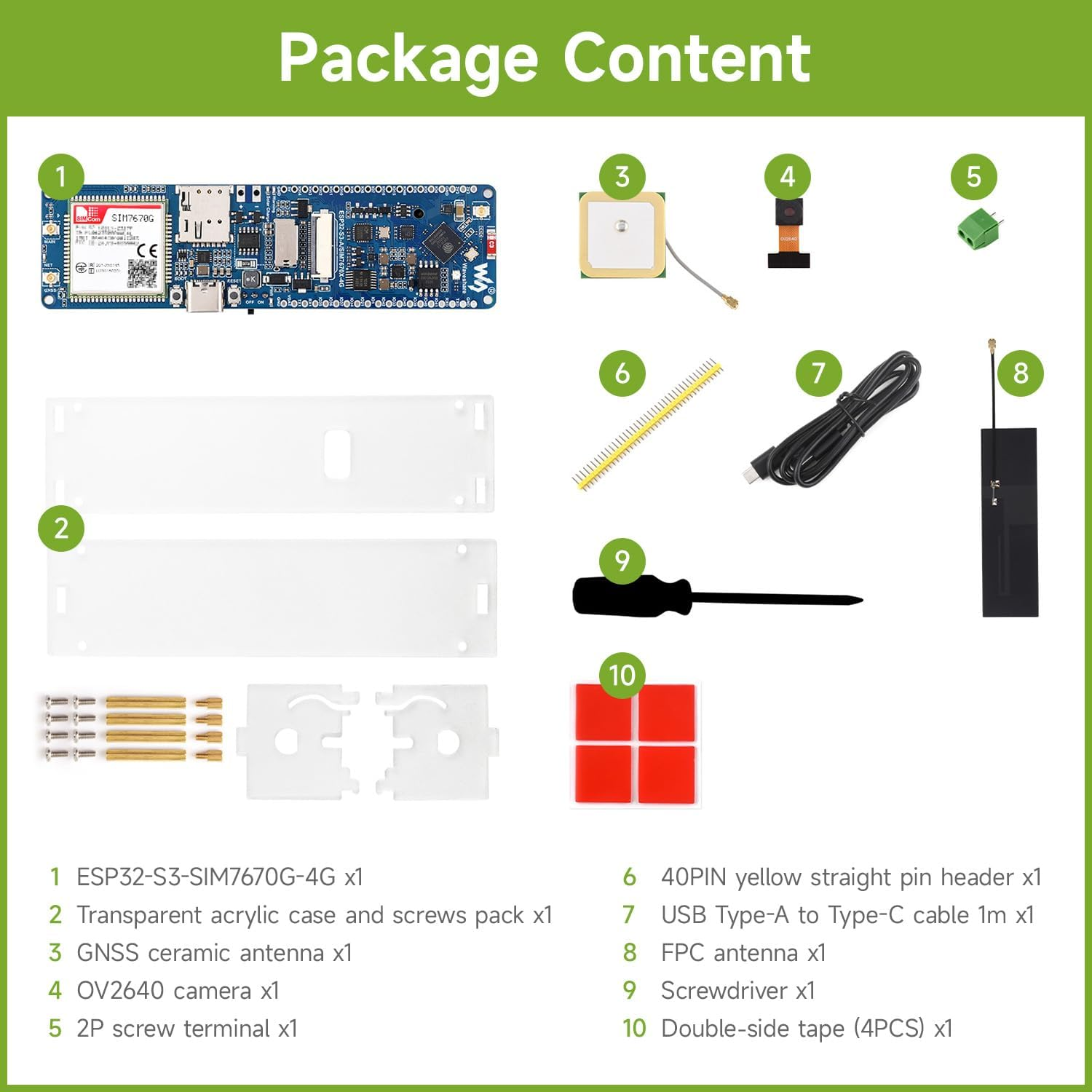

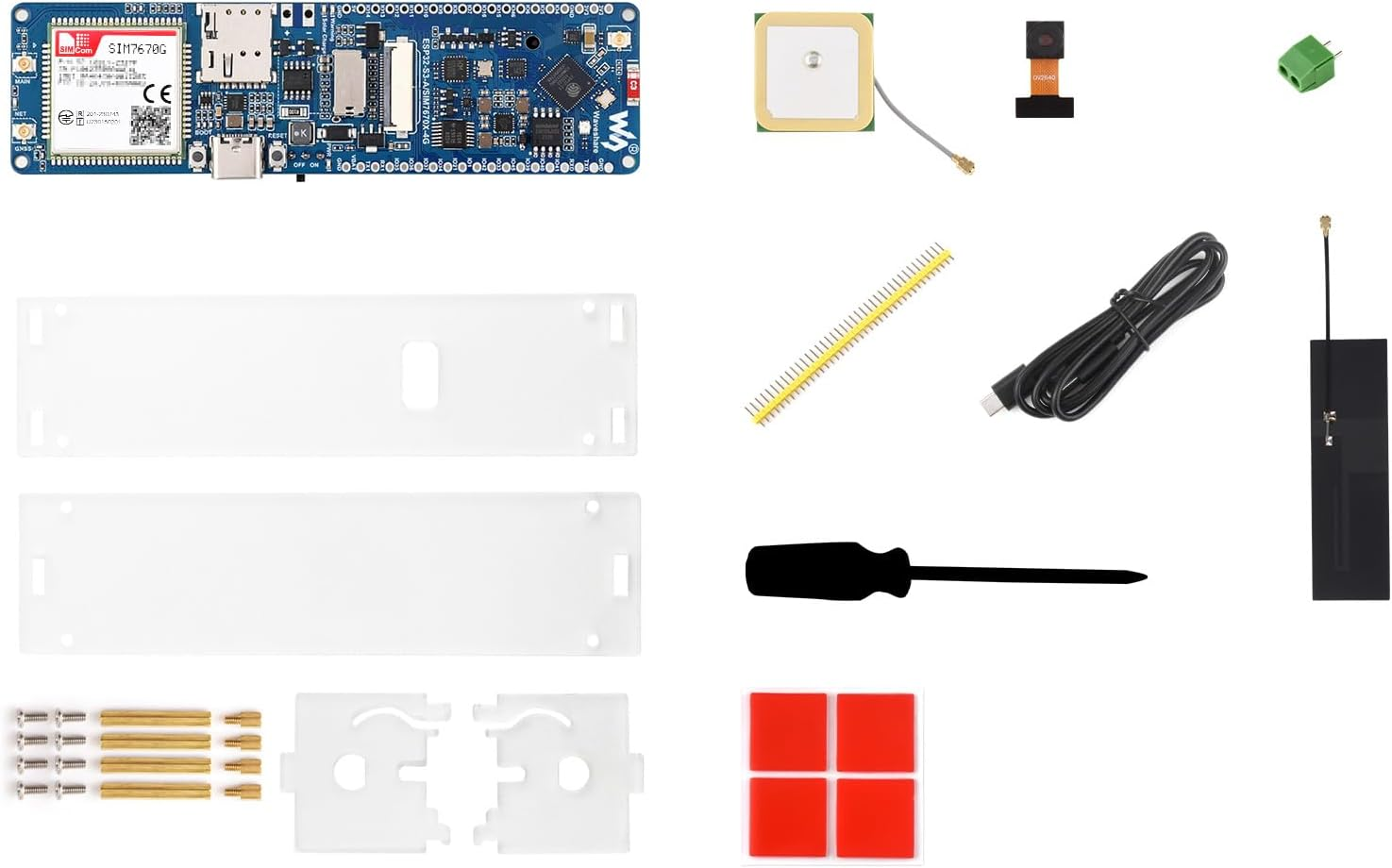

- Comes with GNSS high-precision ceramic antenna, OV2640 camera, acrylic case, etc., easy to develop various applications. Comes with online development resources and manual (including tutorials, demos for 4G portable WiFi and other IoT examples).

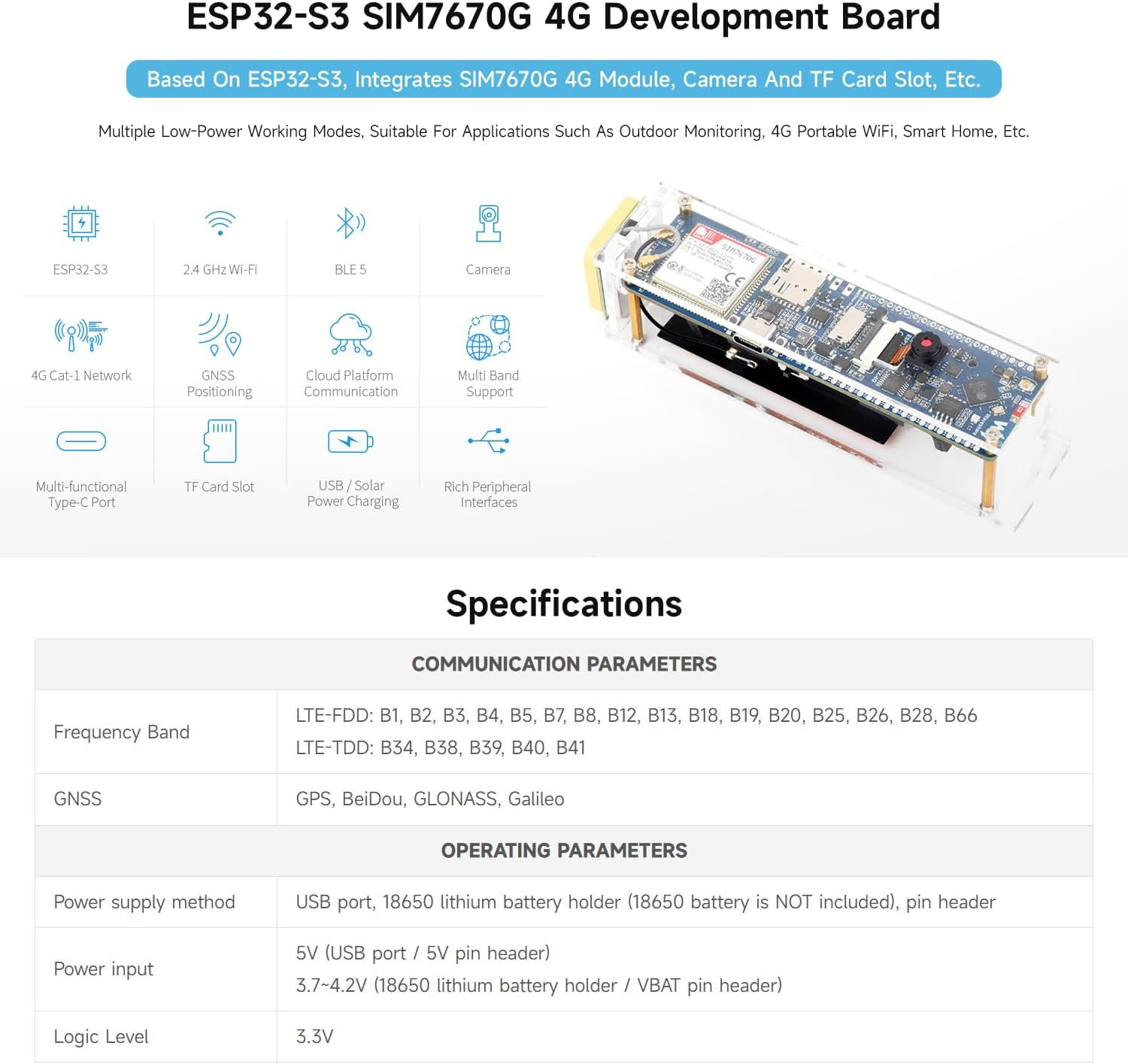

Product Description
- Memory Storage Capacity: 16 MB
- Processor Count: 2
- Wireless Type: Bluetooth
- Brand: Waveshare
- Ram Memory Technology: SRAM, PSRAM
- RAM memory maximum size: 2 MB
- Model Name: Waveshare ESP32-S3 SIM7670G 4G Development Board
- Package Dimensions: 15.8 x 11.8 x 3.4 cm; 150 Grams
- Manufacturer: Waveshare
- Item Model Number: ESP32-S3-SIM7670G-4G-EN
- Batteries Included: No
- Batteries Required: No
- Item Weight: 150 g
- Number of Ports: 1
- Compatible processor types: ESP32-S3R2
- Model: ESP32-S3-SIM7670G-4G-EN
- Part Number: ESP32-S3-SIM7670G-4G-EN
- Total USB ports: 1
- Processor Socket: DIP
- Compatible Devices: Personal Computer
- Graphics Card Interface: Integrated
- Chipset Type: ESP32-S3R2
