Features:
1. Using the latest technology level of production of the die structure.
2. Low leakage current, low power, high reliability.
3. Excellent anti-transient high current impact Performance.
4. In the circuit play a high-voltage rectifier circuit, isolation and protection role.
5. Designed for good heat dissipation and low voltage drop.
Specification:

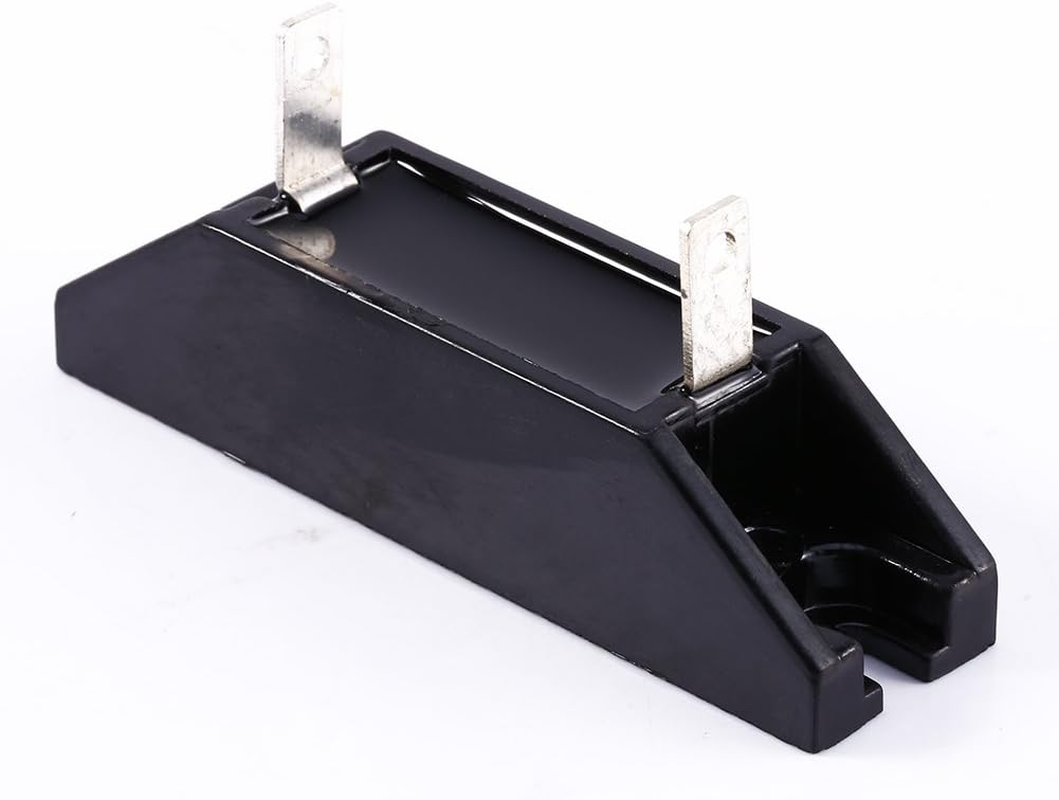

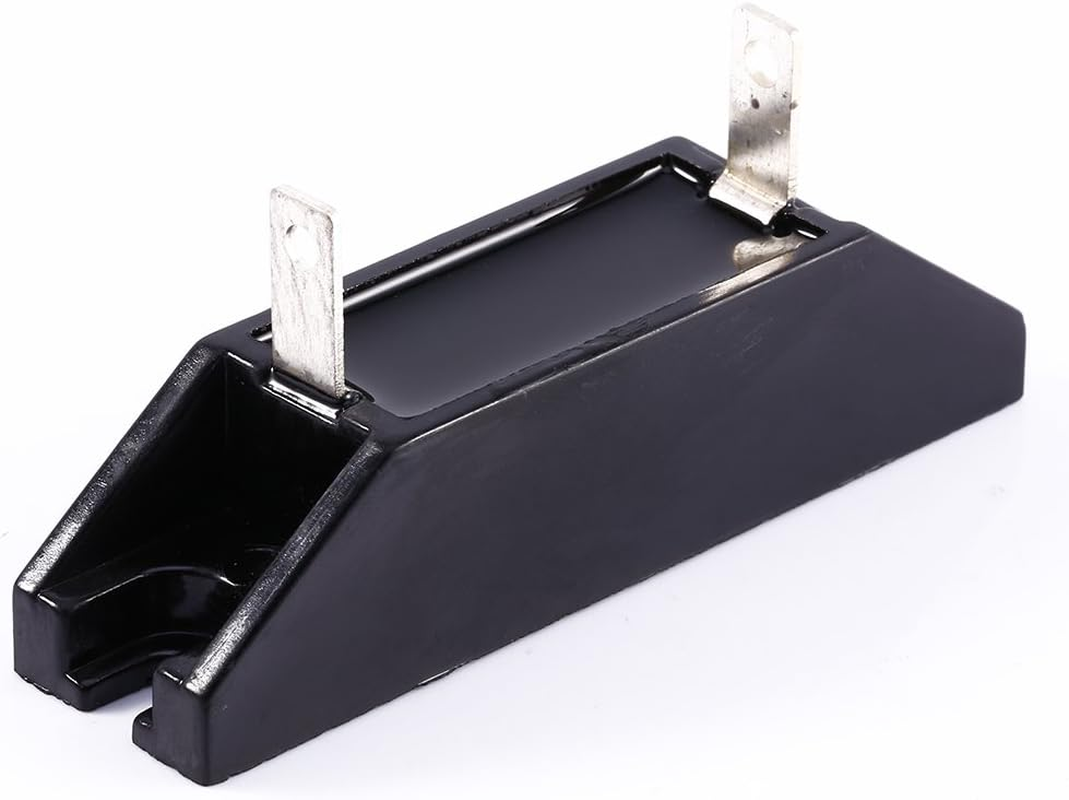

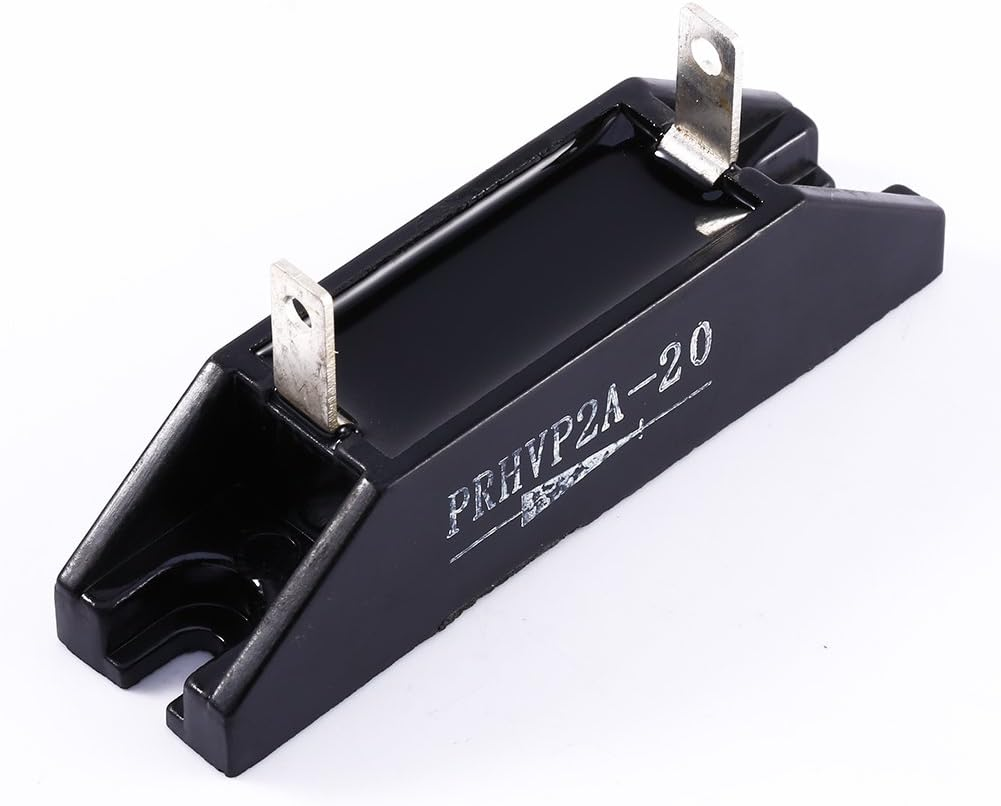

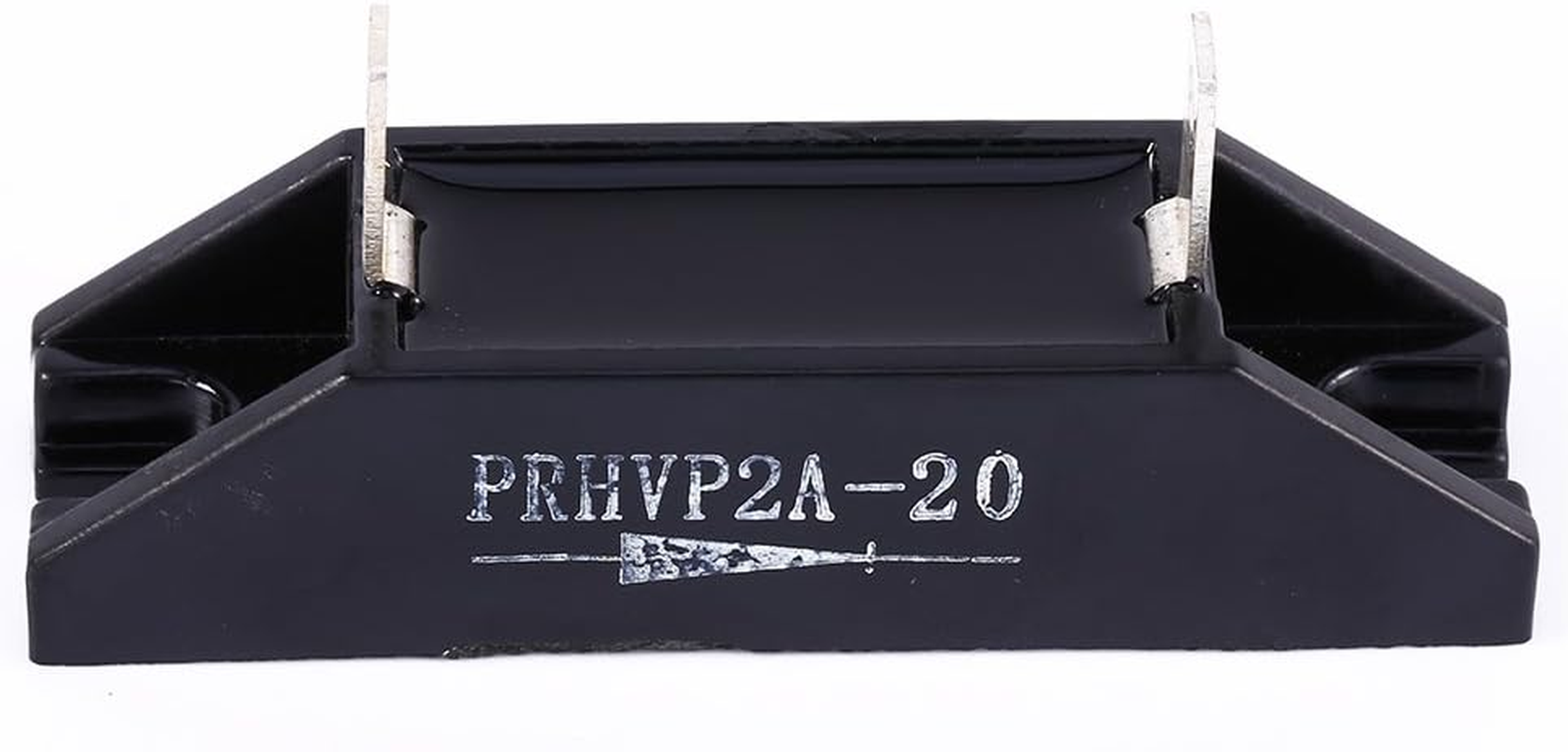

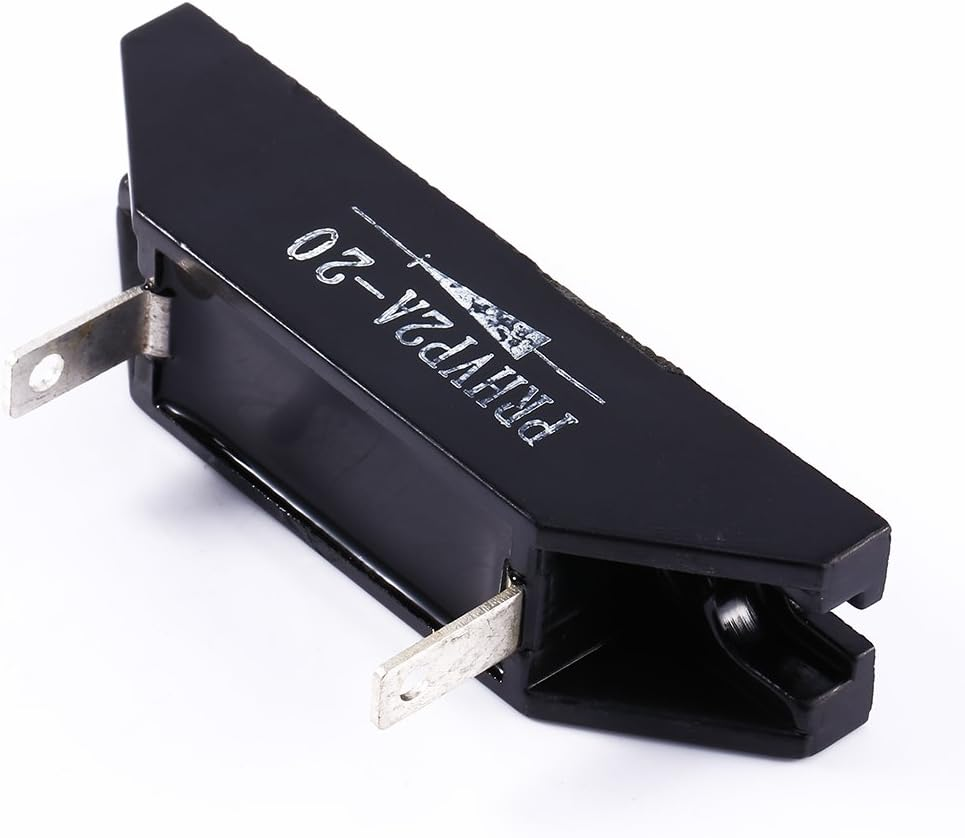

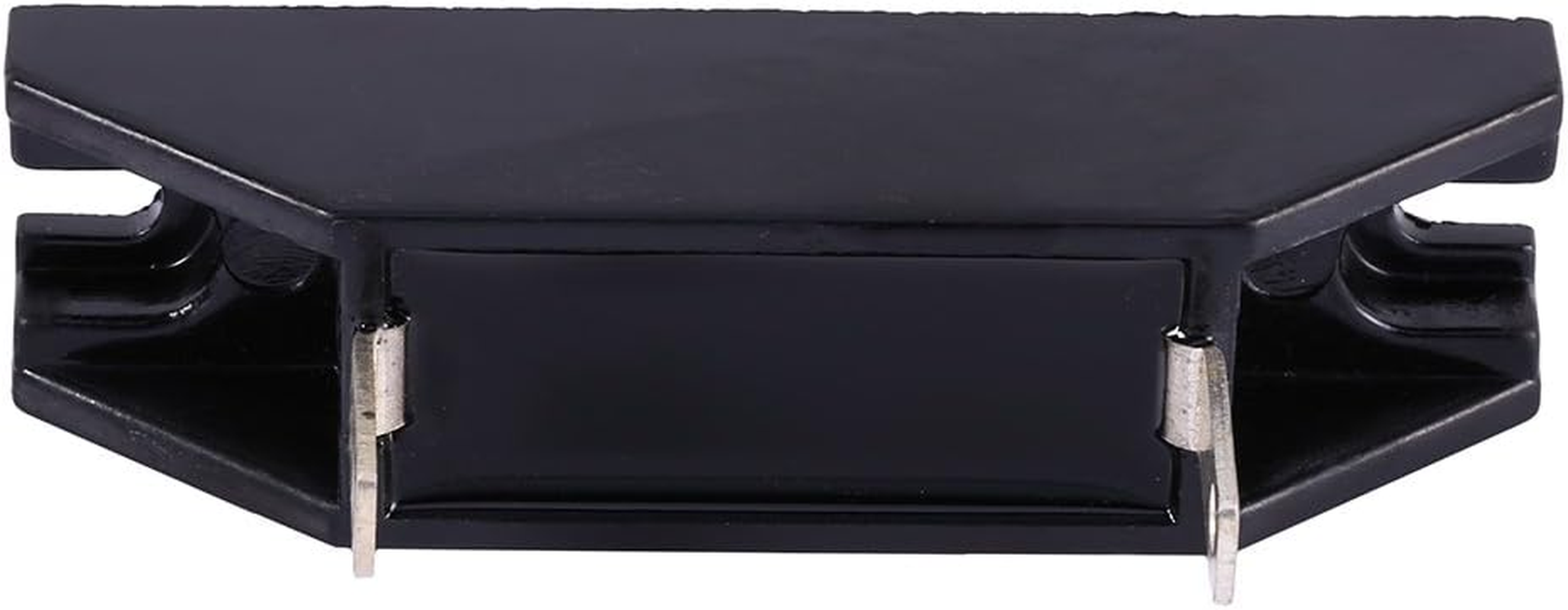

Name: high-voltage diodes, rectifier silicon reactor
Model: PRHVP 2A-20 (HVP 20 HVP2A-20) 2A20KV
Size: 18 x 19 x 75mm (Height * Width * Length )
Operating Temperature: -40 ° C ~ + 175 ° C
Color: Black
Package include:
1 x PRHVP2A-20 High Voltage Rectifier Diode
