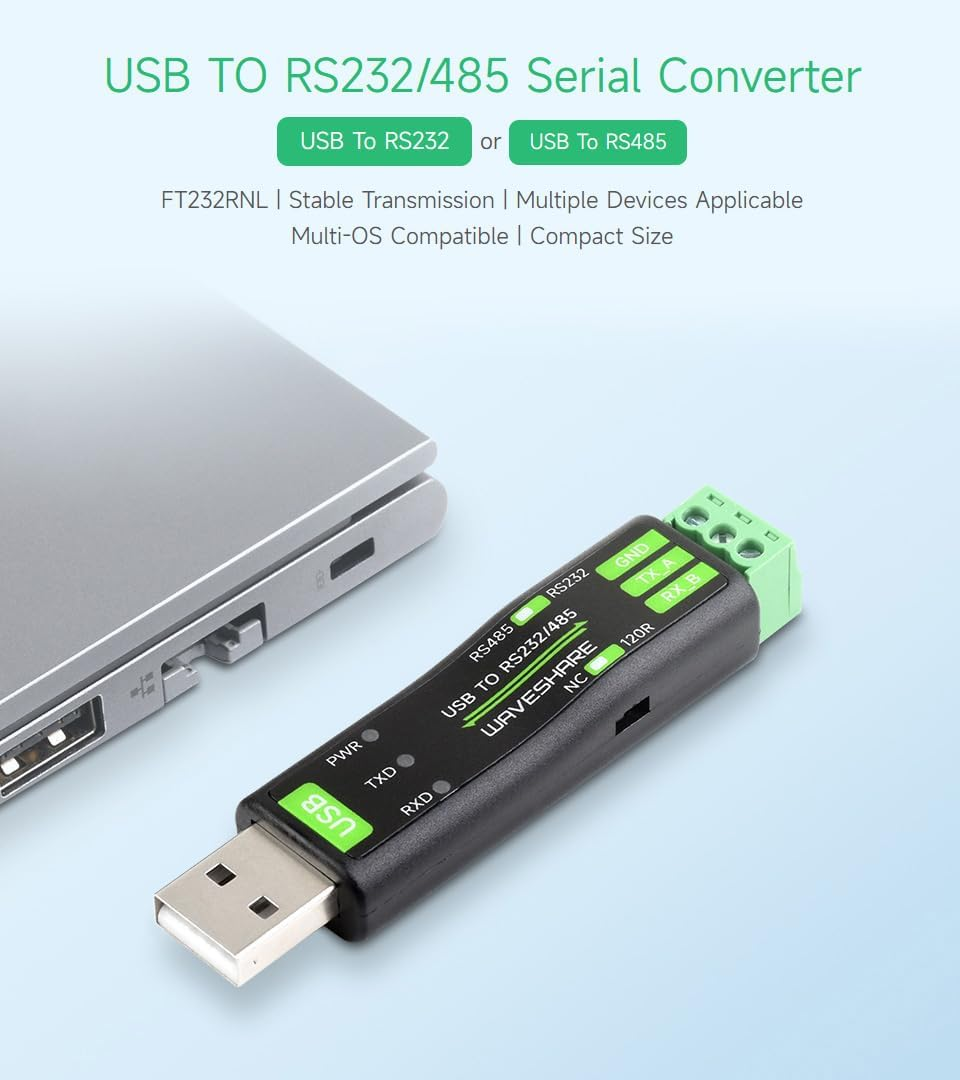

Waveshare USB to RS232/485 Serial Converter, Onboard Original FT232RNL Chip, Features More Stable Transmission, Suitable for Multiple Devices, Compatible with Mac/Linux/Android/Win11/10/8.1/8/7, Etc
Waveshare USB to RS232/485 Serial Converter, Onboard Original FT232RNL Chip, Features More Stable Transmission, Suitable for Multiple Devices, Compatible with Mac/Linux/Android/Win11/10/8.1/8/7, Etc
Brand: Waveshare
A$28.35

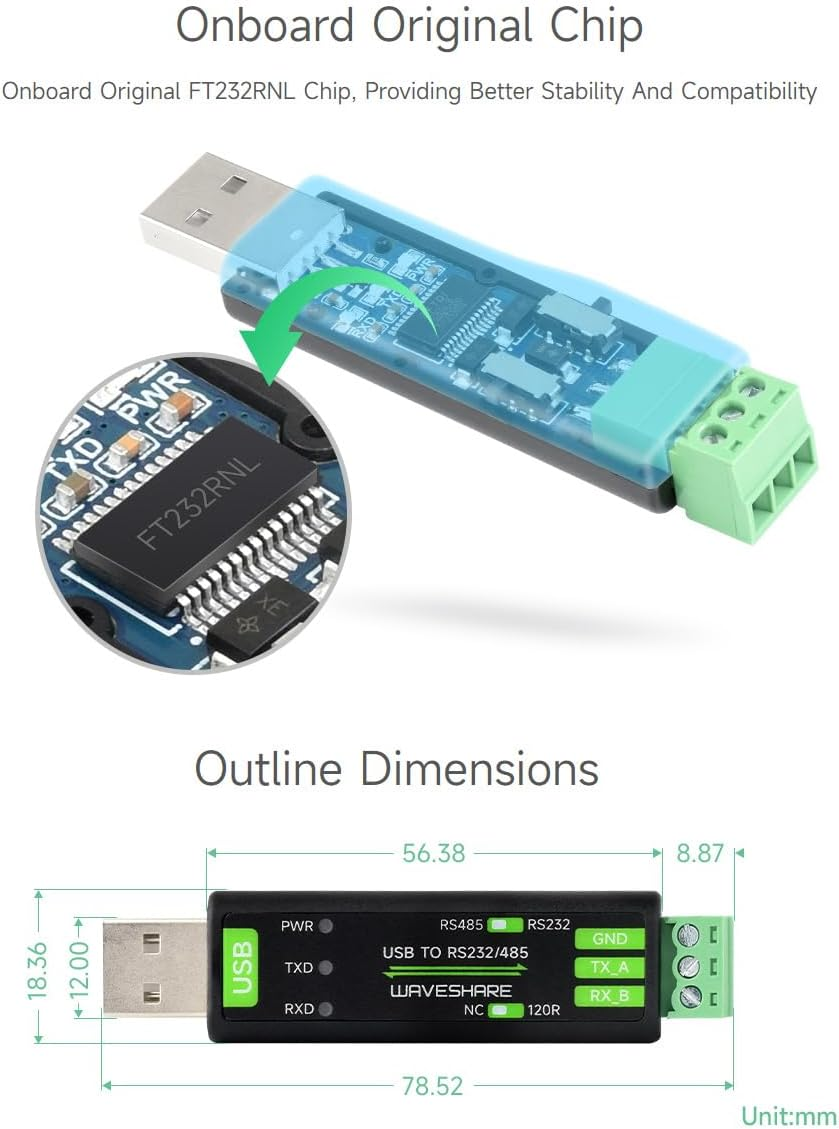

- Adopts the original FT232RNL chip to provide better stability, reliability and compatibility. ABS case, compact size, portable and easy to use.
- Support USB to RS232 communication or USB to RS485 communication. On-board RS232/485 communication switching circuit, users can switch the communication type by toggle switch.
- On-board TVS (Transient Voltage Suppressor) can effectively suppress surge voltage and transient spike voltage in the circuit, anti-static.
- On-board self-recovery fuses and protection diodes ensure stable output of current and voltage, prevent overcurrent and overvoltage, and improve shock resistance.

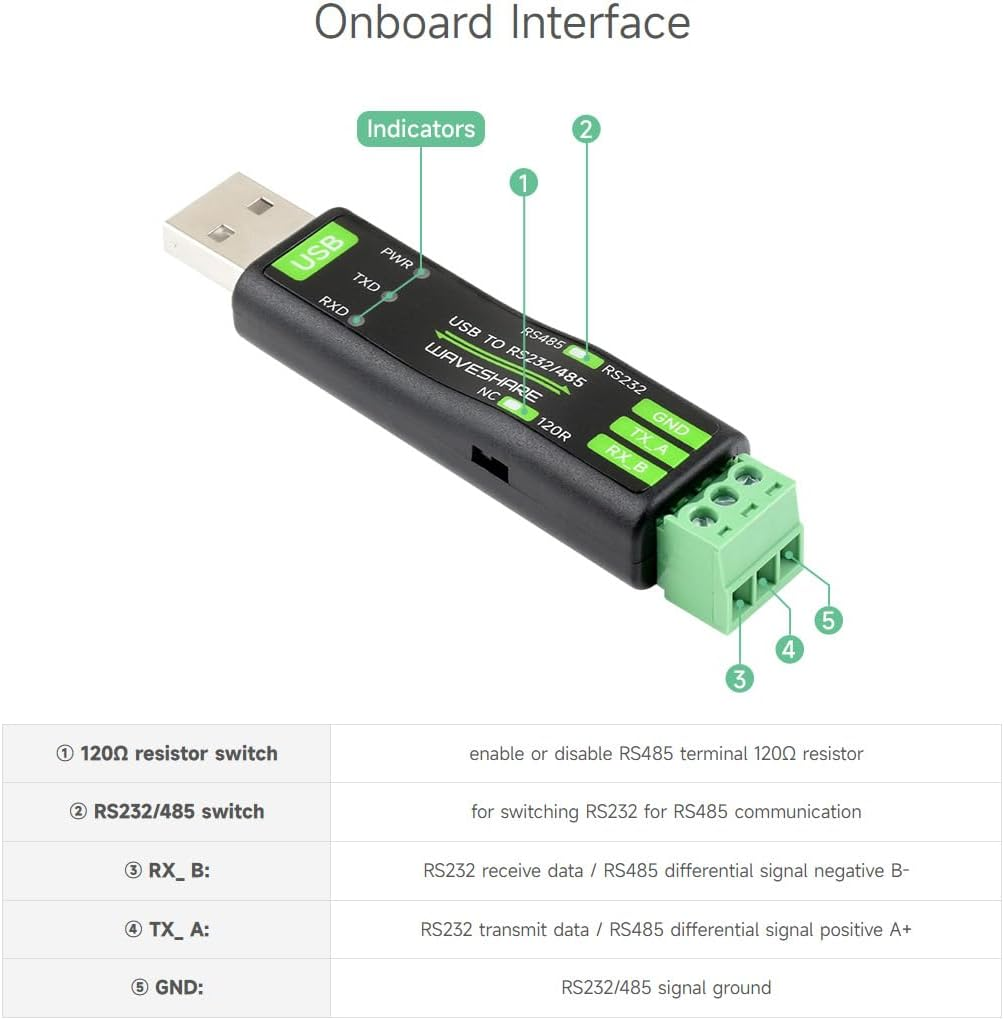

- Supports flexible switching, onboard 120R terminal resistor on the RS485 interface, enabled/disabled via toggle switch. With 3 LED indicators, more convenient to check the power supply and signal transmitting and receiving status.
Product Description
Selection Table
| Customer Reviews | 4.7 out of 5 stars 15 | 4.8 out of 5 stars 51 | 4.5 out of 5 stars 43 | 4.7 out of 5 stars 15 | 4.7 out of 5 stars 212 | 4.8 out of 5 stars 22 |
| Price | $27.89$27.89 | $23.30$23.30 | $21.89$21.89 | $43.79$43.79 | $49.99$49.99 | $49.99$49.99 |
| Chip Model | FT232RNL | FT232RNL | CH343G | FT232RNL | FT232RL | FT232RL |
| Host Port | USB | USB | USB | USB-B | USB-B | USB-B |
| Device Port | RS485 | RS232/485 | RS485 | RS485/422 | RS232/485/TTL | RS485 |
| Bauda rate | 300bps ~ 921600bps | 300bps ~ 921600bps | 300bps ~ 3Mbps | 300bps ~ 3Mbps | 300bps ~ 921600 bps | 1200bps ~ 460800bps |
| Led Indicators | PWR/TXD/RXD | PWR/TXD/RXD | PWR/TXD/RXD | PWR/TXD/RXD | PWR/TXD/RXD | PWR/ACT/RXD/TXD |
| Temperature Range | -15℃ ~ 70℃ | -15℃ ~ 70℃ | -15℃ ~ 70℃ | -15℃ ~ 70℃ | -15℃ ~ 70℃ | -40 ~ 85℃ |
| Operating System | Mac, Linux, Android, Windows | Mac, Linux, Android, Windows | Mac, Linux, Android, Windows | Mac, Linux, Android, Windows | Mac, Linux, Android, Windows | Mac, Linux, Android, Windows |
| Transmission Distance | USB：5M；RS485：1200m（MAX） | USB:5;RS232:15; RS485:1200 MAX | USB：5M；RS485：1200m（MAX） | USB:5M;RS485/232:1200M;(MAX) | — | USB：5M；RS485：1200m（MAX） |
- Item Model Number: USB TO RS232-485
- Part Number: USB TO RS232-485
- Operating System: Linux
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Compatible Devices: Personal Computer
- Item Weight: 82 g
- Model: USB TO RS232-485
- Hardware Interface: USB
- Package Dimensions: 10.69 x 7.8 x 3.3 cm; 82 Grams
- Manufacturer: Waveshare
