WHAT YOU GET:

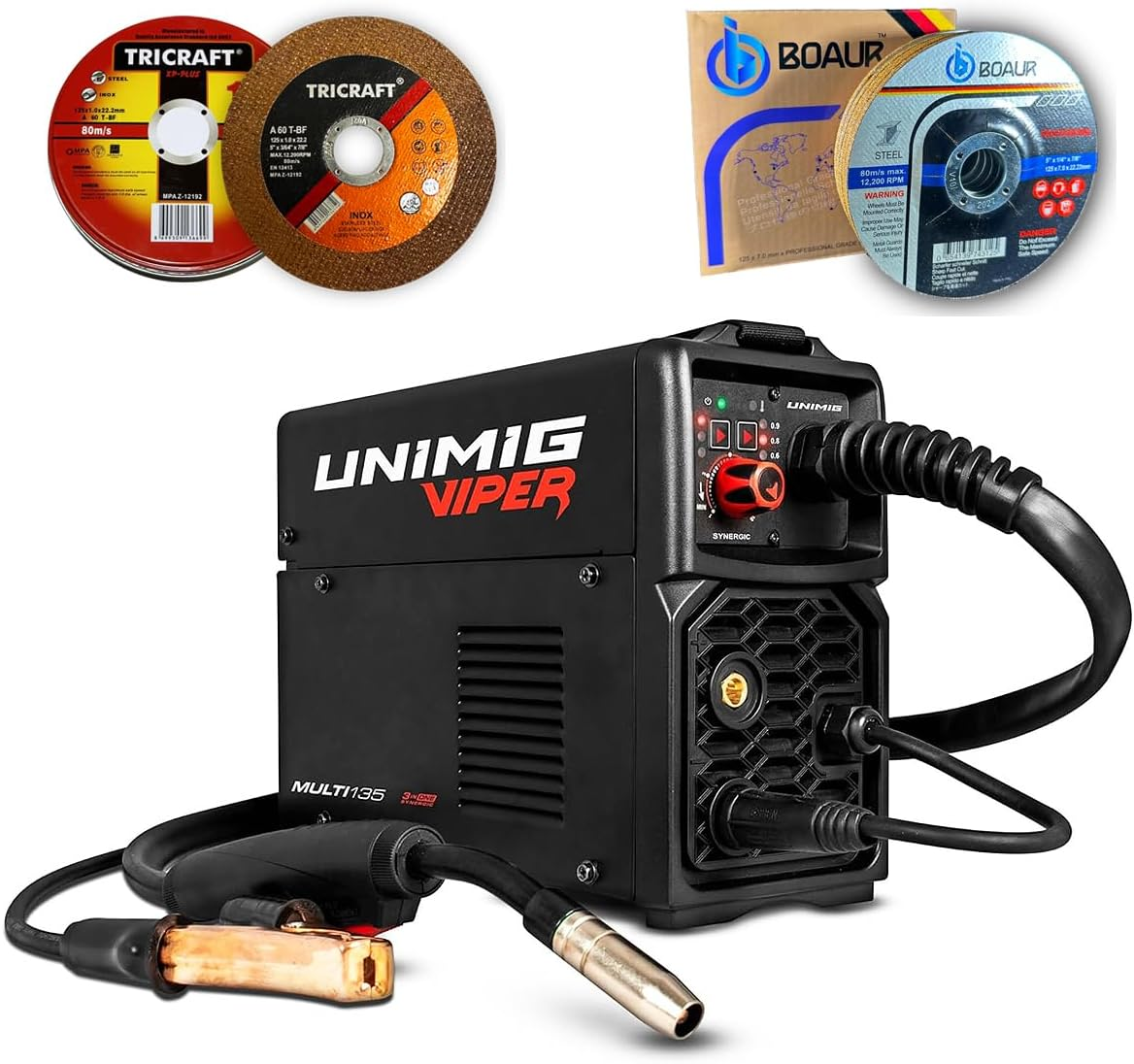

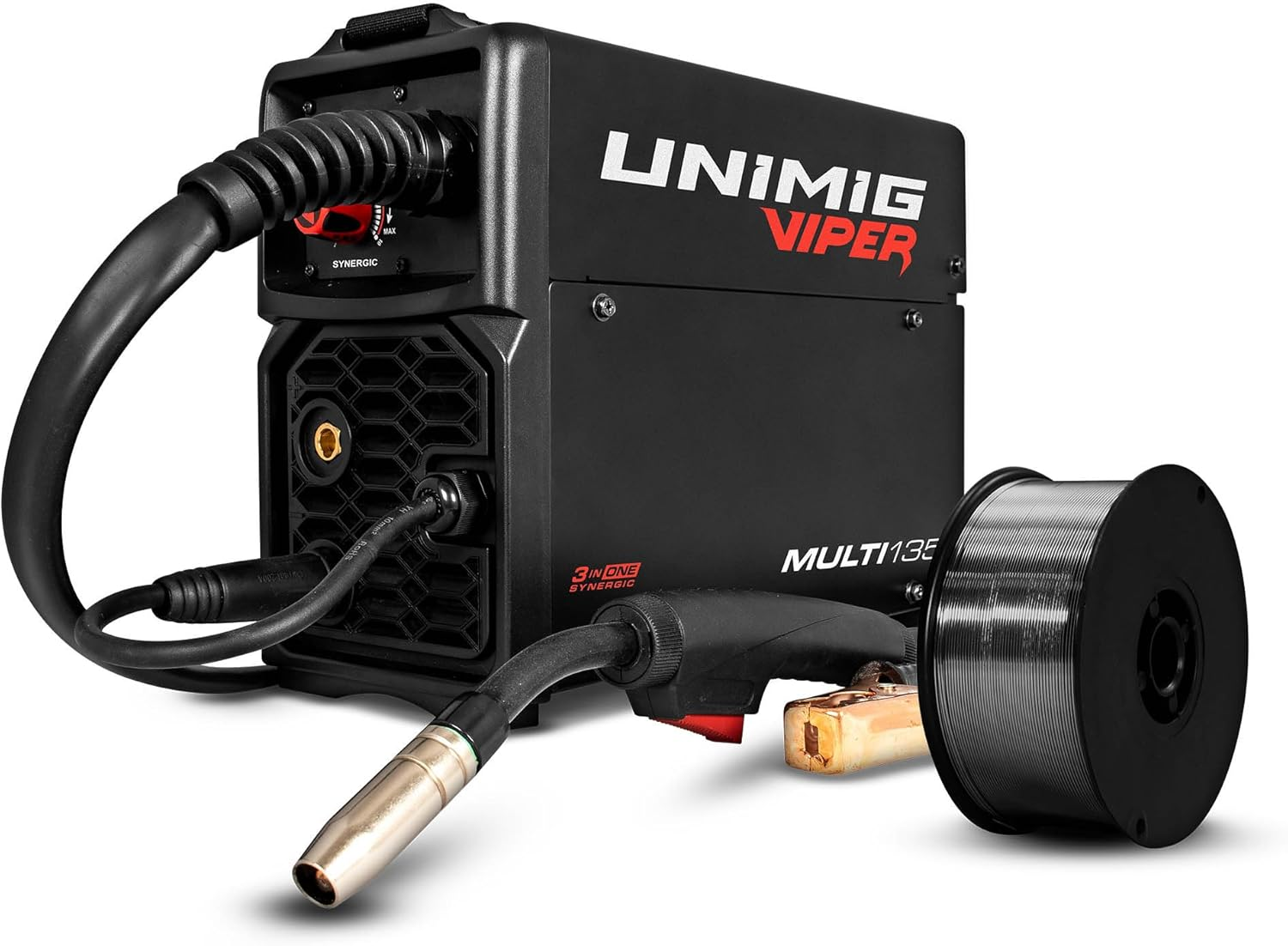

1 x UNIMIG Viper Multi 135 MIG/TIG/STICK Welder
1 x 2m Direct Connect MIG Torch
10 x Tricaft Cutting Discs
5 x Boaur Grinding Discs
1 x 2m Earth Clamp & Lead
1 x Electrode Holder
1 x 2m Gas Hose Complete with fittings
1 x 1kg E71T-GS 0.8mm Gasless Wire
1 x Operating Manual

SPECIFICATIONS:

• Brand: UNIMIG
• Part Number: U11005K
• Dimensions: 353x132x250 mm
• Weight: 5.2kg
• Primary Input Voltage:
  240V Single Phase
• Supply Plug: 10 AMP
• Ieff: 8.4 A
• Rated Output: 40/16V-135A/21V
• No Load Voltage: 68 V
• Protection Class: IP21S
• Insulation Class: H
• Minimum Generator: 8.0 kVA
• Dinse Connector: 10/25
• Welds: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
• Warranty: 2 Years
• Standard: AS/NZ60974-1
• MIG:
  MIG Welding Current Range: 40-135A
  MIG Duty Cycle @ 40°C:
  15% @ 135A
  60% @ 65A
  100% @ 50A
  MIG Wire Size Range: 0.6-0.9mm
  MIG Wire Spool Size: 1kg
  MIG Welding Thickness Range: 1-6mm
• TIG:
  TIG Function Type: DC Lift Arc
  TIG Welding Current Range: 20-120A
  TIG Duty Cycle @ 40°C:
  15% @ 120A
  60% @ 60A
  100% @ 45A
  TIG Welding Thickness Range: 1-6mm
• STICK:
  STICK Welding Current Range: 20-120A
  STICK Duty Cycle @ 40°C:
  15% @ 120A
  60% @ 60A
  100% @ 45A
  STICK Electrode Range: 2.5-3.2mm
  STICK Welding Thickness Range: 3-6mm

FEATURES:

• The ultimate DIY multi-process welder, the VIPER MULTI 135 is perfect for those weekend projects.
• This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.

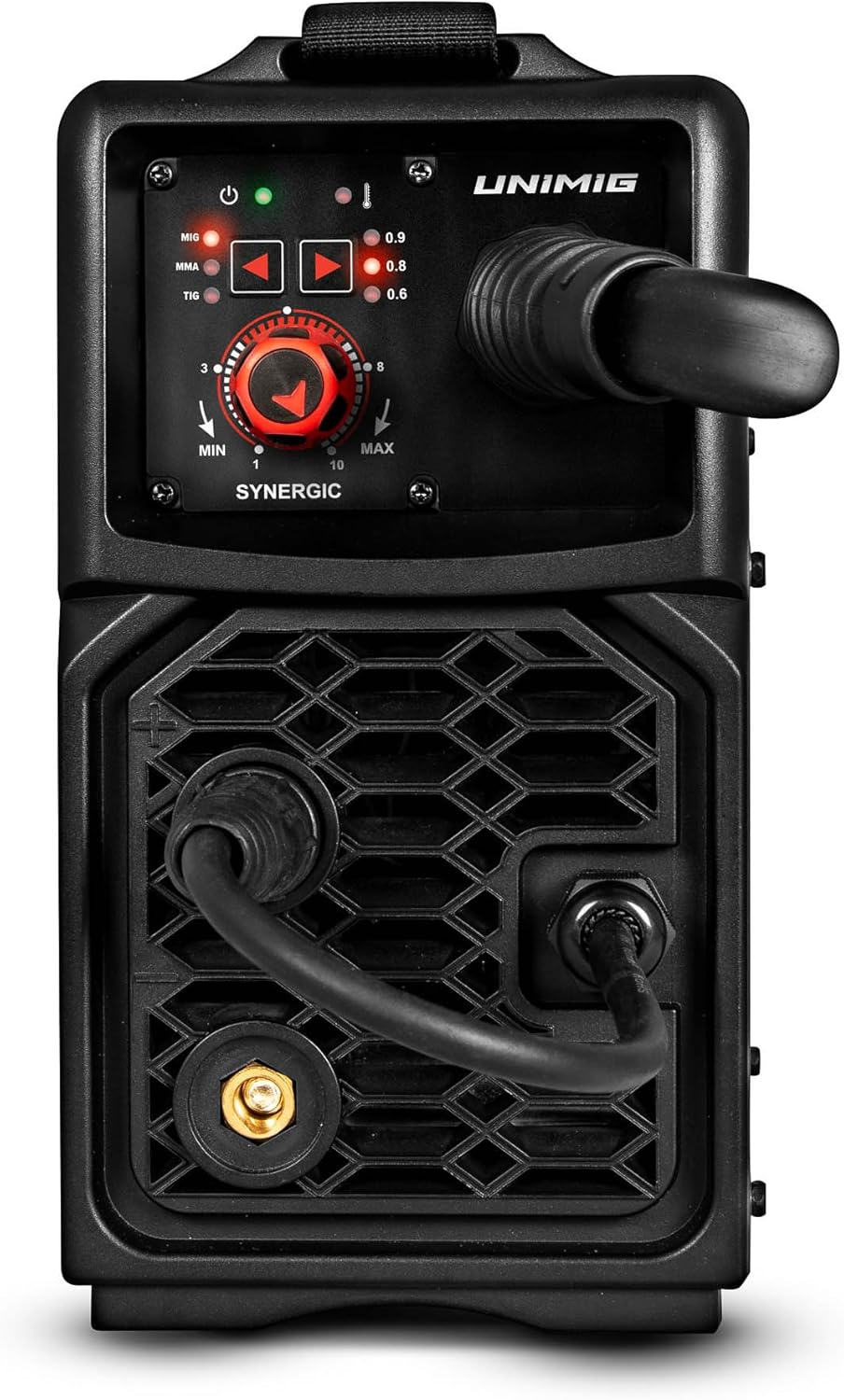

• The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and adjust the Synergic power knob to the thickness of your material. The program works with 0.6, 0.8 and 0.9mm mild steel, stainless steel & flux-cored wires.
• Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
• This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel & flux-cored MIG wire.
• Weighing just over 5kg, the VIPER MULTI 135 is ready to go anywhere you need it. Also included is a shoulder strap for extra comfort and portability.
• Synergic MIG controls for quick and easy weld setups.
• 3-in-1 multi-process machine so you can MIG, TIG & STICK.
• 10 amp plug, so you can use it with any domestic outlet.
