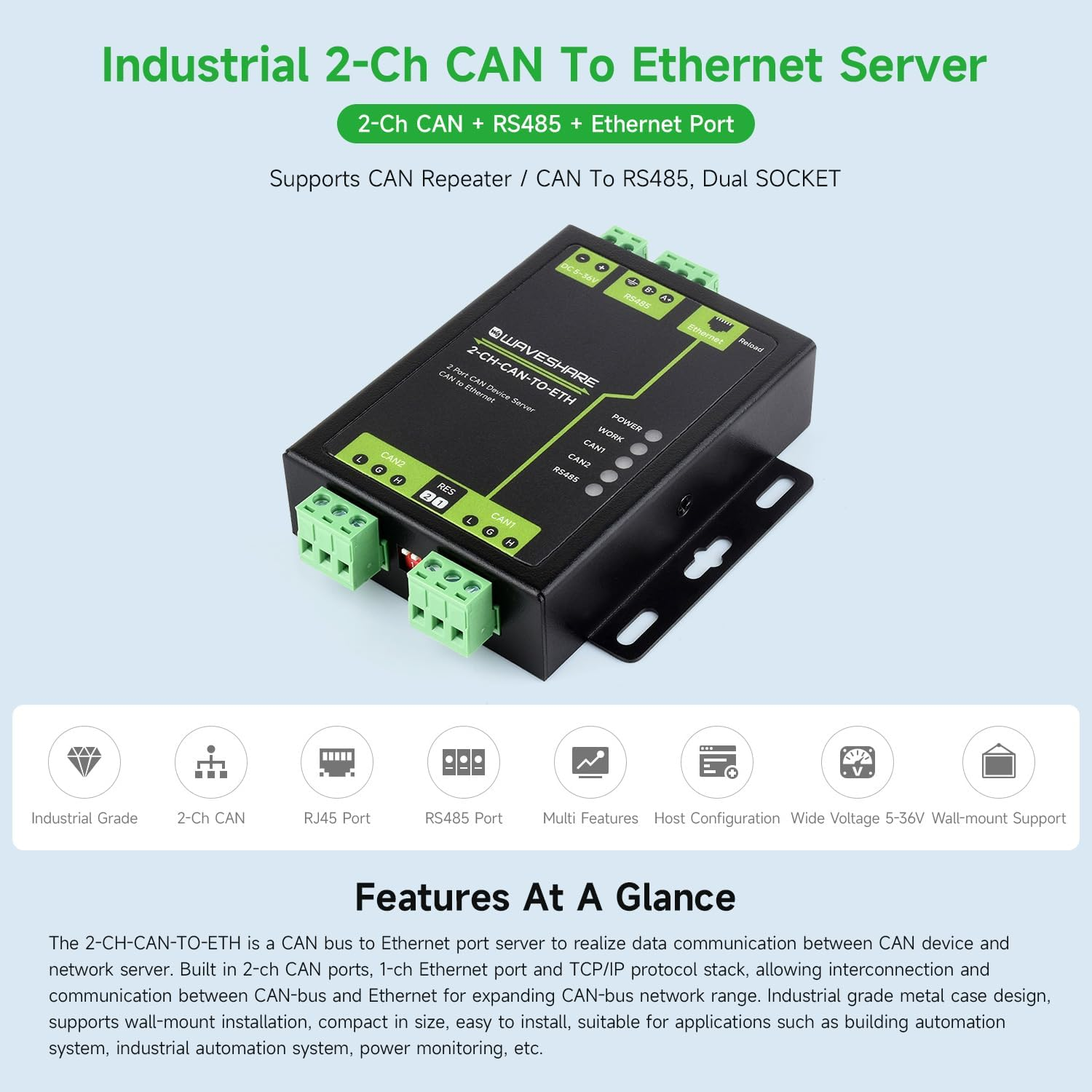

Waveshare Industrial Grade 2-Ch CAN to Ethernet Server, 2-Ch CAN + RS485 + Ethernet Port, Supports CAN Repeater/Can to RS485, Dual SOCKET, Aluminium Alloy Case, Wall-Mount Support

Waveshare Industrial Grade 2-Ch CAN to Ethernet Server, 2-Ch CAN + RS485 + Ethernet Port, Supports CAN Repeater/Can to RS485, Dual SOCKET, Aluminium Alloy Case, Wall-Mount Support

Brand: Waveshare
3.4
A$139.65
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

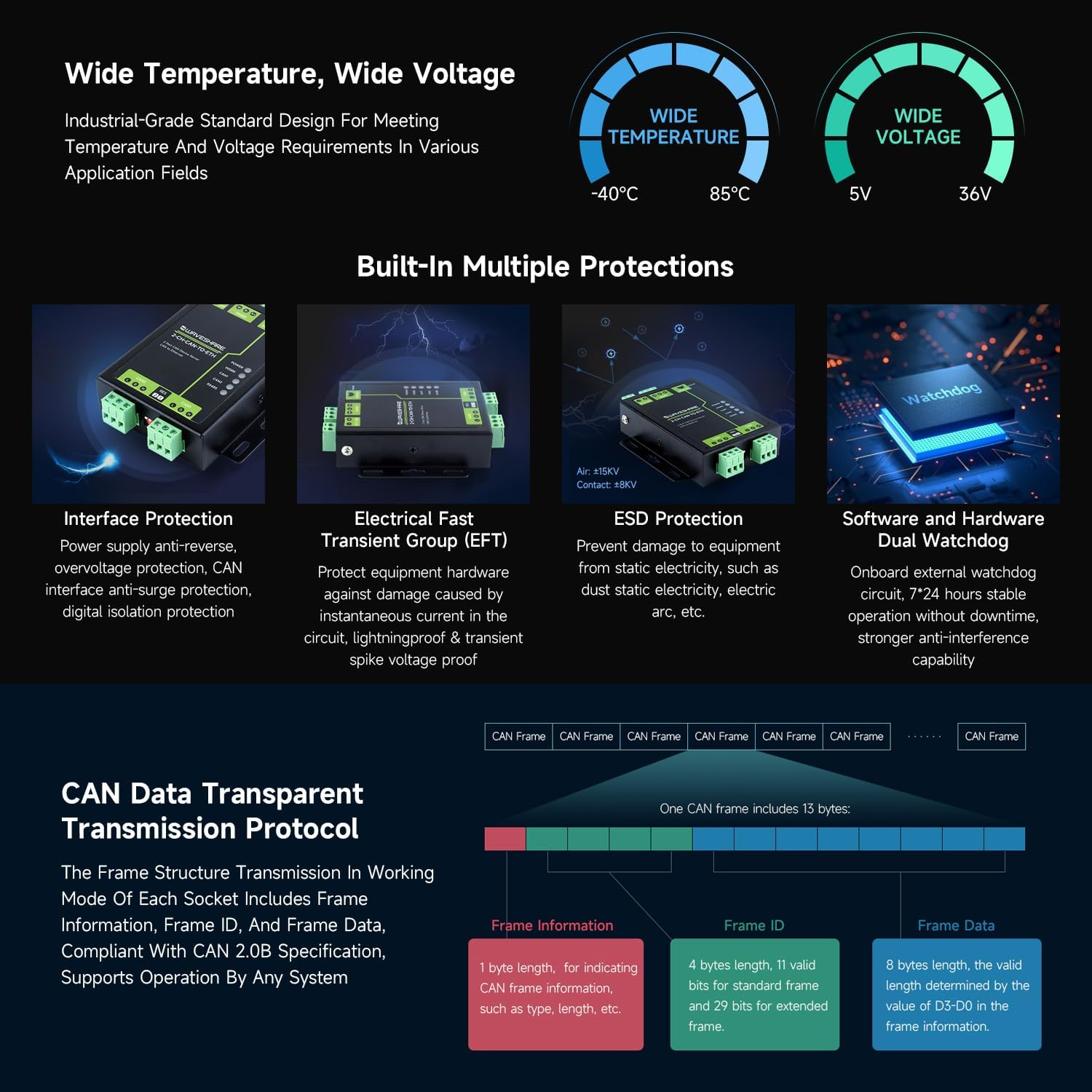

  • Built-In Multiple Protections: [Interface Protection];[Electrical Fast Transient Group (EFT)];[ESD Protection];[Software and Hardware Dual Watchdog]

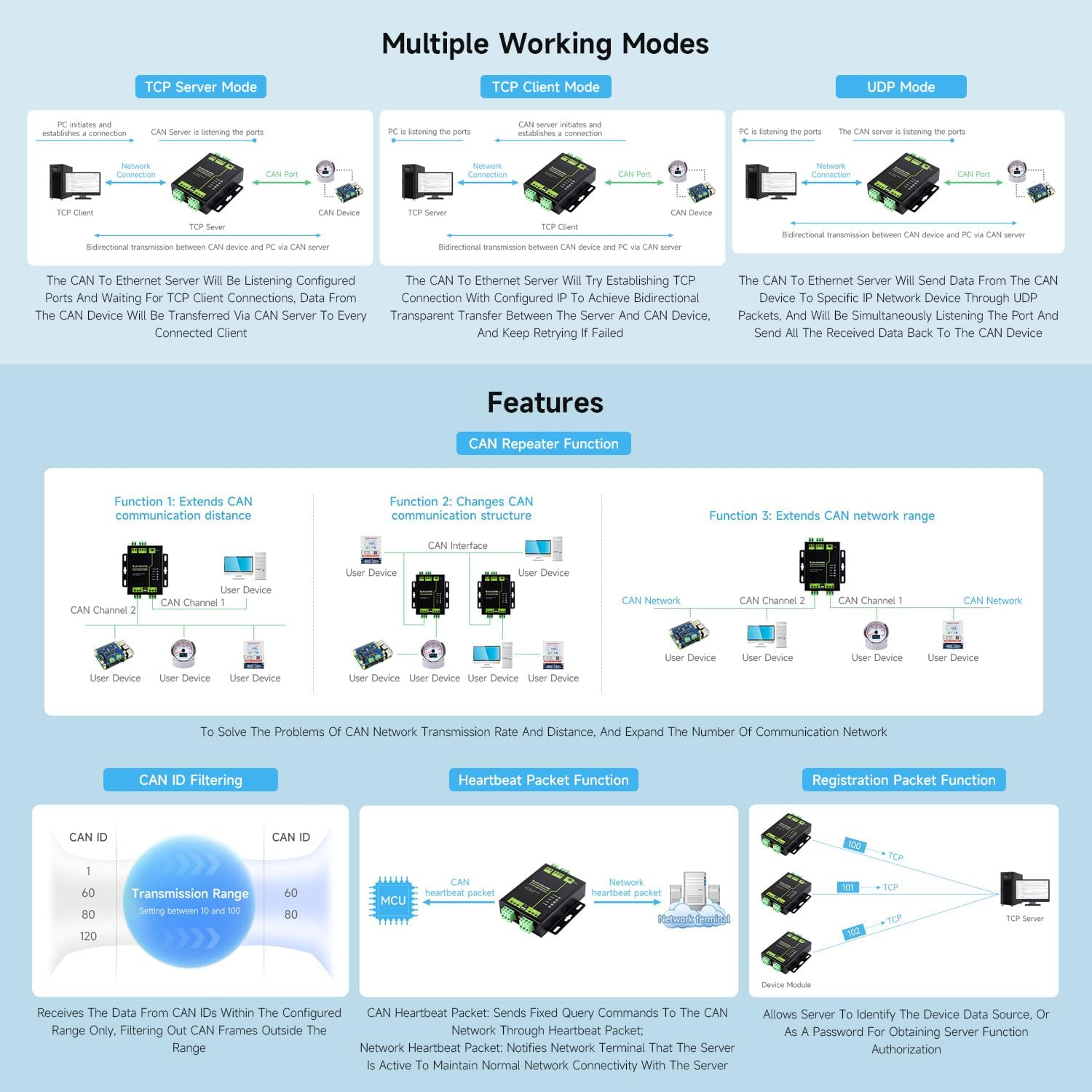

  • Multiple Working Modes: [TCP Server Mode]; [TCP Client Mode]; [UDP Mode]
  • [Wide Temperature, Wide Voltage] Industrial-Grade Standard Design For Meeting Temperature And Voltage Requirements In Various Application Fields.[CAN Data Transparent Transmission Protocol]The Frame Structure Transmission In Working Mode Of Each Socket Includes Frame Information, Frame ID, And Frame Data, Compliant With CAN 2.0B Specification, Supports Operation By Any System
  • Features: [CAN Repeater Function]; [CAN ID Filtering]; [Heartbeat Packet Function]; [Registration Packet Function]
  • Application Examples:[Charging Station Solution]Expands Charging Station Management Scope For Saving Cost;Supports CAN Repeater Function To Increase Communication Distance;Real-Time Monitoring Of Each Charging Station Status To Control The Project Status.[Building Control Solution]Industrial-Grade Design That Can Adapt To Outdoor Harsh Environments;Takes Real-Time Information Of Different Buildings Into Account, And Transmits To Remote Server For Overall Coordination

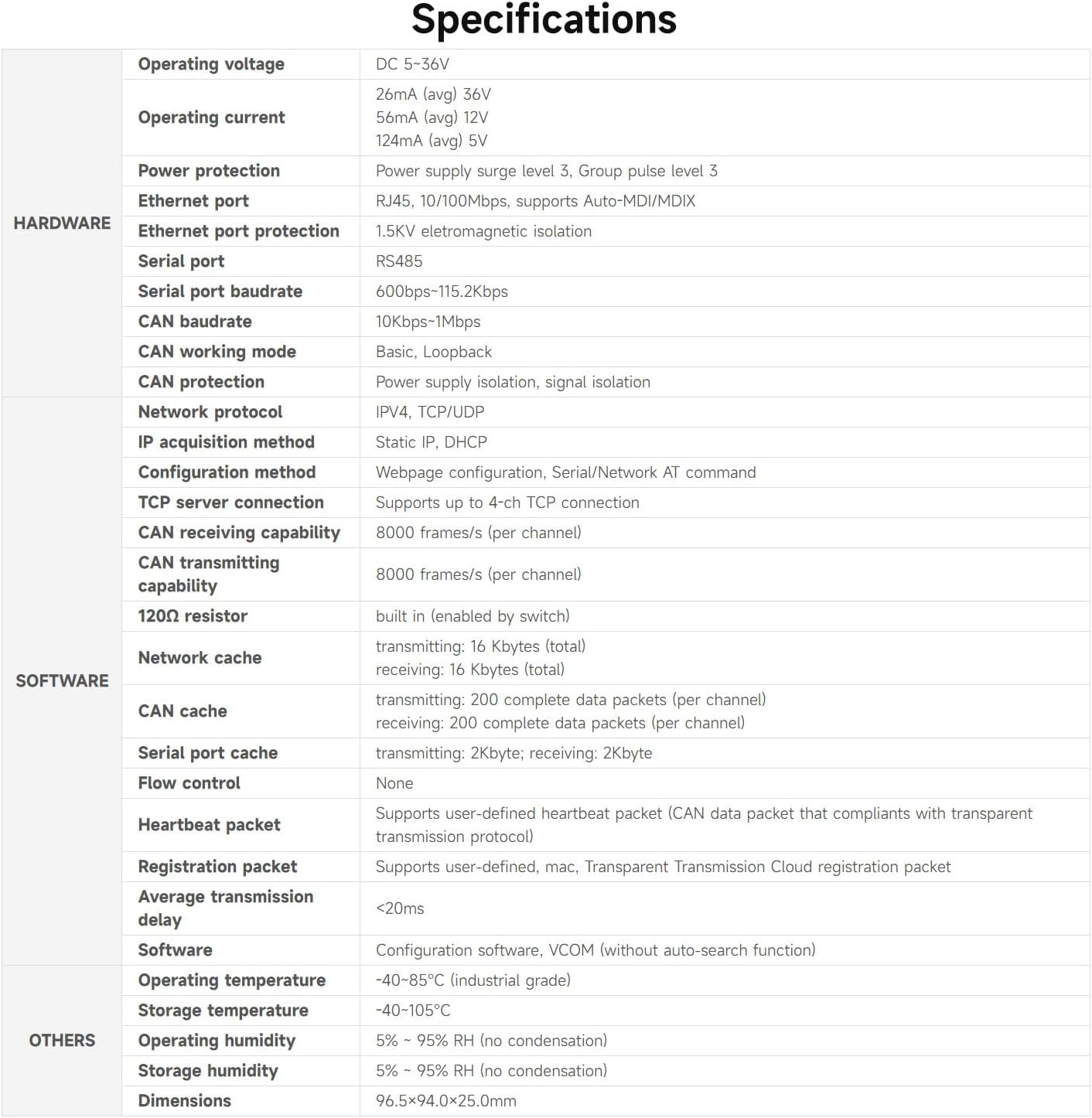

Product Description

  • Part Number: 2-CH-CAN-TO-ETH
  • Operating System: Linux
  • Processor Count: 2
  • Manufacturer reference: 2-CH-CAN-TO-ETH
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Waveshare
  • Compatible Devices: CAN devices, Charging Stations, Building Control Devices
  • Package Dimensions: 12 x 10 x 3 cm; 310 Grams
  • Connector Type: Ethernet
  • Item Weight: 310 g
  • Ram Memory Technology: DDR
  • Model Name: 2-CH-CAN-TO-ETH
  • Processor Brand: ARM
  • Wireless Type: Infrared
  • Manufacturer: Waveshare
