1. Dual Power Automatic Transfer Switch: Provides a seamless transition between two power sources, ensuring uninterrupted power supply for essential devices.

2. and Durable: Made from flame retardant PC and silver materials, with a PC level grade for added safety and longevity for long working hours.

3. Easy Installation and Operation: Designed with a compact size, this mini ATS can be easily installed in various settings. It features a quick switching time of less than 50ms.

4. Versatile Configuration: This automatic transfer switch is equipped with 3P configuration and two relays, each with two groups of contacts for versatile control options.

5. High Performance: With a rated insulation voltage of AC 690V, rated voltage of AC 400V, and a rated short circuit current of 50kA, this mini ATS delivers performance in any situation.

Spec:

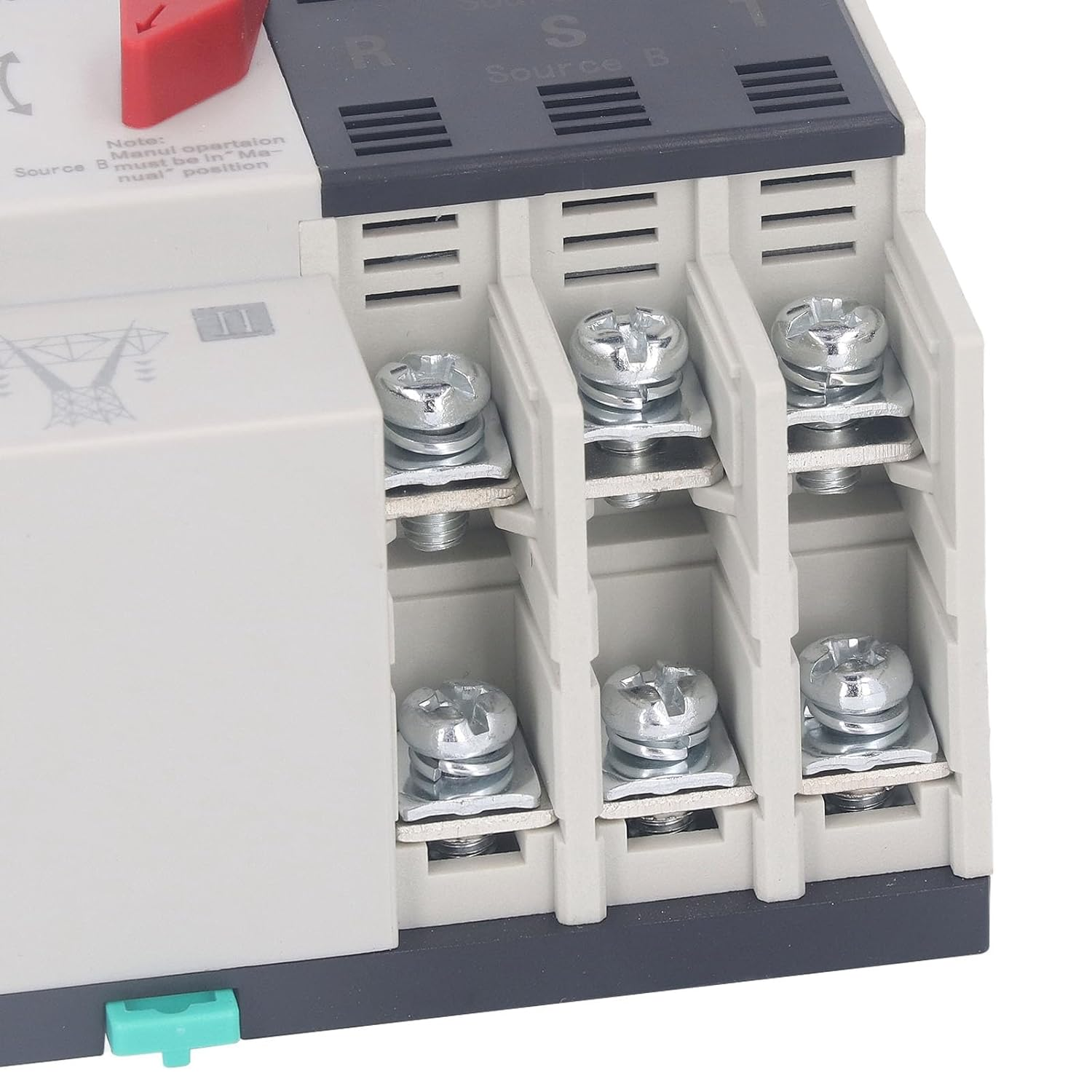

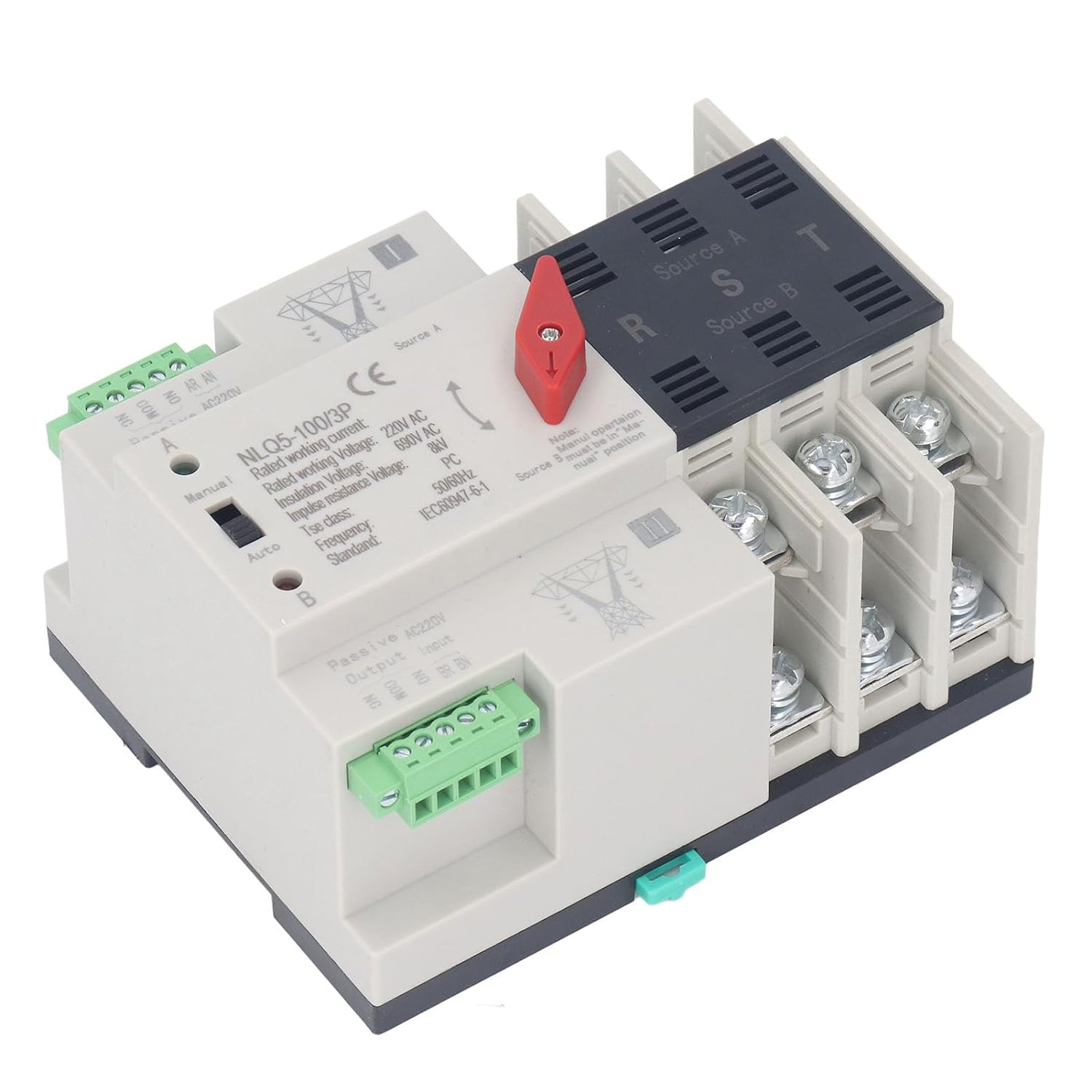

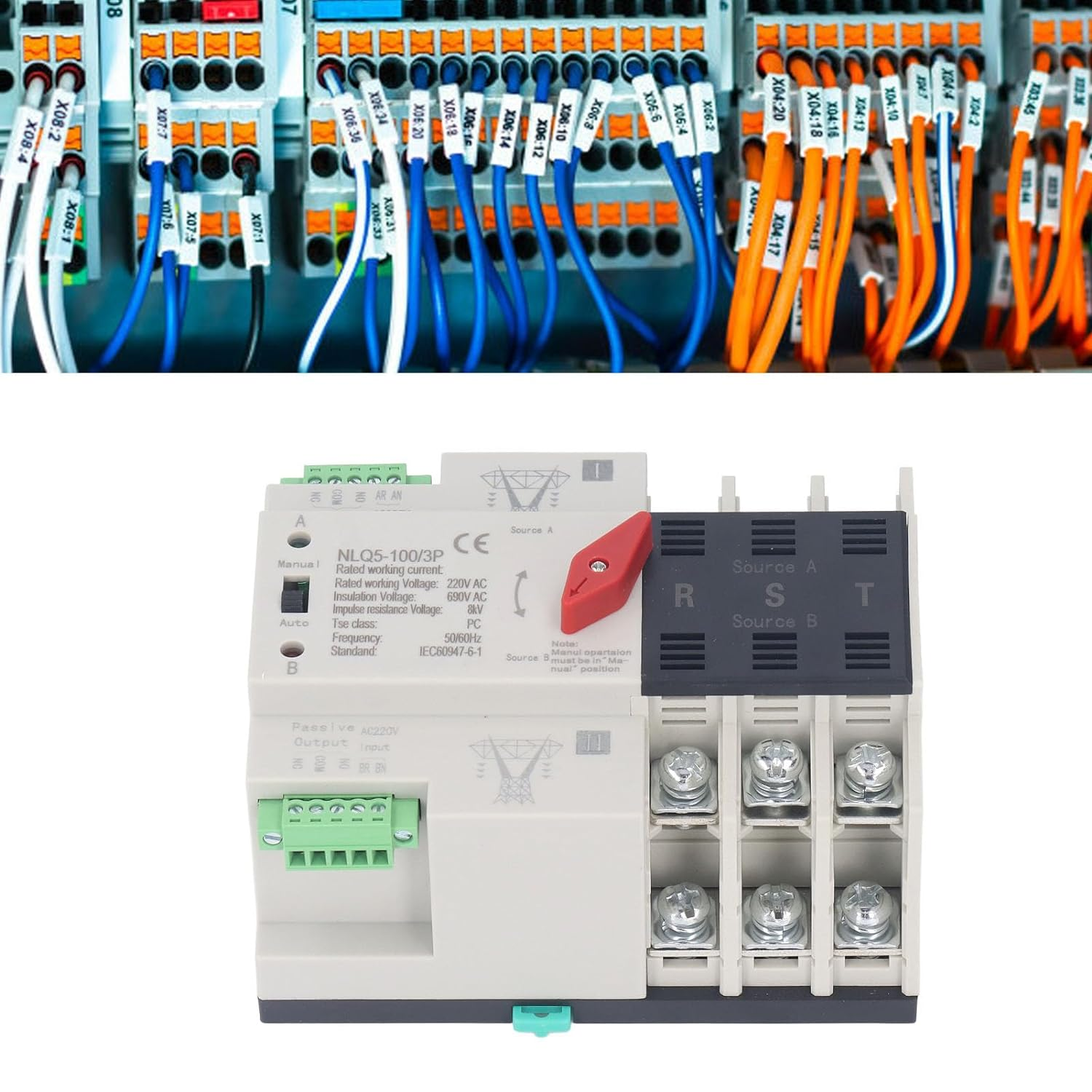

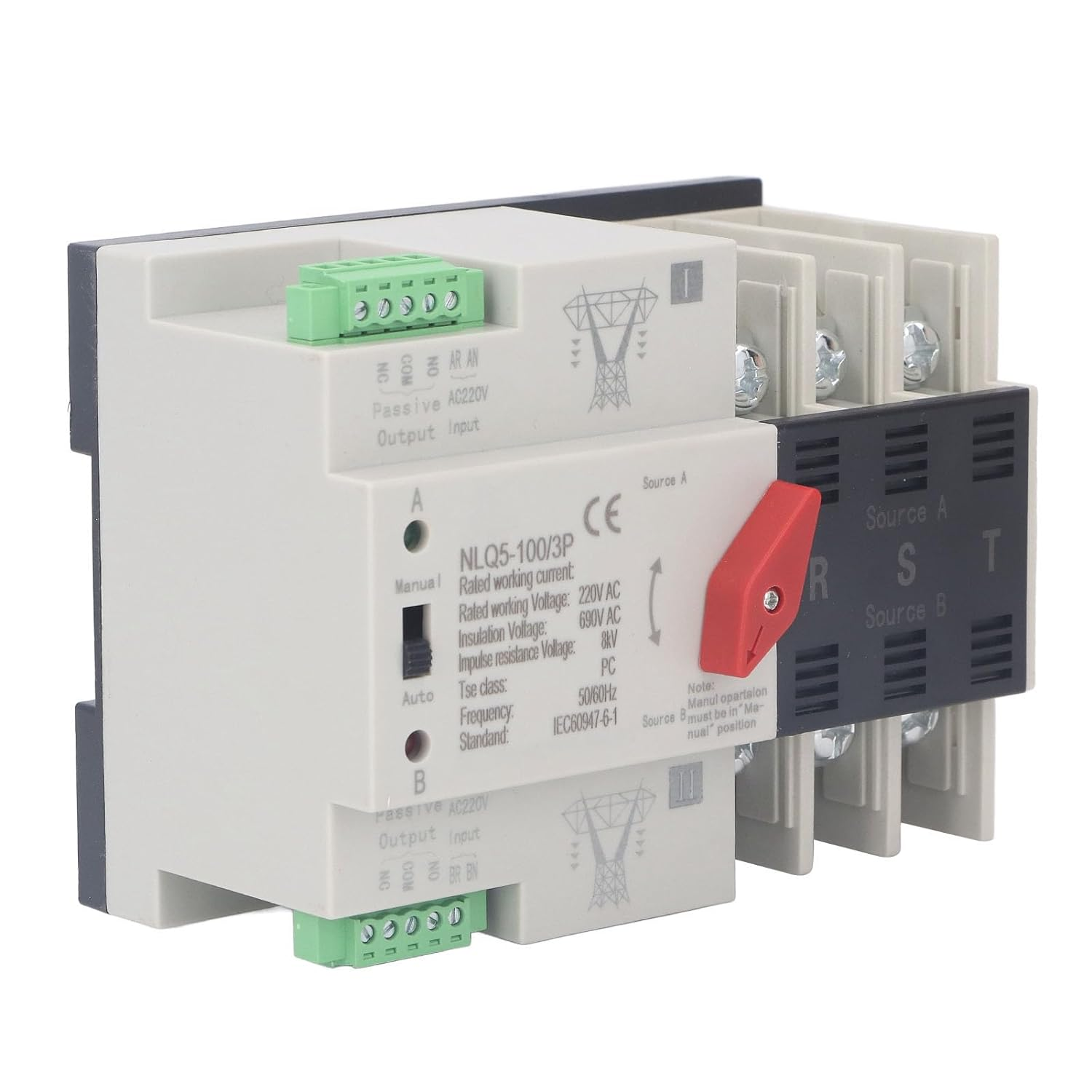

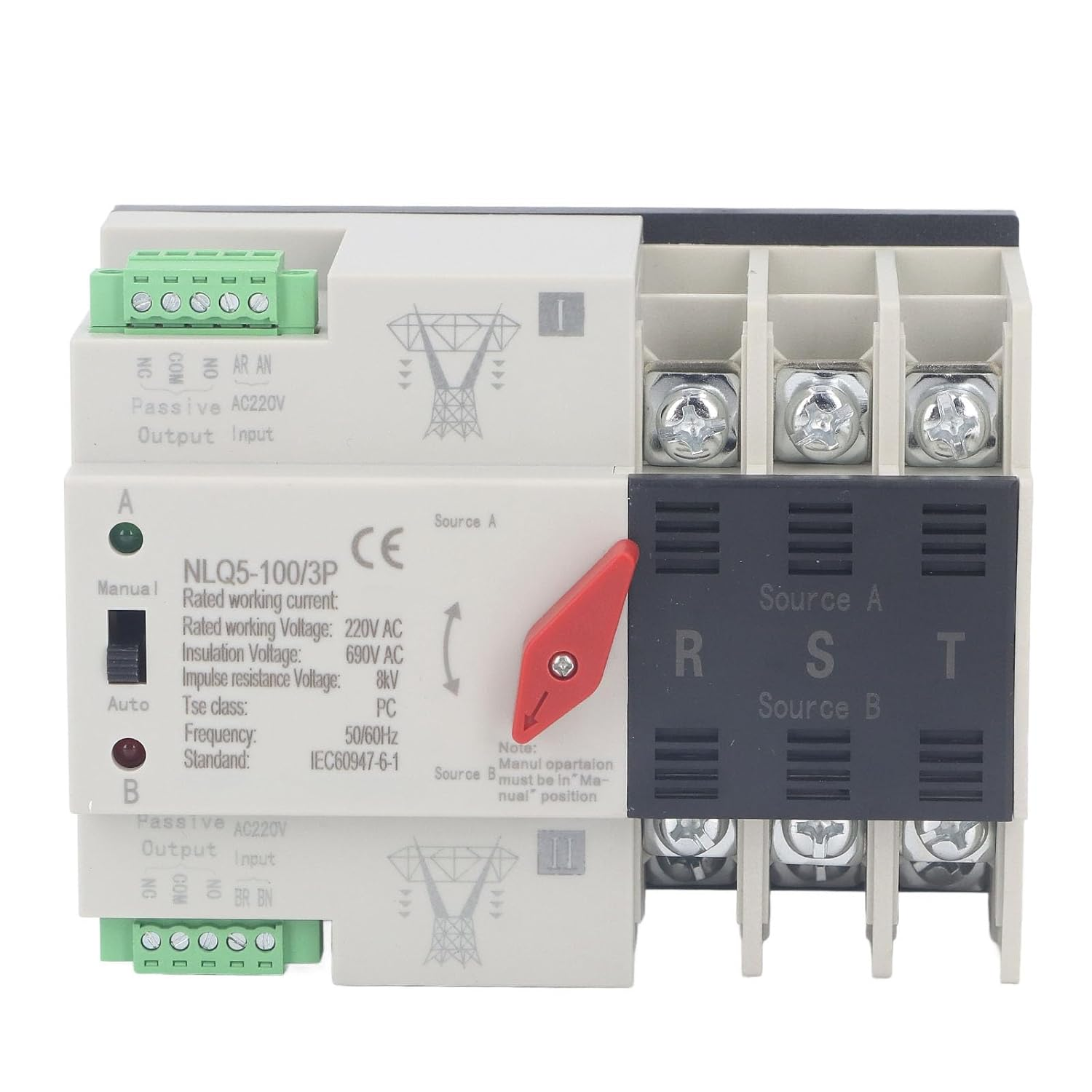

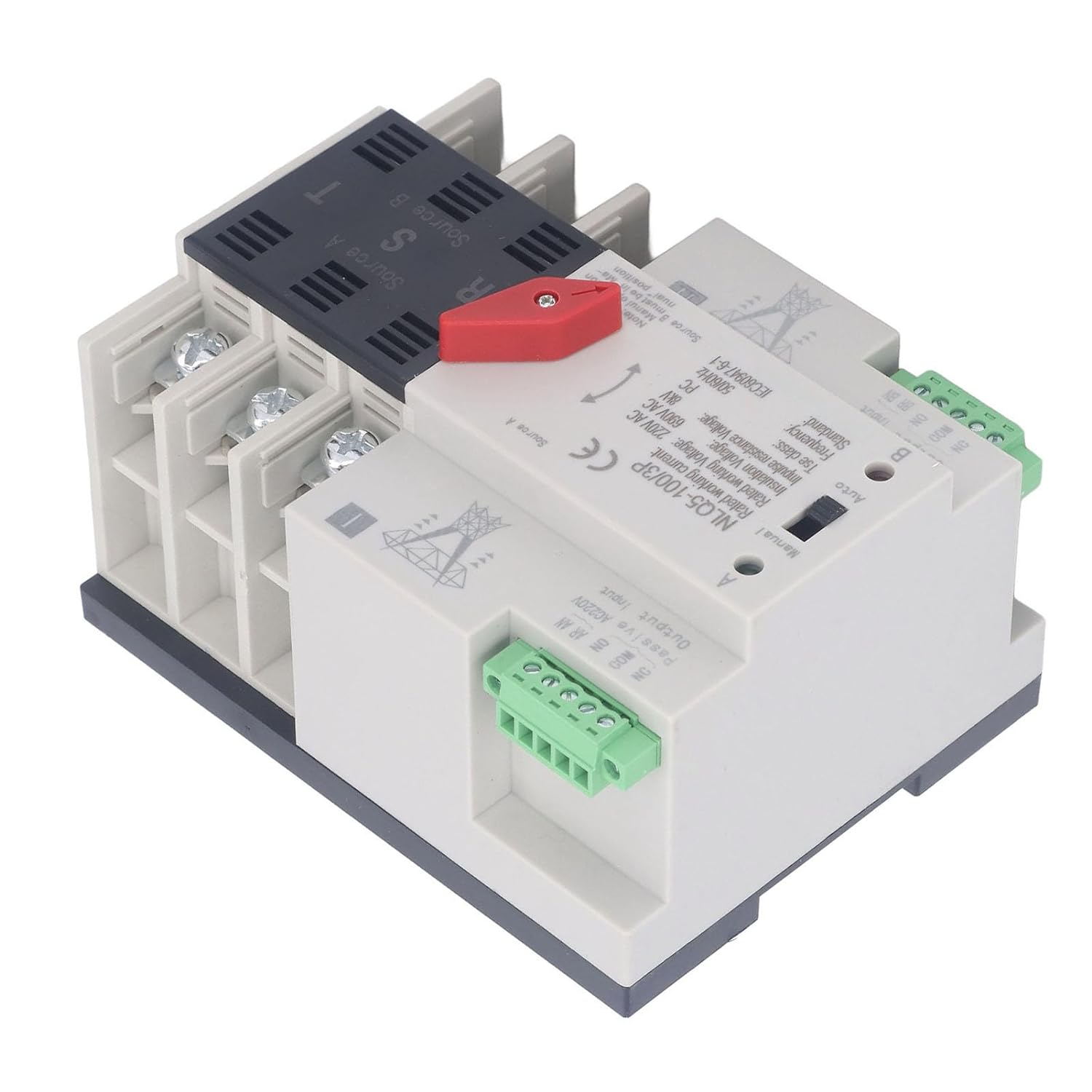

Item Type: Dual Power Automatic Transfer Switch

Model: NLQ5-100/3P

Material: Flame Retardant PC, Silver

Insulation Voltage Ui: AC690V 50HZ

Rated Voltage Ue: AC400V 50HZ

Level: PC level

Specification: 3P

Rated Control Voltage US: 220VAC 85% Us-110% Us

Life: Electrical: 2,000 times. Mechanical: 5,000 times.

Rated Short Circuit Current: 50kA

Fuses: RT16-00-63A

Rated Impulse Withstand Voltage: 8kV

Auxiliary Circuit: Two relays, each with two sets of capacity: AC220V50HZ le=5y.

Touch Time: Operation Conversion Time: Return Time: Closing Time:

How to Use:

Before installation, please check the integrity of the ATS, use the operating handle to turn it on or off, check the flexibility of the transmission, and detect the generation and disconnection condition of the load at each stage of the normal and standby power supplies.

PackageList:

1 x Dual Power Automatic Transfer Switch

1 x User Manual

Notice:

1. The maximum ambient temperature shall not exceed 40 ℃, the minimum temperature shall not be lower than ‑ 5 ℃, and
