2PCS 30KG Metal Gear Digital Servo High Torque Steering Gear Servo, Waterproof Aluminium Case RC Servo Motor DS3230 for 1/8 1/10 1/12 RC Cars (Control Angle 270°)
2PCS 30KG Metal Gear Digital Servo High Torque Steering Gear Servo, Waterproof Aluminium Case RC Servo Motor DS3230 for 1/8 1/10 1/12 RC Cars (Control Angle 270°)
Brand: Stemedu
A$77.45
- Operating Voltage: 4.8 ~ 6.8 DC Volts; Torque: 29.5kg/cm at(5V), 34.5 kg/cm.at (6.8V)
- Motor Type: DC Motor, Gear Material: Copper & Aluminum

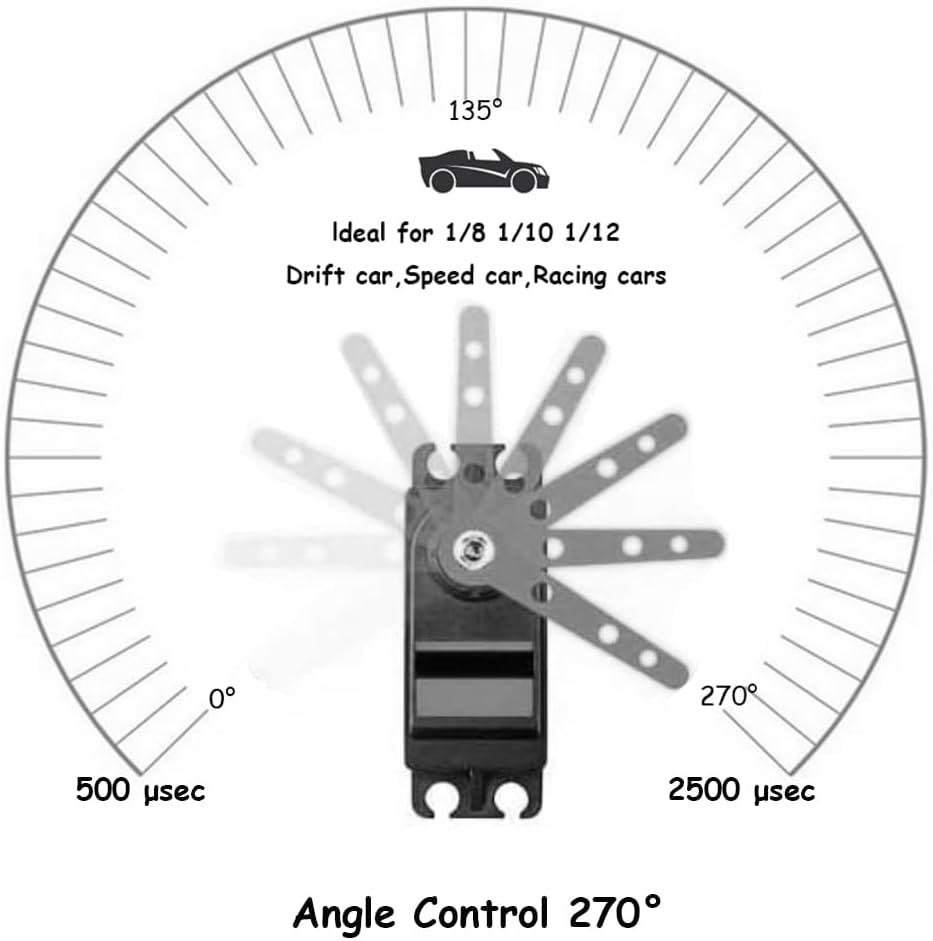

- A high-torque 30kg servo, the rotation angle is 270 degrees (at 500→2500μsec), it is 0 degree at 500 μsec, 270 degree at 2500 μsec.
- This servo motor 30KG is controlled by pulse, compatible with 1/8 and 1/10 scale RC robots, trucks, off-road vehicles, robotic arms, and any application that uses a standard servo system, good choice for university professors and students who are interested in developing software for robot parts

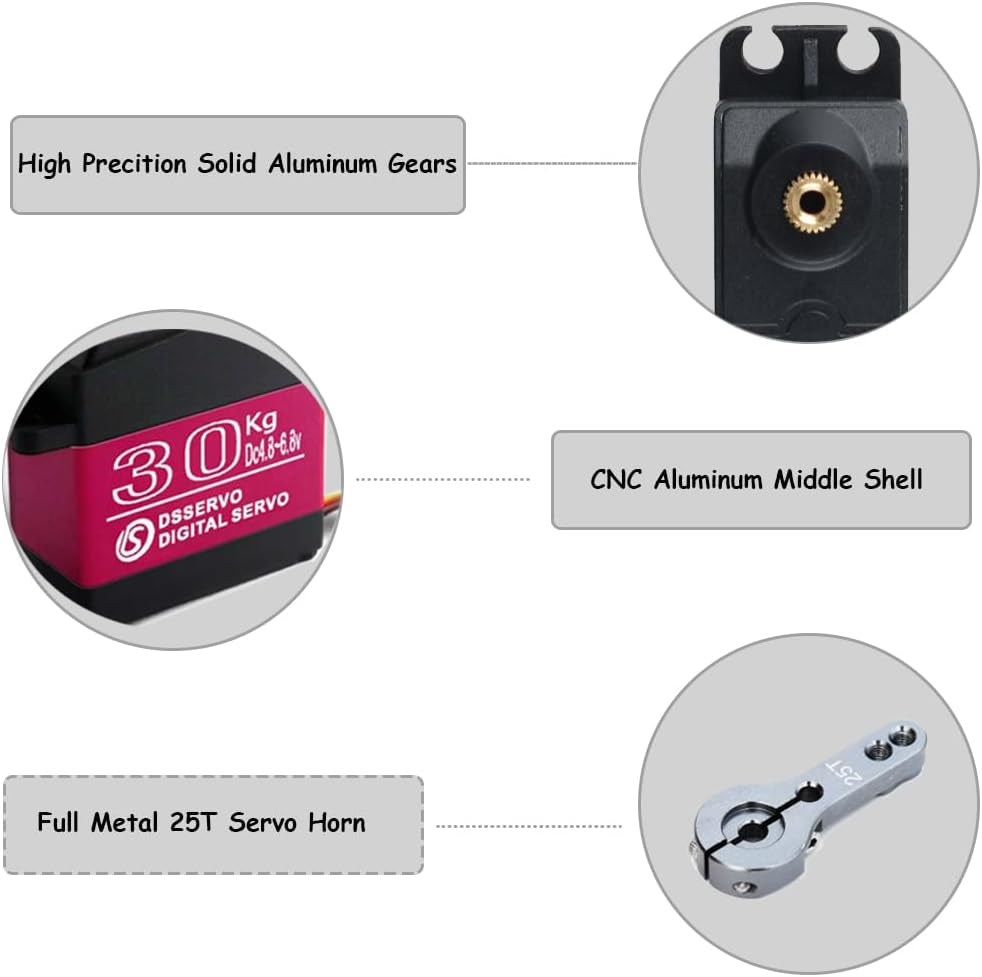

- High-precision metal gear with hard anodizing for better accuracy and longer service life, waterproof rubber seals screws, made of first-grade material ensure the longevity of the products
Description:
This high torque 30KG servo is compatible with1/8, 1/10, 1/12 Truck, RC Car / Robot / Boat. Great choice for people who are interested in developing software for robot parts.
Low noise, stable performance
Specification：
Torque: 29.5kg/cm at(5V), 34.5 kg/cm.at (6.8V)
Speed : 0.2 sec/60°(5V) / 0.17 sec/60°(6.8V)
Motor type: DC Motor
Gear material: Copper & Aluminum
Middle shell: CNC Aluminum
Top & Bottom material: Plastic
Operating voltage range: 4.8 ~ 6.8V
Dead brand: 3μs
Working frequence: 1520μs / 333hz

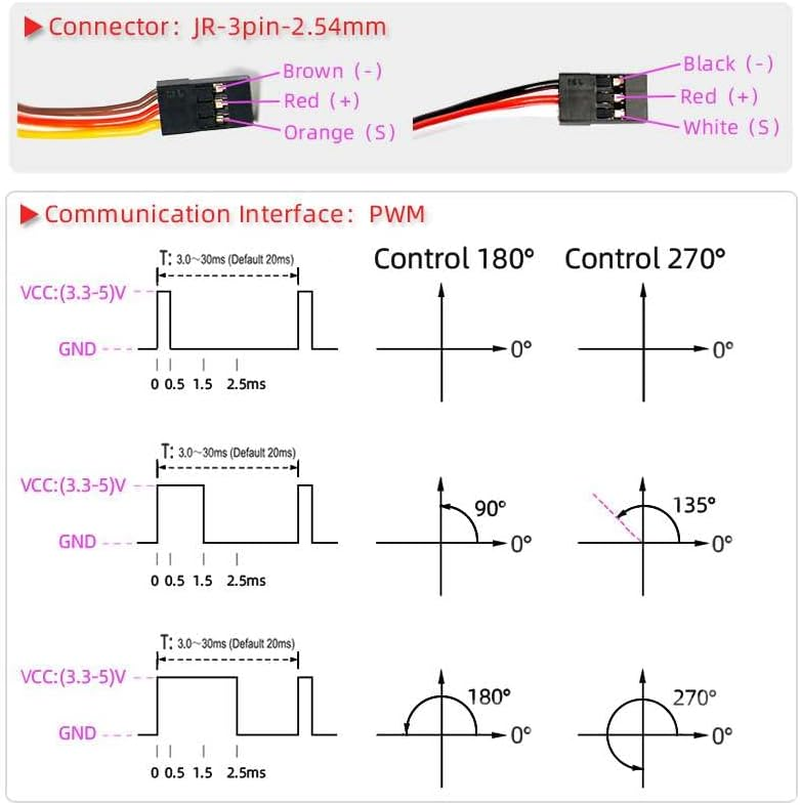

Pulse width range: 500～2500µsec
Rotating direction: Counterclockwise (when 500～2500 µsec)
Neutral position: 1500µsec
Running degree: 0° (when 500 μ sec)
Running degree: 270° (when 2500 μ sec)
Storage temperature Range: -30℃～80℃
Operating temperature Range: -15℃～70℃
Waterproof performance: IP66
Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
Weight: 84g

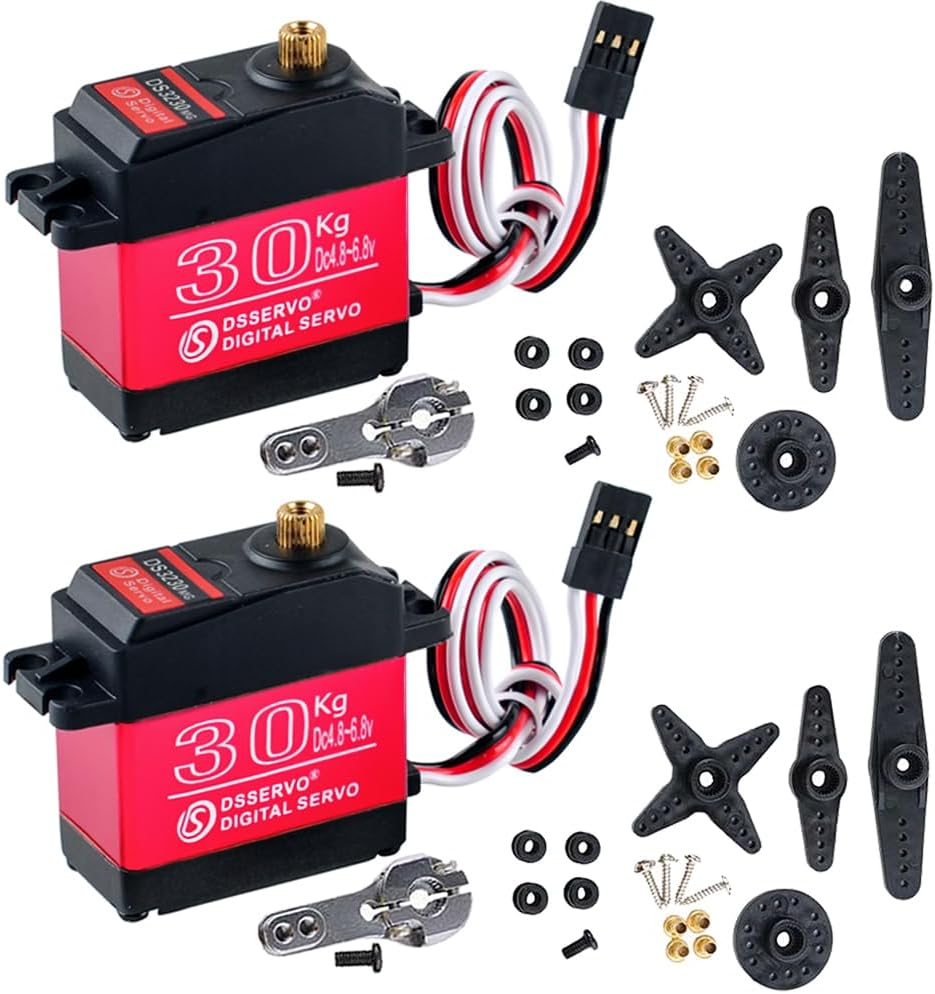

Package Included:
2 x DS3230 30KG large torque digital servo
2 x 25T metal servo arm
2 x Screw and accessories set
- Item Model Number: 30KG
- Batteries Required?: No
- Assembly Required: No
- Colour: Black and Red
- Model Number: 30KG
- Material Type(s): Aluminum and plastic
- Manufacturer recommended age: 12 months and up
- Batteries Included?: No
- Product dimensions: 3.99 x 1.98 x 4.01 cm; 158.76 Grams
