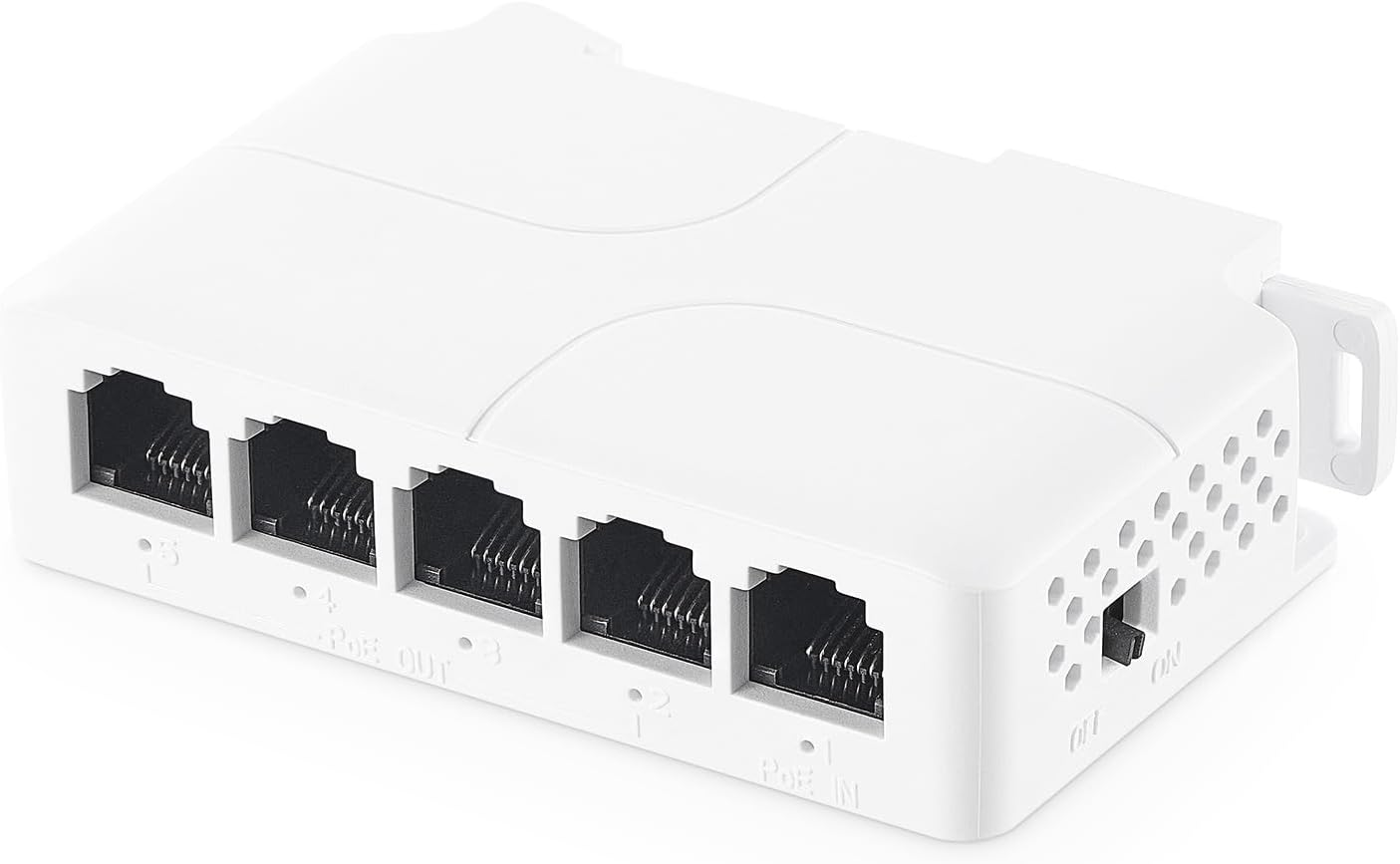

Binardat Poe Passthrough Switch - 1 in 4 Out Extender, Ieee802.3Af/At/Bt Powered 90W, 100Mbps Ethernet, Din Rail & Wall Mount Plug and Play

Binardat Poe Passthrough Switch - 1 in 4 Out Extender, Ieee802.3Af/At/Bt Powered 90W, 100Mbps Ethernet, Din Rail & Wall Mount Plug and Play

Brand: Binardat
5.0
A$25.20
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

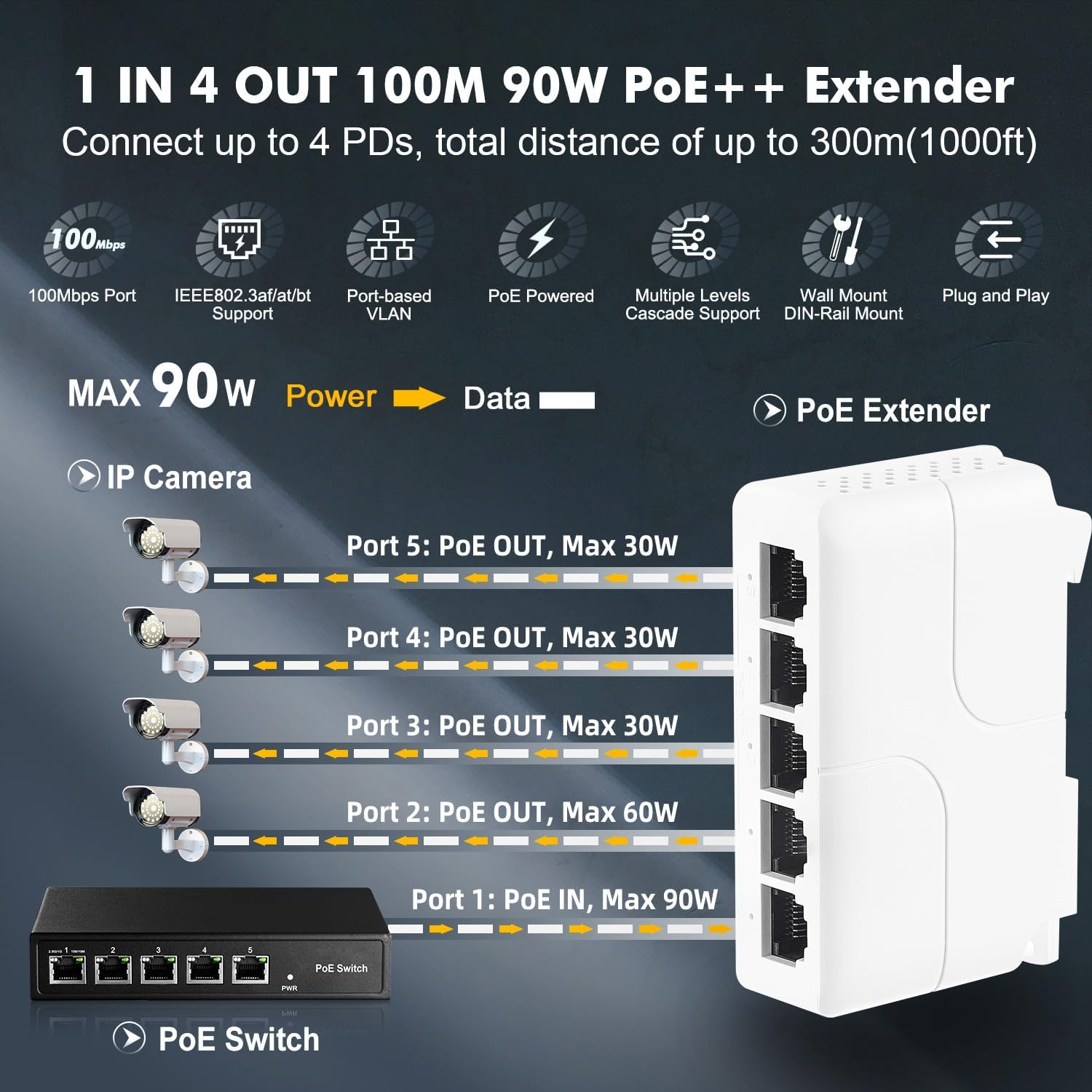

  • 【PoE Passthrough】Include 1 PoE In 4 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

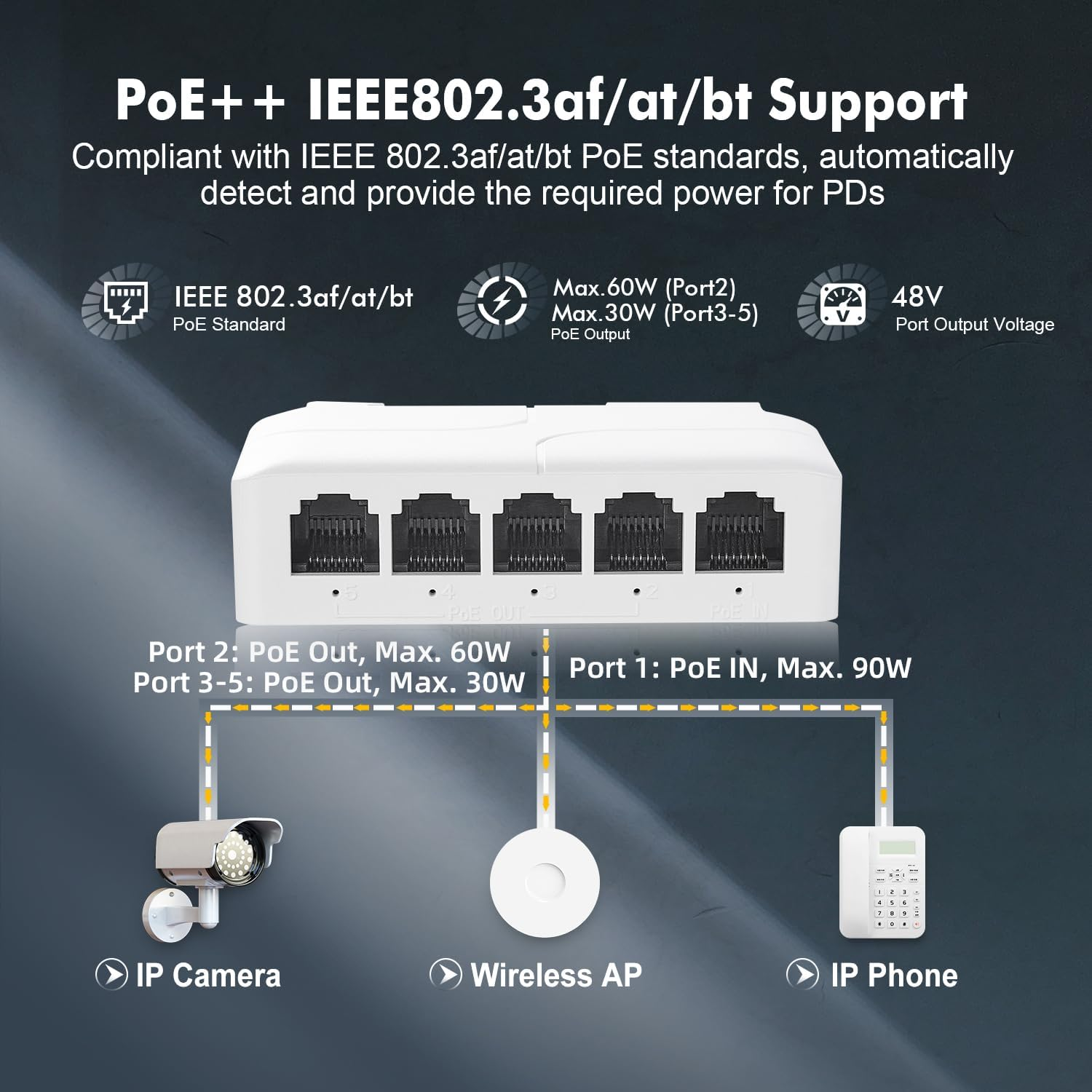

  • 【IEEE 802.3 af/at/bt】 Support standard PoE, Port 1 Input Max 90W(IEEE802.3bt), Port 2 Output 60W(IEEE802.3bt), Port 3-5 Output Max 30W(IEEE802.3at), PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Output Port 2: 1/2 (+), 3/6 (-)，4/5(+), 7/8(-); Output Port 3-5: 1/2 (+), 3/6 (-)

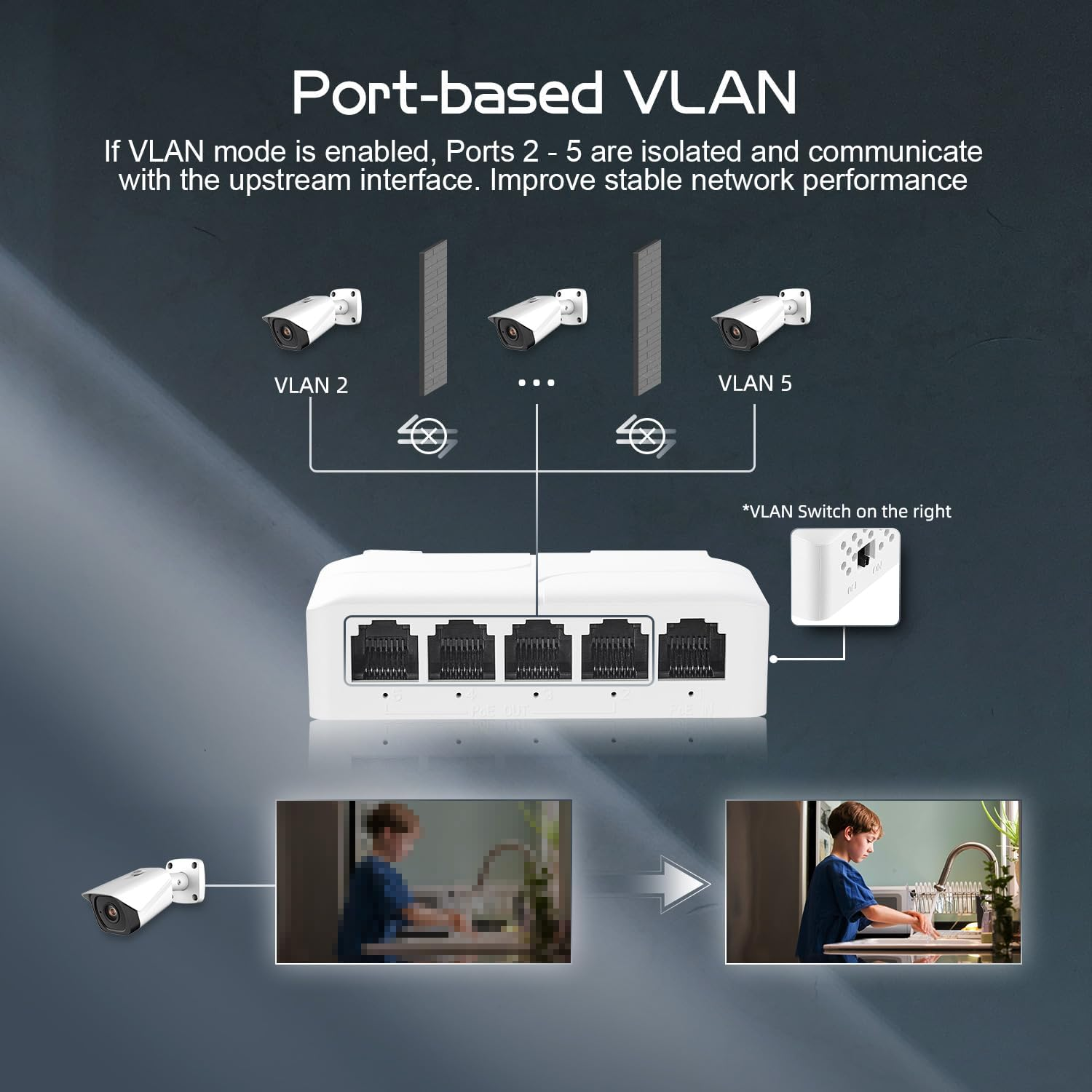

  • 【VLAN & Extend Mode】 Support VLAN mode and extension 250M, controlled by dipswitch. With the VLAN function turned on, POE output ports 2-5 are isolated from each other, improving network security and increasing port utilization. POE extends transmission up to 250 meters at 10Mpbs.

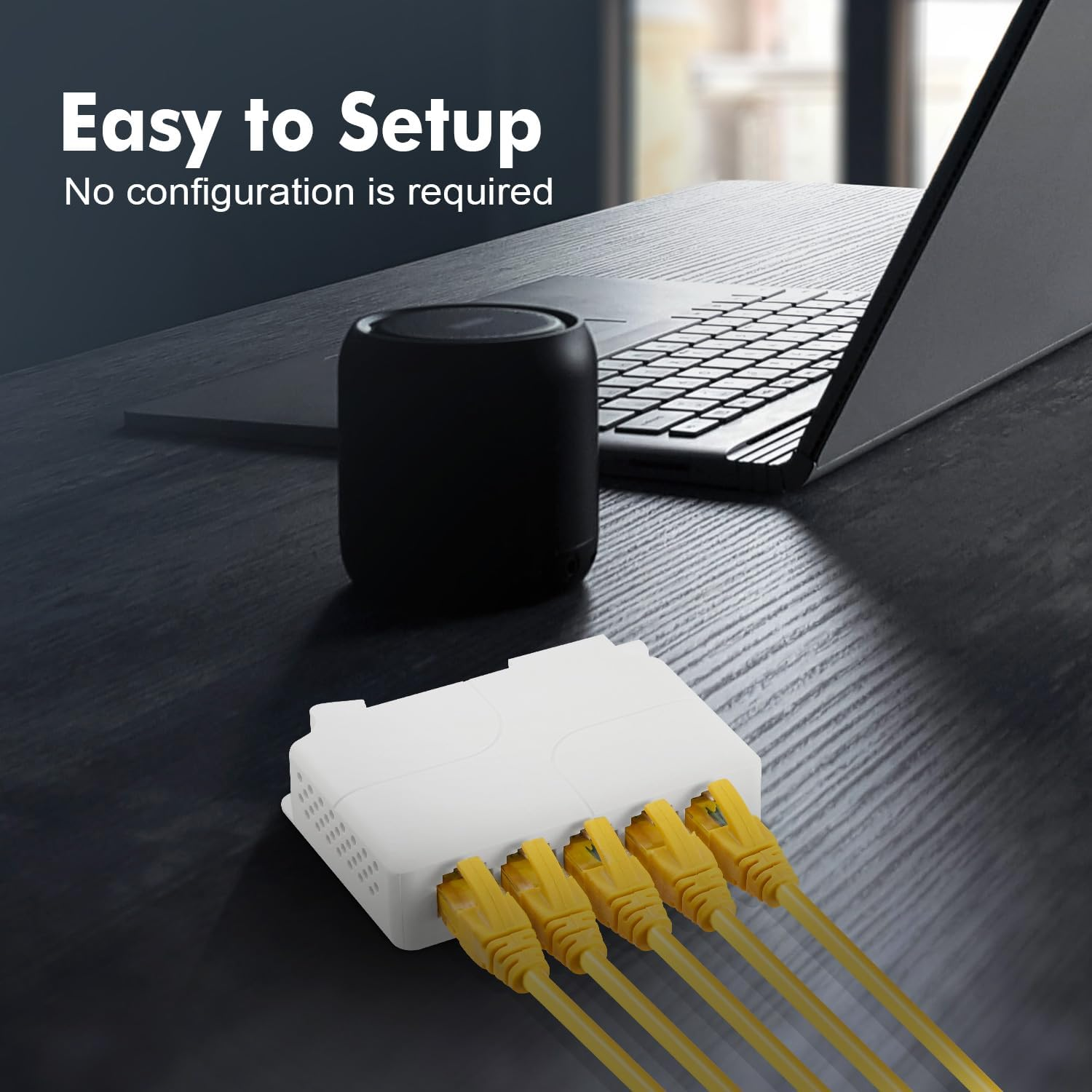

  • 【Plug & Play】 Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*.

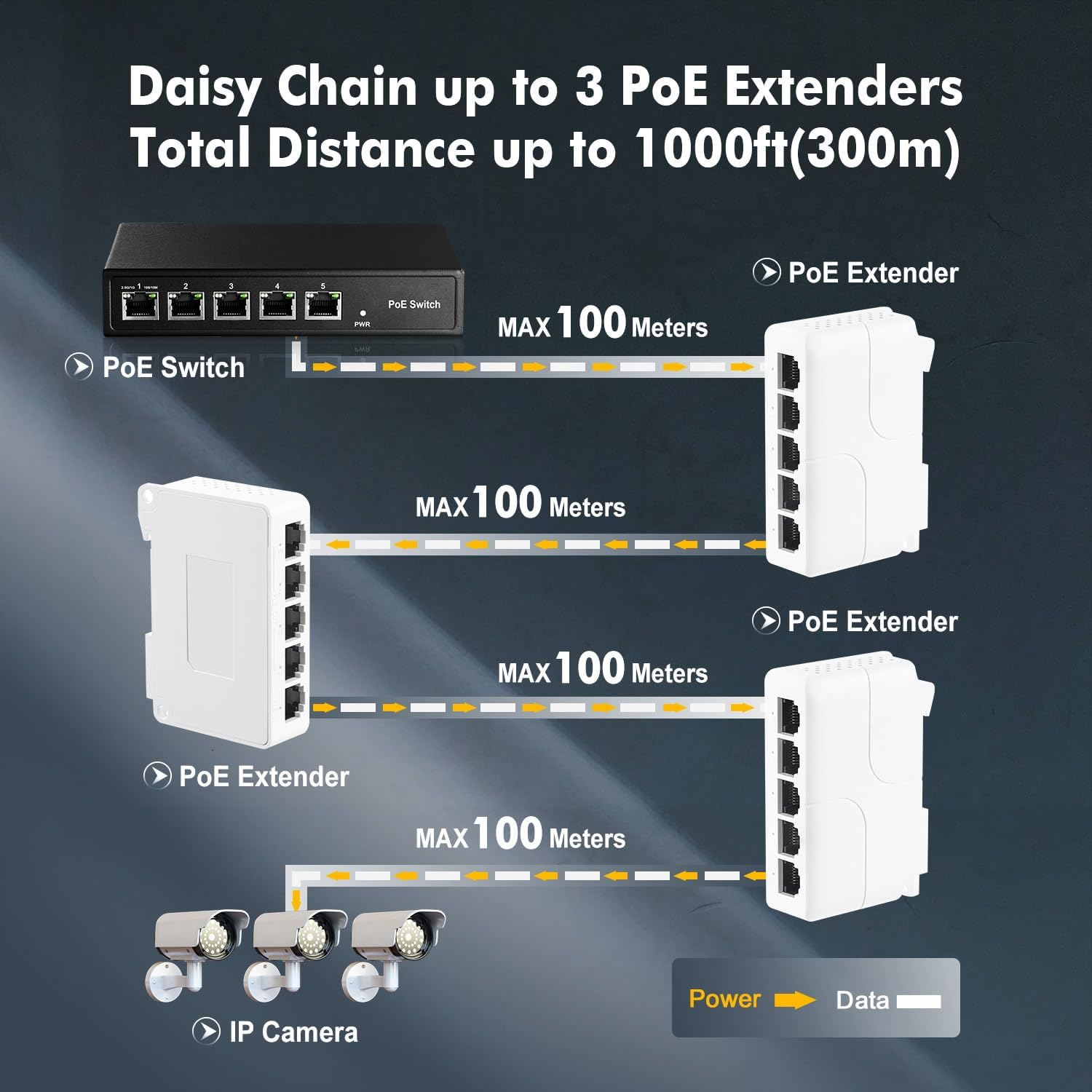

  • 【Easy Install】 Support wall mount and din rail, smaller size save space, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost

PoE Passthrough Switch, 1 PoE in 4 PoE Out Extender, IEEE802.3af/at/bt PoE Powered 90W, 100Mbps Ethernet, Din rail & Wall Mount Plug and Play

  • Item Model Number: 5 Port 100M
  • Part Number: POE-BT14F
  • Data transfer rate: 100 Megabits Per Second
  • Maximum power: 90 Watts
  • Number of items: 1
  • Batteries Included: No
  • Batteries Required: No
  • Upper temperature rating: 60 Degrees Celsius
  • Item weight: 0.06 Kilograms
  • Item Weight: 60 g
  • Interface type: RJ45
  • Model Name: 5 Port 100M
  • Case material type: Metal
  • Voltage: 57 Volts
  • Model: 5 Port 100M
  • Package Dimensions: 8.8 x 5.9 x 2.7 cm; 60 Grams
  • Manufacturer: Binardat
