Key features:
◆

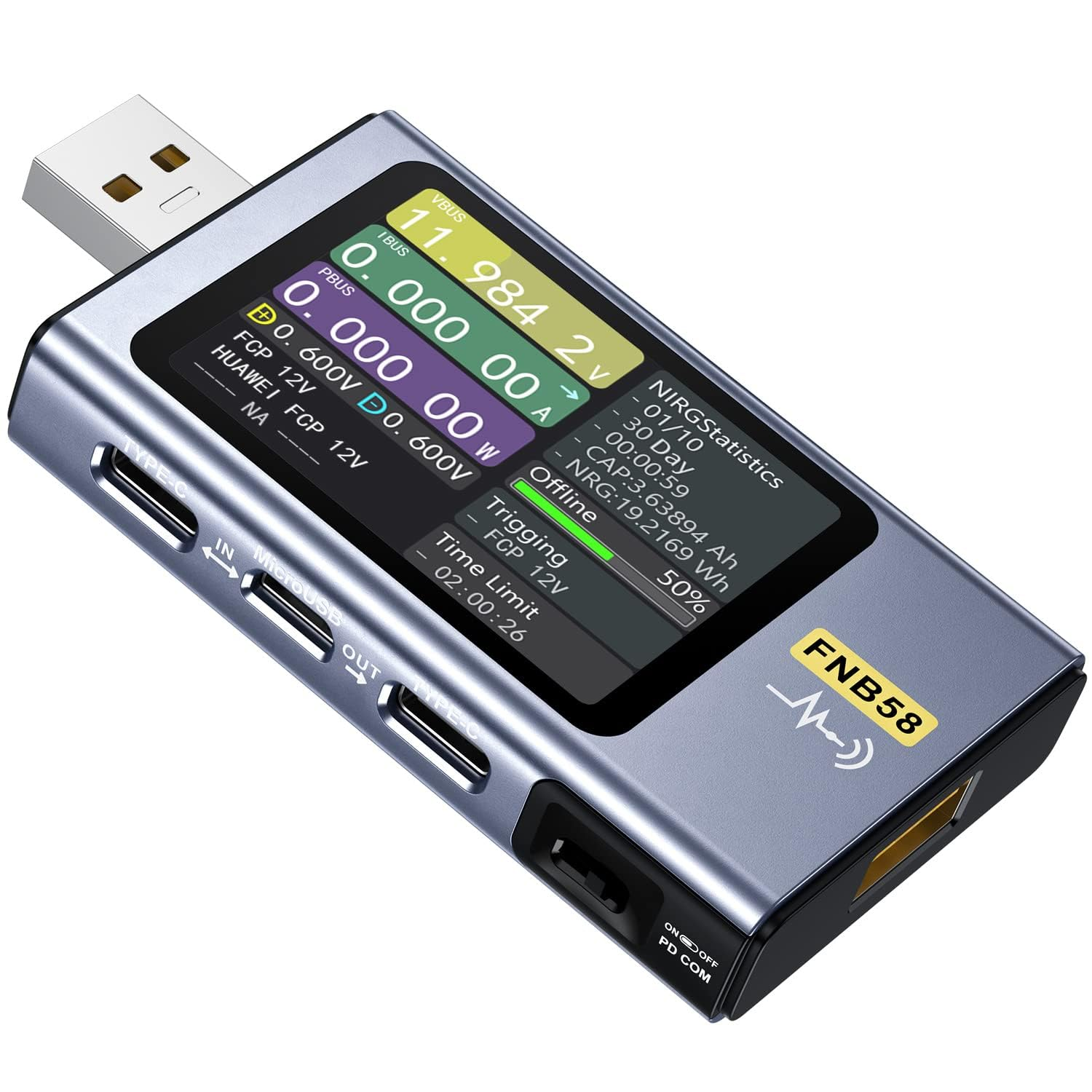

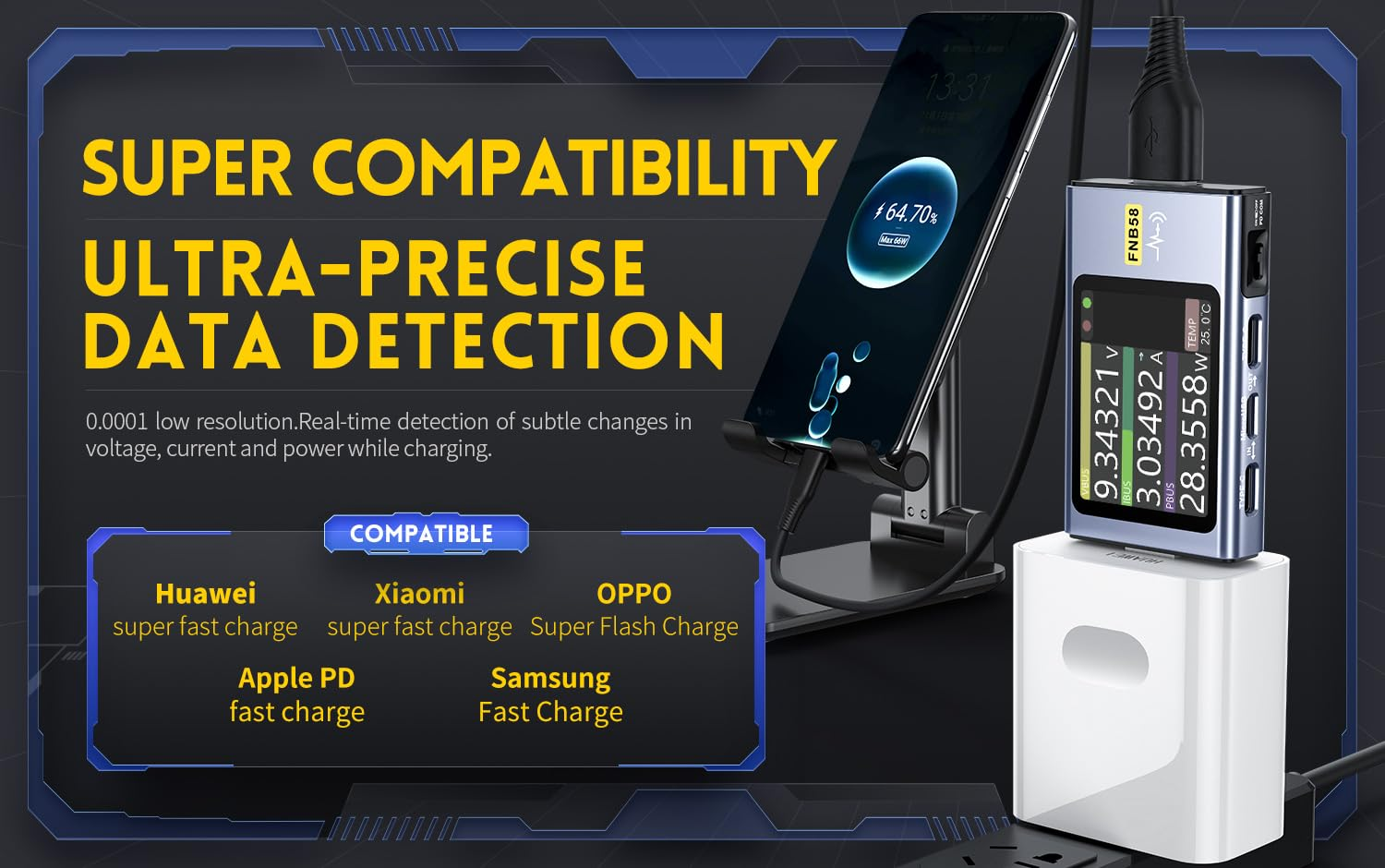

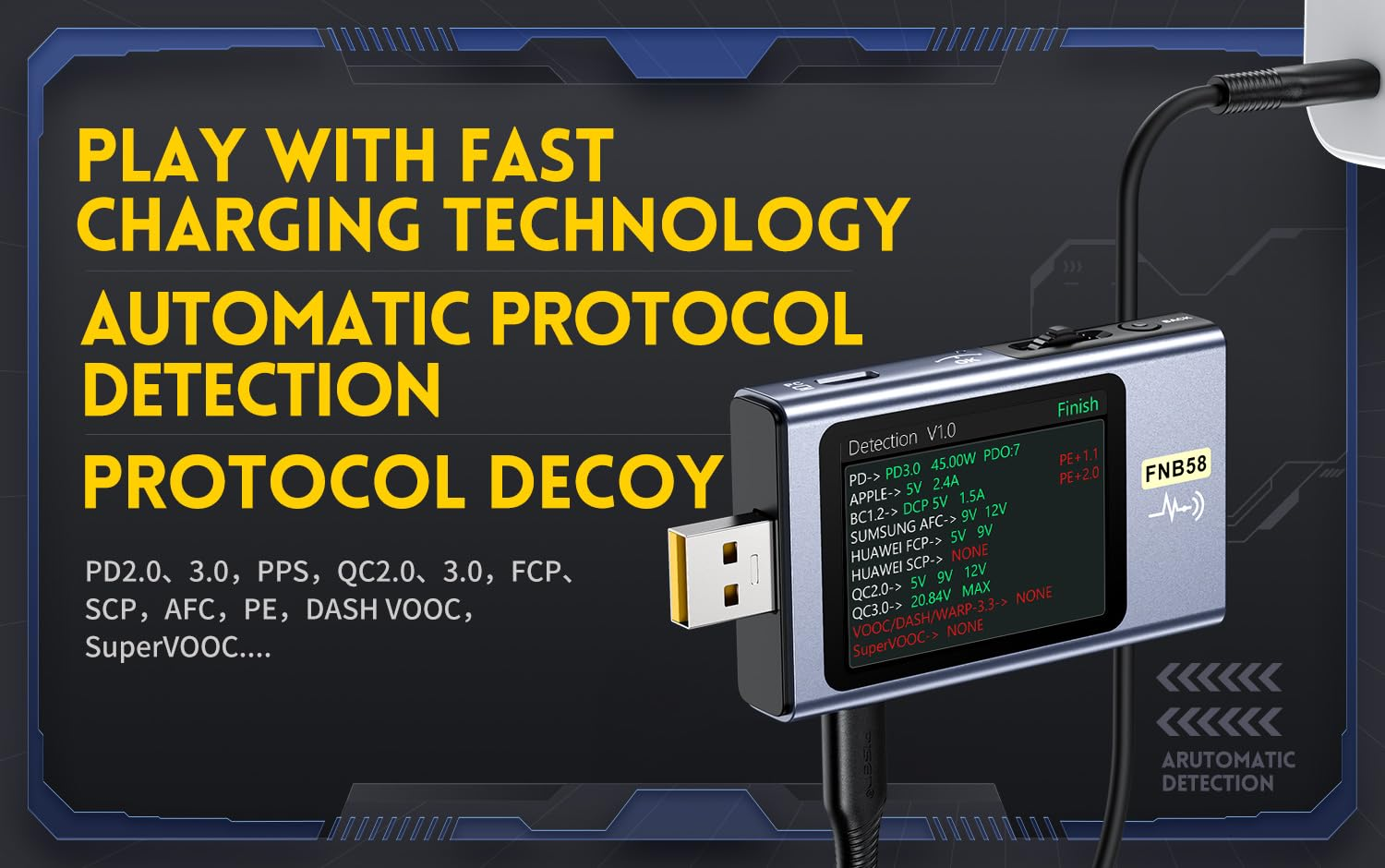

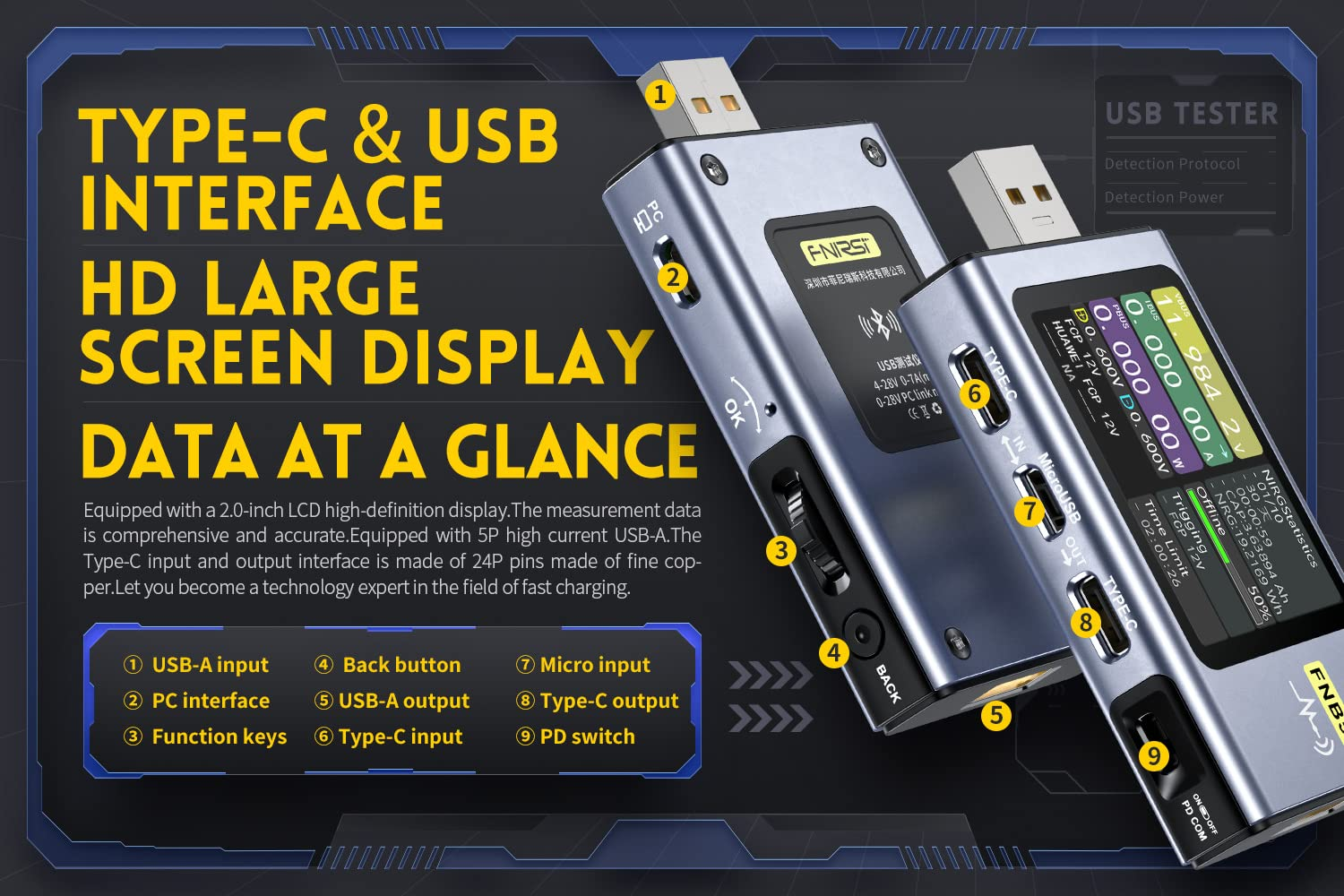

◆ 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. 0.0001 low resolution, real-time detection of subtle changes in voltage, current and power while recharging. Support automatic protocol detection
◆ Four functions curve display: Real-time voltage and current curve for view recharging curve changes in real time Abnormal recharging is found immediately.
◆ The offline curve recording support up to 9 hours offline voltage and current curve recording, show up during recharging. D+D1 voltge curve can show the recharging protocols changes and master in time.

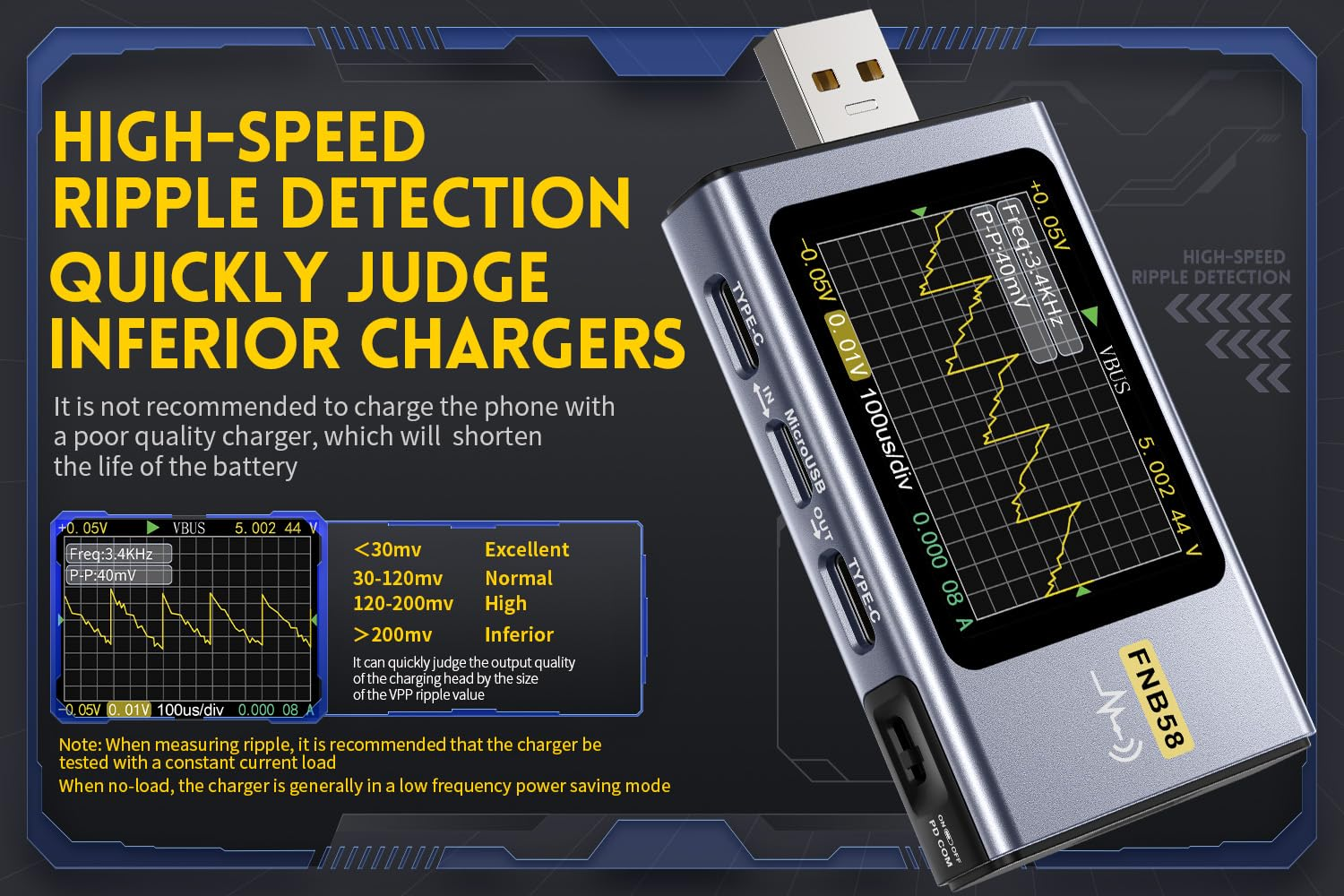

◆ The high-speed power supplys ripple measurement curve can show you the chargers ripple measurement.
◆ PD E-MARKER CABLE DETECTION function makes it read data information of line with E-Marker chip.
◆ DASH CABLE DETECTION function makes it read DASH cable chip related data, also support cable internal resistance measurement. Support 10 sets of recharging and discharge energy data records.
Built-in battery capacity calculation form. The battery capacity can be quickly calculated from the recorded data.
◆ The BT Version: The BT version allows you to synchronous data to your mobilephone and has the APP overvoltage and overcurrent alarm function. (Only BT version has this function.)
◆
◆ Specifications:
◆ Material: metal
◆ Type: without BT function, with BT function (optional)
◆ Monitor voltage: Ranges: 4~28V
◆ Resolution: 0.0001V Accuracy: ±(0.2‰+2)
◆ Monitor current: Ranges: 0~7A
◆ Resolution: 0.0001A Accuracy: ±(0.5‰+2)
◆ Monitor Power: Ranges: 0~120W Resolution: 0.0001W
◆ Accuracy: ±(0.5‰+2)
◆ Load equivalent internal
◆ resistance: Ranges: 0~9999.9Ω Resolution: 0.0001Ω
◆ Accuracy: ±(0.5‰+2) D+/D- voltage: Ranges: 0~3.3V Resolution: 0.001V
◆ Accuracy: ±(1.0%+2) Capacity: Ranges: 0~9999.99Ah Resolution: 0.0001Ah
