Designed especially for Starlink High Performance, compatible with:

1. HIGH PERFORMANCE

2. FLAT HIGH PERFORMANCE

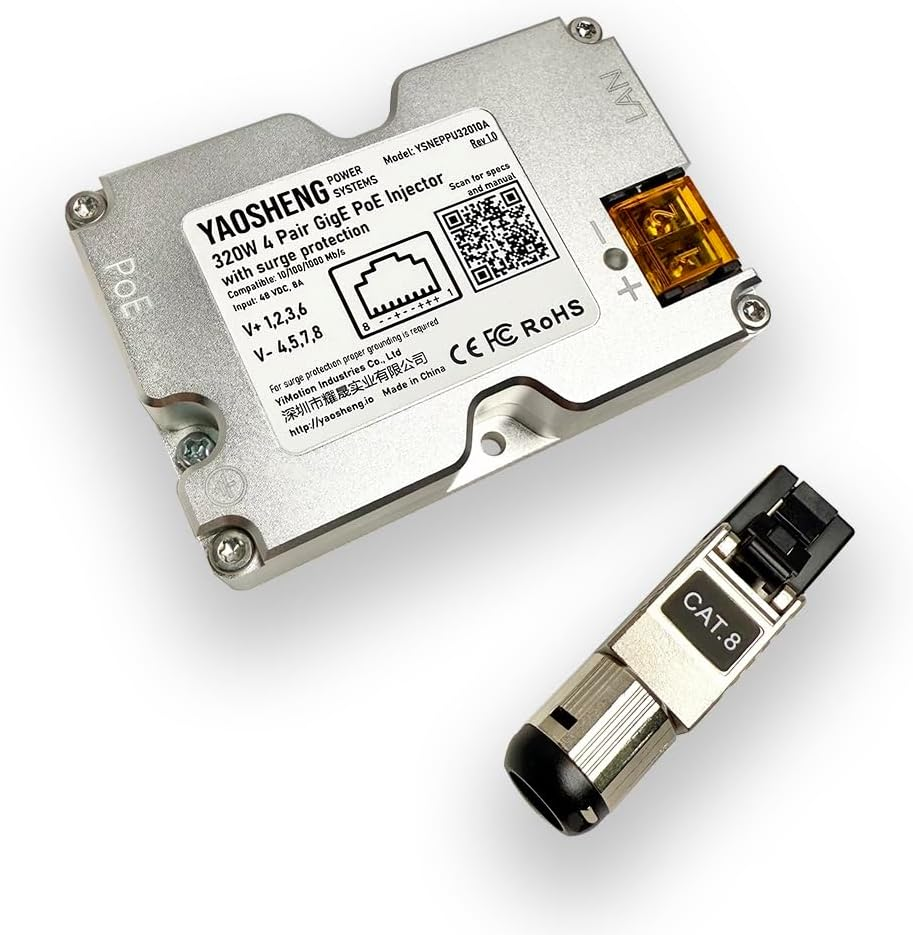

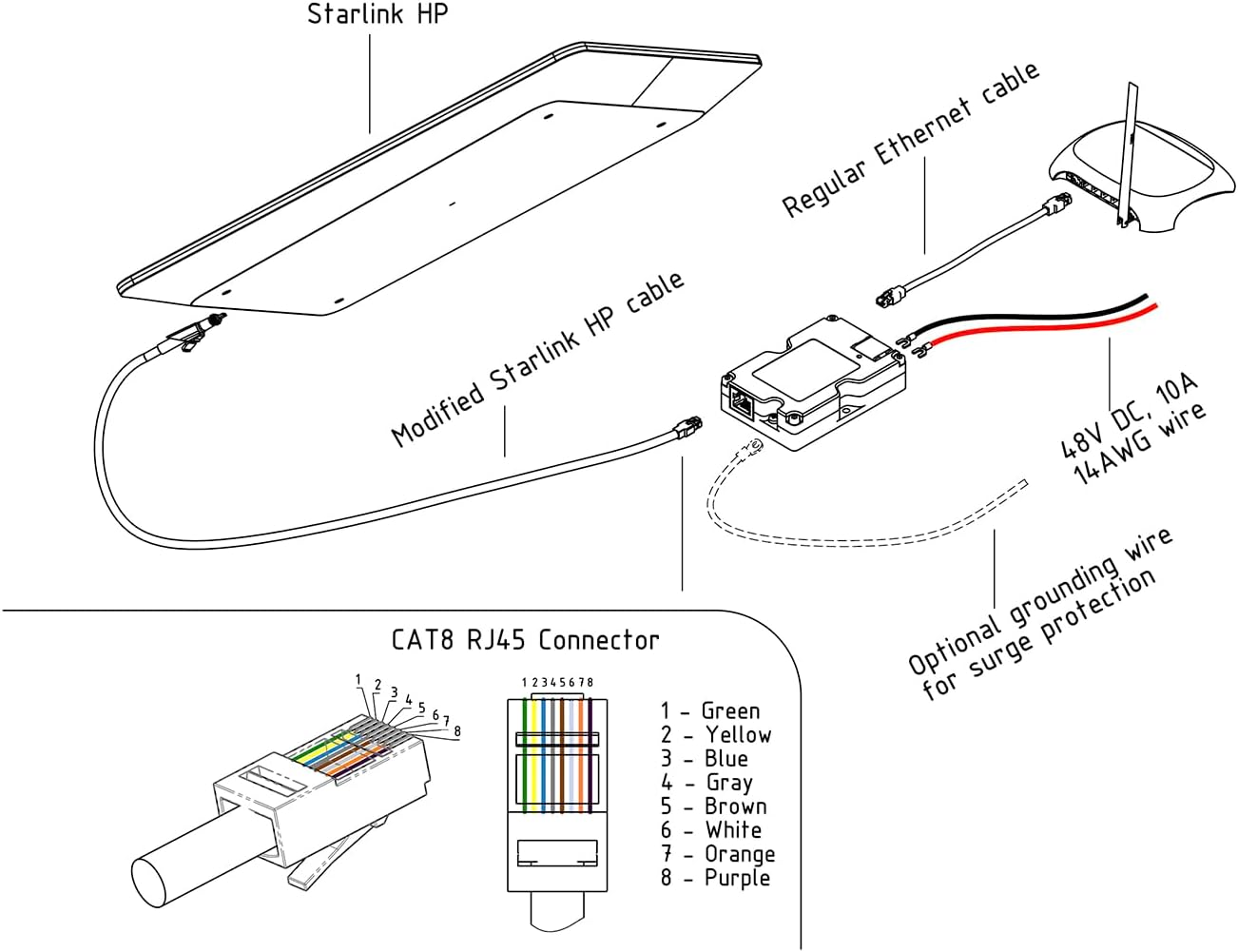

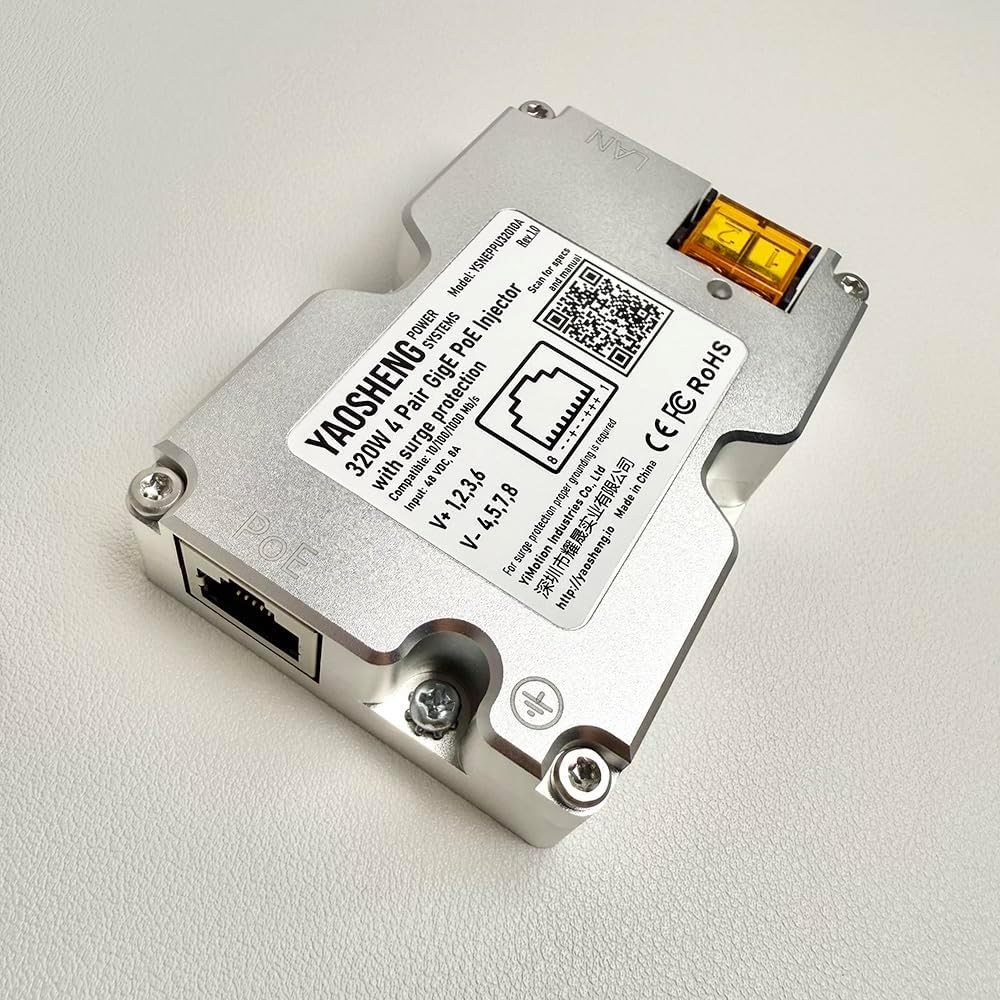

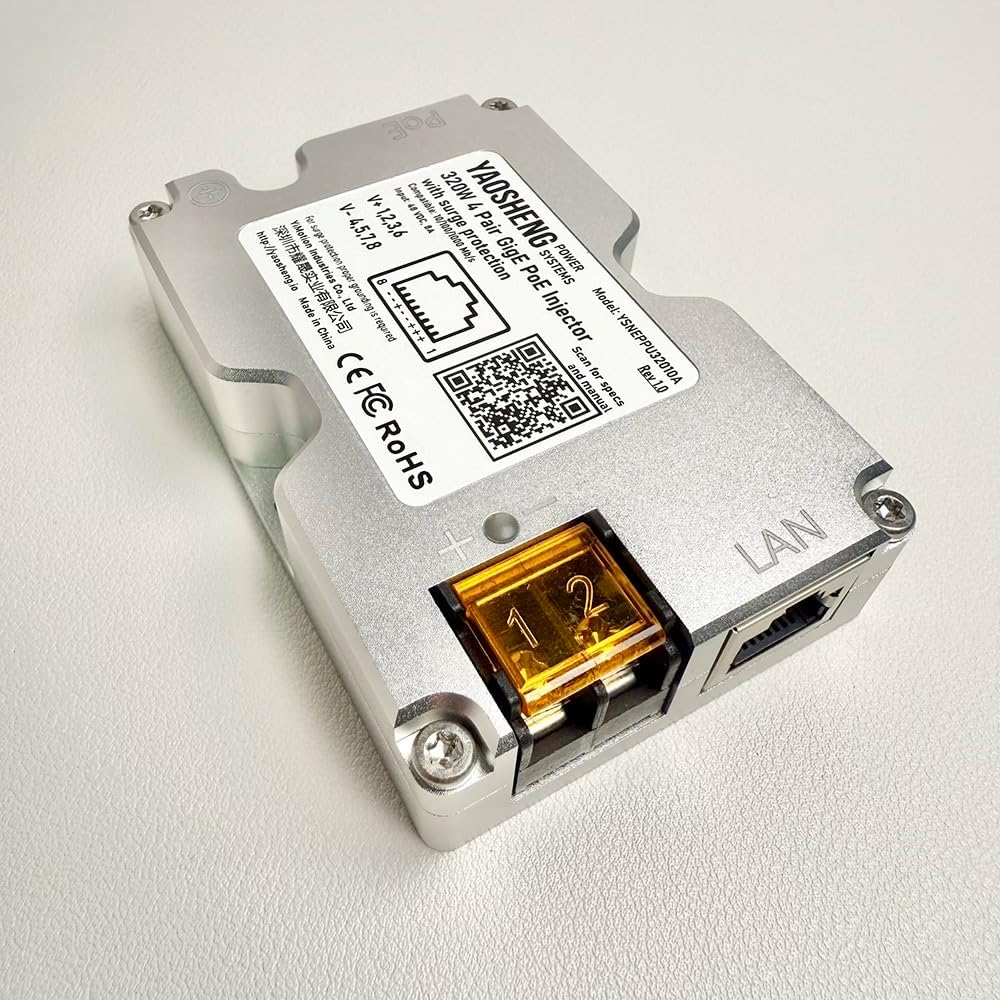

The original cable connector must be changed to RJ45. Recommended RJ45 connector and crimping scheme provided with PoE Injector.

Recommended power converter Mean Well DDR-480B-48. Bad-quality converters can cause your equipment to work unstable.

Configuration - 4 Pair

Injection type - Passive

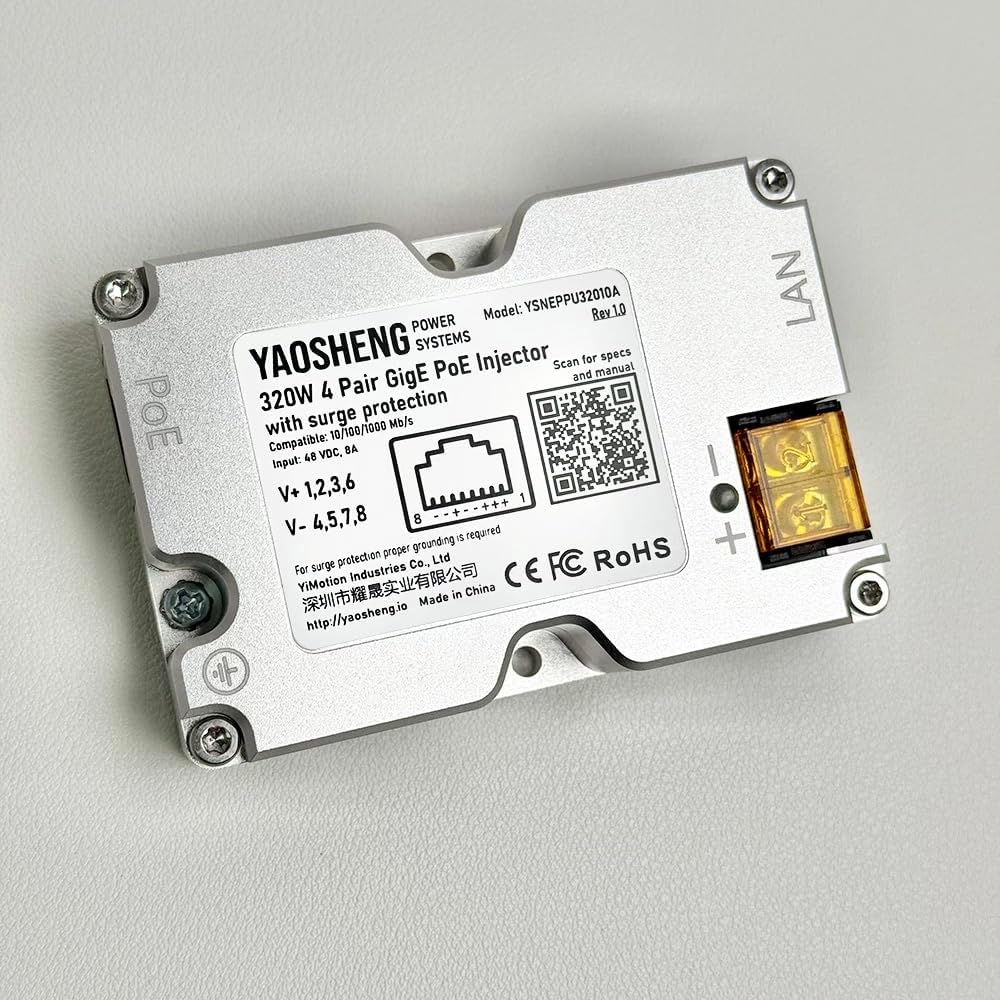

Pinout - +V: 1,2,3,6 -V: 4,5,7,8

Network speed compatibility - 10/100/1000 Mb/s

Input voltage - 48 VDC

Input/output current - 8A max

Protections - Surge protection, MCU-based logic

Operating temperature - -20 to +55 °C

Operating humidity - 10 - 90% (non-condensing)

Storage temperature - -40 to +70 °C

Model number - YSNEPPU32010A

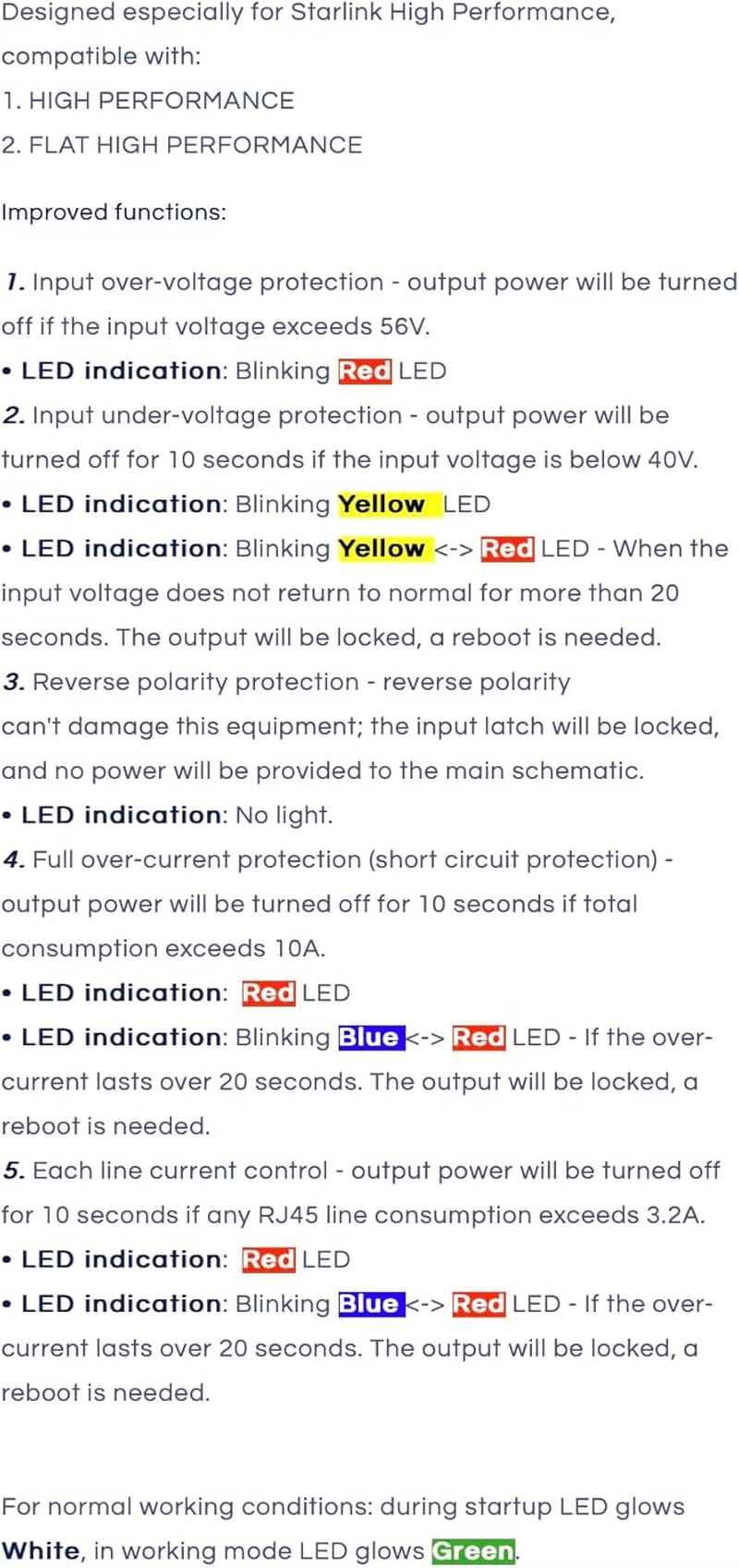

1. Input over-voltage protection - output power will be turned off if the input voltage exceeds 56V.

✔LED indication: Blinking Red LED

2. Input under-voltage protection - output power will be turned off for 10 seconds if the input voltage is below 40V.

✔LED indication: Blinking Yellow

✔LED LED indication: Blinking Yellow Red LED - When the input voltage does not return to normal for more than 20 seconds. The output will be locked, a reboot is needed.

3. Reverse polarity protection - reverse polarity can't damage this equipment; the input latch will be locked, and no power will be provided to the main schematic.

✔LED indication: No light.

4. Full over-current protection (short circuit protection) - output power will be turned off for 10 seconds if total consumption exceeds 10A.

✔LED indication: Red LED

✔LED indication: Blinking Blue Red LED - If the over-current lasts over 20 seconds. The output will be locked, a reboot is needed.

5. Each line current control - output power will be turned off for 10 seconds if any RJ45 line consumption exceeds 3.2A.

✔LED indication: Red LED

✔LED indication: Blinking Blue Red LED - If the over-current lasts over 20 seconds. The output will be locked, a reboot is needed.

For normal working conditions:

During startup LED glows White, in working mode LED glows Green.
