1. ENCRYPTION KEY: The TPM 2.0 module can use an encryption key created by encryption software (e.g. for Windows for BitLocker). Without this key, the contents of the user's PC will remain encrypted and protected from unauthorized access.

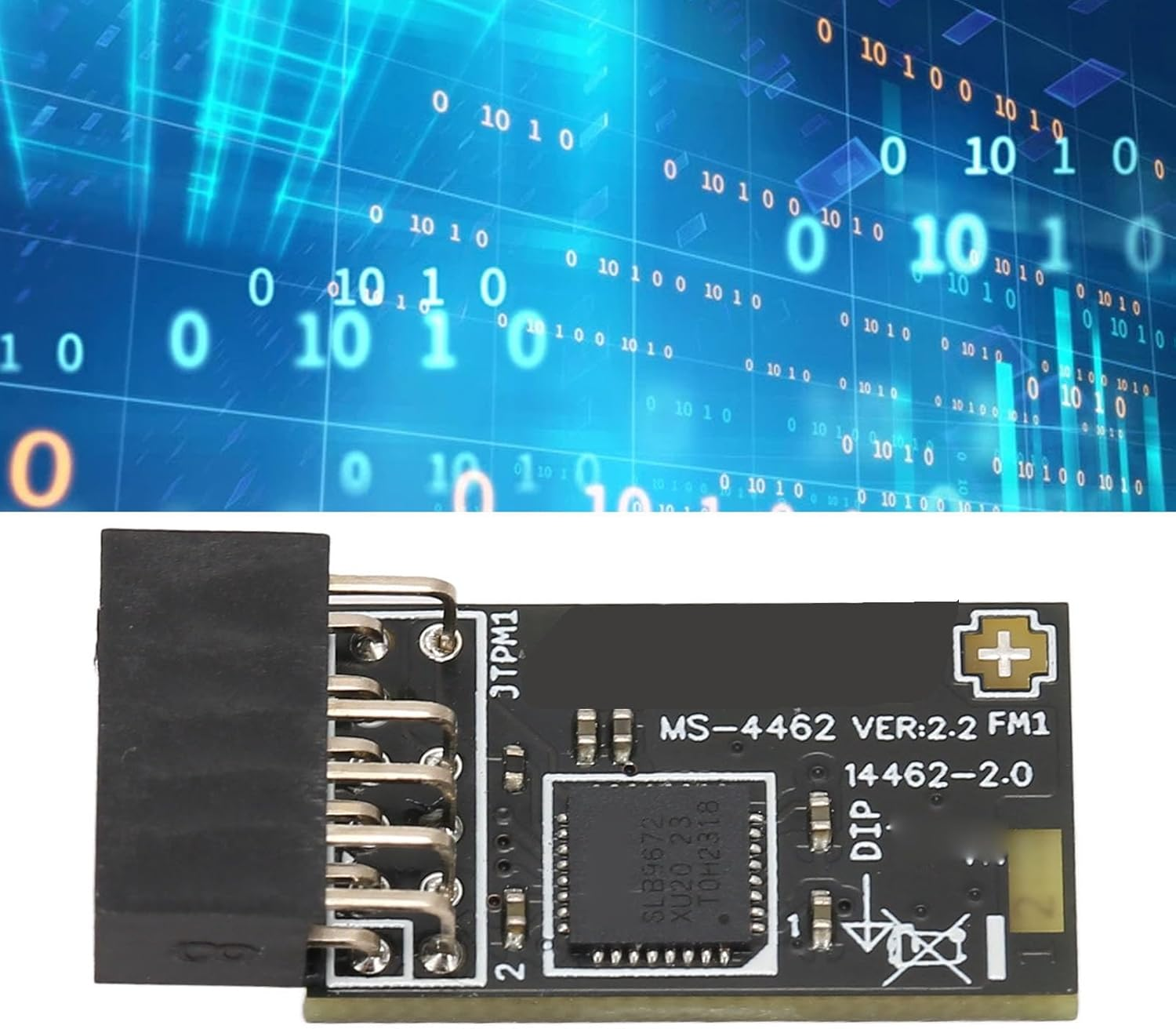

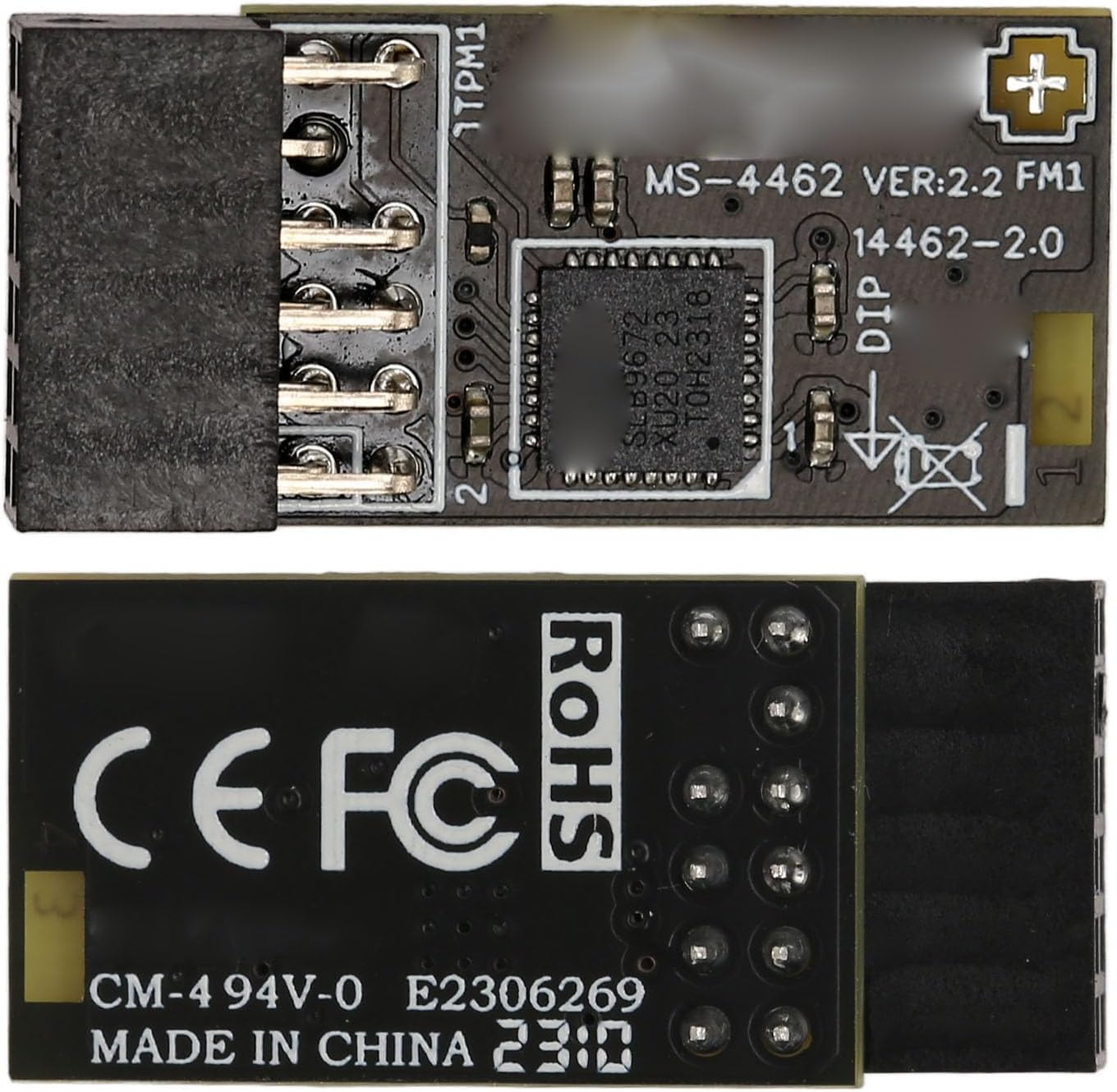

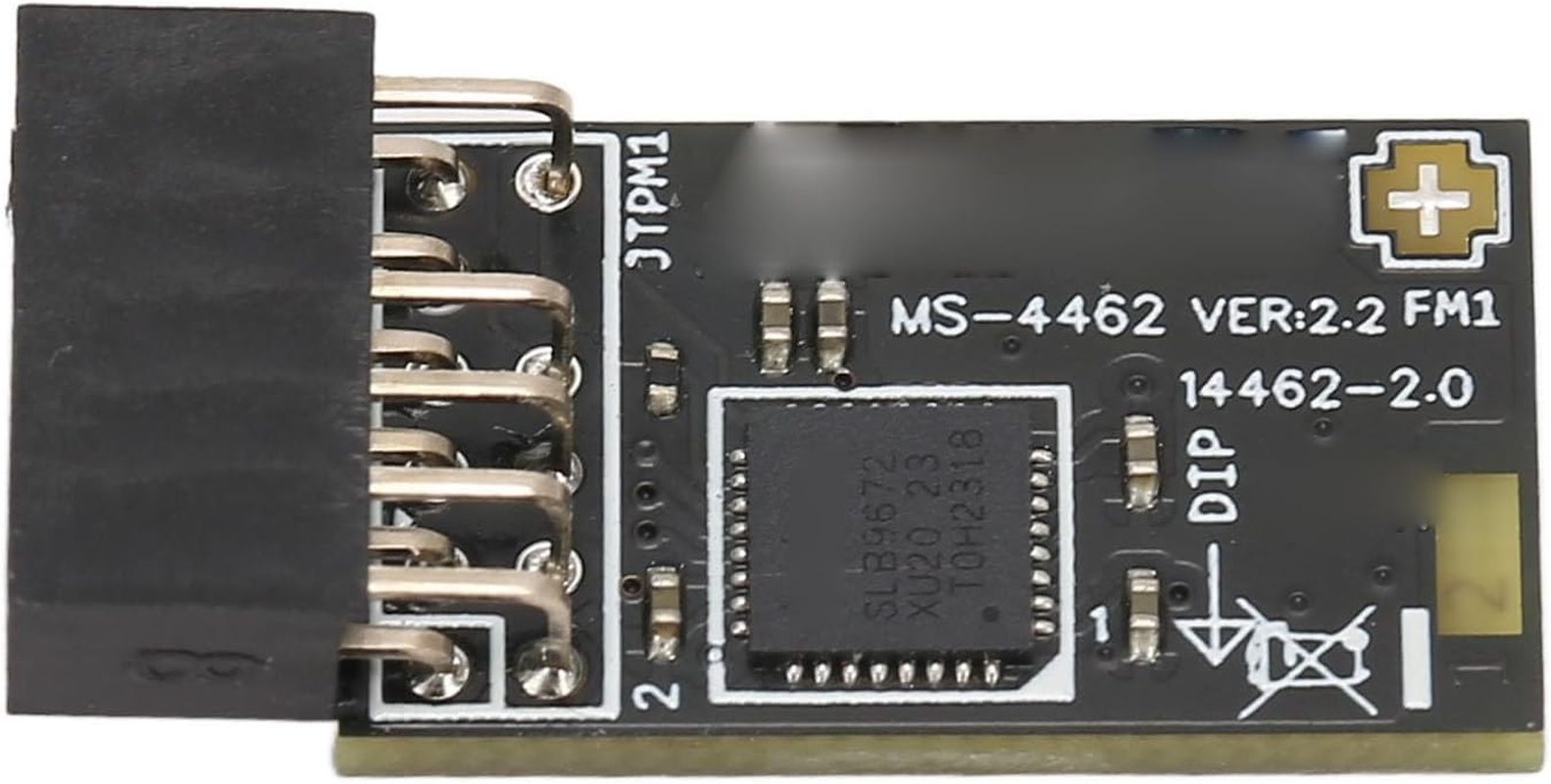

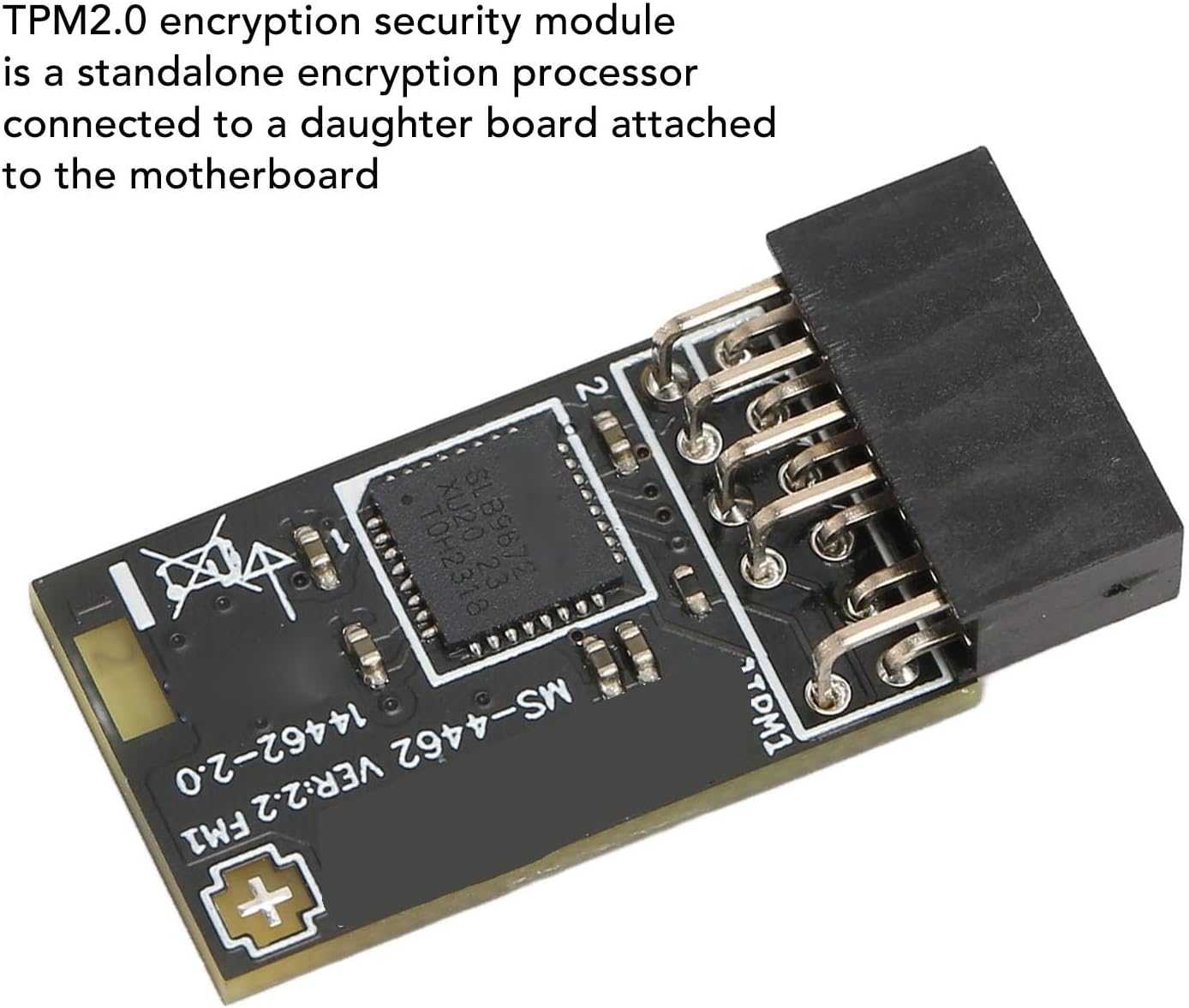

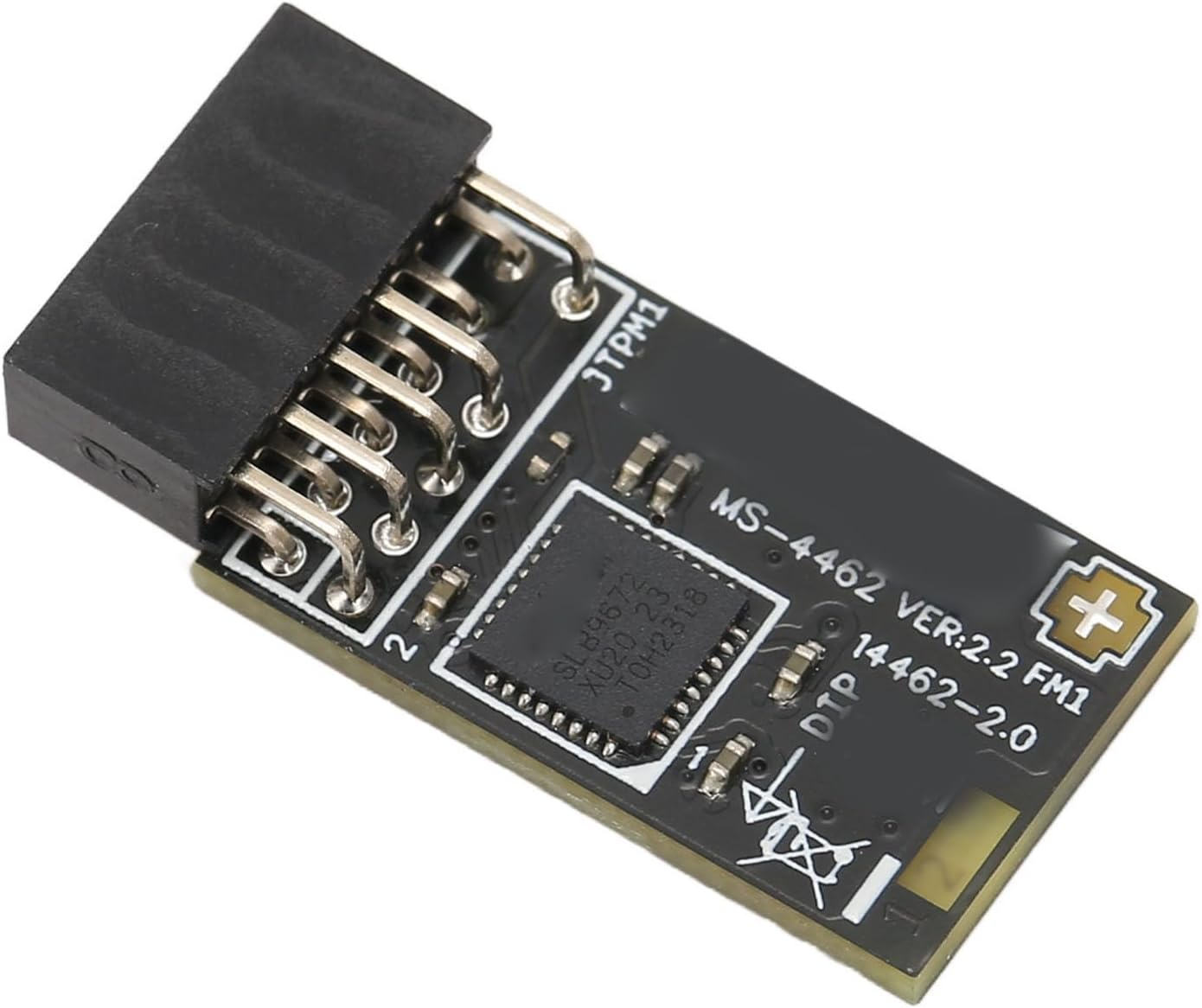

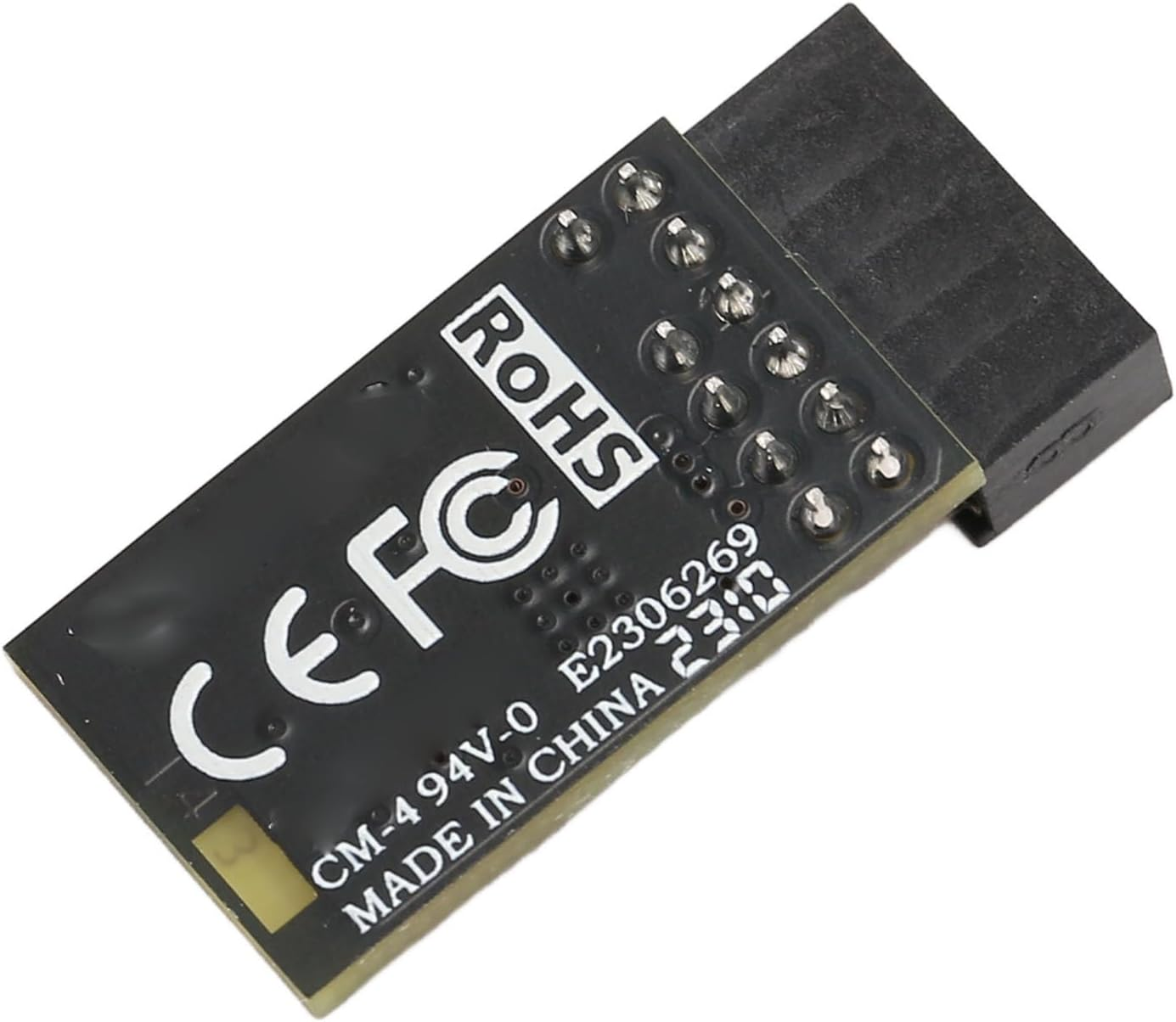

2. STANDALONE ENCRYPTION PROCESSOR: The TPM 2.0 encryption security module is a standalone encryption processor connected to a daughter board attached to the motherboard.

3. SUPPORTED MOTHERBOARDS: The TPM module supports for MSI for Intel 400, 500,600 and 700 Series Motherboards, for MSI A520,B550,WRX80,X570S,B650 and X670 Series Motherboards.

4. SPI INTERFACE: 12‑1 Pin TPM security module supports memory types higher than DDR3, SPI interface, support for Windows 10 11.

5. RESERVED MEMORY: Simple to install and use, some motherboards require the TPM module to be plugged in or updated to the latest BIOS to enable the TPM option. Standard PC architectures reserve a certain amount of memory for system use.

Spec:

Item Type: TPM2.0 Module

Material: PCB

Color: Black

Chipset: For SLB 9672

Interface: SPI

TPM Version: TPM 2.0(FW 16.12)

Pin Definition: 12pin (12-1 Pin)

System Requirements: For Windows 10 11

Compatible Devices: For MSI Motherboards

Size: Approx. 12.9 x 21.5mm / 0.5 x 0.85in

Package List:

1 xTPM2.0 Module

Note:

before purchasing, please check the pin arrangement of the motherboard and make sure it is compatible with the pin arrangement of the TPM module.
