WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Support Stereo Encoding/Decoding, Playing/Recording, Onboard Dual-Channel Speaker Interface, Directly Drives Speakers

WM8960 Hi-Fi Sound Card HAT for Raspberry Pi, Support Stereo Encoding/Decoding, Playing/Recording, Onboard Dual-Channel Speaker Interface, Directly Drives Speakers

Brand: Waveshare
4.1
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • This is a sound card HAT designed for Raspberry Pi, has low power consumption, supports stereo encoding/decoding, features Hi-Fi playing/recording. What's more, it can directly drive speakers to play music.
  • Integrates WM8960 low power stereo CODEC, communicates via I2S interface. Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording, nice sound quality.
  • Onboard standard 3.5mm earphone jack, play music via external earphone.
  • Onboard dual-channel speaker interface, directly drives speakers
  • Supports sound effects such as stereo, 3D surrounding, etc.

Introduction
This is a sound card HAT designed for Raspberry Pi, has low power consumption, supports stereo encoding/decoding, features Hi-Fi playing/recording, what's more, it can directly drive speakers to play music.
Features

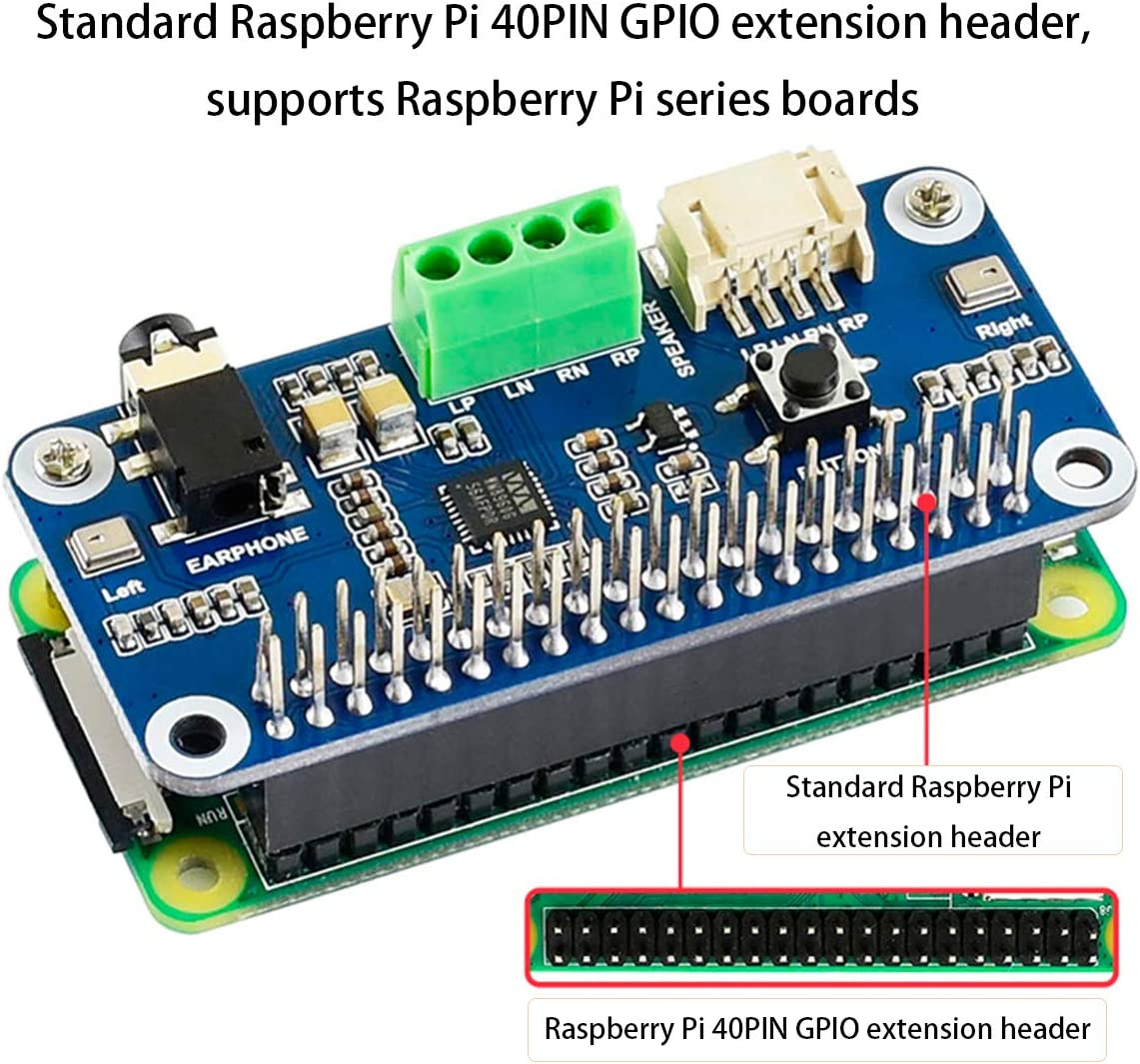

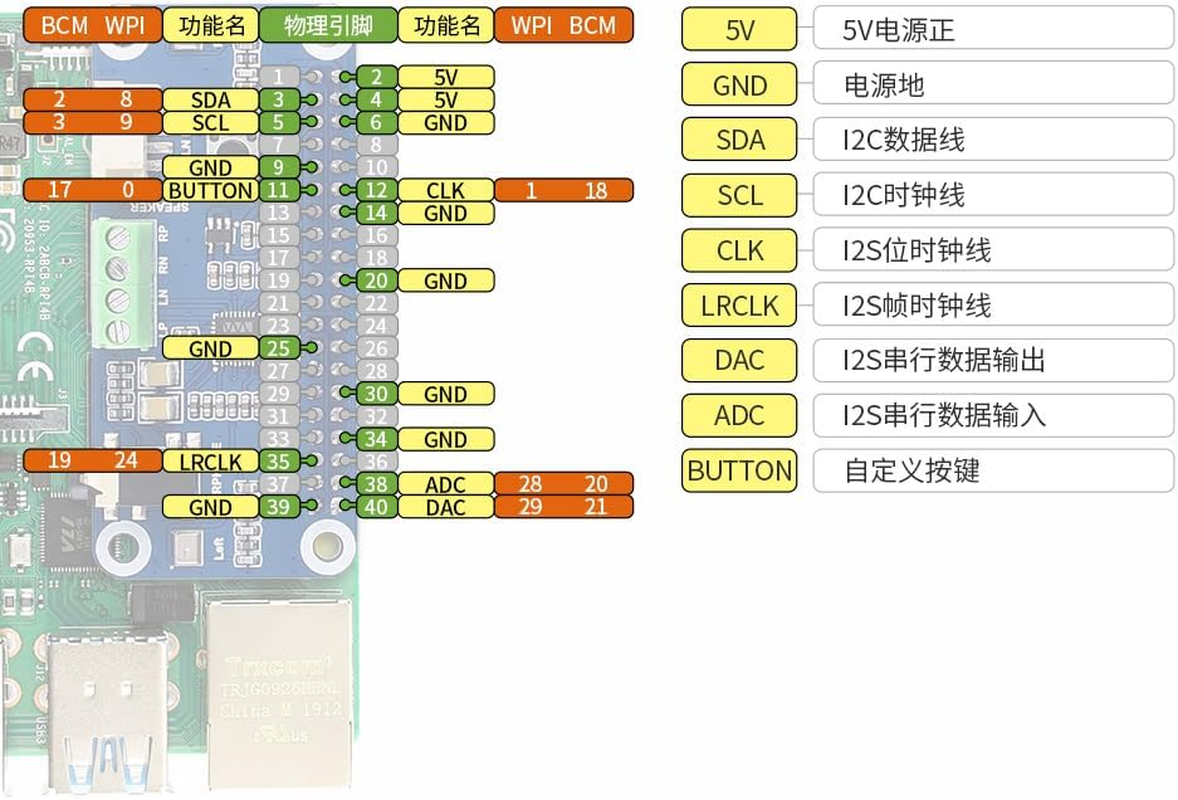

1)With standard 40PIN GPIO extension header, compatible with Raspberry Pi series boards.

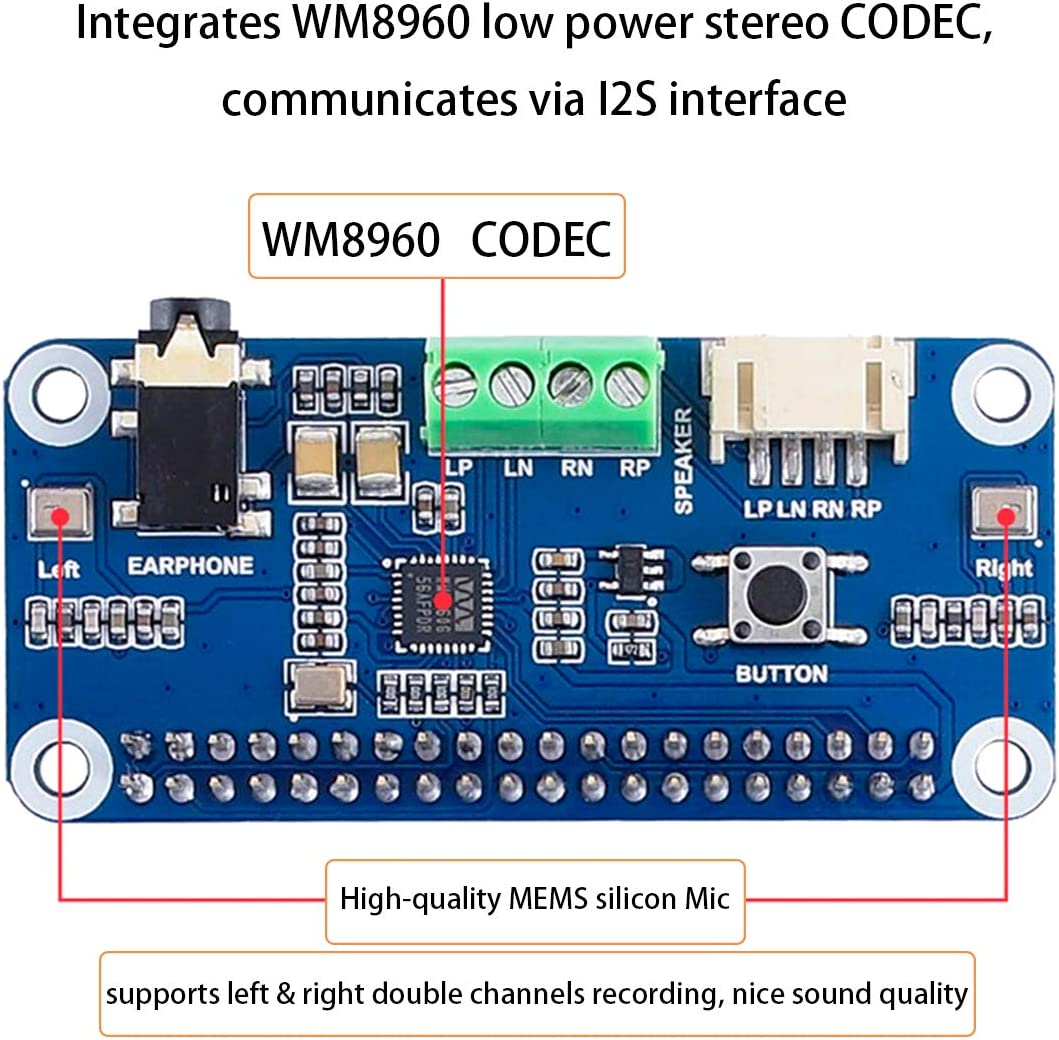

2)Integrates WM8960 low power stereo CODEC, communicates via I2S interface.
3)Integrates dual high-quality MEMS silicon Mic, supports left & right double channels recording nice sound quality.
4)Onboard standard 3.5mm earphone jack, play music via external earphones.
5)Onboard dual-channel speaker interface, directly drives speakers.
6)Supports sound effects such as stereo, 3D surroundings, etc.
Specifications
CODEC: WM8960
Power supply: 5V
Logic voltage: 3.3V
Control interface: I2C
Audio interface: I2S
DAC signal-noise ratio: 98dB
ADC signal-noise ratio: 94dB
Earphone driver: 40mW (16Ω@3.3V)
Speaker driver: 1W per channel (8Ω BTL)
Online Tutorial: n9.cl/ugb2e

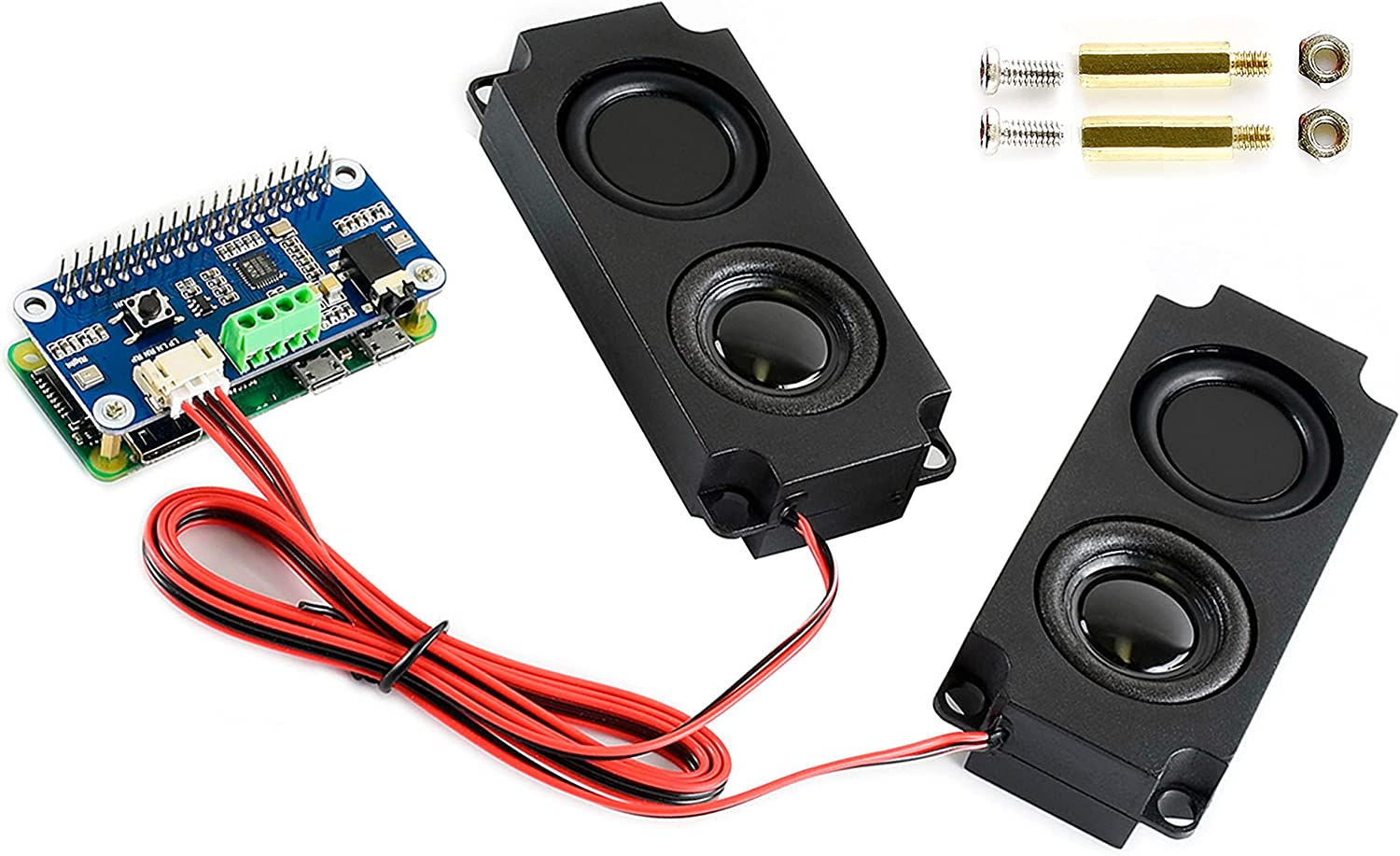

Package Content
WM8960 Audio HAT x1
8Ω 5W Speaker x1
RPi screws pack (2pcs) x1

  • Hardware Platform: Speaker
  • Speaker Surround Sound Channel Configuration: 2 1
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Waveshare
  • Signal-to-noise ratio (dB): 98 dB
  • Compatible Devices: Speaker
  • Item Weight: 36.3 g
  • Audio output mode: Stereo
  • Package Dimensions: 4.32 x 2.79 x 0.48 cm; 36.29 Grams
  • Manufacturer: Waveshare
