SMSL PL200 MQA CD Player DAC AK4499EX Chip USB Bluetooth 5.1 Headphone Amplifier Supports 32Bit/768Khz DSD512 USB/CD Player Input Fully Balanced Decoding DAC Preamp,With Remote Control (Silver)
SMSL PL200 MQA CD Player DAC AK4499EX Chip USB Bluetooth 5.1 Headphone Amplifier Supports 32Bit/768Khz DSD512 USB/CD Player Input Fully Balanced Decoding DAC Preamp,With Remote Control (Silver)
- 【Multi-functional SMSL PL200】 PL200 is an MQA-CD player, Bluetooth receiver and USB DAC. It uses a non-compressed CD solution, can fully decode MQA, and uses a Hi-End level CD solution, which is different from the portable solution. There is no compression, all the signals coming out are original, and the JTTER is very low.
- 【Precision Acces Servo System】 S.M.S.L has developed its own CD playback system, providing audiophile-level dynamic response and playback stability, accurate reading and other features. Additionally, combined with anti-vibration dampers and shock absorbers, this CD player has high reliability.
- 【Excellent AK4499EX Chip】 The SMSL PL200 MOA-CD player uses the AK4499EX decoding chip with excellent decoding and sound quality. The measured sound distortion is as low as 0.00006% (-123dB), restoring the original sound and music.
- 【Multiple Inputs And Outputs】 CD Player Supports USB/CD/Bluetooth input, USB input supports 32bit/768kHz, DSD512, it has built-in Bluetooth 5.1 reception, and uses Qualcomm high-end Bluetooth chip, supporting LDAC (24bit/96kHz), APTX/HD, SBC , AAC. with XLR balanced line output, with optical fiber and coaxial output.

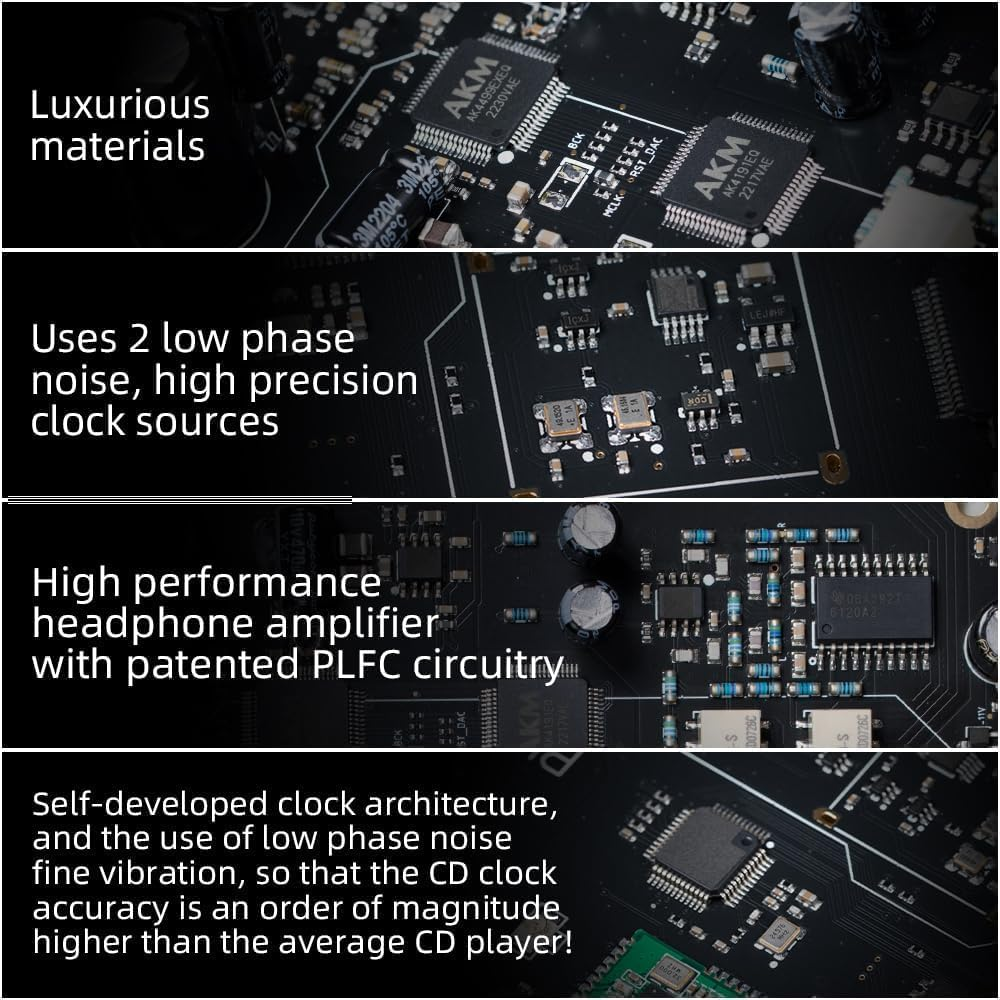

- 【High-Performance Fever Components】SMSL pl200 use 2 low-phase noise, high-precision clock sources, 3 high-end dual operational amplifiers and a large number of fever components to provide a stable, reliable, efficient and low-noise power supply system with built-in low-noise power processing. Improved power efficiency, lower power consumption, and better HIFI sound quality, making the sound quality clearer and making you want to listen more and more.
Product Description

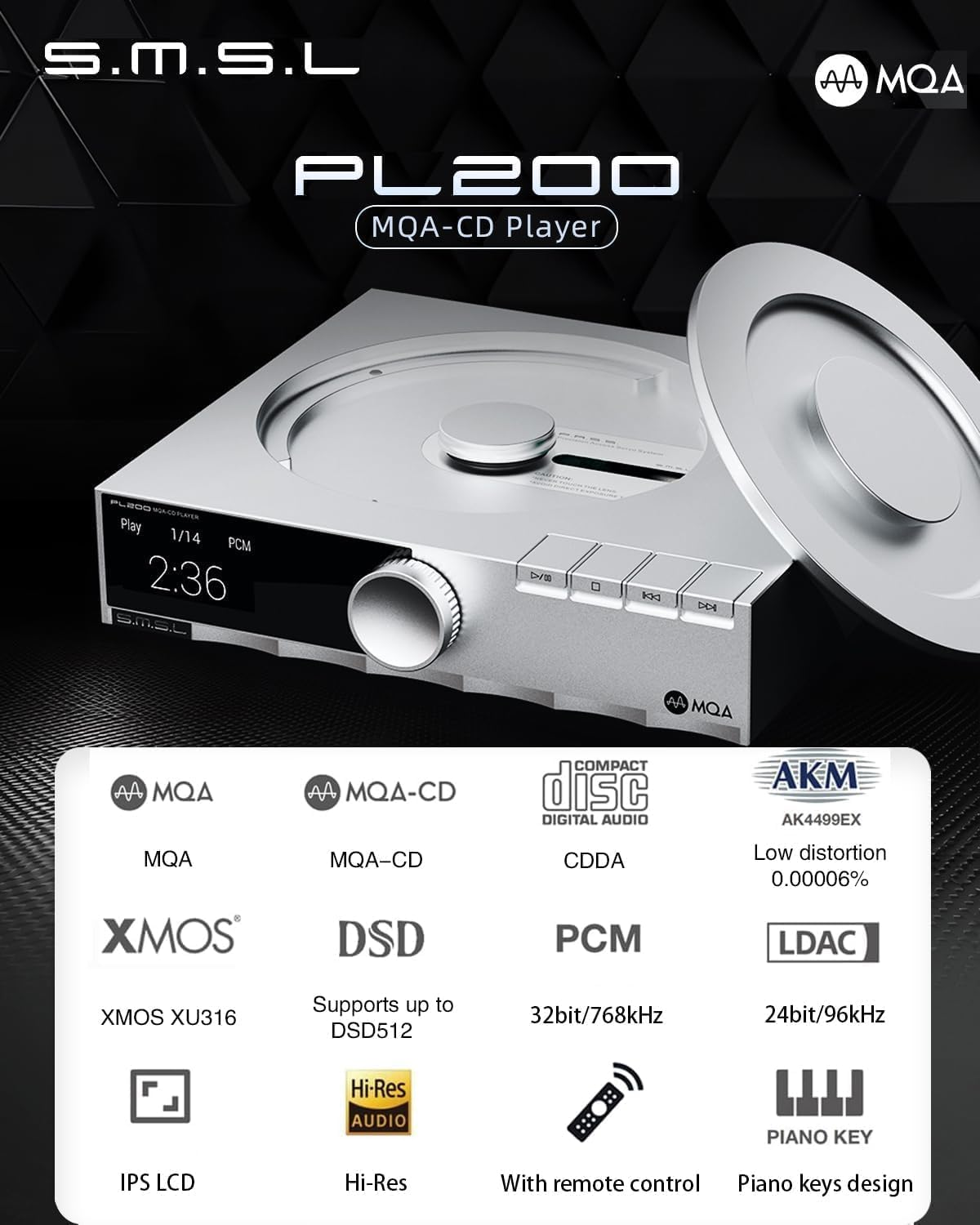

SMSL has joined the team of new-generation CD players with the all-new PL200. Designed with their self-developed P.A.S.S. Technology(Precision Access Servo System), the PL200 provides fast responsive performance with accurate reading. With self-developed Vibration dampers, the PL200 has an excellent anti-vibration performance. It is an MQA-CD player with a built-in Bluetooth receiver and a fully blown desktop DAC as well. SMSL has equipped the PL200 with the latest-generation AKM’s flagship AK4499EX DAC chipset. They have featured a low-noise jitter clock promising top-level performance for the users. We have multiple output options including Headphone out, RCA, XLR, and even Coaxial & and optical Digital outputs as well. SMSL PL200 is a fully-equipped CD player that you can enjoy as a single device setup on your desktop!!
SMSL PL200 CD Play
This CD player is both high-performance and versatile. It is equipped with quality components such as the P.A.S.S (Precision Acces Servo System) servo playback system developed by SMSL, an USB XMOS interface on USB-C connector, OPA1612A, a Qualcomm Bluetooth 5.0 reception chip and many other audiophile components
| Product type | CD turntable / CD player |
| DAC chip | AK4499EX |
| AOP | 3x OPA1612A |
| USB interface | XMOS |
| Inputs | CD /Bluetooth/ 1x USB-C input |
| Outputs | 1x Stereo RCA output/ 1x XLR stereo balanced output /1x Coaxial SPDIF output /1x Toslink optical output / 6.35mm headphone output |
| THD+N | 0.000068% (-123.5dB, un-wtd) |
| Dynamic range | RCA: 127dB /XLR: 132dB |
| SNR | RCA: 127dB /XLR: 132dB |
| Headphone output power | 2x 1000mW (32Ω) |
| USB transmission | 2.0 Asynchronous |
| USB compatibility | Windows 7/8/8.1/9/10/11 (with driver) Mac OSX 10.6 et + Linux |
| Suppported sample rates | USB: PCM 32bit 768kHz, DSD512 |
| Bluetooth | 5.0 |
| Supported Bluetooth codecs | codecs SBC, AAC, aptX, aptX HD, LDAC |
| Dimensions | 200 x 42 x 175mm |
SMSL has developed its own CD playback system providing audiophile levels of dynamic response and playback stability. In addition, an anti-vibration system and shock absorbers give this CD player a high level of reliability.

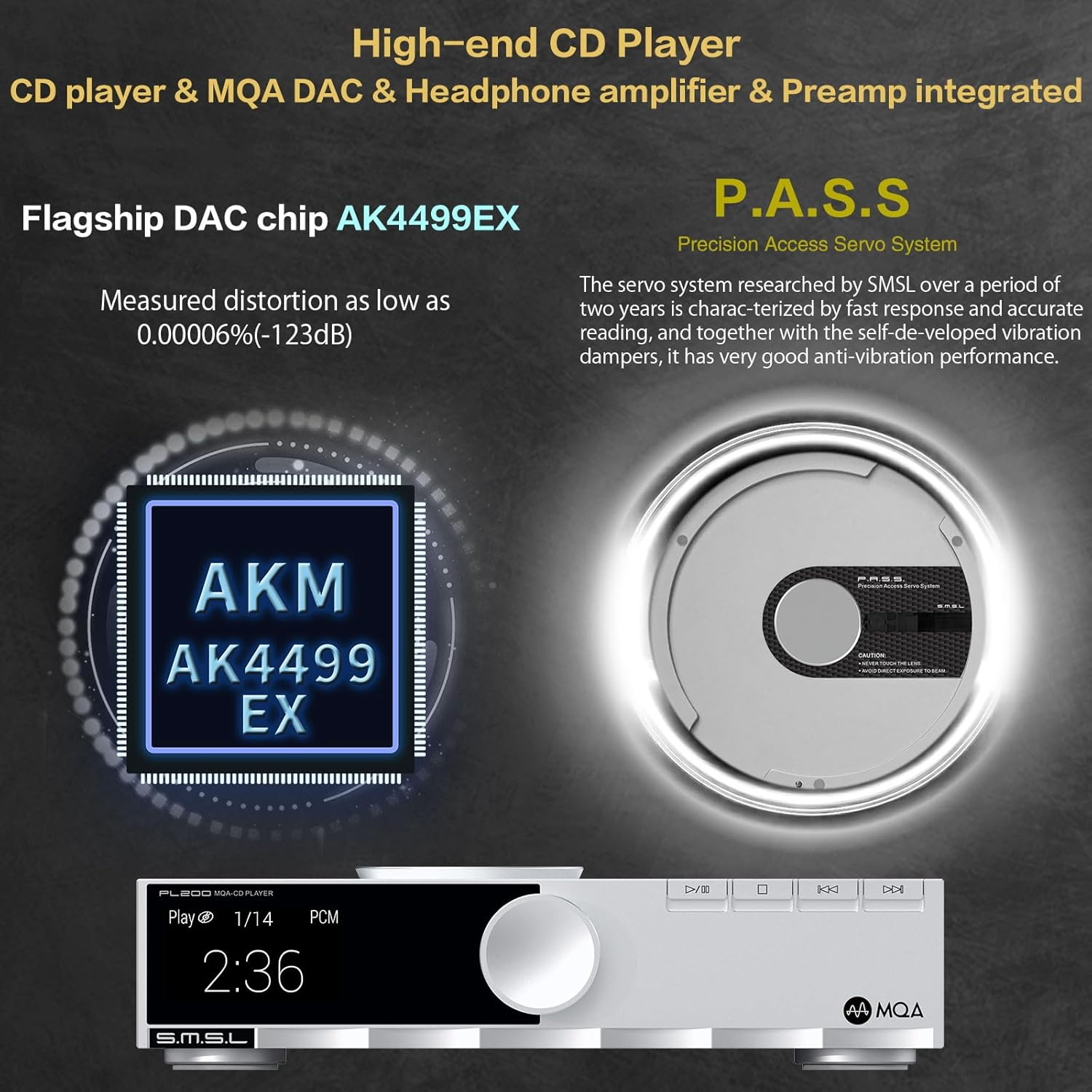

The SMSL PL200 CD player features the AKM AK4499EX (DAC) and AK4191EQ (digital filter) chip combo. This enables it to support high-resolution streams up to PCM 32bit 768kHz, native DSD up to DSD512 and MQA/MQA-CD, with a distortion rate of less than 0.00006% (-123dB).
A Bluetooth 5.0 receiver chip from Qualcomm enables the PL200 to work with high-resolution Bluetooth 5.0 codecs; SBC, ACC, aptX, aptX HD and LDAC (24bit 96kHz).
The PL200 features a 6.35mm jack headphone output with high-performance amplification circuitry and integrated PLFC.
Sophisticated aesthetics: between modernity and retro look

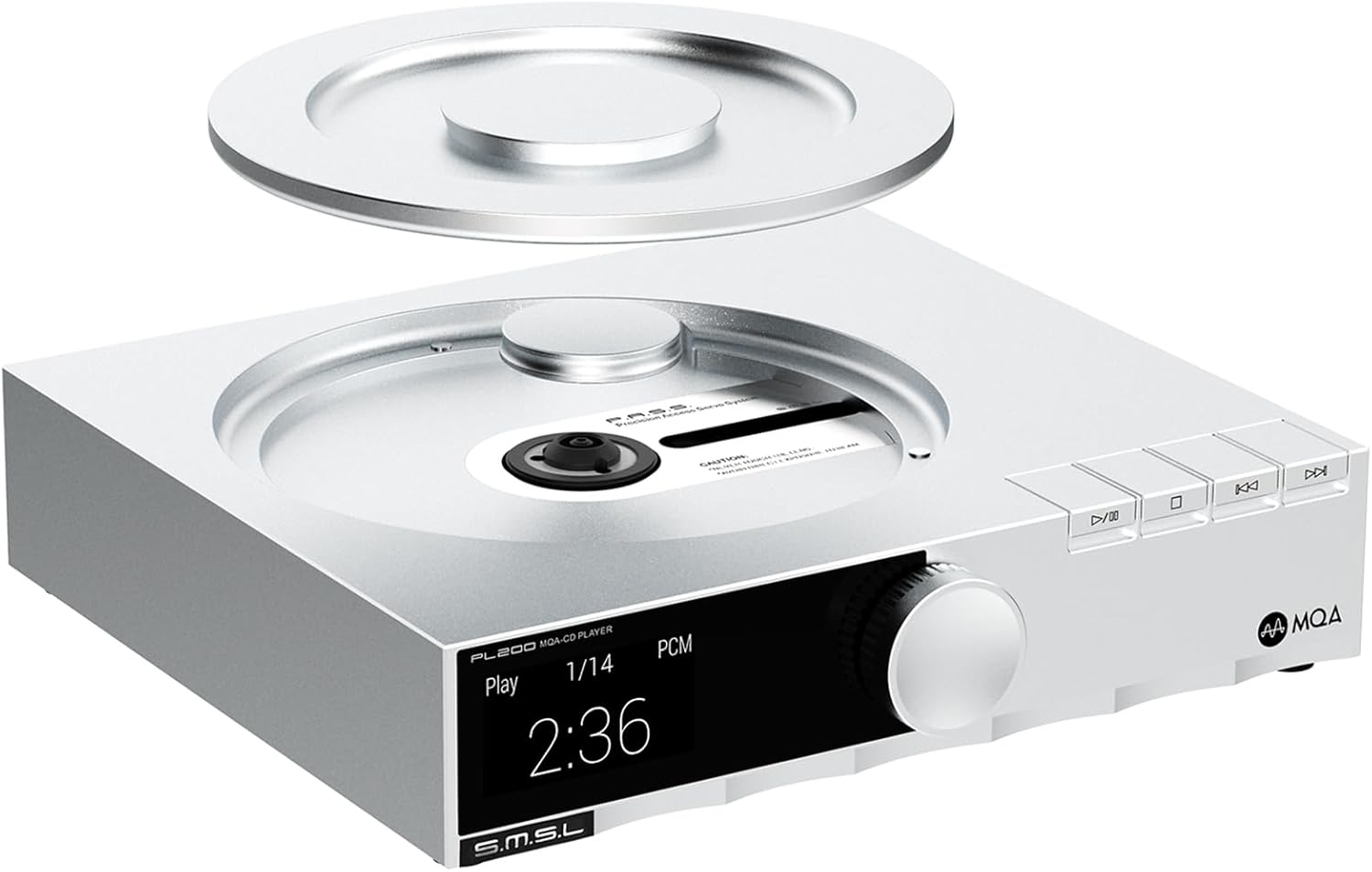

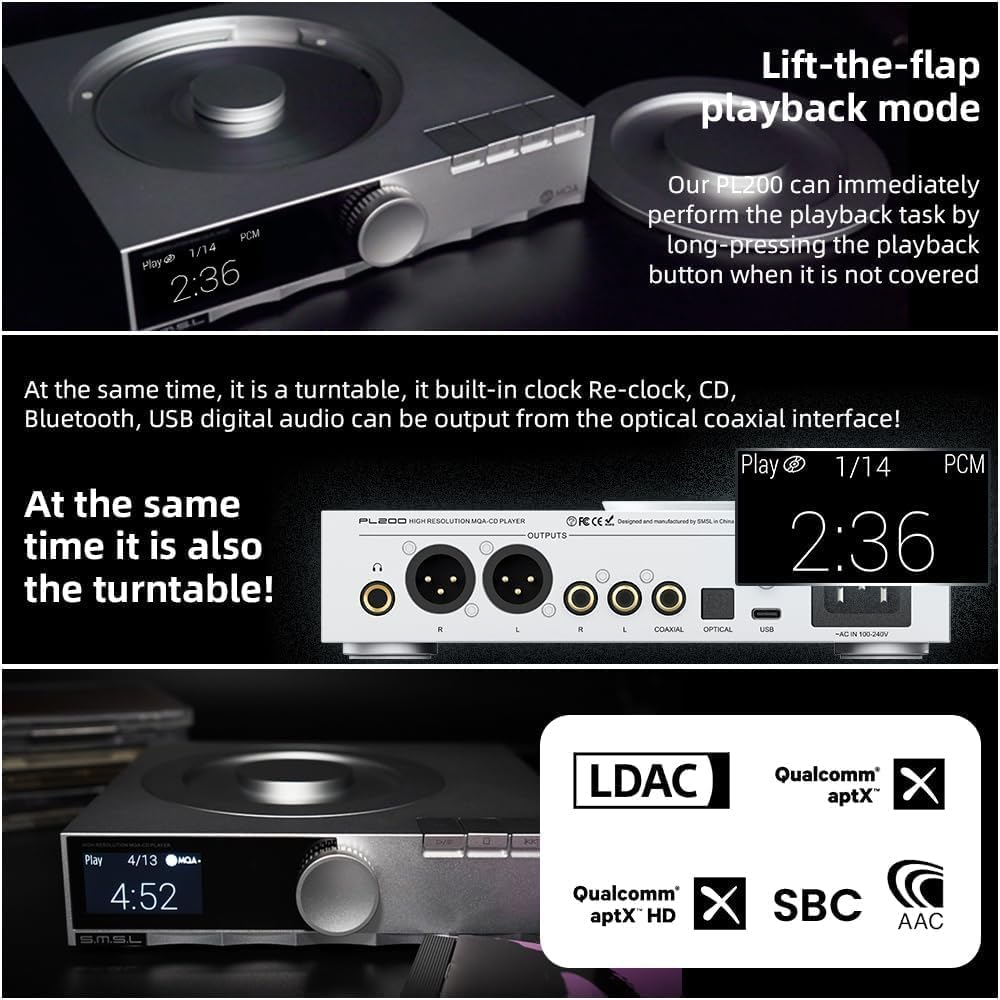

The PL200 features piano keyboard keys for a retro look, and a large tempered-glass IPS display with a minimalist, modern interface. On the top of the PL200, an innovative cap covers the CD playback system. This can be removed to make CD playback more ceremonial. To use this function, simply remove the cover and press and hold the play button on the CD player.
- Item Weight: 1.7 kg
- Item Model Number: PL200
- Product dimensions: 19.76 x 17.48 x 4.19 cm; 1.7 kg
- Manufacturer: S.M.S.L
-
In Stock
