Specifications:

Material: 45# Steel

Color: As picture shown

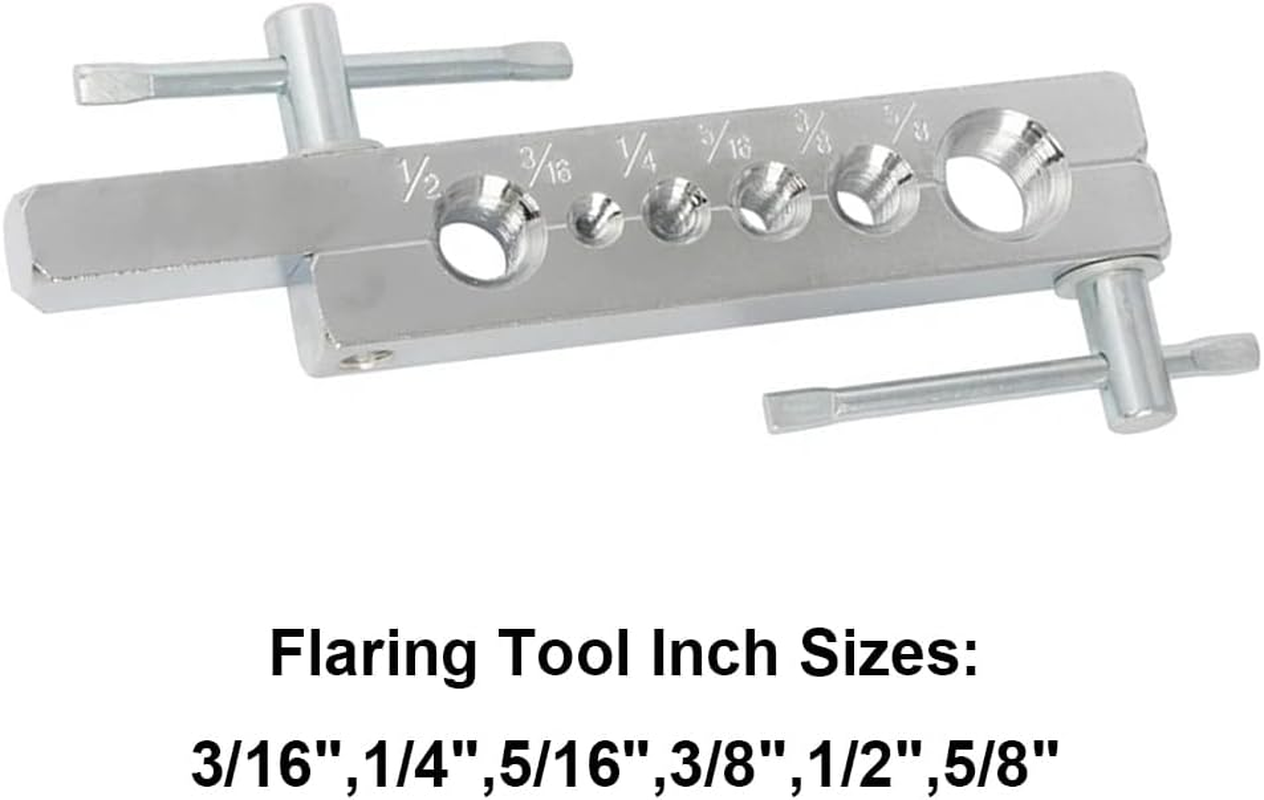

Flaring bar Dies Size: 3/16" 1/4" 5/16" 3/8" 1/2" 5/8"

Item Size: 27.18 x 16.51 x 4.32 cm/10.7 x 6.5 x 1.7 inches

Item weight: 0.86 Kg/‎‎1.9 pounds

Used On: Makes flares in Copper, brass or thin walled aluminum tube, etc

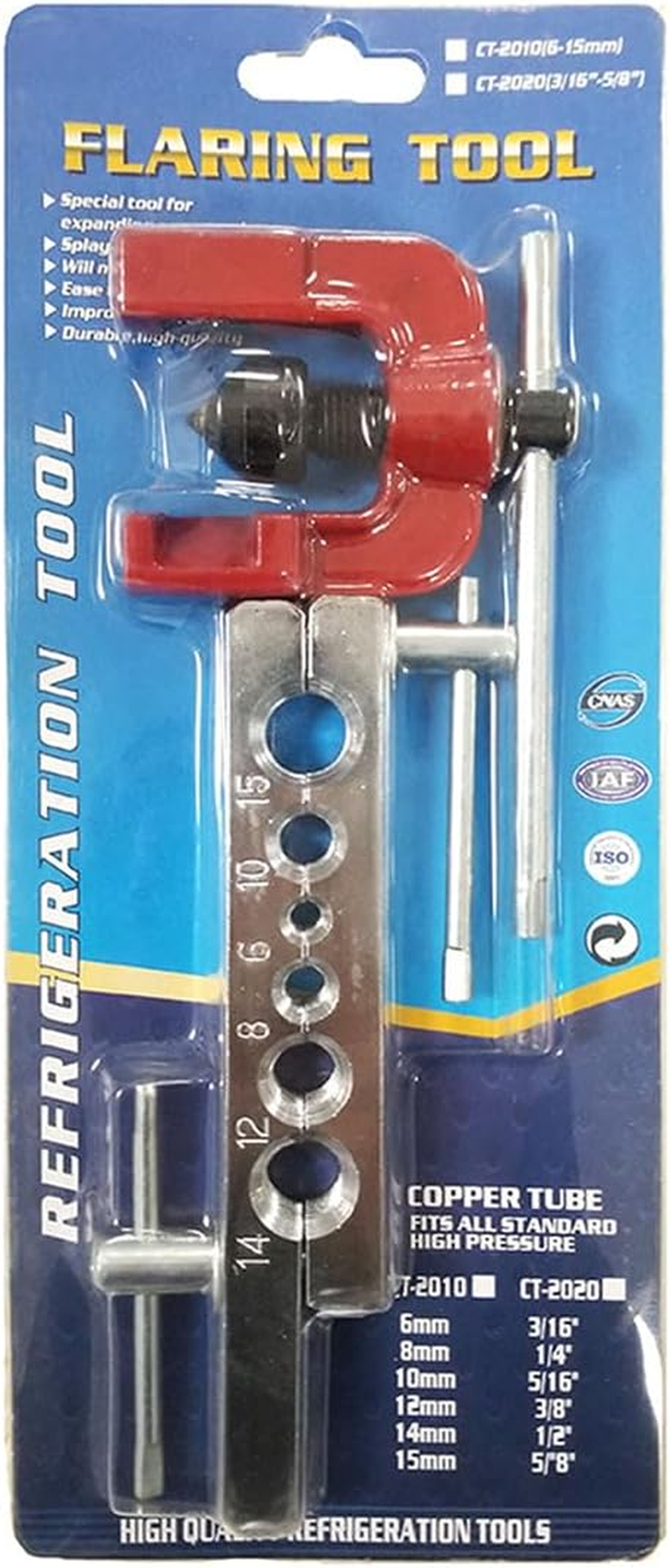

Package Included:

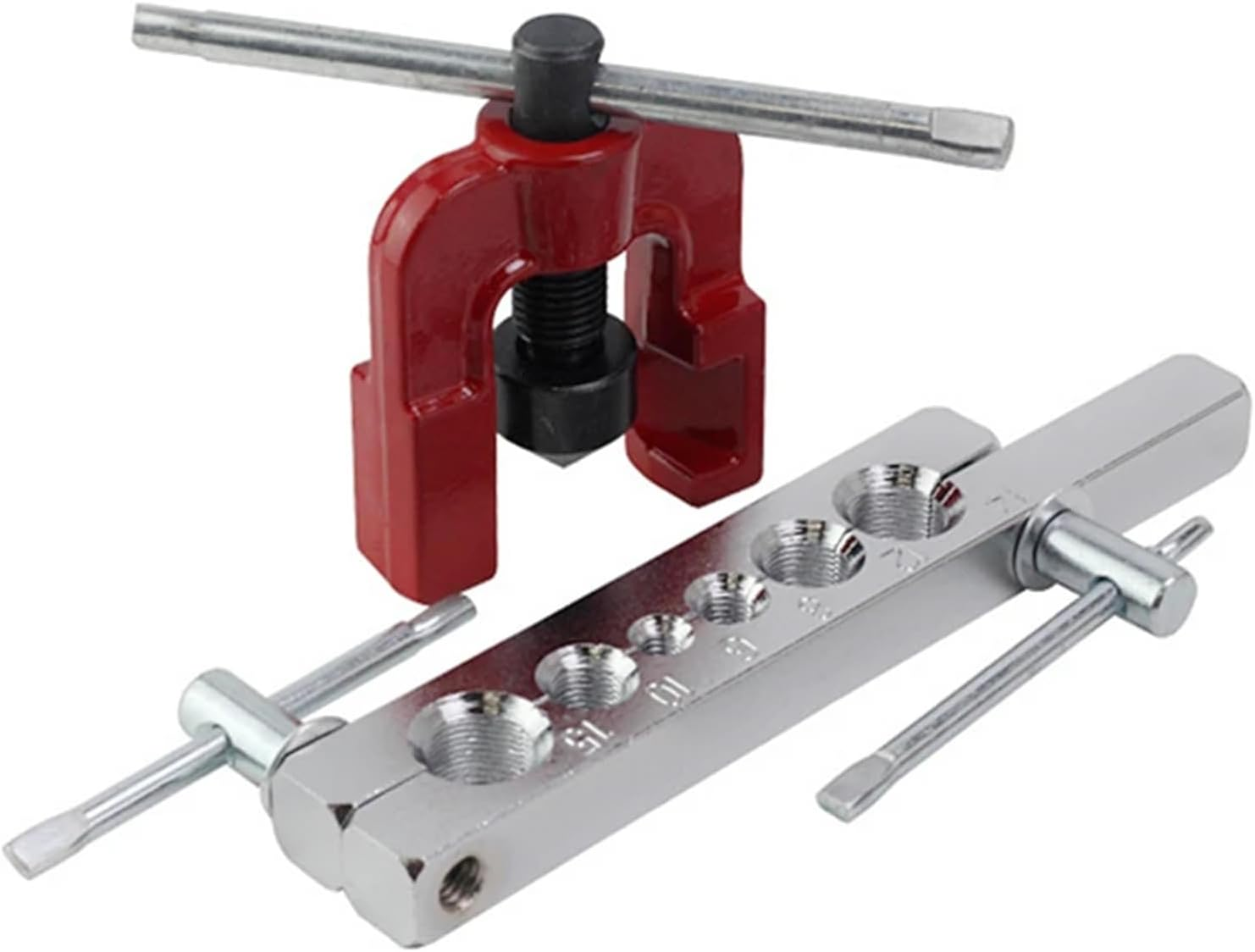

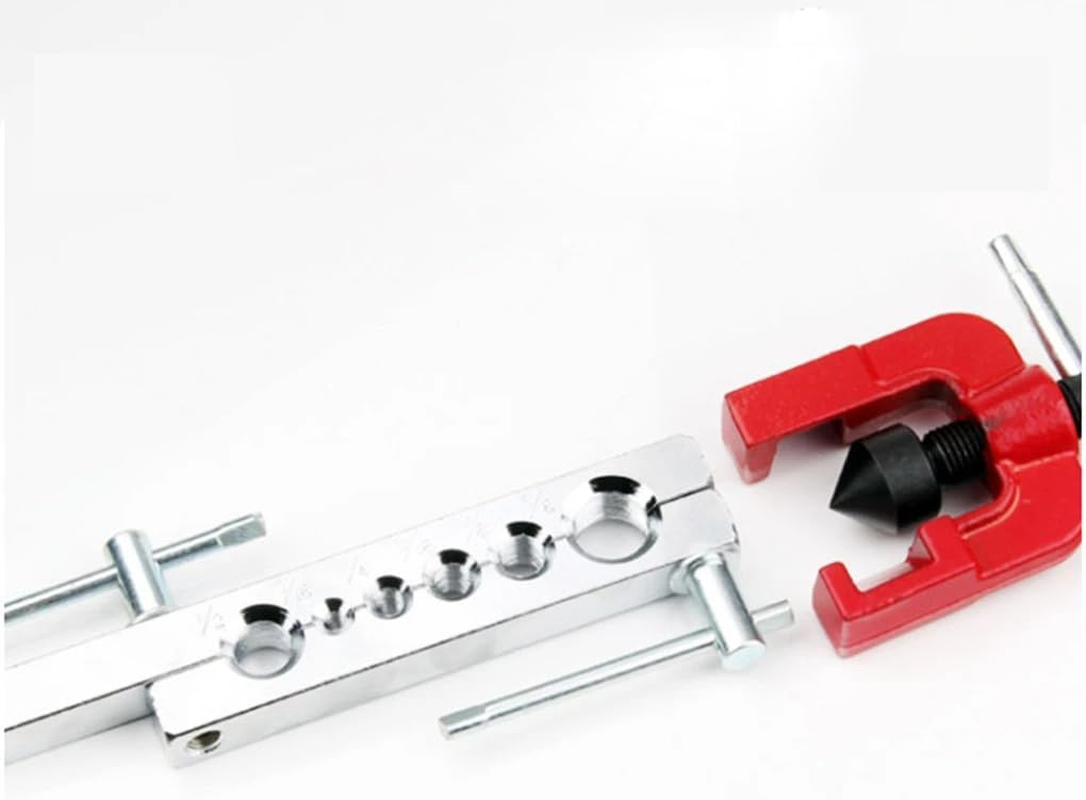

1x Flaring cone

1x 6-Hole flaring bar

How to create a tube flare?

Ensure the tubing is soft metal tubing such as copper, brass and soft steel.And ensure it is cut straight.

Single flare-hold the tube steady and fit it through the appropriate size hole, allowing a small amount oftube to poke out of the top-to create the flare.

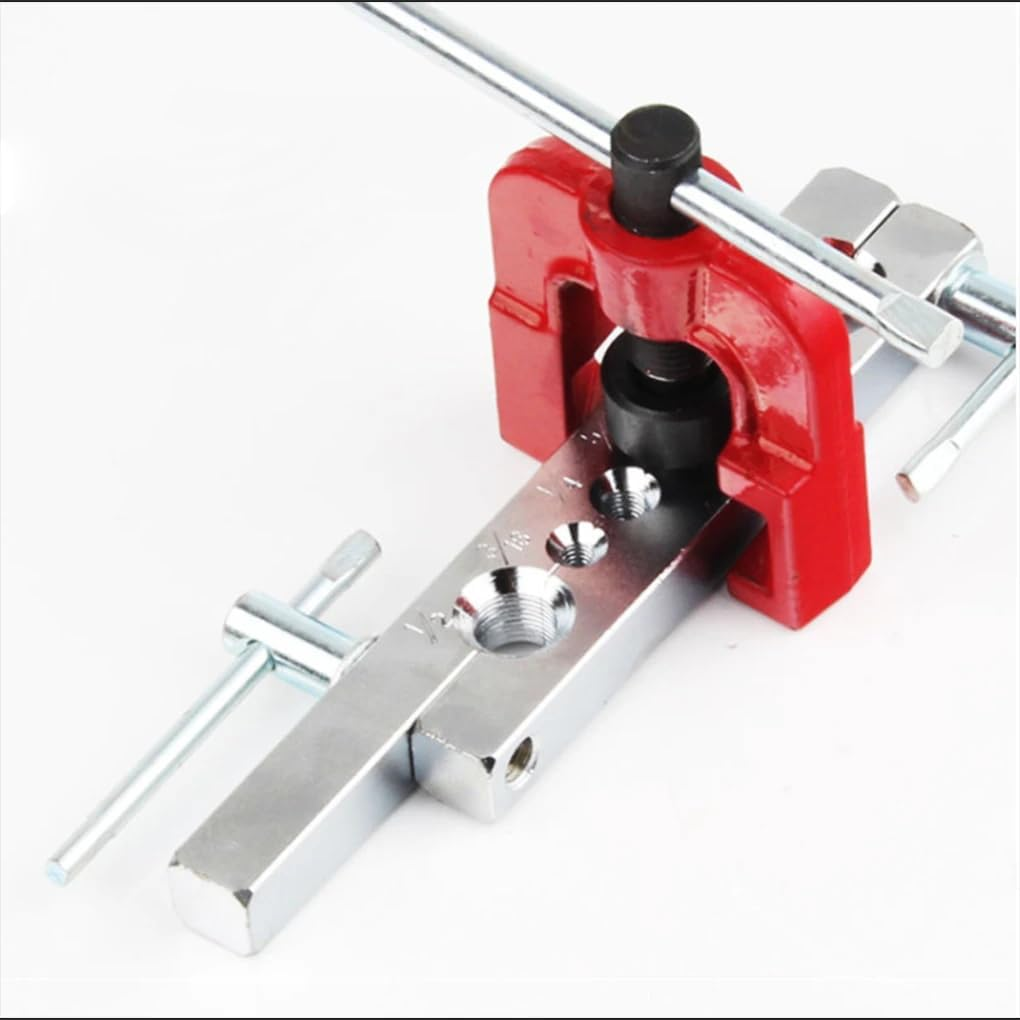

Position the yoke over the screen bar with the cone central to the tube-and wind the handle of the yoke in to create a neat single flare.

Double flare-similar as single flare, but this time ensure the end protrudes as much as the height of the shoulder on your adaptor.

Clamp the tube firmly, place the adaptor on tube with the button facing down; and operate the yoke until the tube crushes flat to the screen bar.

Opening up the inside of the tube.The result will be a flared tube which is far stronger than a single flare.
