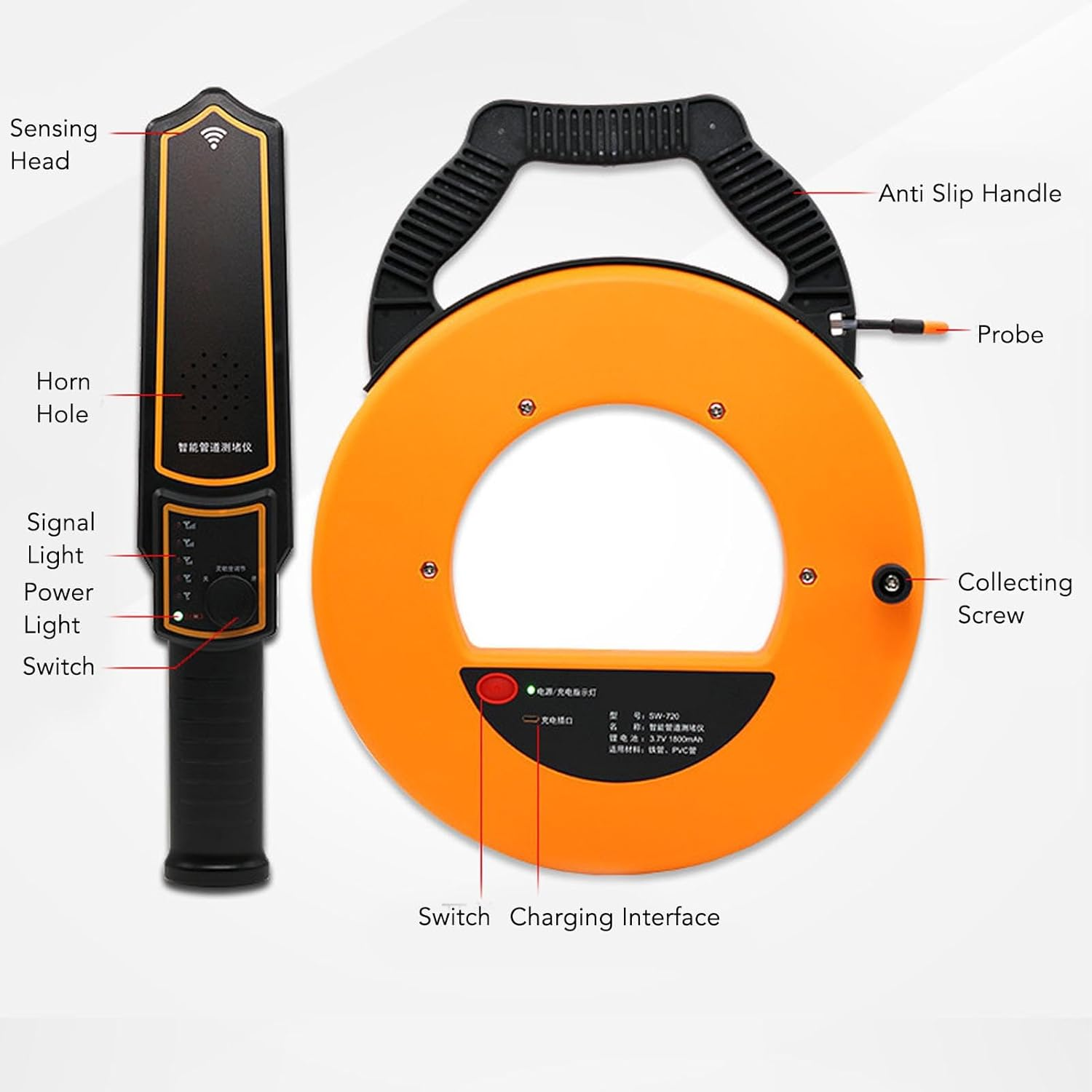

1. Waterproof Probe: The pipe blockage detector is equipped with waterproof probes to deal with various environments, and the plugging detector has a long service life.
2. Good ABS Material: The detector is made of ABS material, which is resistant to impact and scratches and can be used for a long time.
3. Reminder Tone: The pipeline plugging tester can accurately locate the position of the internal blockage of the pipeline, and remind you through a buzz sound.
4. Wide Application: The wall pipe scanner can quickly locate any blockage or any clogging, avoiding large scale blockage of the pipeline.
5. Applicable Pipes: The pipeline obstacle scanner has 4 probes that can be replaced to detect steel, iron, PVC pipes and so on.
Spec:
Item Type: Pipe Blockage Detector
Measurement Range: Approx. 30m / 98.43ft
Transmitter: Yes
Receiver: Yes
Sensing Rang: Approx. 0 ~ 50cm / 0 ~ 19.69in
Transmitter Power Supply: 1 x 3.7V 2000mAh lithium battery, shipped with built in battery.
Receiver Power Supply: 1 x 3.7V 2000mAh lithium battery, shipped with built in battery.
Measurement Time at Full Charge: About 8-10 Hours
How to Use:

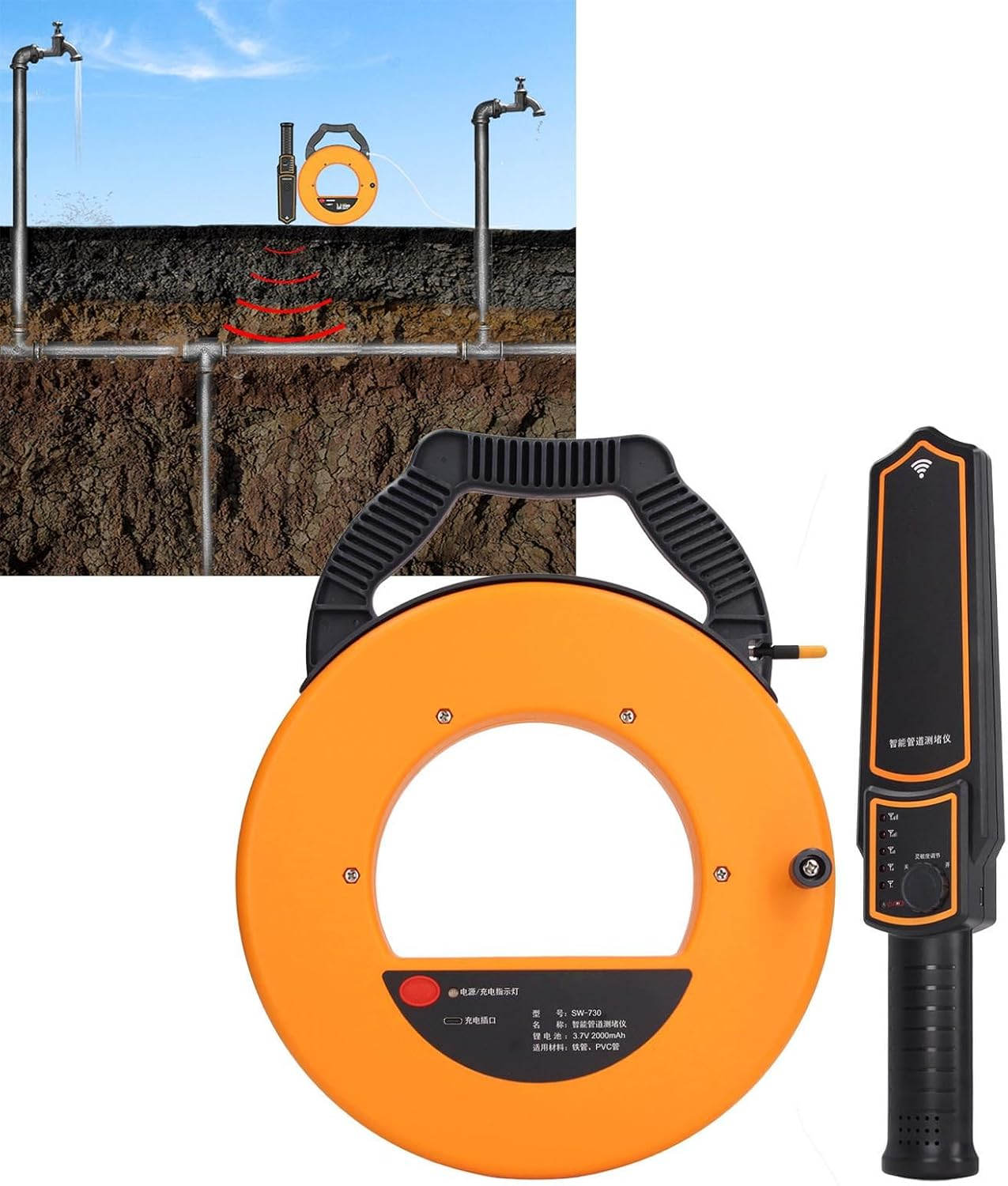

1. Thread the line and transmission line into the pipeline until the line cannot go forward, and the position of the probe is the blocked position.
2. Turn on the power switch of the transmitter, and the green indicator light will be on.
3. Turn on the power switch of the receiver, and hold the receiver to detect along the approximate direction of the buried pipeline. If the receiver horn approaches the internal probe of the pipeline, it will emit a buzzing sound, and the maximum sound is at the blockage point. Marking it, pull out the line, and chisel open the ground to proceed with the processing.
4. After continuous use for a period of time, the green light of the product starts to flash, indicating that the remaining battery can be used for about half an hour. Please pay
