H807SA 8CH Artnet/Dmx to Spi LED Pixel Controller with SD Card for Ws2811 Ws2812B Ws2815 Ws2813 Apa102 LED Strip
H807SA 8CH Artnet/Dmx to Spi LED Pixel Controller with SD Card for Ws2811 Ws2812B Ws2815 Ws2813 Apa102 LED Strip
Brand: TOPXCDZ
A$219.95
- Package includes: 1 x H807SA Art-Net SPI LED controller (we will send the plug EU)
- eight output ports that control up to 8192 pixels. Each port can control a maximum of 1024 points. The SD card supports fat32 and fat16 formats, and allows up to 64 data files. Multiple synchronisation control can be achieved through a local network.
- You can switch files by sending UDP instructions to the network port 2 or the current playback file number etc. can connect to the dma console, supports rgbw, can replace files, adjust speed and brightness and has fast response time.
- Supports the Art Net protocol and can directly use software that supports Art Net such as Madrix and Jinx. Supports closure function to limit the number of power cycles. Supports the addressing of the DMA chip with integrated counting and internal control functions.
- It can be closed or disconnected and can be connected directly to a computer network card, router or main controller. Supports online firmware upgrades. W can be inserted. Adjustable time-controlled playback function

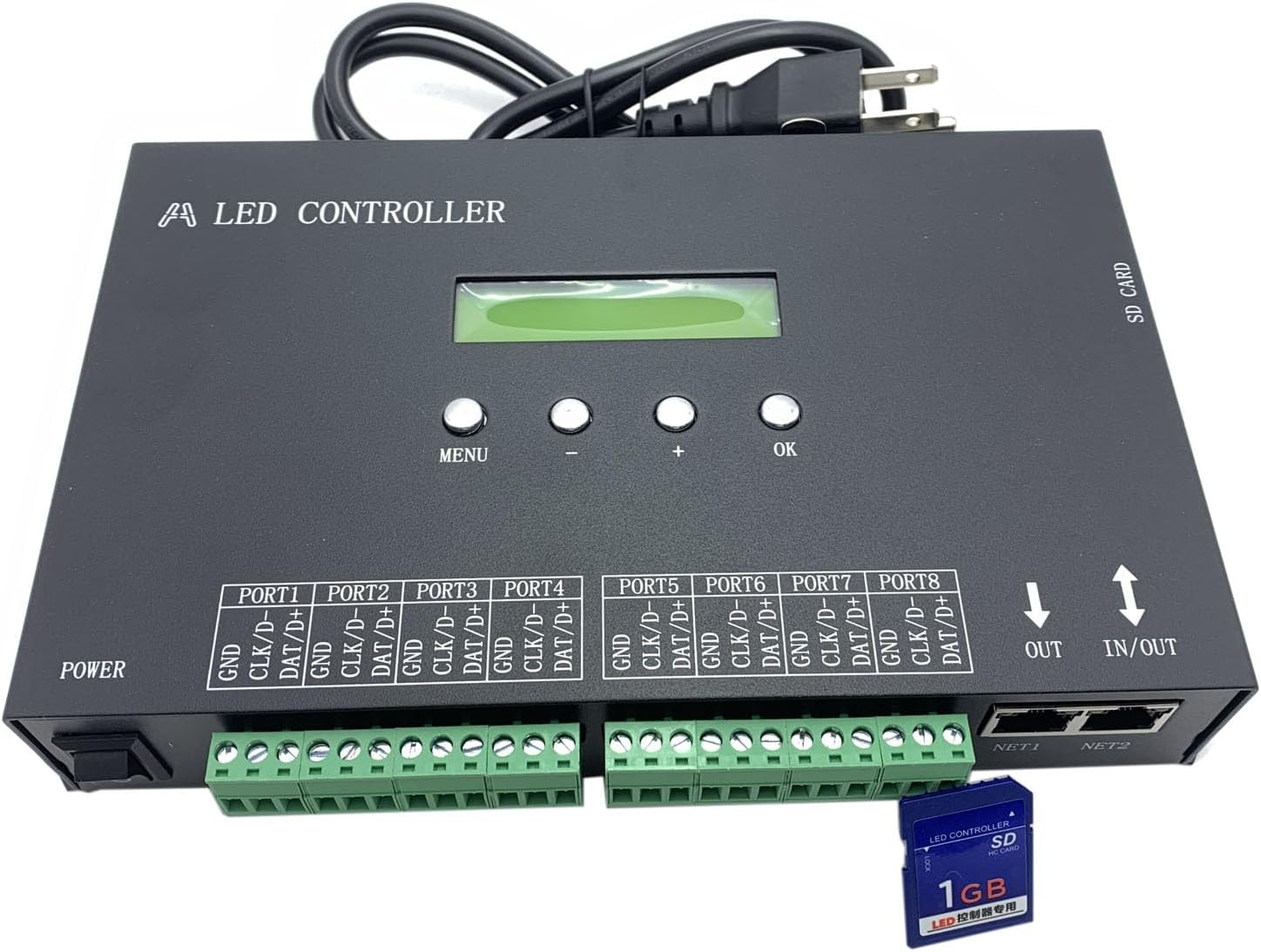

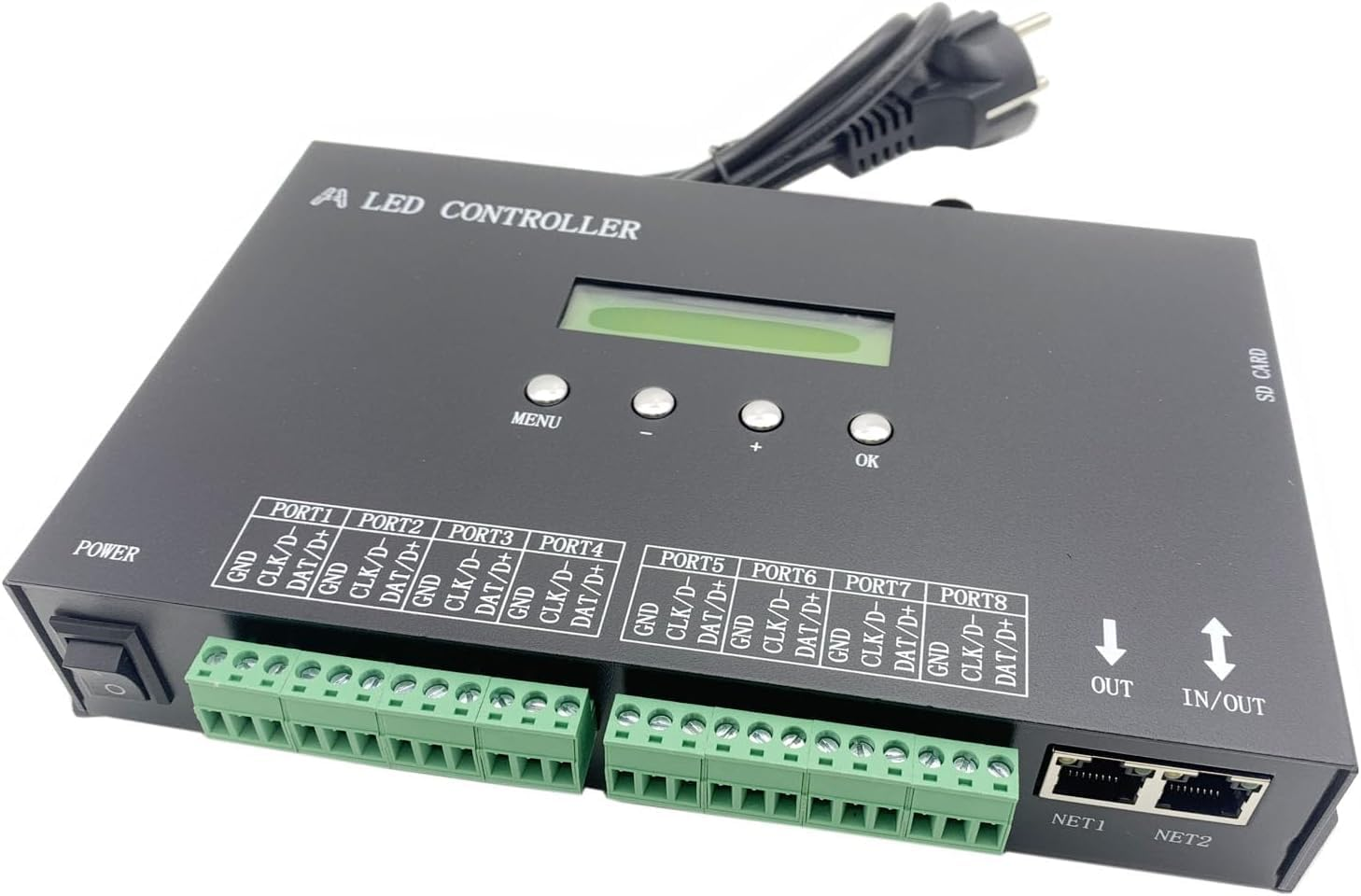

H807sa art-net spi LED controller.

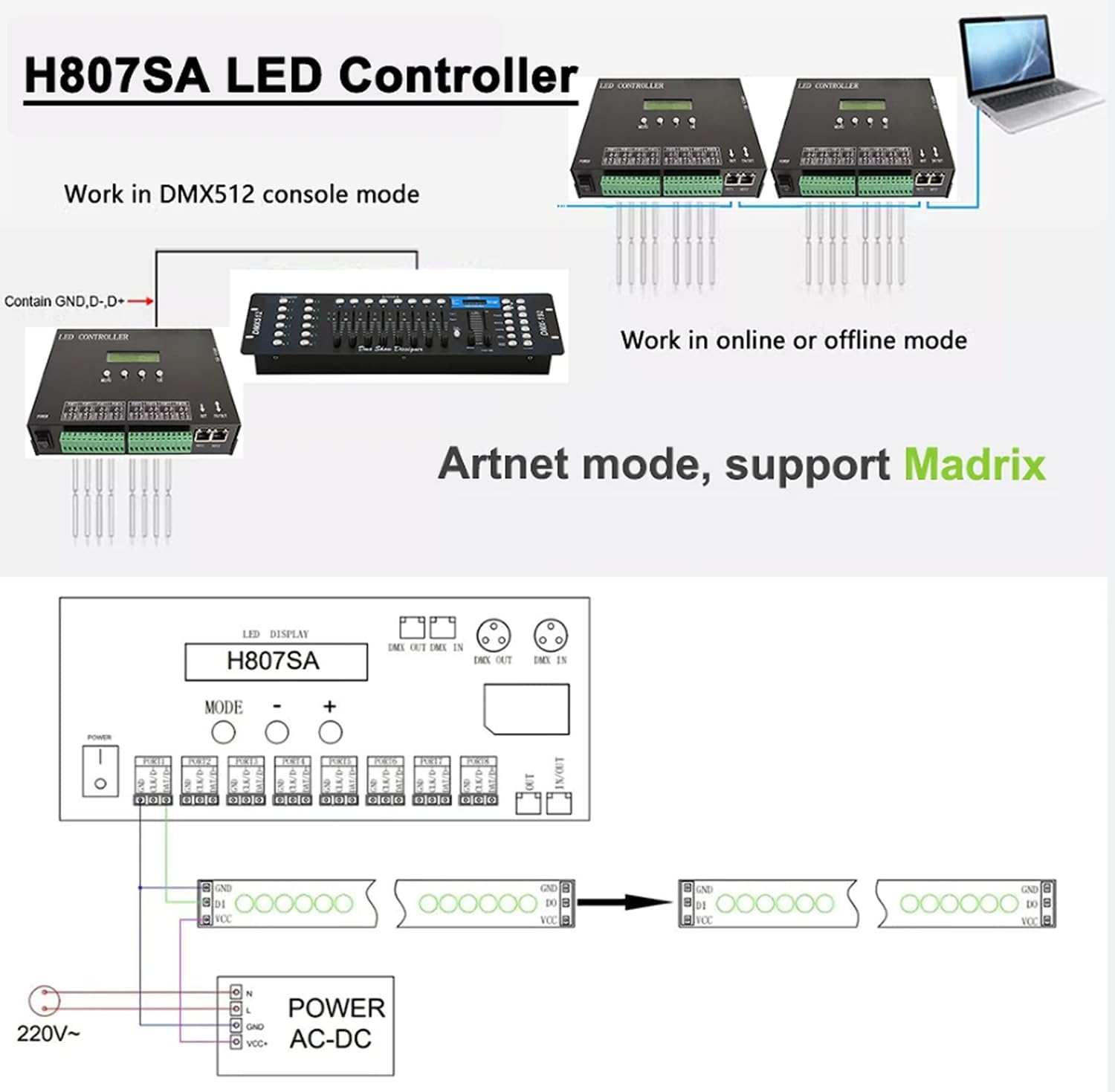

H807sa is an 8-port output removable single machine controller, which can control up to 8192 points. Supports art net protocol, supports addressing DMA chips, can connect to DMA console and add or delete dat files via local network.
Currently, the driver chips that can be controlled include DMX512, HDMX, APA102, APA102-65536, ws2801, ws2811, ws2812, ws2812, ws2813, tm1812, tm1809, tm1809. 04, tm1923, tm1934, tm1925d, tm1926d, tm1803, tm1814, tm1913, tm1914, tm1926, ucsucs1903, ucs1909, ucs1912, ucs2903, Ucs29Uc09, ucs2912, ucs8904, ucs5603, ucs9812, ucs2603, sk9816, sk6816 12 Sm16716, sm16703, sm16709, sm16712, sm16704 sm16714, lpd6803, lpd8806, lpd1882, lpd1889, lpd1883, ink1003, apa104, p943, lc8812, gw6205, qed3110, d9866e, d9866b d9865e, d9865f, d9864b, d9864c, mbi6023, mbi6024, adt6610, tlc5971, jcs0104 etc.
Ld1510, ld1512, ld153x (supports 8-bit mode only)
The supporting software is "LED programming software" v 4.47 and above.
- Item Model Number: H807SA
- Style: H807SA
- Power Source: Battery operated
- Brand: TOPXCDZ
- Type of Bulb: LED
- Special Features: Adjustable
- Style Name: H807SA
- Manufacturer: TOPXCDZ
