Spec:

Item Type: Extractor

Material: Aluminium Alloy

Size: Approx. 100x95x20mm / 3.94x3.74x0.79in

Input, Output Resolutions: 1080p 60fps, 4K 30fps, 4K 60fps

Deep Color: K 60fps YUV444 8bit; 4K 60fps YUV422 12bit 2160p, 10 12bit, 50 60Hz

Input and Output TMDS : 0.5~1.5Vp p(TTL)

Input and Output DDC : 5Vp p(TTL)

DAC Sampling Frequency: 32~192 KHz

Features

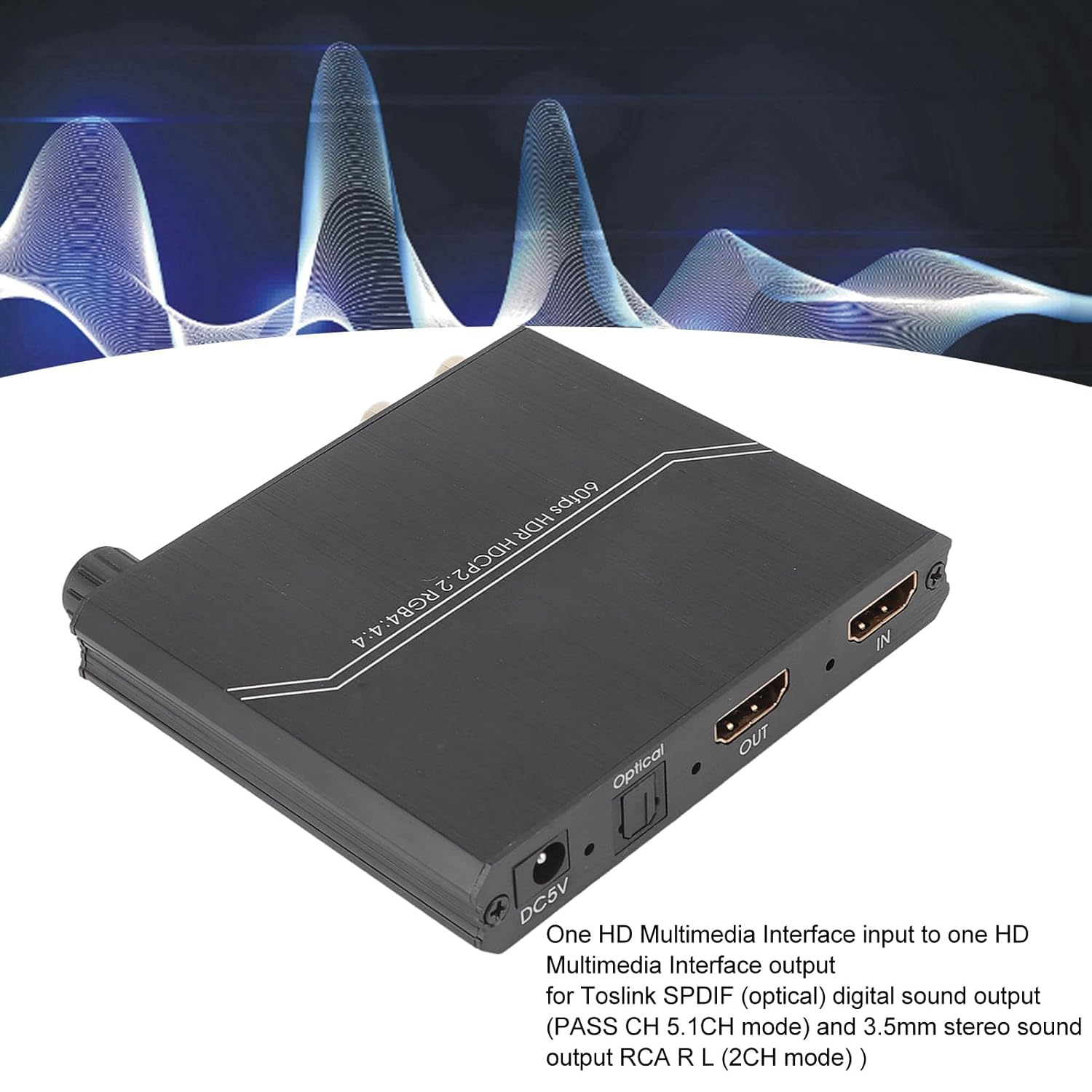

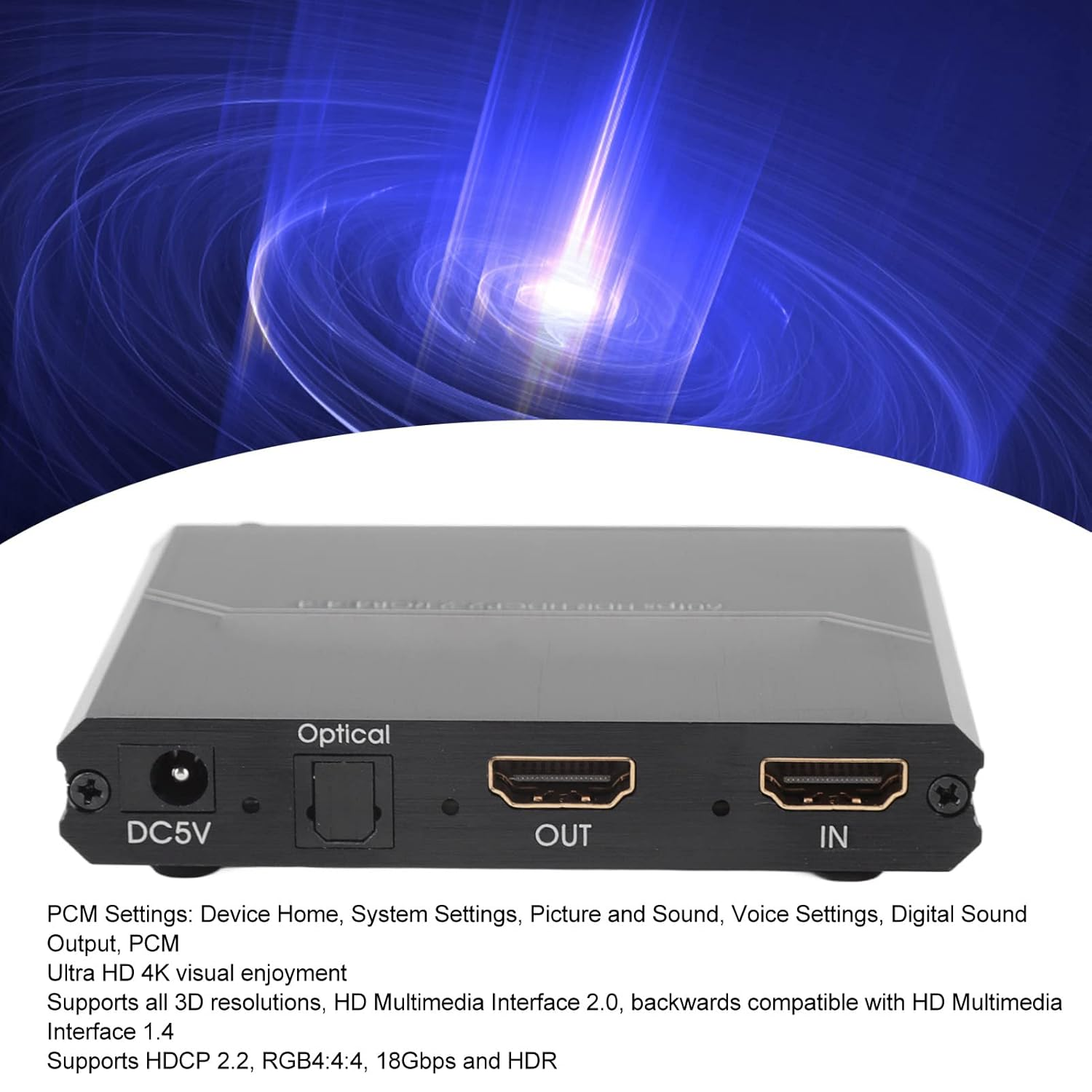

Supports 1 Input Port

Supports 1 Output Port

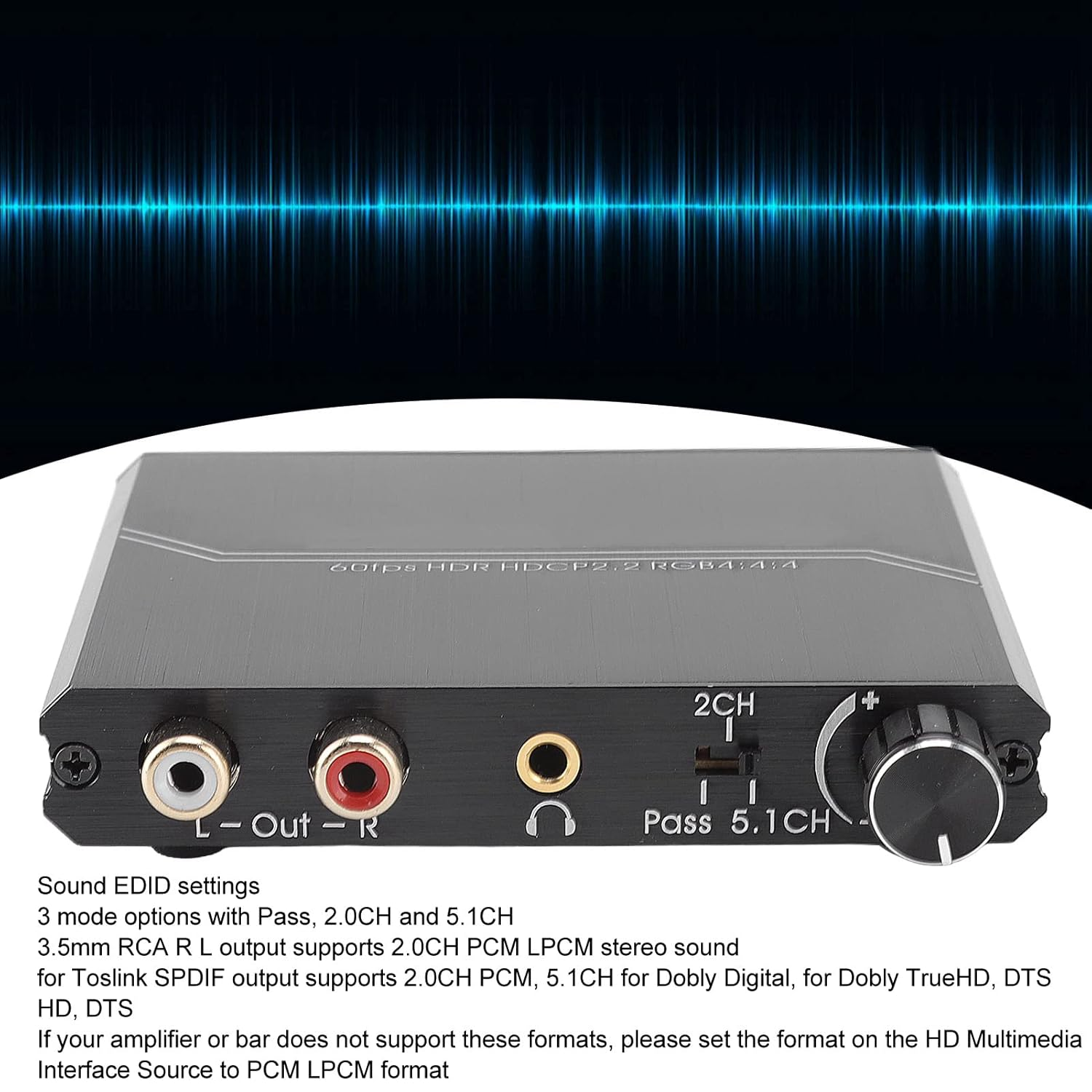

Supports 1 Optical Digital Sound Output Port

Support 1 Stereo Sound Output Port, Connect 600Ω High Resistance Headphones

Supports 1 R L Sound Output Port

Supports Up to 4K 60fps Input Resolution

Supports Volume Control

Support for 3D, HDR, YUV4:4:4

Supports HDCP2.2

Support for Digital Sound Formats Such As AC3, DTS, LPCM

Sound Output Supports 3 EDID Selection Modes (2CH 5.1CH PASS)

Lossless

Easy Installation

Presentation:

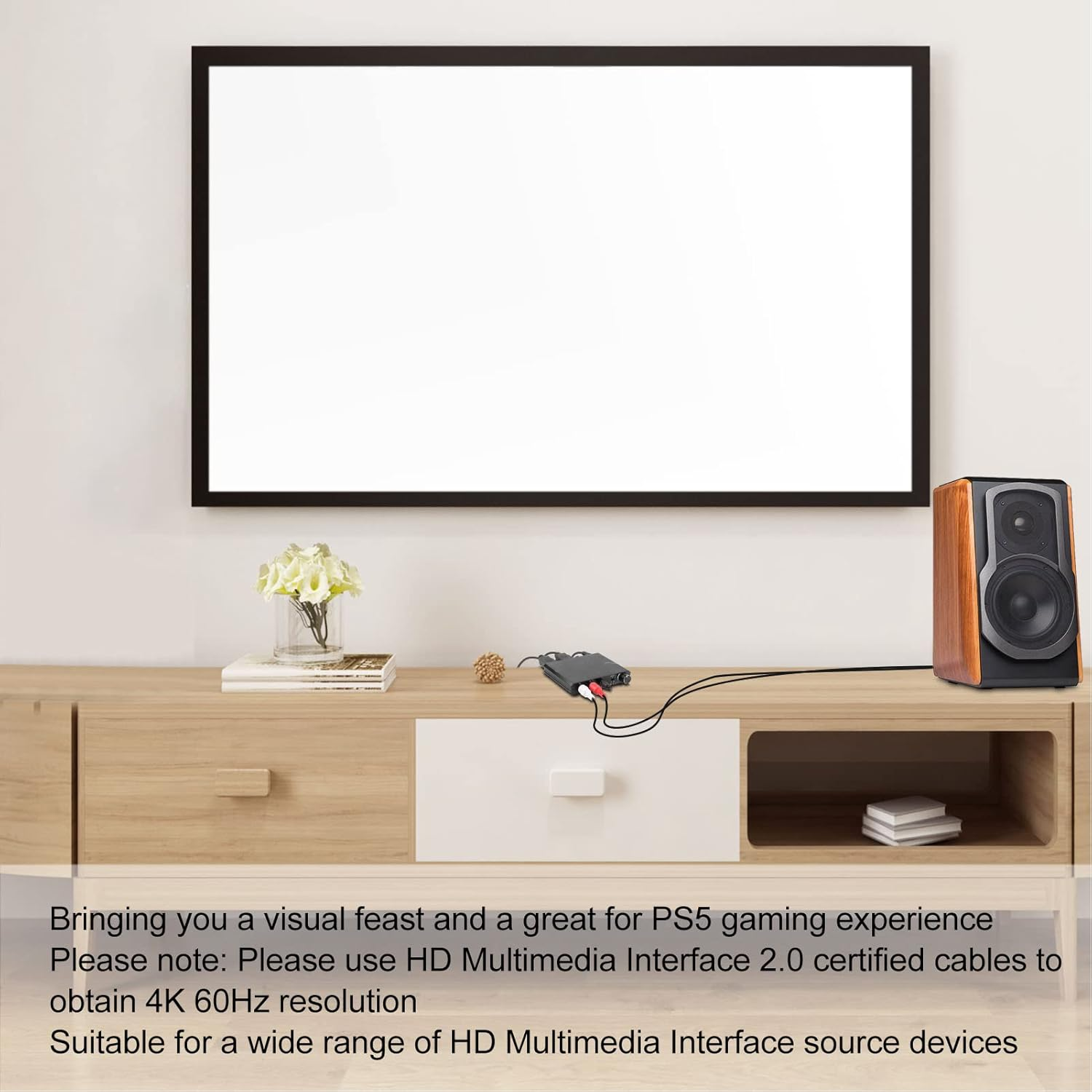

This extractor can be connected between a source device (DVD player, network player, set top box, for , for PS3, for Xbox360, PC, etc.) and a display device (TV, HD monitor, projector), allowing the simultaneous separation of an optical and an R L to connect a stereo channel to the sound system for a . AC 3, DTS, LPCM and other formats are supported. The product is also designed with a volume knob for flexible control of the output analogue volume.

Package List:

1 x Extractor

1 x Optical Cable

1 x USB Power Cable

1 x Manual

Note:

Please allow for some errors in manual measurements.
