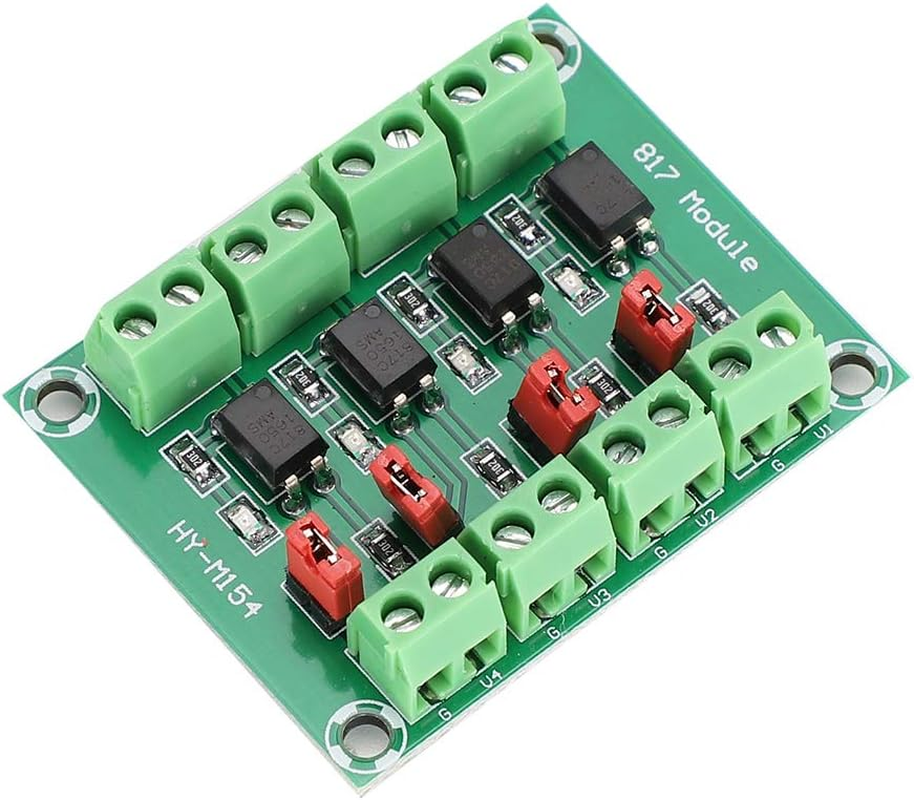

Zopsc 4 Channel Voltage Converter Optocoupler Isolated Board Adapter Module, 3.3V/5V to 3.6V/24V, Strong Anti-Interference, for Isolation Control and Voltage Conversion
Zopsc 4 Channel Voltage Converter Optocoupler Isolated Board Adapter Module, 3.3V/5V to 3.6V/24V, Strong Anti-Interference, for Isolation Control and Voltage Conversion
Brand: Zopsc
A$12.95

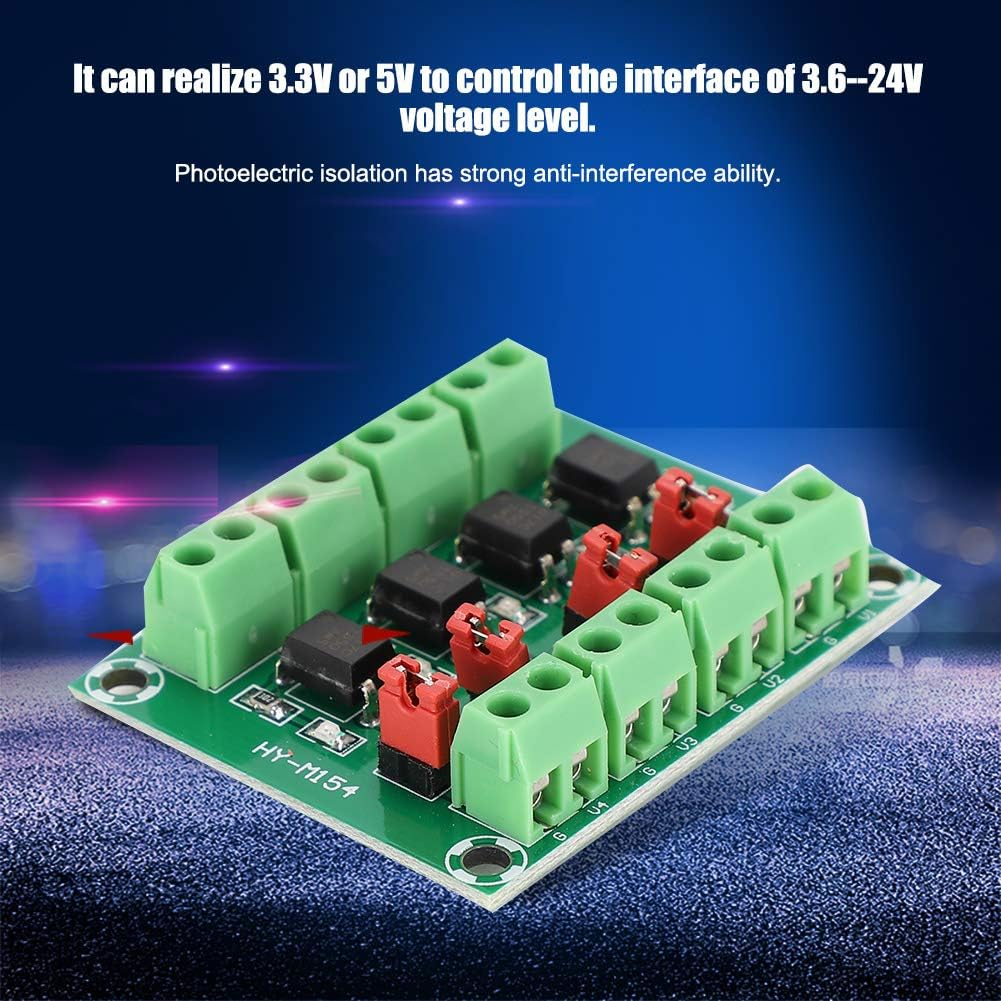

- 【Easy for Use】It can realize 3.3V or 5V to control the interface of 3.6--24V voltage level. After the control terminal is turned on, the controlled terminal will also be turned on.
- 【Convenient Design】Through the jumper cap can achieve whether the output is high potential output or low output.

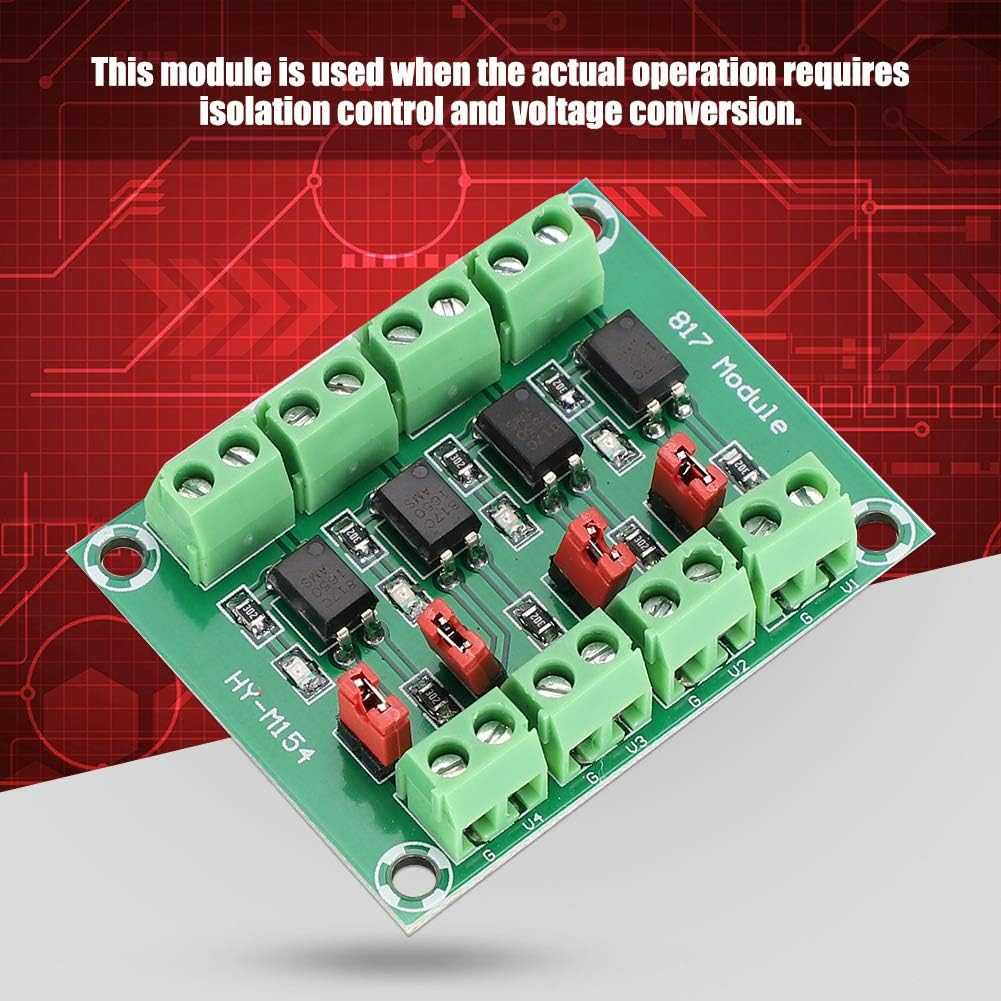

- 【Module Function】This module is used when the actual requires isolation control and voltage conversion.
- 【High Performance】Photoelectric isolation has strong anti-interference ability. Can drive big behindPower triodes, MOS tubes, etc., where high voltage driving is required, can also directly drive low power 24V relays.

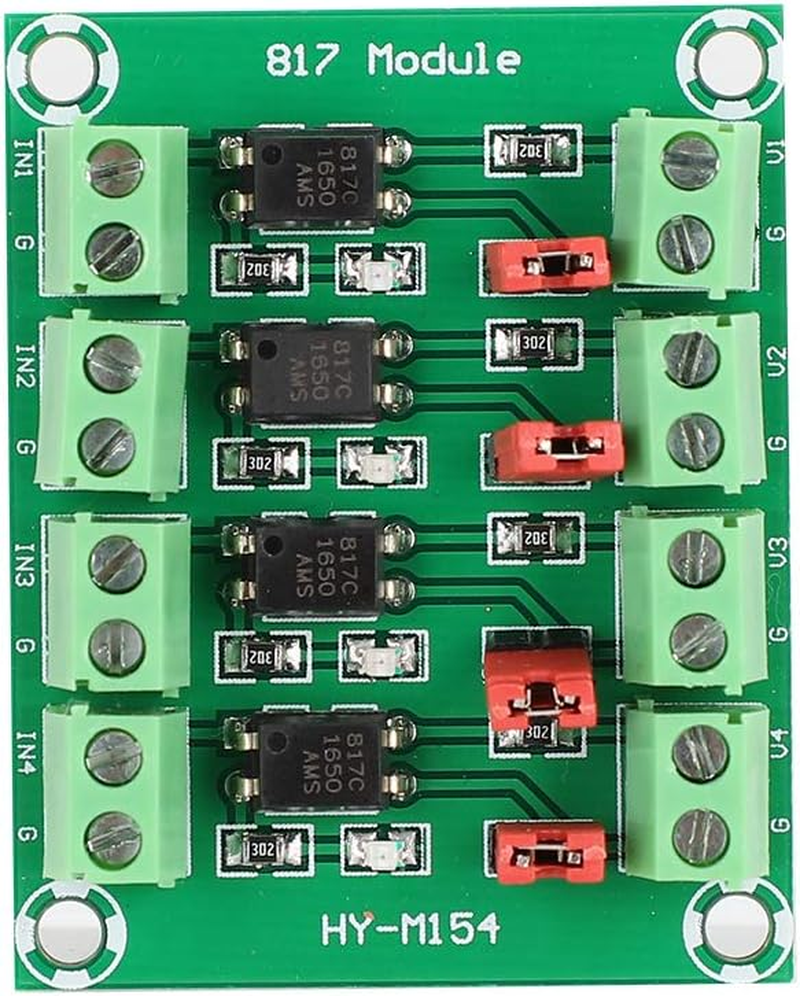

- 【Application Notice】If it is a pulse , please note that the limit of 817 is below 4KHZ. If the control is greater than 4KHZ, please do not use this module, it will not work properly.
Product Description
3.3V/5V to 3.6V/24V 4 Channel Voltage Converter Optocoupler Isolated Board Adapter Module Strong Anti-Interference for Isolation Control and Voltage Conversion
Application Notice If it is a pulse , please note that the limit of 817 is below 4KHZ. If the control is greater than 4KHZ, please do not use this module, it will not work properly.
High Performance Photoelectric isolation has strong anti-interference ability. Can drive big behindPower triodes, MOS tubes, etc., where high voltage driving is required, can also directly drive low power 24V relays.
Convenient Design Through the jumper cap can achieve whether the output is high potential output or low output.
Specification:
Condition: 100% Brand New
Item Type: 4-way Voltage Isolation Board
Material: ABS
Guide gate voltage: 3.6-24V
Output Port Voltage Port: 3.6-30V
The jumper can reach the exit gate: high potential or pull the exit pad
Package list:
1 x 4-way Voltage Isolation Board
Notes:
1. The actual product color may deviate from the photo due to light.
2. There may be a slight deviation in the measurement of product.
- Item Model Number: Zopsc9vuxftm34k
- Part Number: Zopsc9vuxftm34k
- Country/Region of origin: China
- Power Source: DC power supply
- Batteries Required: No
- Brand: Zopsc
- Item Weight: 15 g
- Model Name: Zopsc9vuxftm34k
- Model: Zopsc9vuxftm34k
- Package Dimensions: 8 x 5 x 1 cm; 15 Grams
- Manufacturer: Zopsc
