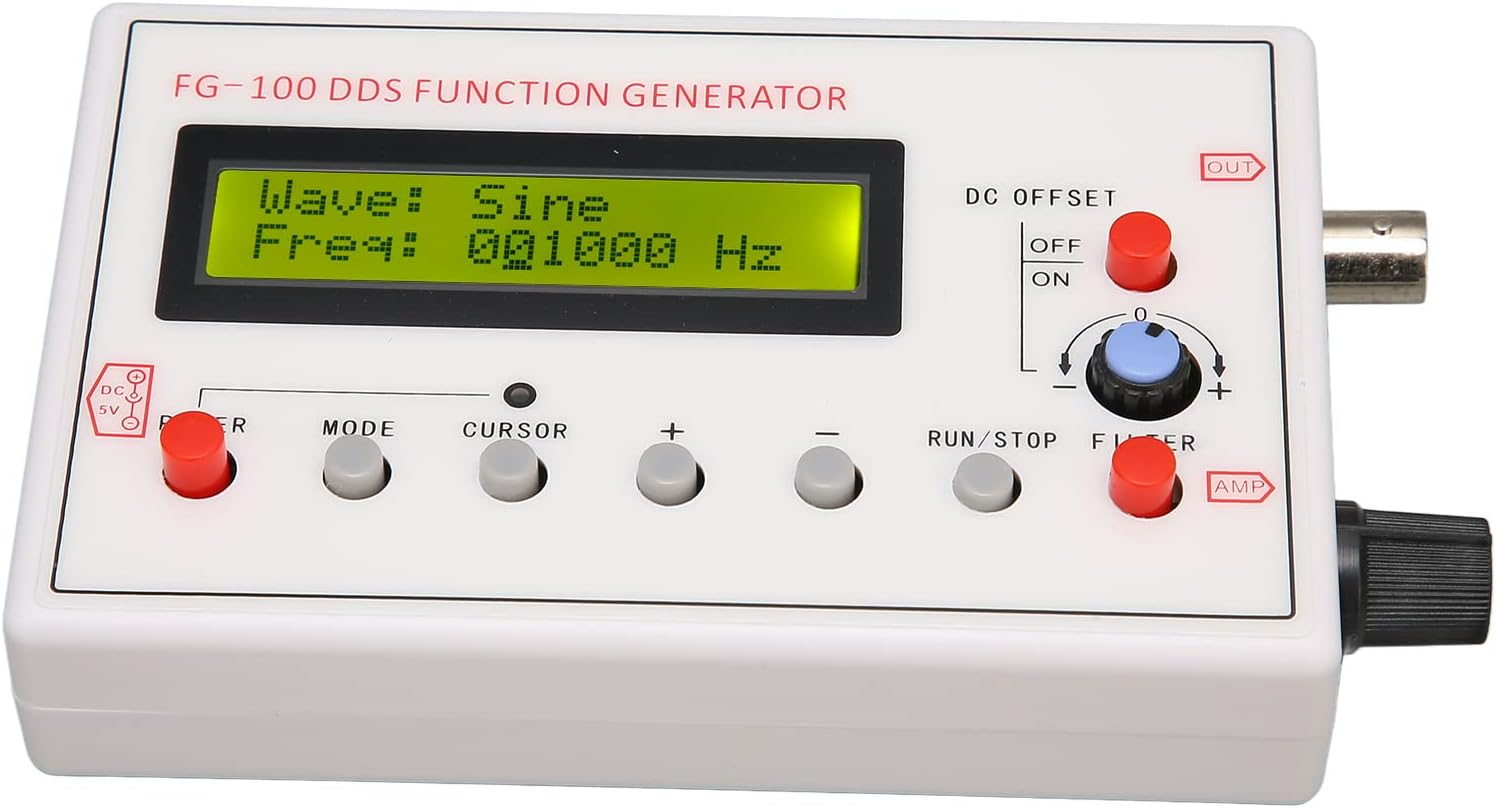

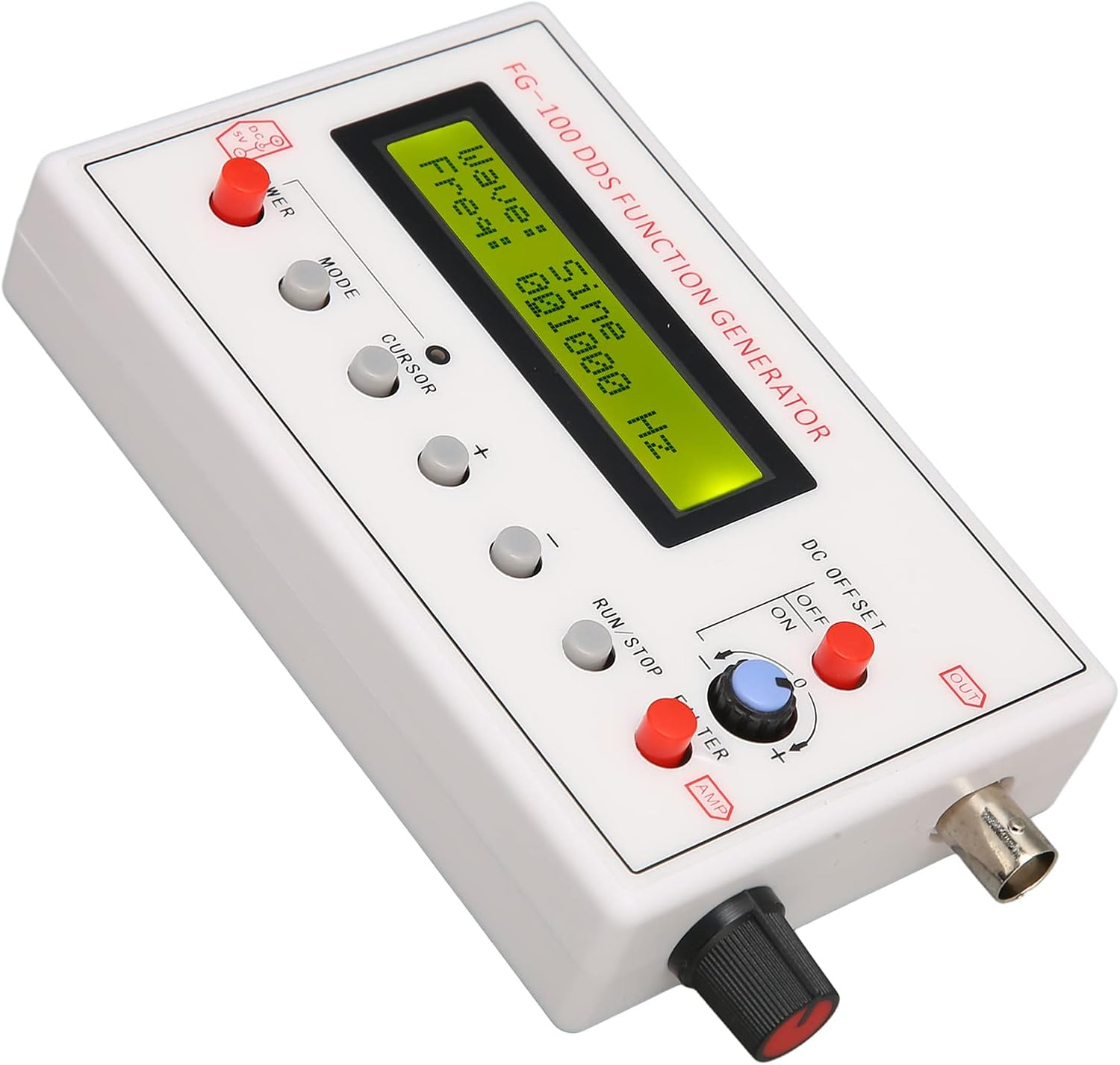

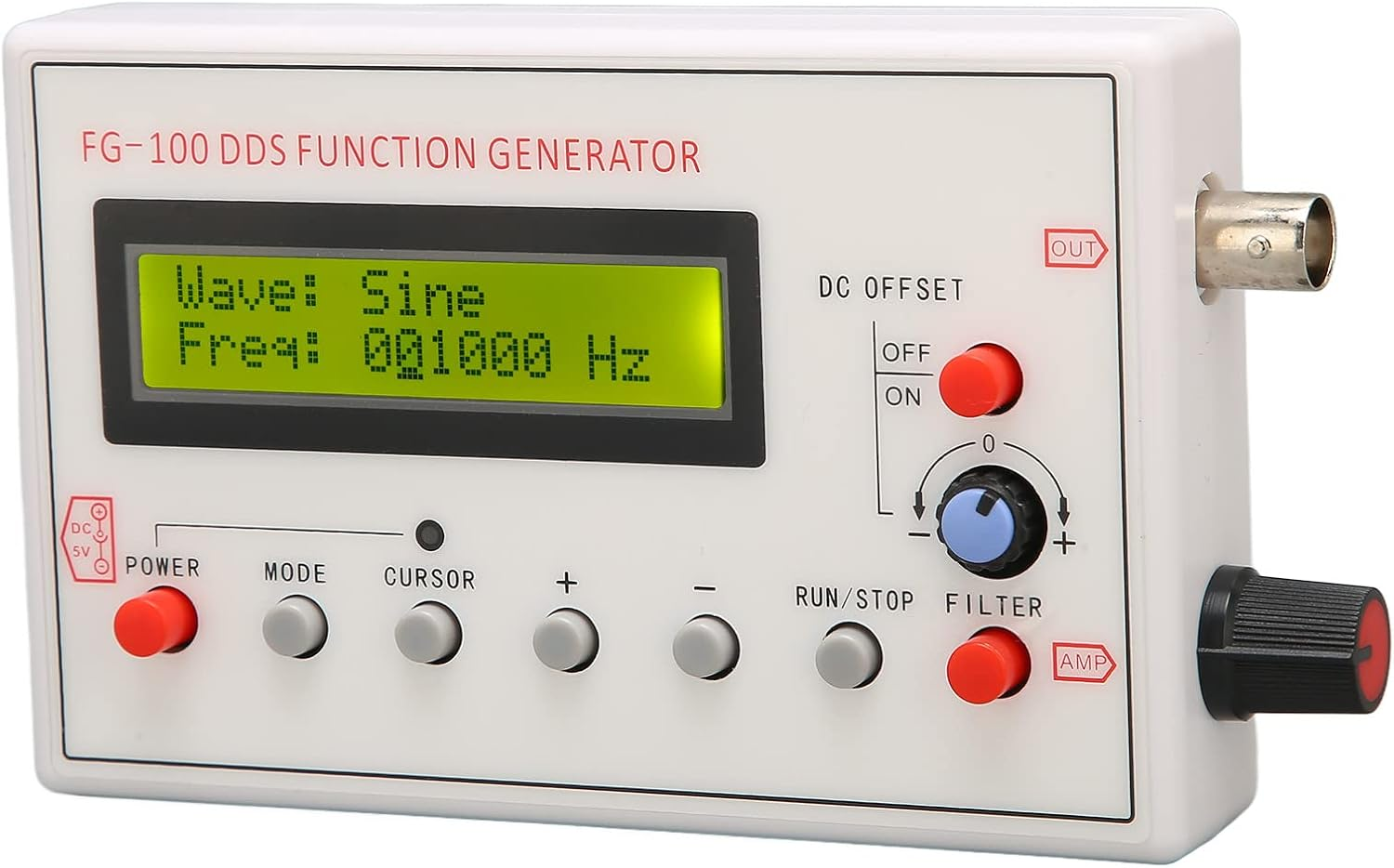

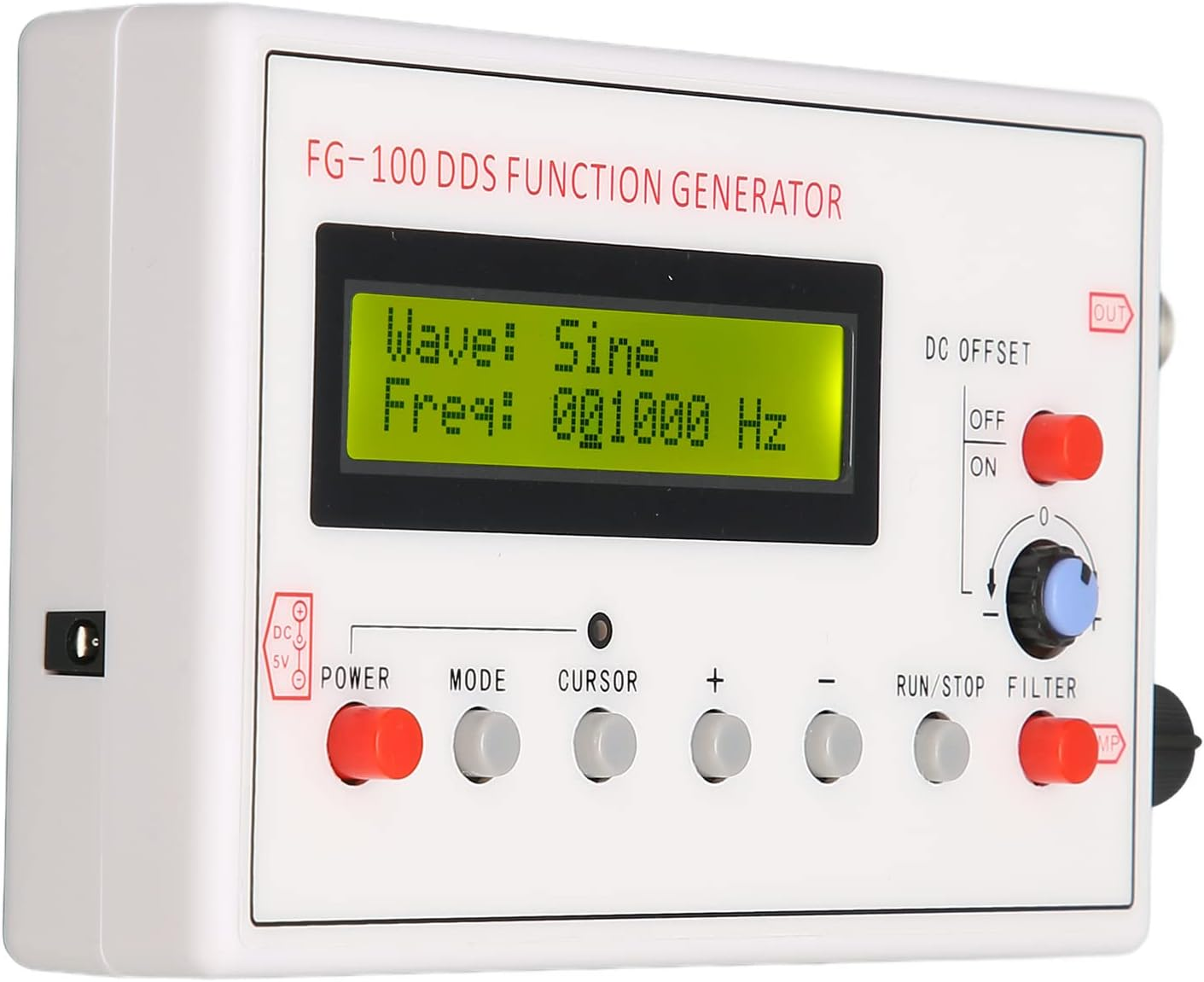

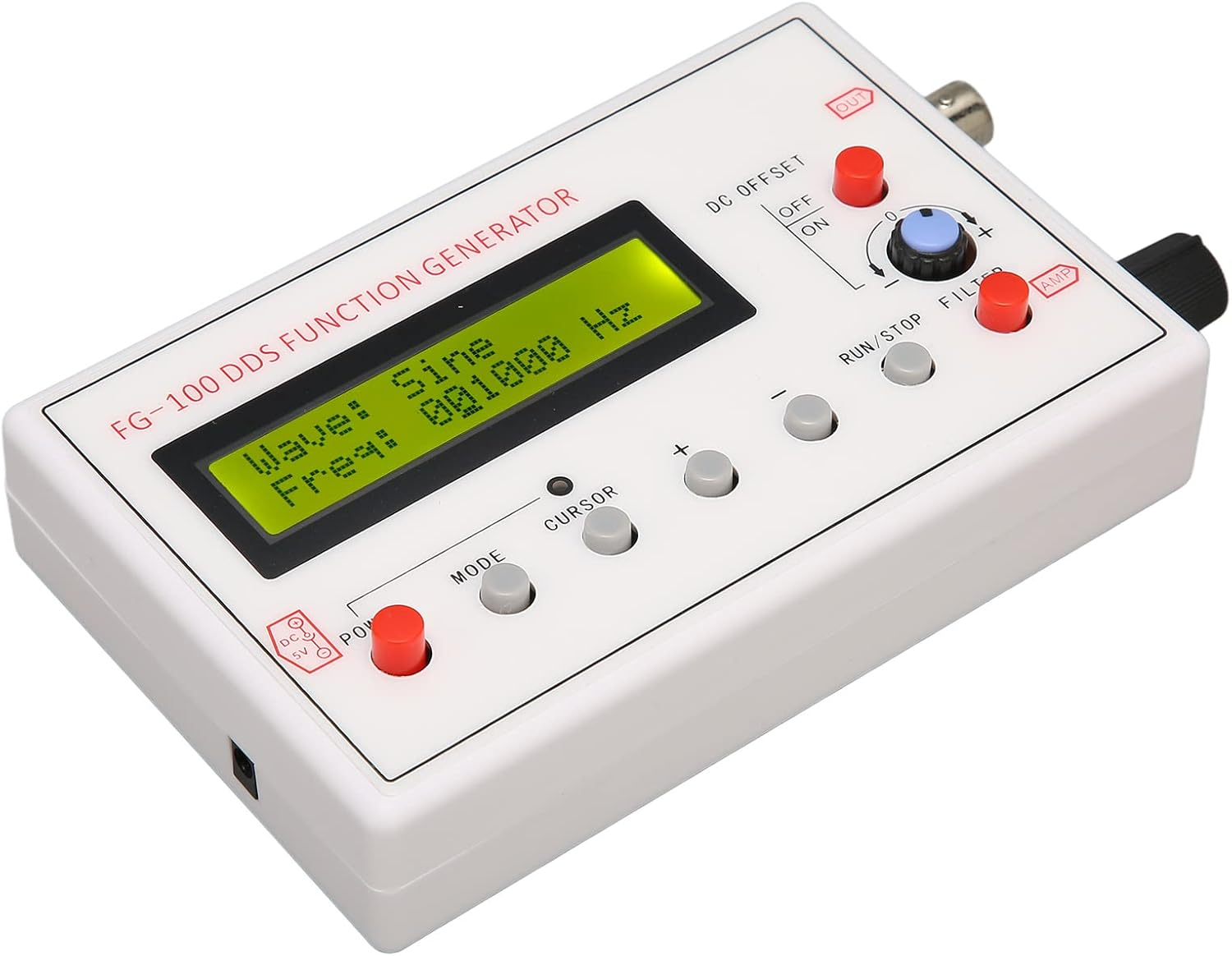

1Hz‑500Khz DDS Functional Signal Generator, Sine Triangle Square Sawtooth Waveform Function Generators, DDS Functional Signal Generator for Electronic Circuit Testing and Debugging

1Hz‑500Khz DDS Functional Signal Generator, Sine Triangle Square Sawtooth Waveform Function Generators, DDS Functional Signal Generator for Electronic Circuit Testing and Debugging

Brand: Zopsc
4.5
A$43.45
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • SMALL AND CONVENIENT: DDS functional generator is compact and light weight, full featured, simple to operate and easy to carry.
  • STABLE: DDS function generator has high accuracy and frequency stability, suitable for oscilloscope scan time factor calibration.
  • SQUARE : DDS function generator can square output, suitable for oscilloscope attenuator and probe pulse characteristics adjustment, etc.
  • USE: Function generator together with oscilloscope can be used for electronic circuit testing and debugging, sound amplifier frequency, characteristics and impulse response testing and measurement.
  • OUTPUT WAVEFORM: DDS generator has sine , square , triangle , forward sawtooth , reverse sawtooth output waveform.

Product Description

DDS Functional Generator, Function Low Frequency Generator Sine Triangle Square Sawtooth Waveform, 1HZ to 500KHZ


USE: Function generator together with oscilloscope can be used for electronic circuit testing and debugging, sound amplifier frequency, characteristics and impulse response testing and measurement.


STABLE: DDS function generator has high accuracy and frequency stability, suitable for oscilloscope scan time factor calibration.


OUTPUT WAVEFORM: DDS generator has sine , square , triangle , forward sawtooth , reverse sawtooth output waveform.


Spec:


Item Type: Function Generator


Material: ABS


Frequency Range: Sine Waveform 1‑500KHz (Where The Output Amplitude is Flat Up to 200KHz, with The Further Increase in Frequency Output Amplitude Will Be Reduced), Other Waveforms 1‑50KHz (But The Upper Limit of Adjustable Frequency Does Not Limit, If The Distortion and Wobble Requirements Are Not High, The Use of Frequency can Be Further Increased)


Resolution: 1Hz


Output Waveform: Sine , Square , Triangle , Forward Ramp, Reverse Ramp


Sine Distortion: Output Amplitude: ±10V Maximum (P‑P)


Output Impedance: 50 Ohms


DC Offset: ±10V Maximum with Shutdown Function


Output Port Specification: Bnc


Output Frequency Range:


Sine : 1‑500KHz ( Valid Range )


Square : 1‑20KHz (Valid Range)


Triangle : 1 ‑ 20KHz (Valid Range)


Sawtooth : 1‑20KHz (Valid Range)



PackageList:


1 x Function Generator


1 x Instruction Manual


1 x USB Cable



  • Item Model Number: Zopsc5sg7tg6pea
  • Part Number: Zopsc5sg7tg6pea
  • Country/Region of origin: China
  • Batteries Required: No
  • Brand: Zopsc
  • Item Weight: 250 g
  • Model Name: Zopsc5sg7tg6pea
  • Model: Zopsc5sg7tg6pea
  • Package Dimensions: 18.1 x 11.2 x 4.9 cm; 250 Grams
  • Manufacturer: Zopsc
