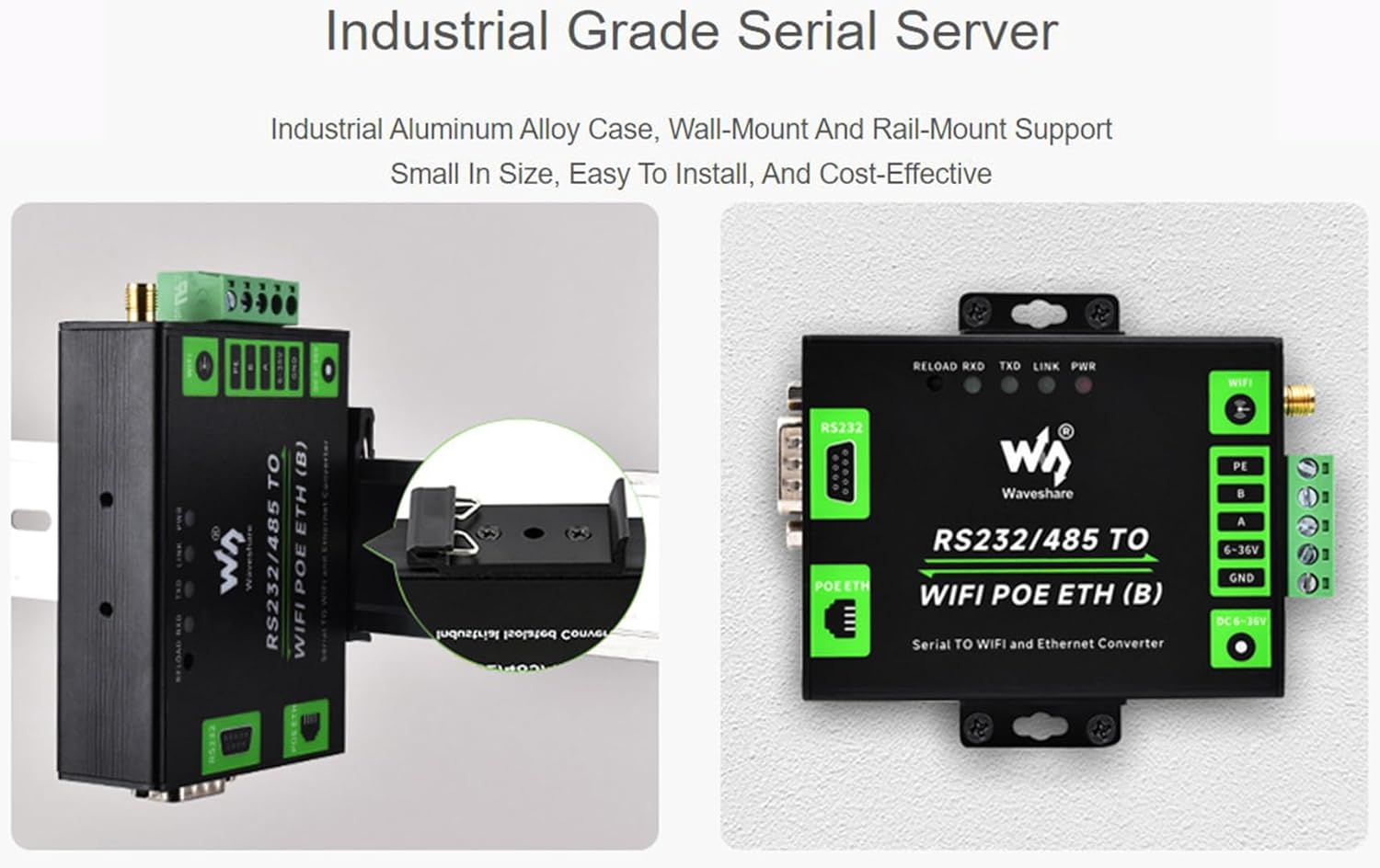

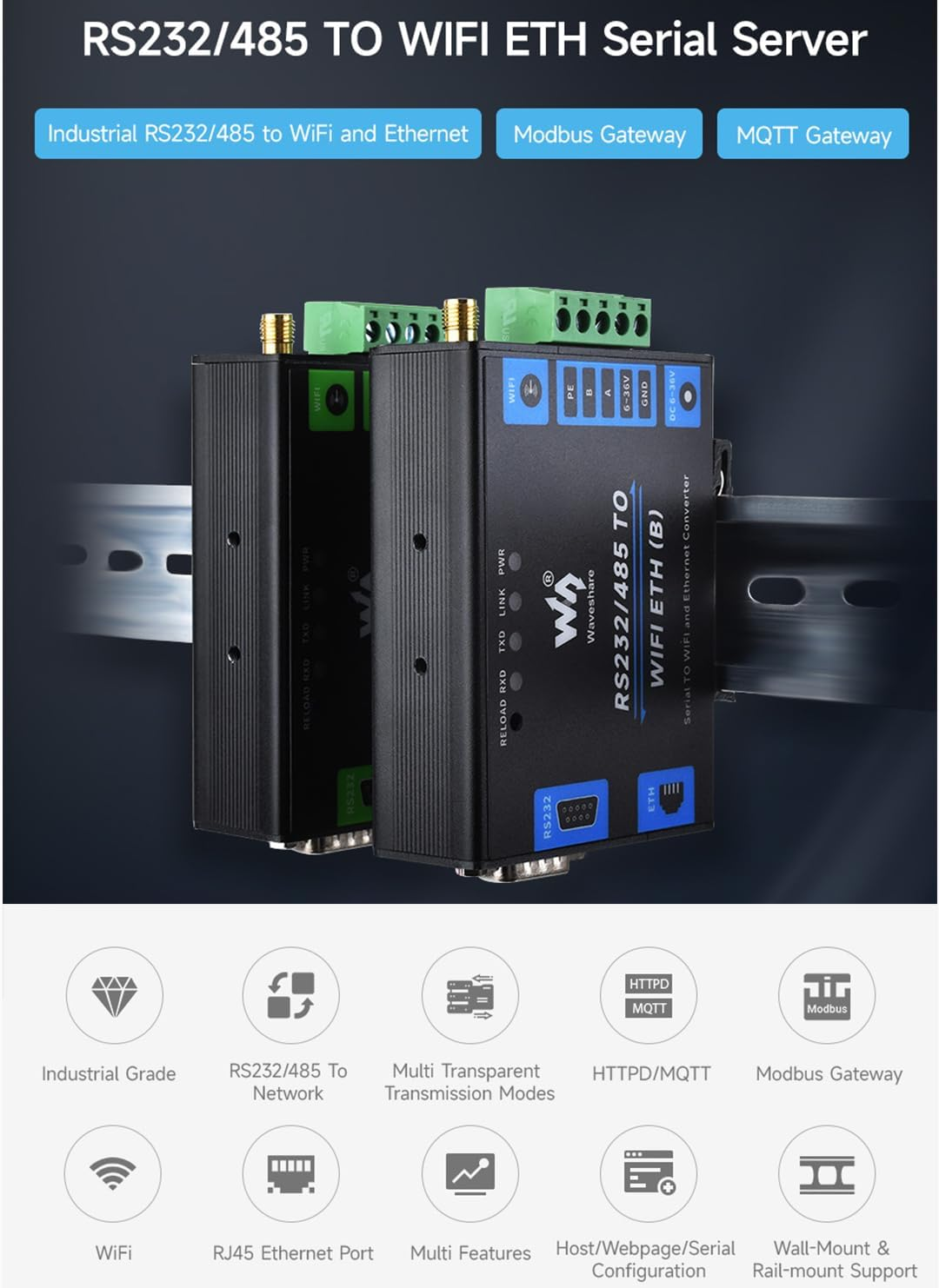

RS232/485 To WiFi and Ethernet with POE Serial Server is designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc.
Outline
Power supply--DC 6~36V

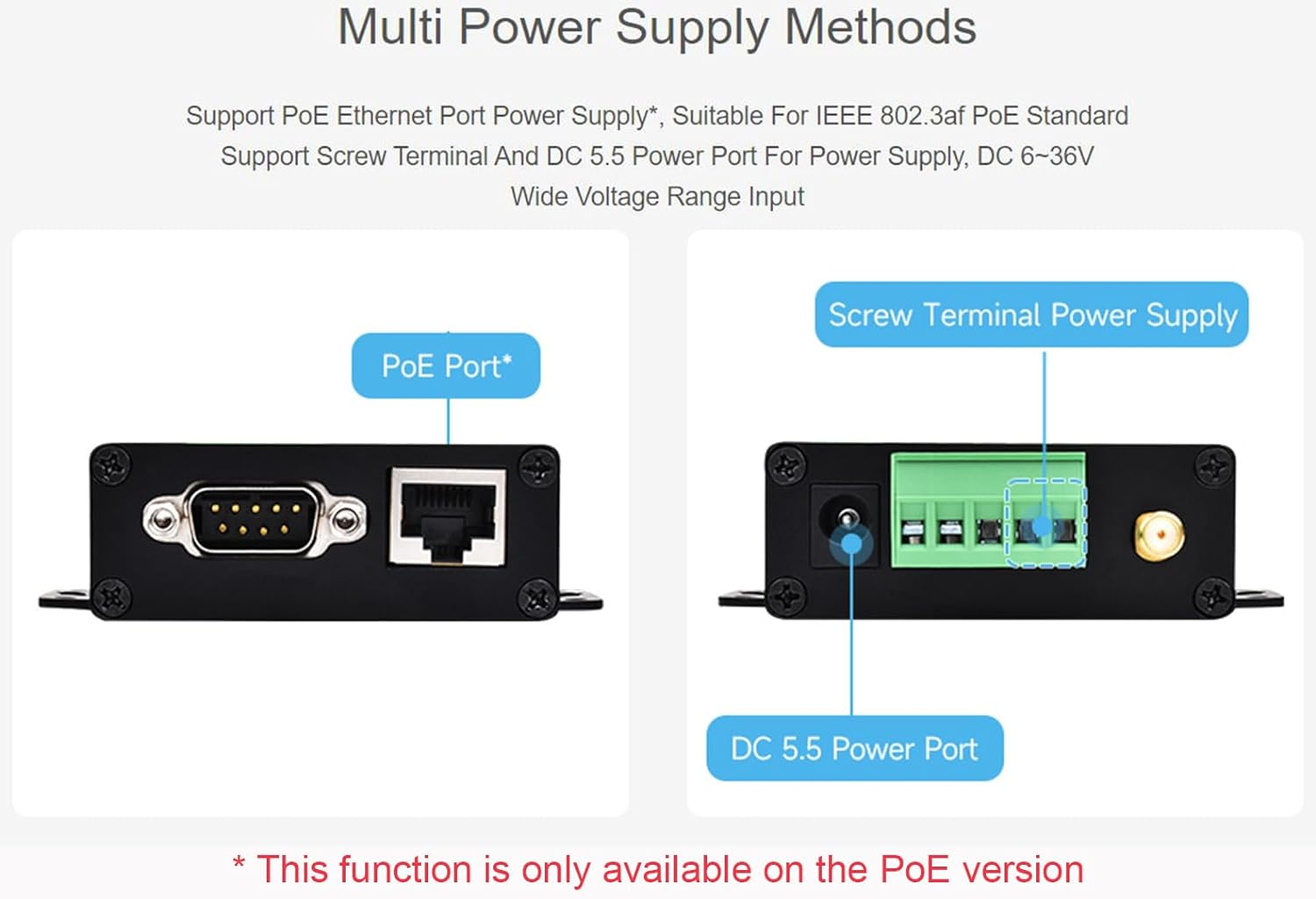

Power supply method--DC 5.5 power port, screw terminal, or PoE port
Dimensions(L × W × H)--84.00×64.00×24.00mm
Communication
Ethernet--10 / 100M auto-negotiation RJ45 connector
WIFI--802.11b/g/n compliant

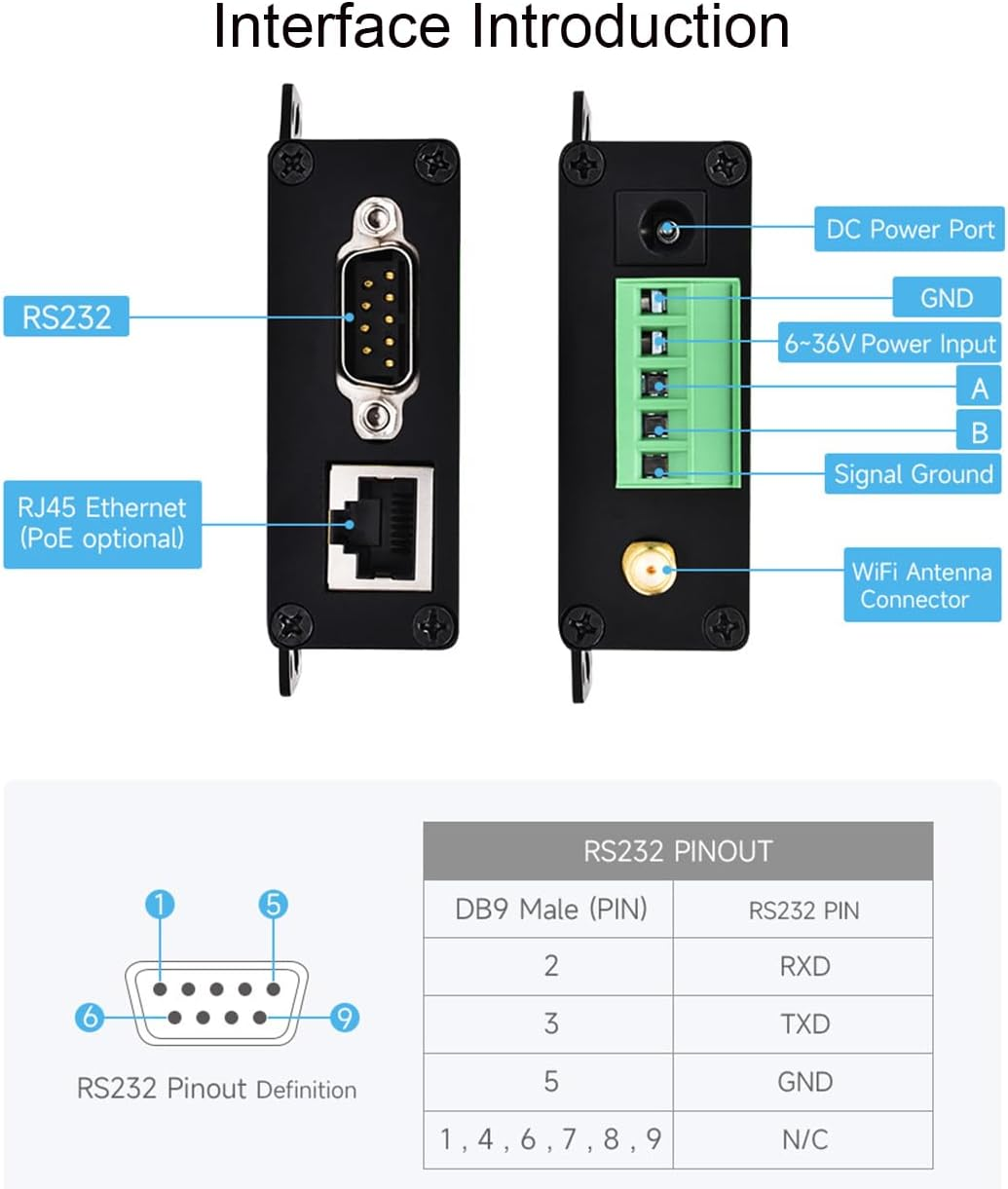

Serial port--RS232 (ESD/EFT),RS485 (ESD/EFT/surge protection)
Wireless specification
Frequency Band--2.412 ~ 2.484 GHz
Wireless network--Station / AP / AP+Station Mode
Security mechanism--WPA-PSK / WPA2-PSK
Encryption type--TKIP / AES
Transmitting power
802.11b: +19dBm (Max.@11Mbps)
802.11g: +18dBm (Max.@54Mbps)
802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
Receiving sensitivity
802.11b: -89dBm (@11Mbps)
802.11g: -81dBm (@54Mbps)
802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
Serial specification
Baudrate--300 ~ 460800 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits
Software
Protocol--TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration--host, web browser, serial AT command
Communication method--TCP/IP direct communication, VCOM
Operating mode--Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environment requirement
Operating temperature: -40℃ ~ 85℃
Humidity range: 5% ~ 95% relative humidity
Online Tutorial/Online Document: n9.cl/lxr1p

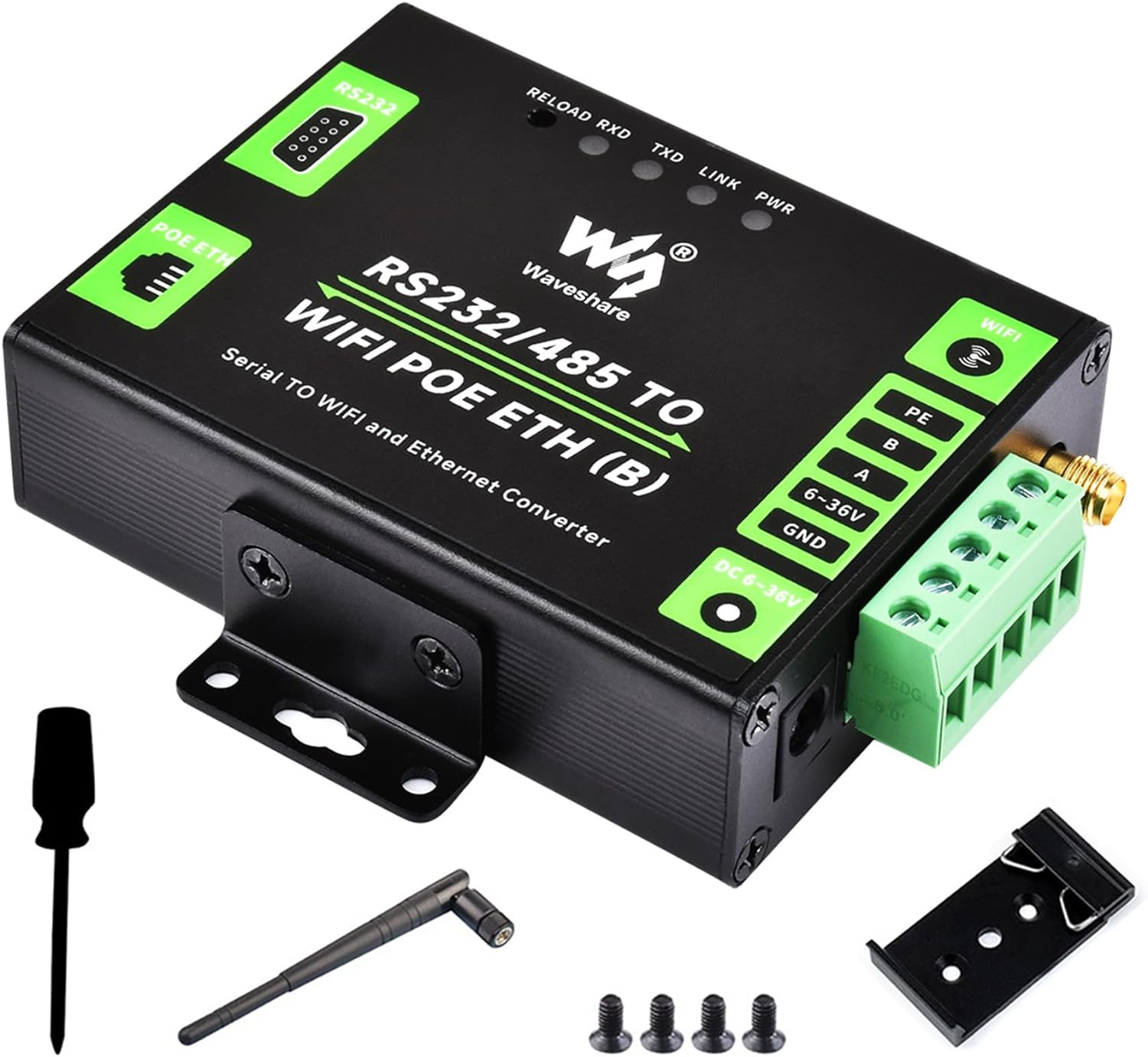

Package Content
RS232/485 TO WIFI POE ETH (B) x1
2.4G WiFi antenna x1
Rail-mount buckle x1
Screwdriver x1
Screws pack x1
