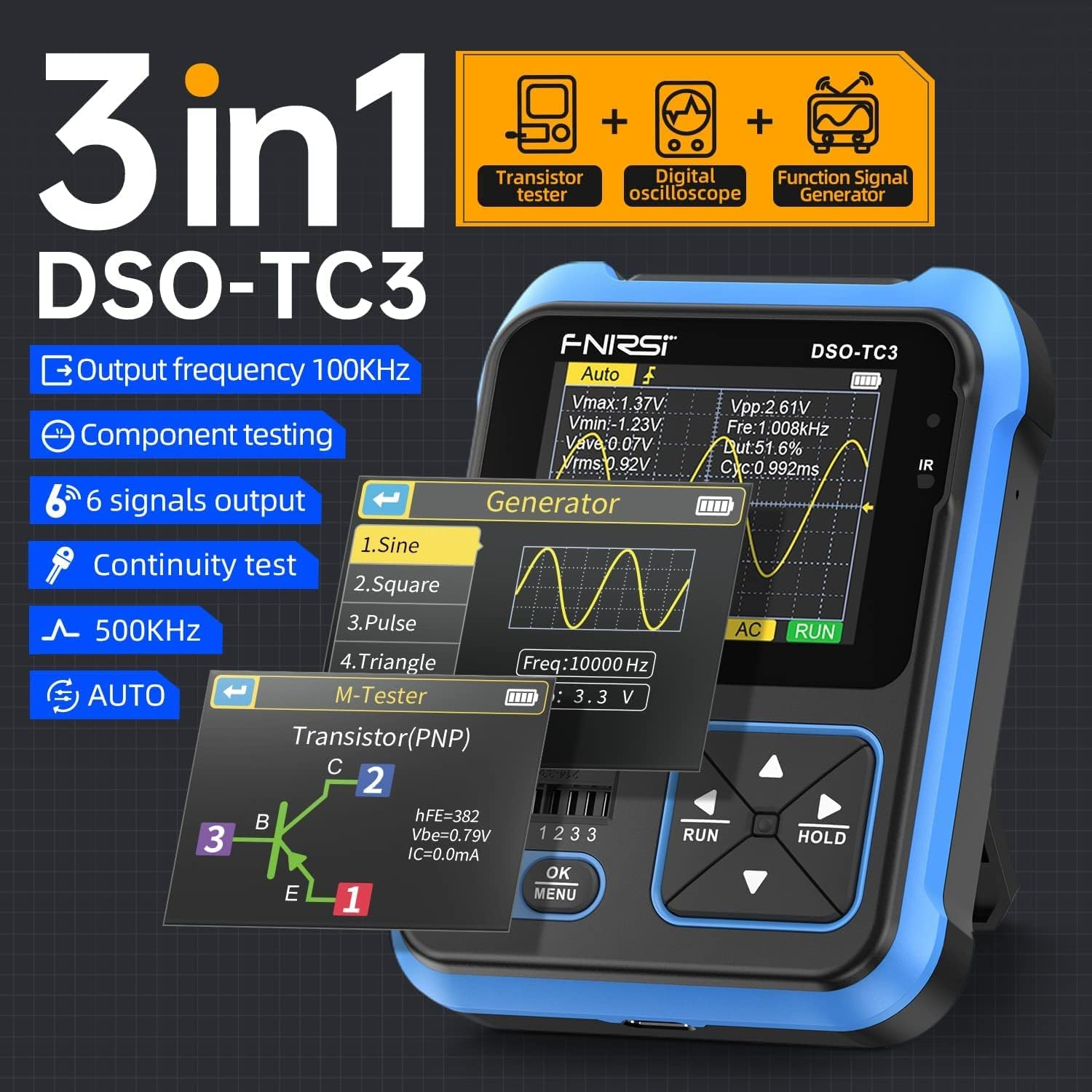

FNIRSI DSO-TC3 Oscilloscope - 3-in-1 Handheld Oscilloscope & DDS Signal Generator & Transistor Tester

Handheld Oscilloscope

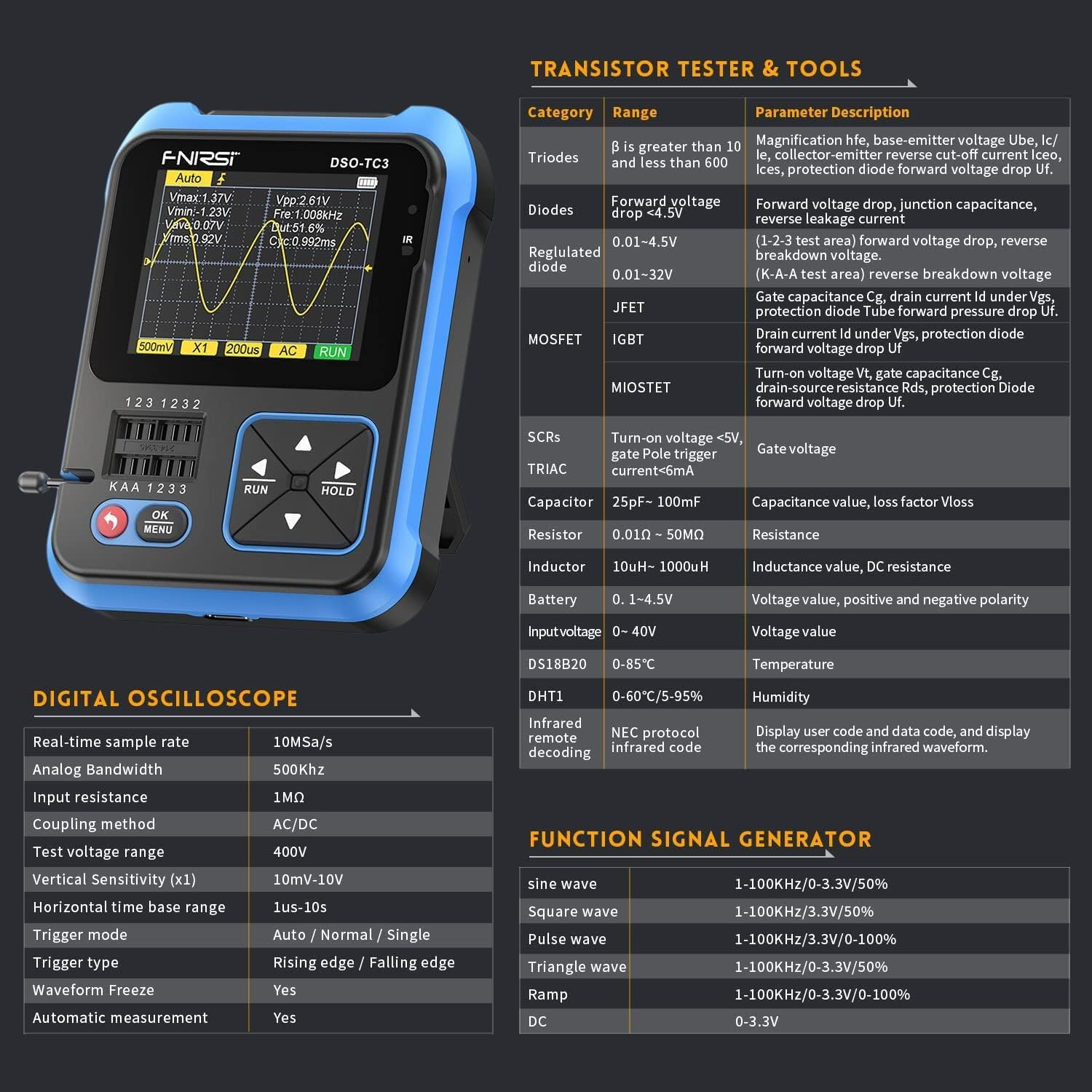

• DSO-TC3 oscilloscope has a real-time sampling rate of 10MS/s and a 500kHz bandwidth.
• With complete trigger function (Single, Normal, Automatic), it can be used freely for both periodic analog signals and aperiodic digital signals.
• Up to ±400V voltage signal can be measured.

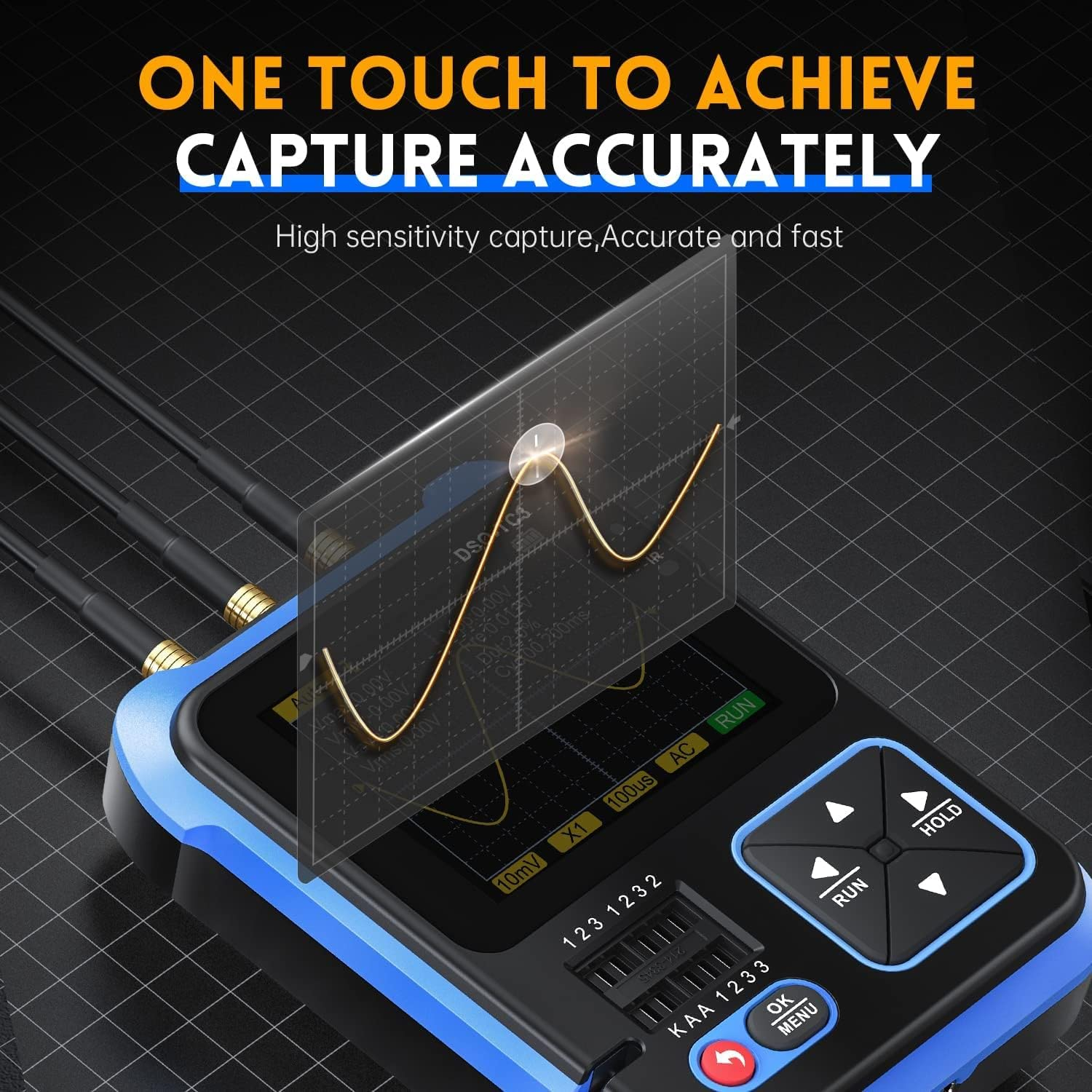

• Equipped with efficient one-key AUTO, the measured waveform can be displayed without cumbersome adjustment.

Transistor Tester

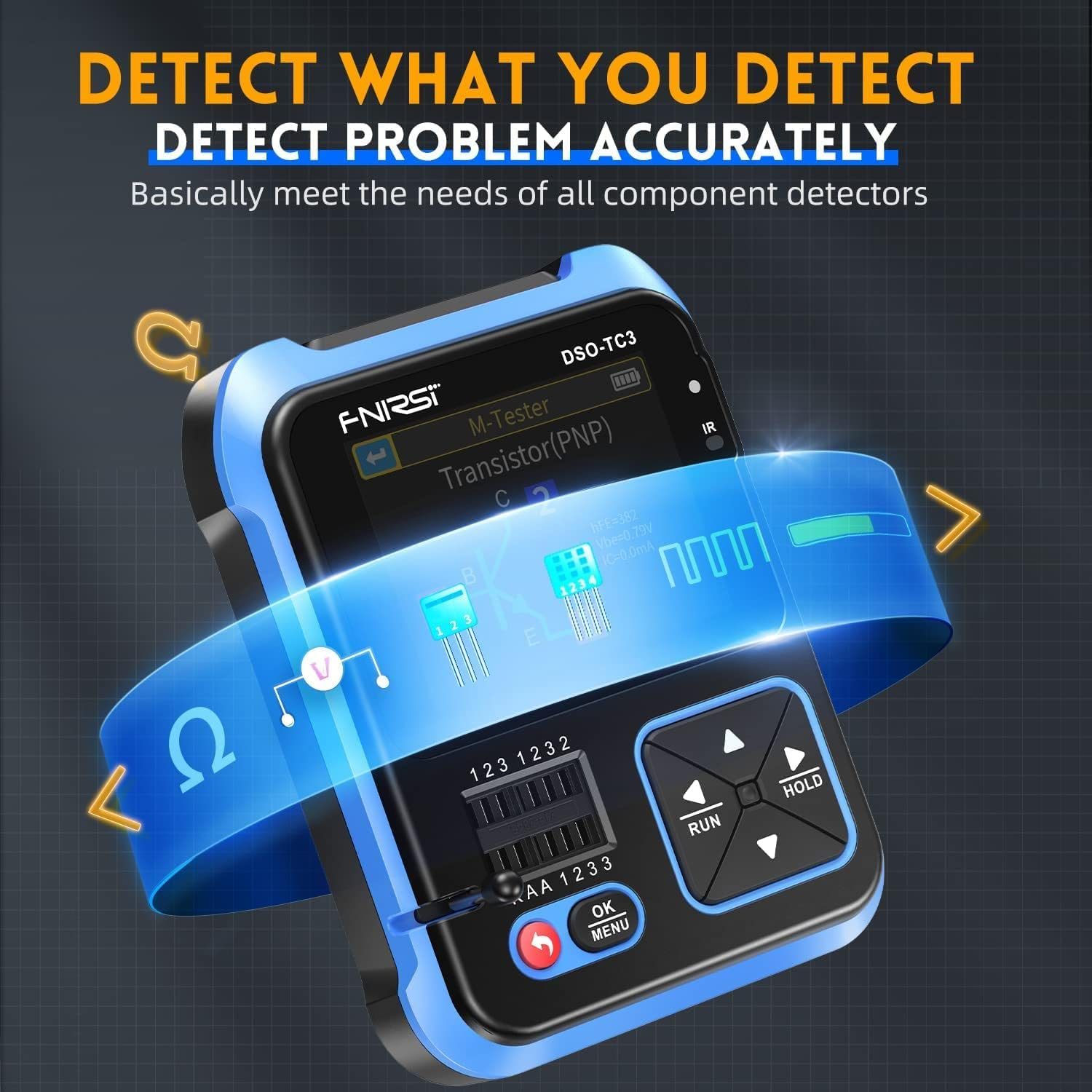

• DSO-TC3 is especially suitable for fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small batch components.
• DSO-TC3 can automatically identify and measure various transistors.Including NPN and PNP transistors, N-channel and P-channel field effect transistors, junction field effect transistors, diodes, dual diodes, thyristors, and resistors, inductors, capacitors and other passive components. Automatic detection of pin definition. Automatically analyze NEC protocol infrared code.
• DSO-TC3 also can identify device type, pin polarity, hFE, turn-on voltage, junction capacitance; can test capacitance, resistance, inductance components, etc.

Function Signal Generator

• The signal generator has a total of 6 waveforms to choose from, with adjustable frequency and amplitude.
• Triangle wave : 1-10KHz/0-3.3V/50%. Square wave : 1-100KHz/3.3V/50%. Pulse wave : 1-100KHz/3.3V/0-100%. Triangle wave : 1-10KHz/0-3.3V/50%. Ramp : 1-10KHz/0-3.3V/0-100%. DC 0-3.3V

Tool Box

• Automatic detection of pin definition.
• Automatically analyze NEC protocol infrared code.
• Other functional modes: Including circuit continuity test, 0~40V input voltage measurement, PWM output,0~32V regulated diode measurement, DS18B20 temperature sensor measurement, DHT11 temperature and humidity sensor measurement, etc.
