Waveshare RS232 RS485 to RJ45 Ethernet Serial Server Dual Channels Independent Operation Dual Ethernet Ports,Common Network Ports,Modbus Support,Module Bi-Directional Transparent Transmission
Waveshare RS232 RS485 to RJ45 Ethernet Serial Server Dual Channels Independent Operation Dual Ethernet Ports,Common Network Ports,Modbus Support,Module Bi-Directional Transparent Transmission
Brand: Waveshare
A$72.45

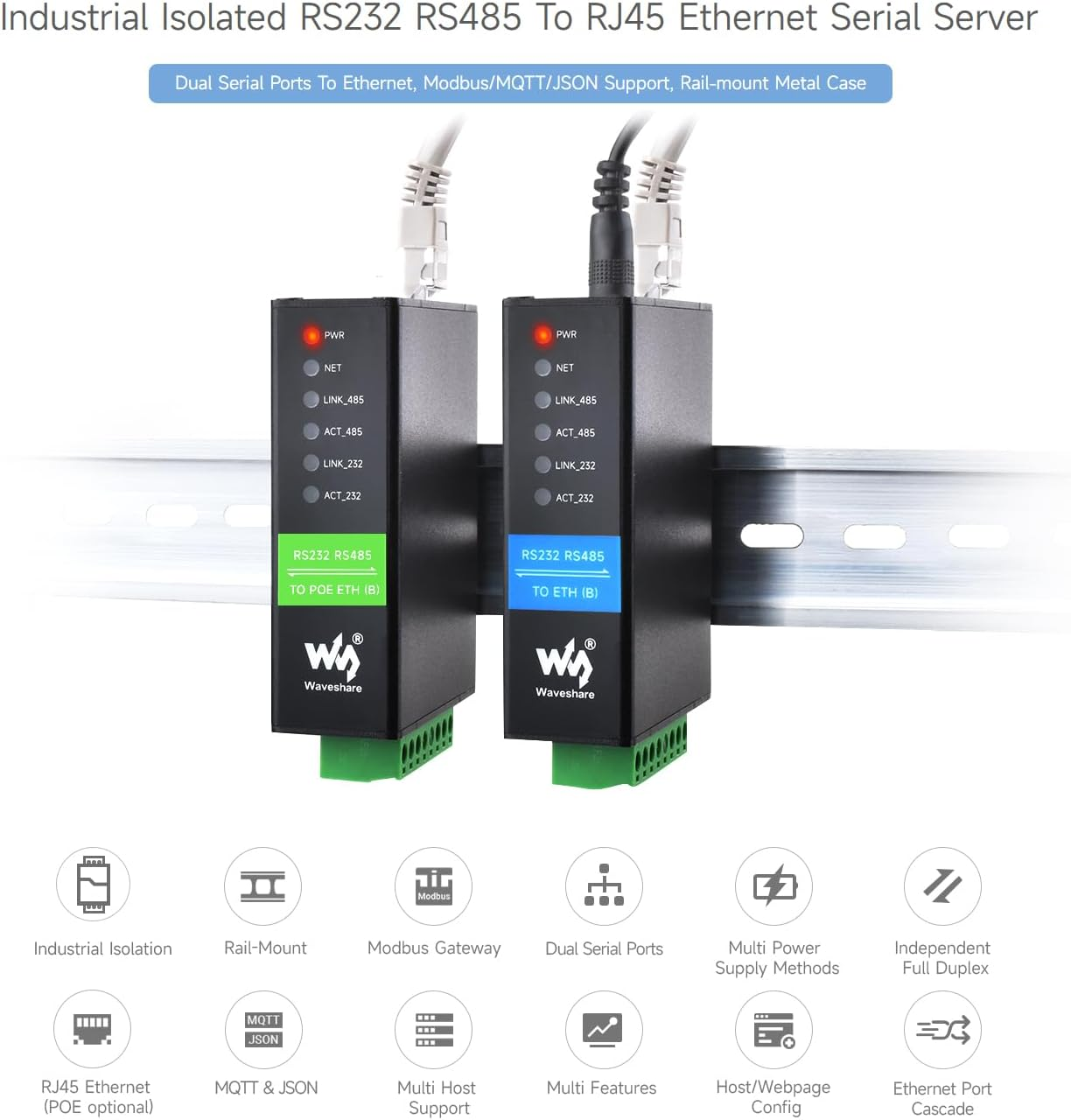

- RS232 RS485 To RJ45 Ethernet Serial Server, RS232 And RS485 Dual Channels Independent Operation, Dual Ethernet Ports, Rail-Mount Industrial Isolated Serial Module, Bi-Directional Transparent Transmission-Dual serial ports + Common network port + Electrical isolation

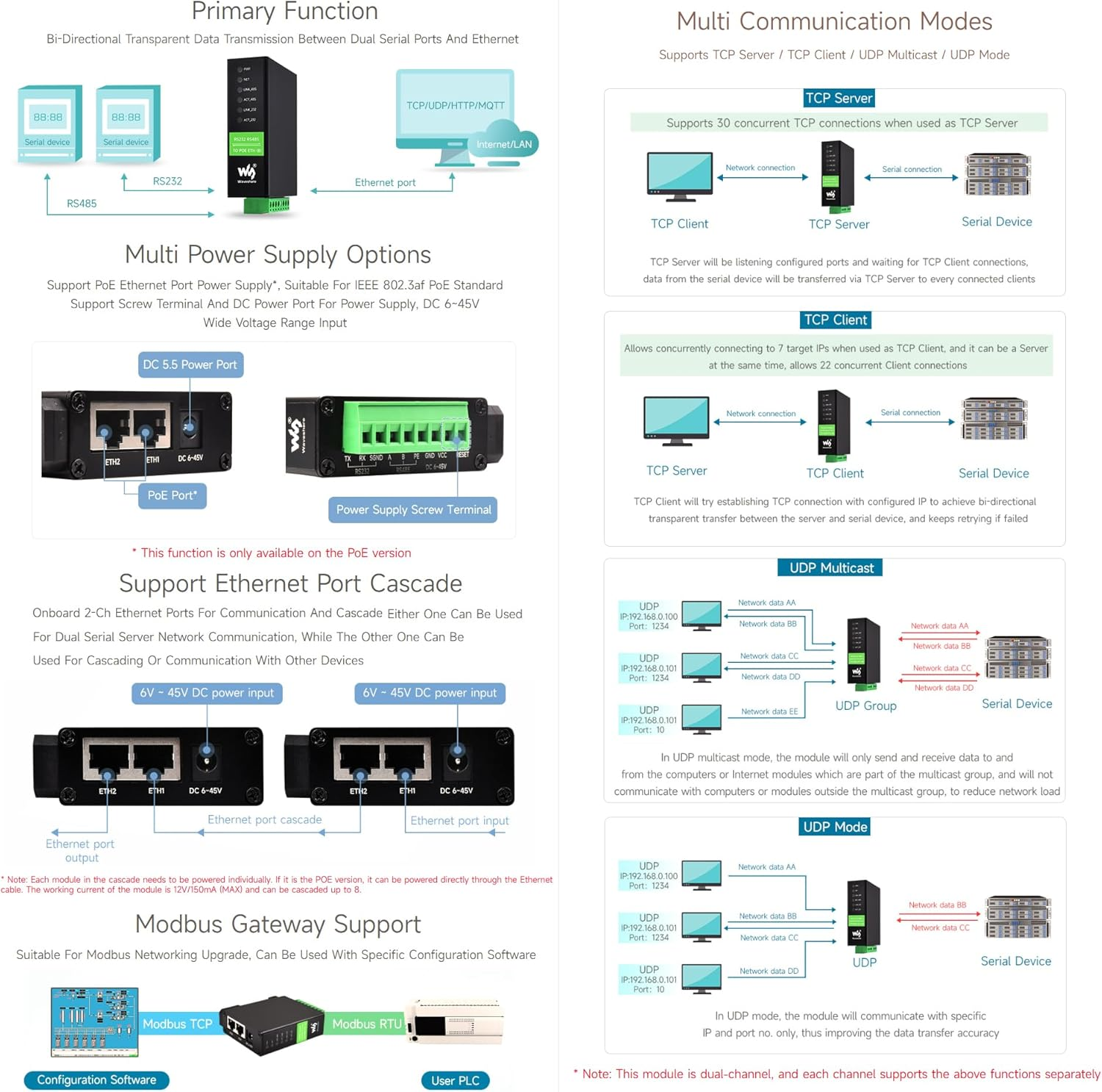

- This is a dual serial ports device data acquisitor / IoT gateway designed for the industrial environment, 1-ch RS232 and 1-ch RS485 can work simultaneously without interfering with each other using one Ethernet cable.

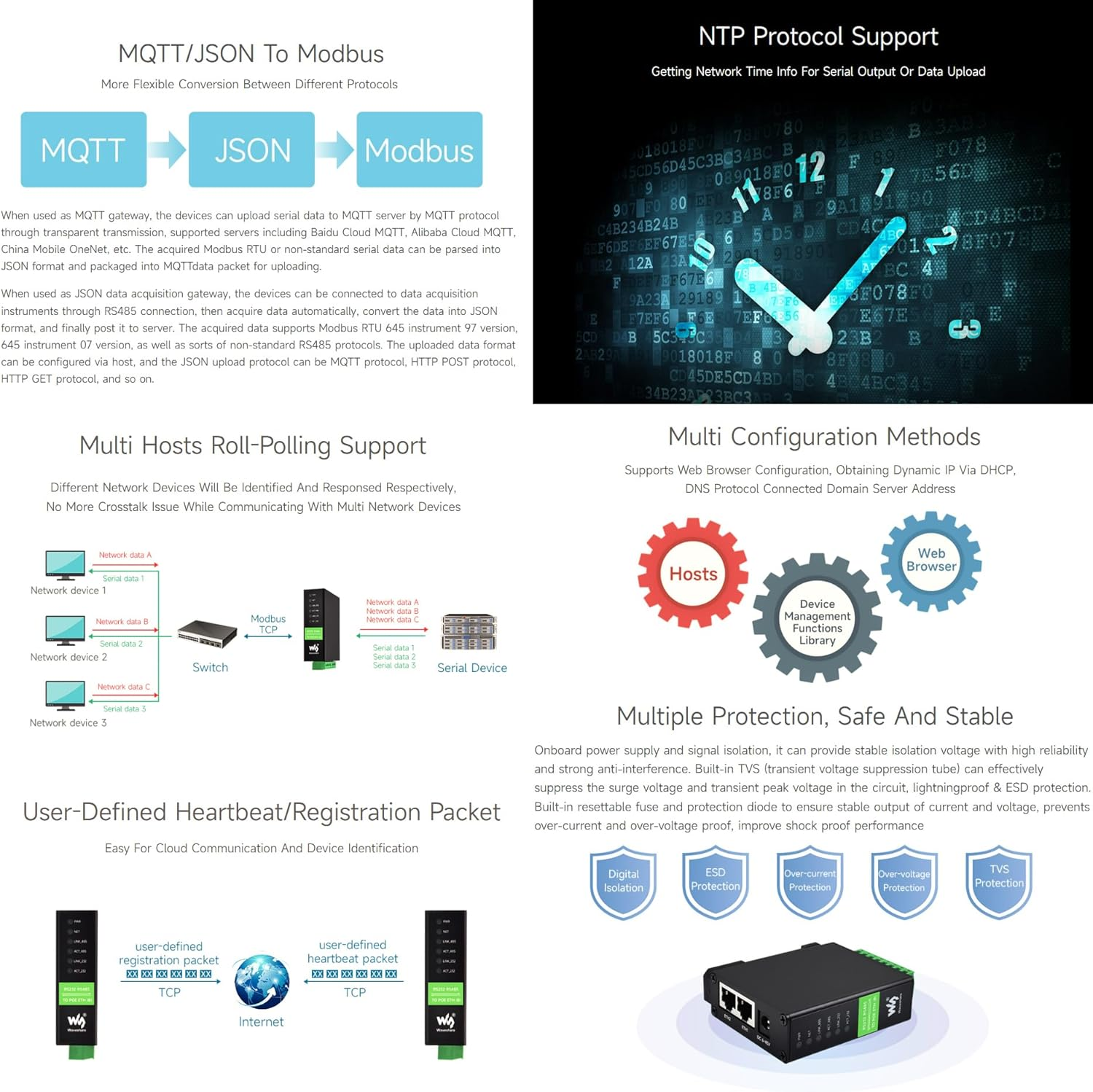

- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 and RS485 to JSON, etc. The other one Ethernet port can be used as a network switch or for cascading, and the PoE* function is optional for dual Ethernet ports.
- Provides two power supply methods: DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal. The case with rail-mount support, is small in size, easy to install, and cost-effective.
- It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.
- Item Model Number: WaveSerial-E10
- Part Number: RS232 RS485 TO ETH (B)
- Graphics Card Interface: PCI Express
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Item Weight: 118 g
- Number of Ports: 2
- Model: WaveSerial-E10
- Product dimensions: 7.8 x 7.25 x 2.42 cm; 117.93 Grams
- Manufacturer: Waveshare
