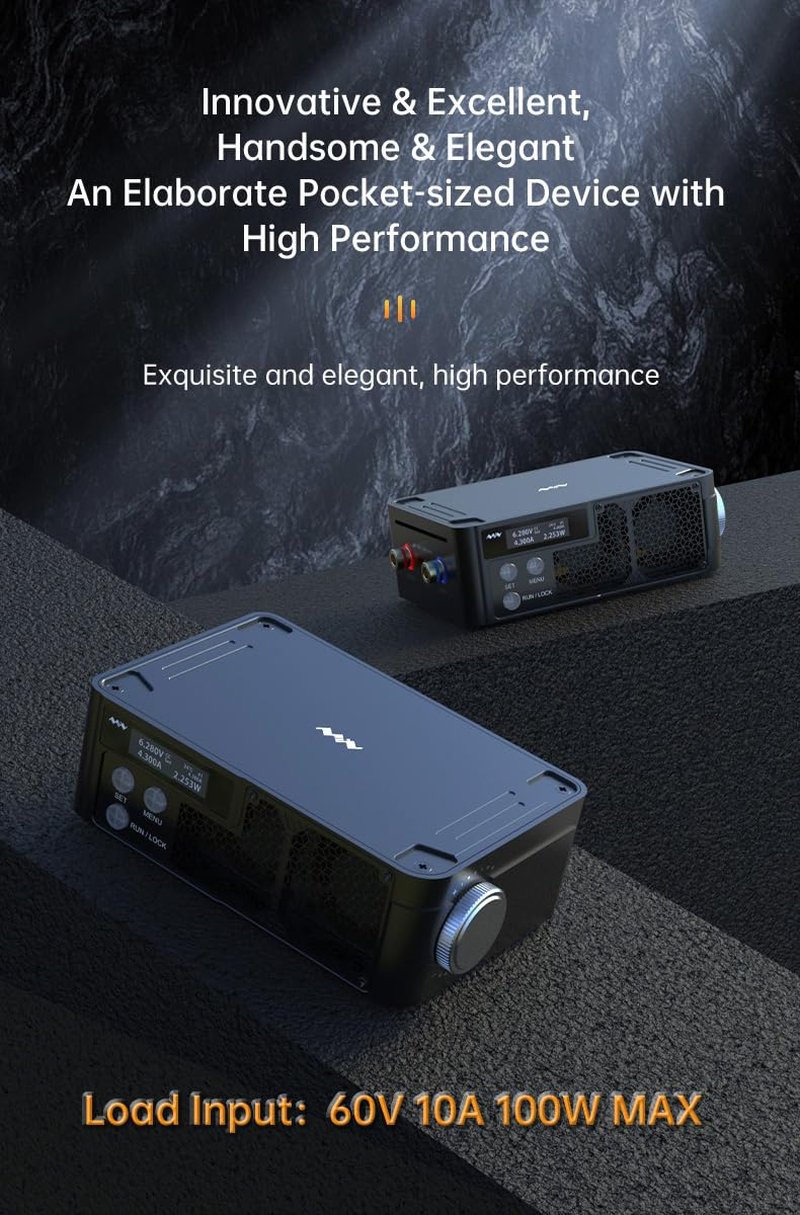

MINIWARE DC Electronic Load MDP-L1060 is the first programmable intelligent DC electronic load module of MDP (Mini Digital Power System) series. MDP-L1060 has four working modes as constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP). It can test 60V 10A, up to 100W load input, and provide over-voltage (OVP), under-voltage (UVP),over-current (OCP), over-power (OPP), over-temperature (OTP), Anti-Reverse (polarity) and other comprehensive intelligent safety protection functions. It is a portable smart solution for various test scenarios of AC/DC power supplies, DC/DC converters, chargers, batteries, adapters and power electronic components.

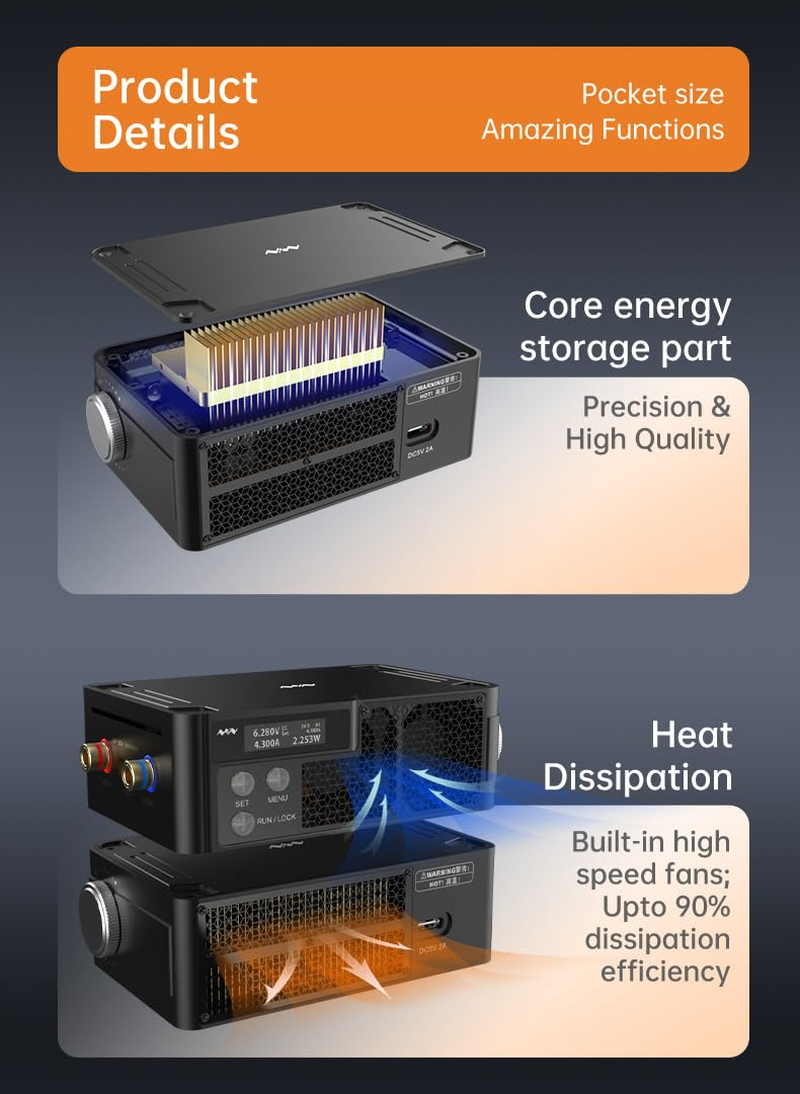

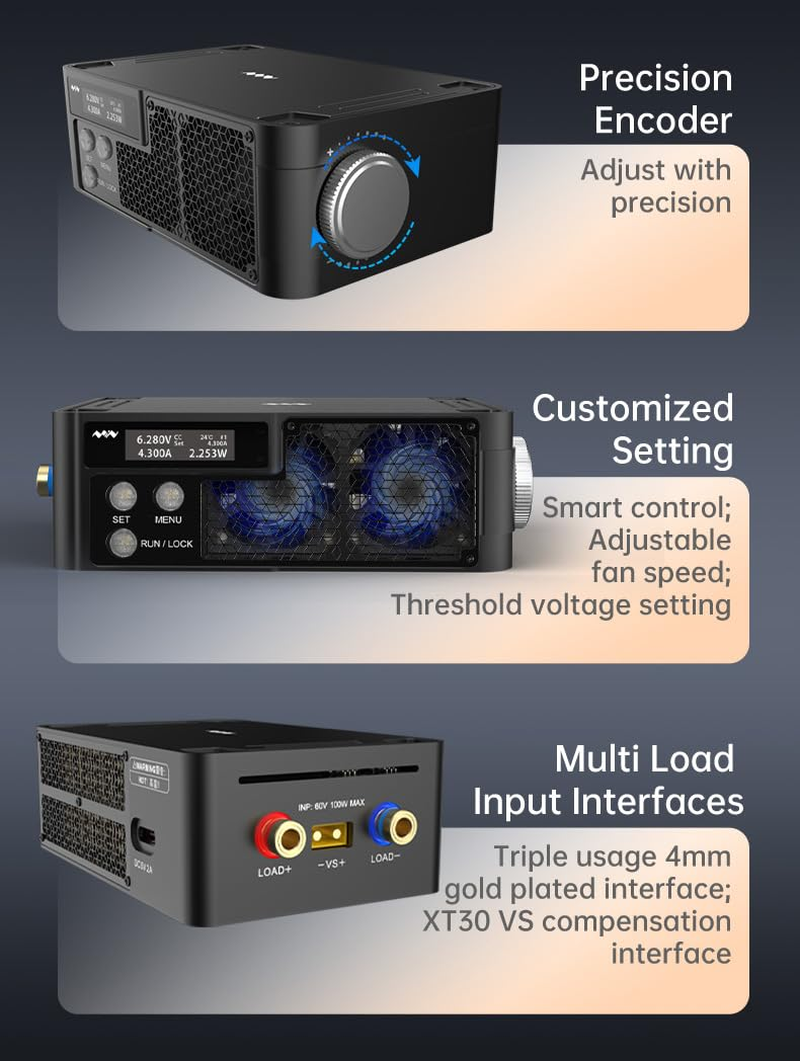

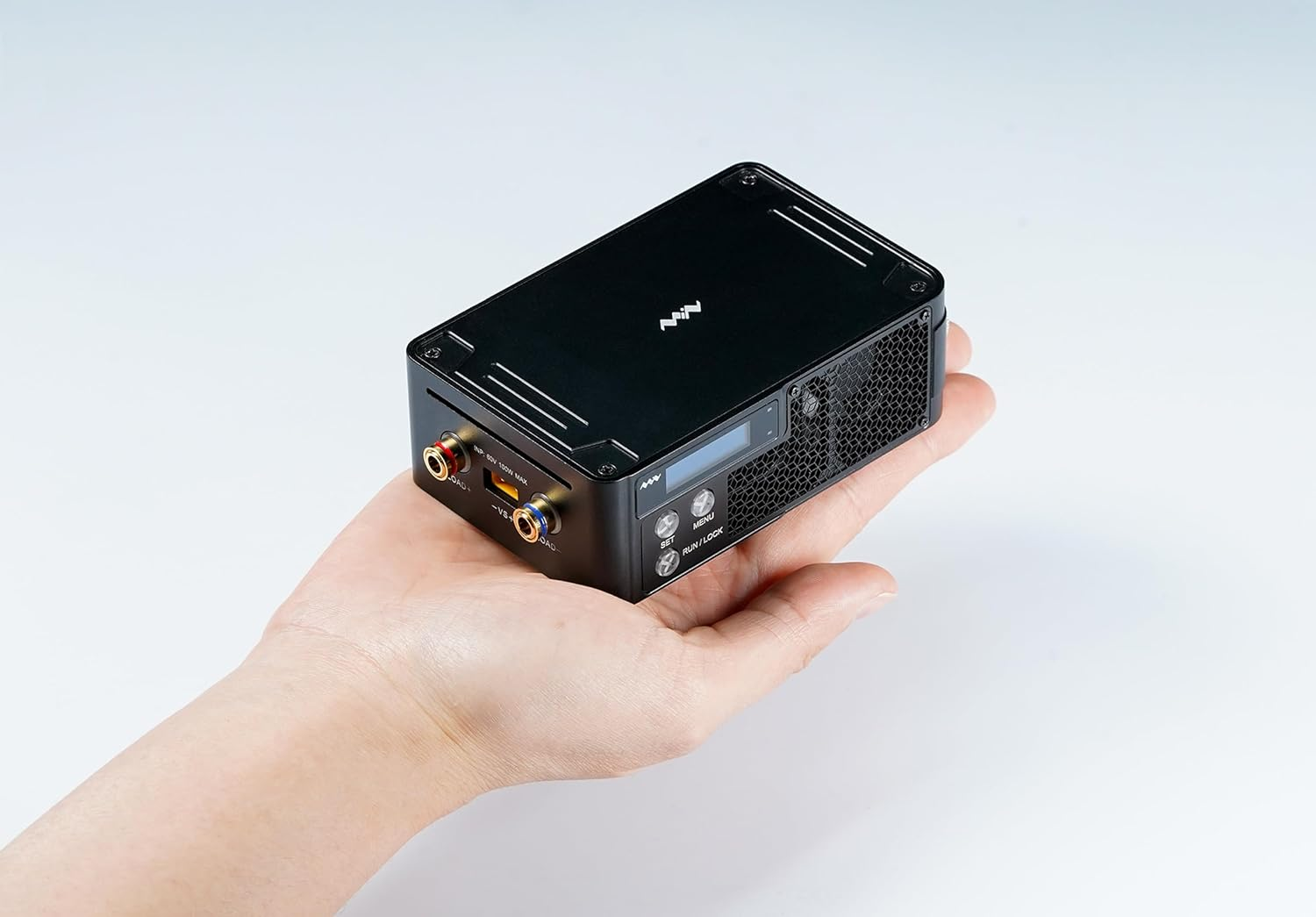

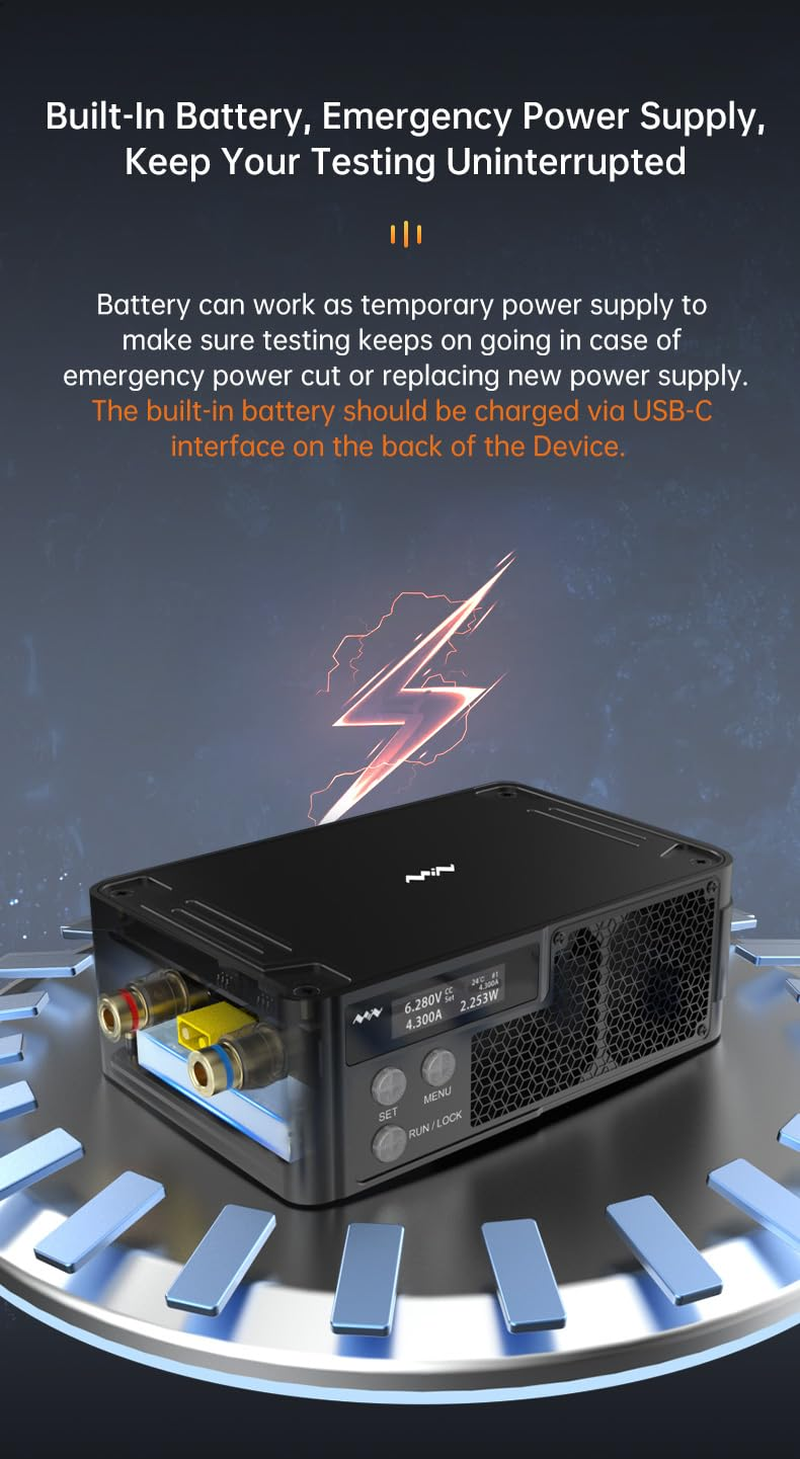

MDP-L1060 continues the stackable design of MDP series, small in size and portable as a whole. The built-in 650mAh battery can meet a short-term emergency load test cordless. The main body of the load module adopts a CNC aluminum alloy frame with built-in high-efficiency brass heat sinks and high-speed cooling fans, which can automatically adjust the wind speed for heat dissipation according to the load consumption. The hollow decorative pieces on the front and rear of the module can maximize the air intake and ensure the heat dissipation speed. The load input port adopts a 4mm three-purpose gold-plated standard port, and is equipped with an XT30 input port for remote compensation, which can complete a more accurate load test.

As the electronic load module of MDP series, after matching with the display control module (MDP-M01) for wireless communication, MDP-L1060 can perform complex advanced functions via remote control, such as battery (capacity) test, internal resistance test, factory test, dynamic test, over-current protection test and flexible triggering options, thus enhancing usability of the device.
