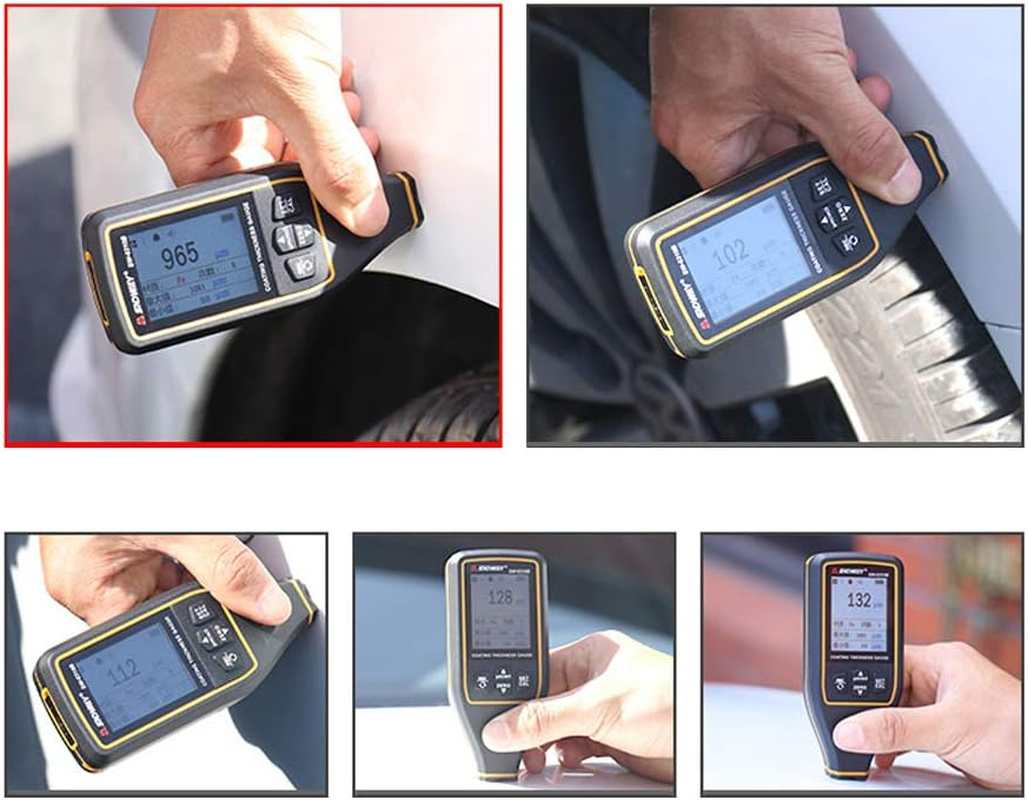

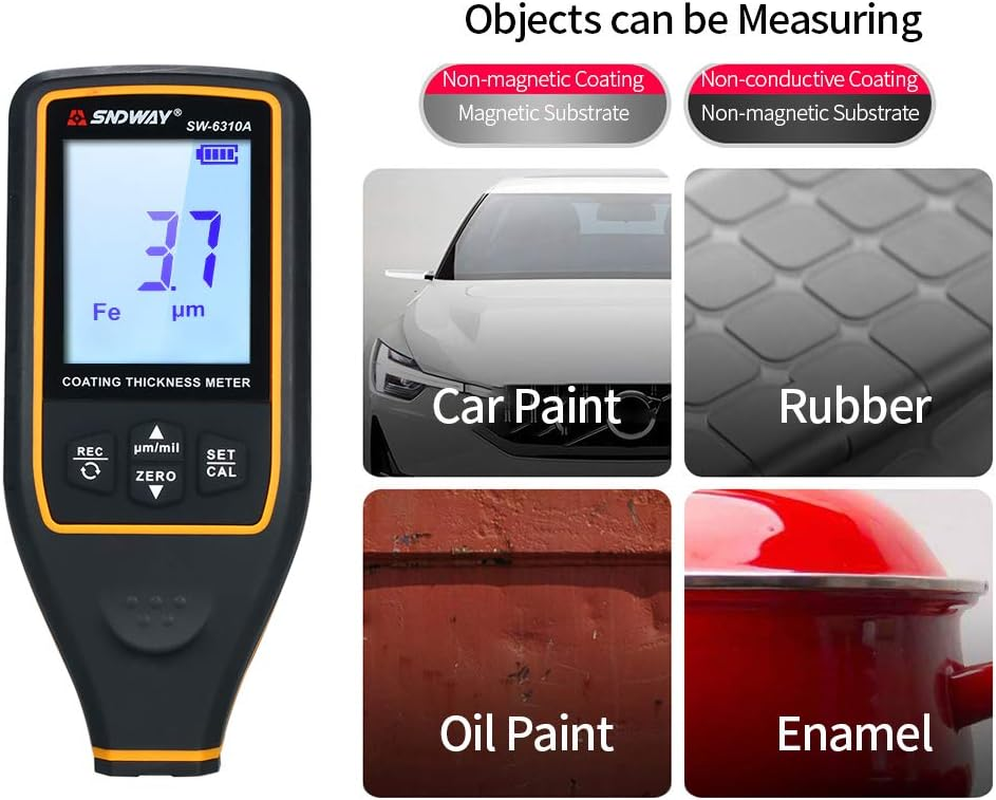

This coating thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/chrome on steel, paint and anodizing coating on aluminum/copper. With the function of backlight large LCD display and detecting the metal properties automatically, this Coating Thickness Tester is perfect for manufacturing company, metal machinery industry, chemical industry and commodity inspection especially automobile trading.

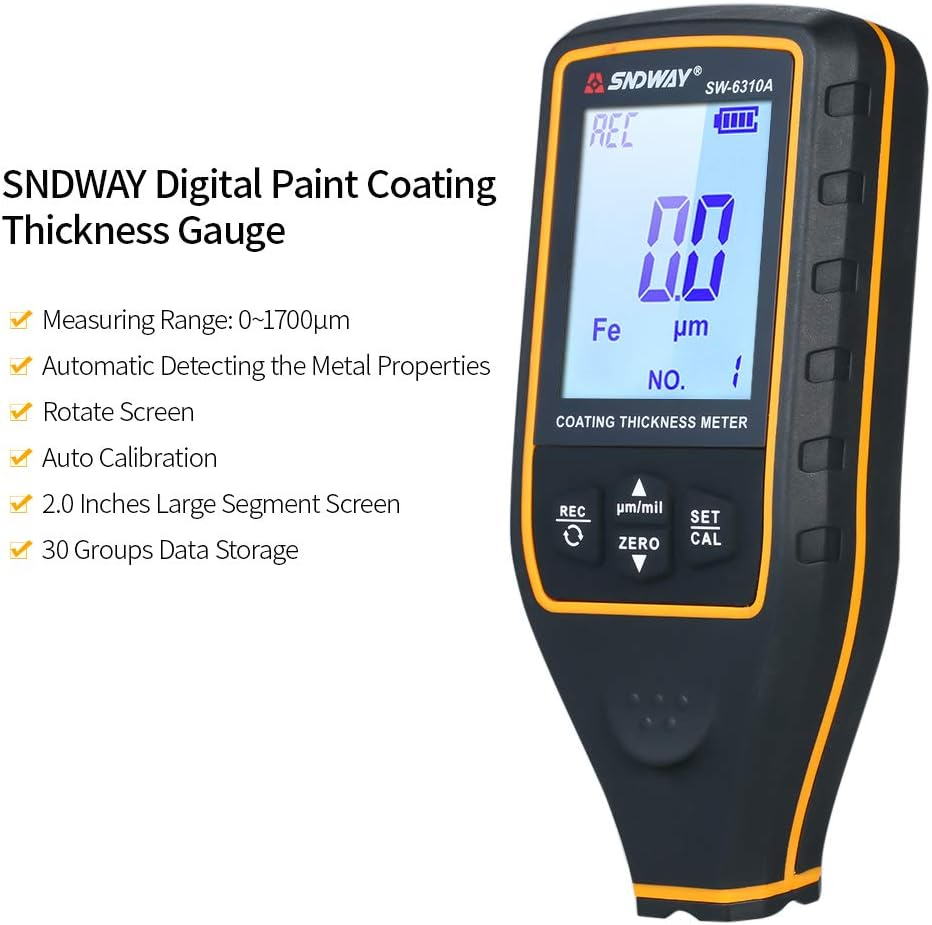

Specifications:
Material: ABS plastic

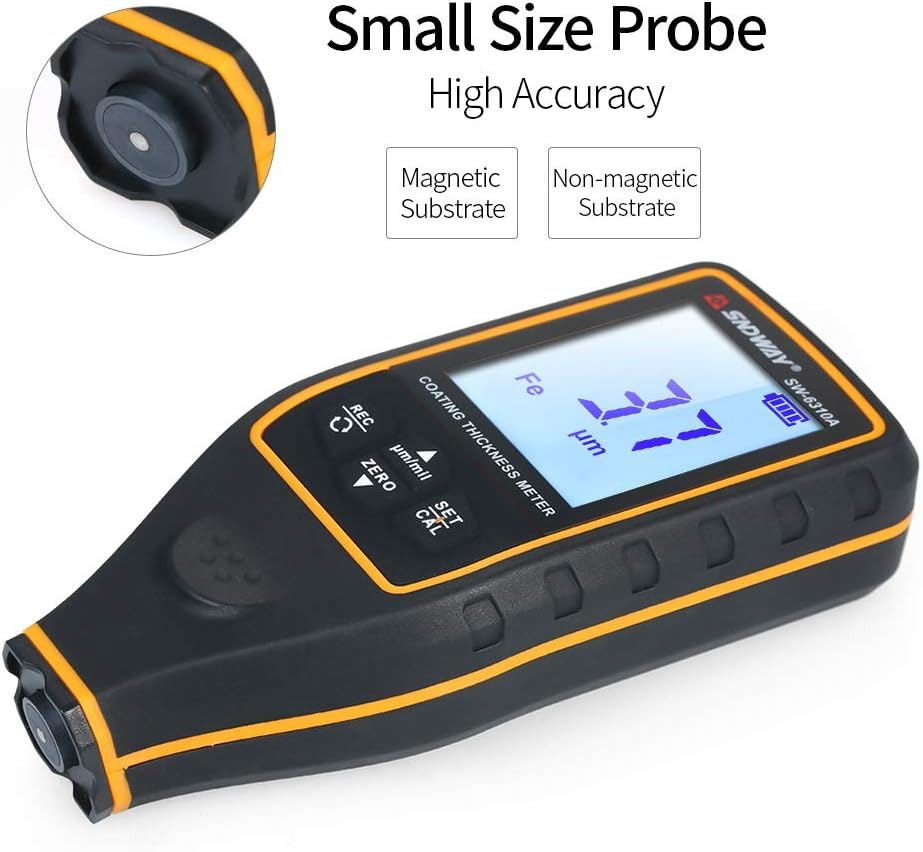

Sensor Probe Type: Fe / NFe
Working Principle: Magnetic Induction(Fe) / Eddy Current(NFe)
Range: Magnetic material 0~1700μm; Non magnetic material 0~1700μm
Units: μm, mil(1mil=25.4μm, 1μm=0.03937mil)
Accuracy: ±(2+2%*H)μm @ (0~500μm), ±(2.5%*H)μm @ (500~1700μm)
Resolution: 0.1μm(0-99.9μm), 1μm(100-1700μm)
Minimum Curvature Radius: Convex 5mm, Concave 30mm
Minimum Measuring Area: Magnetic material 25×25mm; Non magnetic material 25×25mm
Minimum Thickness of Sube: Magnetic 0.2mm, Non-magnetic 0.05mm
Data Storage: 30 Groups

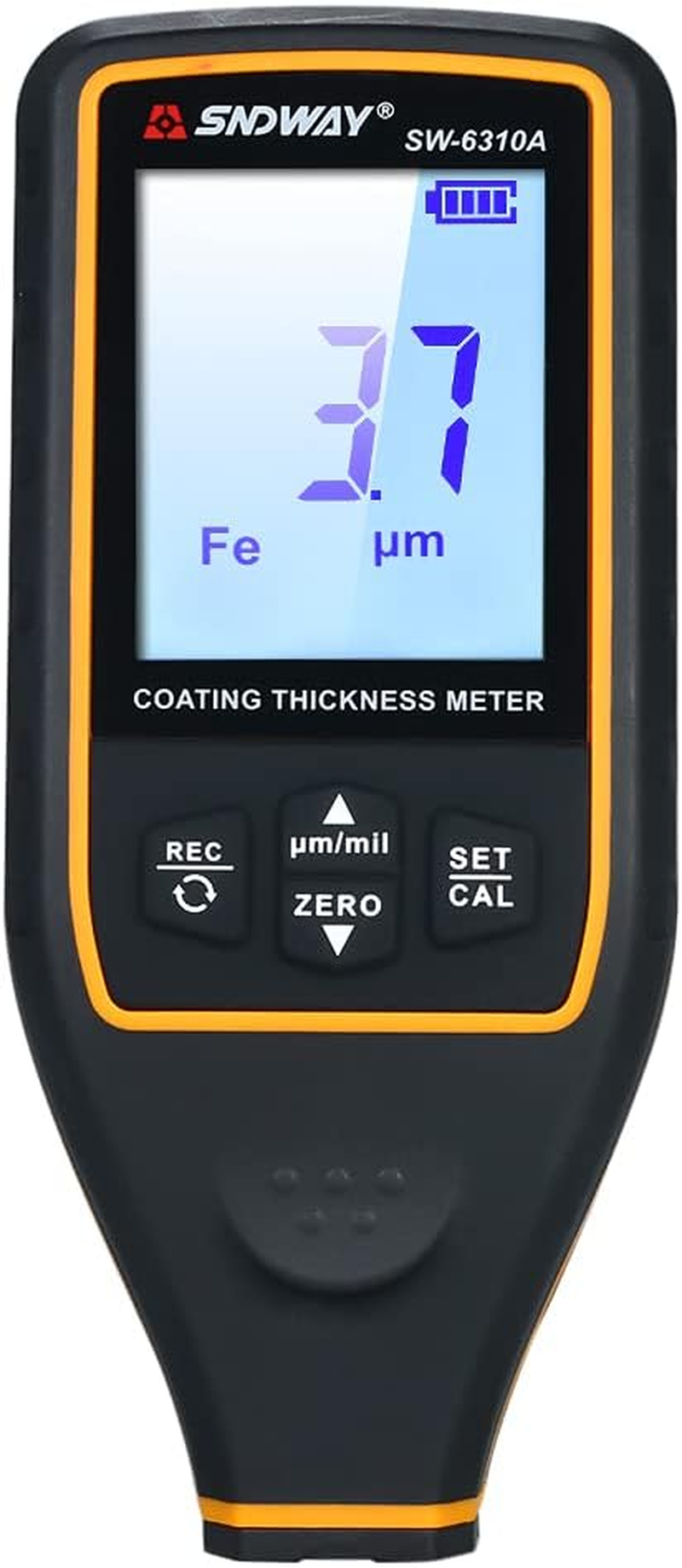

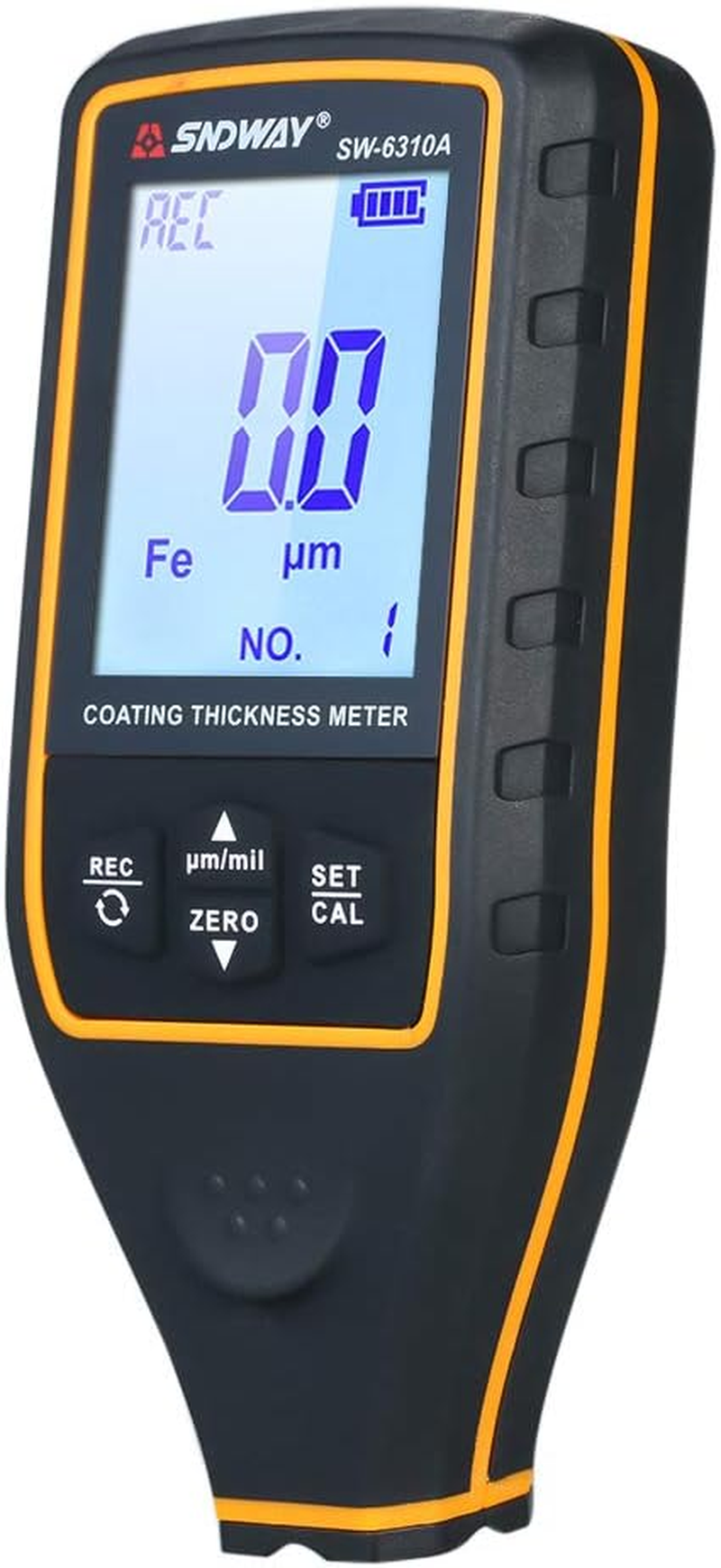

Screen: 2.0 inches large segment screen
The Screen Rotation: 180 degree screen flip
Basic Measurement: Single /Continuous measurement
Calibration: Zero-spot calibration/Calibration-film calibration
Limiting Value Measurement: Yes
Memory/Delete Record: Yes
Operating Conditions: 0℃~50℃(10%~80%RH)
Storage Conditions: -10℃~60℃(10%~70%RH)
Power Supply: 2 * 1.5V AAA Batteries(NOT included)
Item Size: Approx. 120 * 52 * 26mm / 4.73 * 2.05 * 1.03in
Item Weight: Approx. 82g / 2.89oz
Package Weight: Approx. 340g / 11.99oz
Package Size: Approx. 20.8 * 10.5 * 5.5cm / 8.19 * 4.13 * 2.17in
Package List:
1 * Thickness Gauge
1 * Iron Sube
1 * Aluminum Sube
1 * Lanyard
5 * Calibration Film
1 * User Manual (English)
