SSD Heatsink Thermal Pad for Steamdeck ROG All, M.2 2230 NVME SSD Copper Heat Sink Cooling Thermal Paste Back Cover Opening Tool, Easy to Install
SSD Heatsink Thermal Pad for Steamdeck ROG All, M.2 2230 NVME SSD Copper Heat Sink Cooling Thermal Paste Back Cover Opening Tool, Easy to Install
Brand: Pomya
A$11.95
- SCOPE OF APPLICATION: SSD copper heat sink for Steam Deck and for ROG ALL , the installation is more convenient and easy, easy to meet your usage needs.
- HEAT DISSIPATION: SSD heatsink thermal pad is made of pure copper material, which is not only very durable, but also has good heat dissipation performance to improve gaming experience.

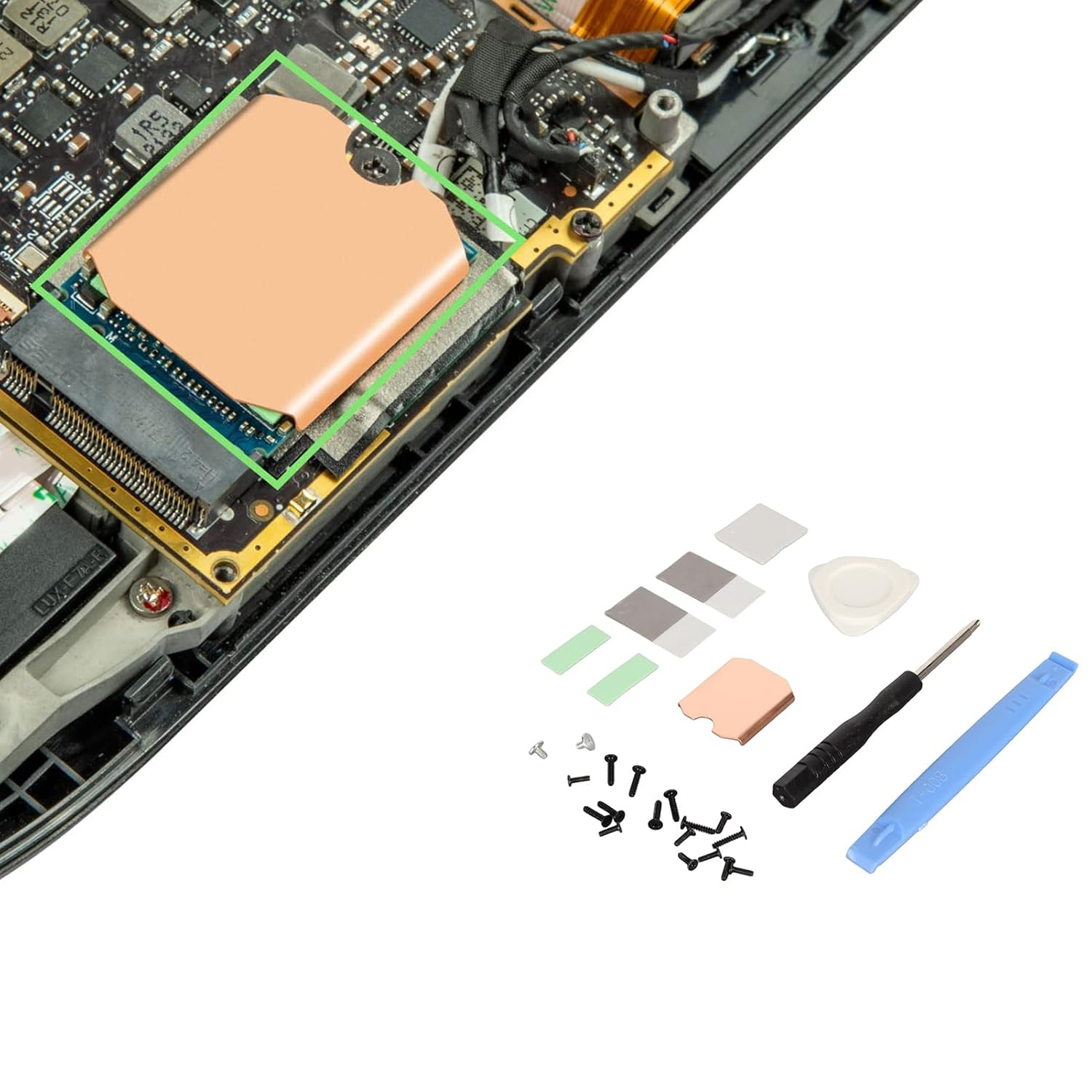

- INCLUDED: Includes 1 x 0.5mm / 0.02in Copper Heatsink, 2 x 0.13mm / 0.01in Phase Change Thermal Pads, 3 x 0.5mm / 0.02in Silicone Thermal Pads, 1 x Screwdriver, 1 x Split Pry Bar, 1 x Triangular Pry Tool, 18 x Screws.
- PHASE CHANGE THERMAL PAD: Phase change silicone thermal pad not only improves heat dissipation, but also flattens the SSD to avoid bumping the shield cover.
- STABLE Thermal copper sheet aids in passive heat dissipation, plus the high performance thermally conductive silicone sheet absorbs solid heat onto the top of the copper sheet, which quickly removes heat through the laptop's internal fan.
Product Description
How to Use:

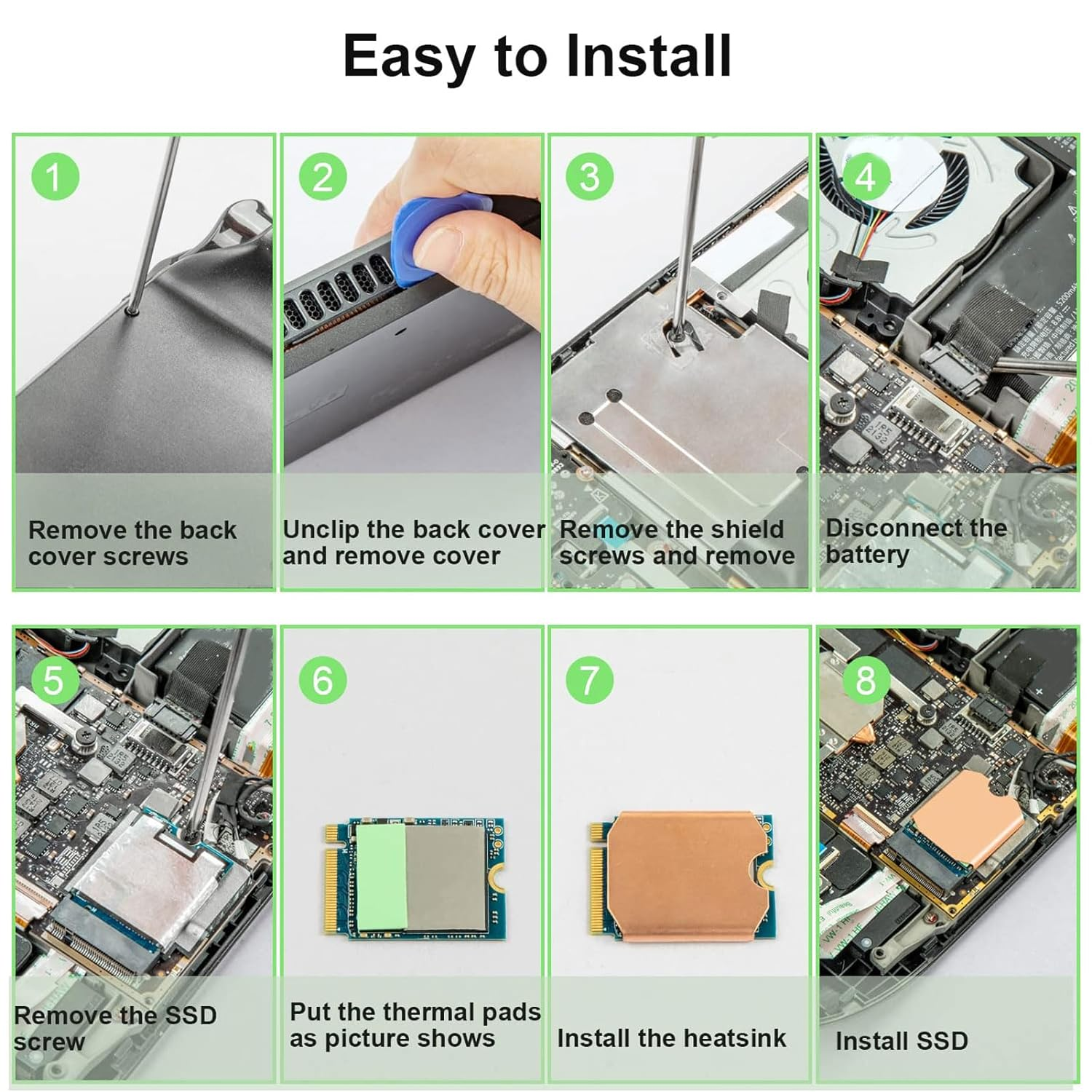

Hard Disk Cooling Installation Tutorial:
1. Turn off the for STEAM DECK. Before replacing the hard disk, turn off the for STEAM DECK and unplug all cables.
2. Remove the eight screws on the back of the for STEAM DECK. (1) Use a screwdriver to unscrew the eight screws securing the back cover. Four 9.5mm / 0.37in screws and four 5.8mm / 0.23in screws. (2) Keep the screws during replacement to prevent loss.
3. Pry off the rear cover. (1) Insert a tab along the edge of the right‑hand handle into the between the back cover and the front housing. (2) Use the tab to pry up the rear cover and release the tab.
4. Remove the protective plate. (1) Use a screwdriver to unscrew the three screws securing the shield, one 3.4mm / 0.13in screw and two 3.7mm / 0.15in screws. (2) Remove the screws and detach the shield.
5. Remove the SSD. (1) Use a screwdriver to unscrew the screws securing the SSD. (2) Remove the fixing screws and pull out the hard disk.

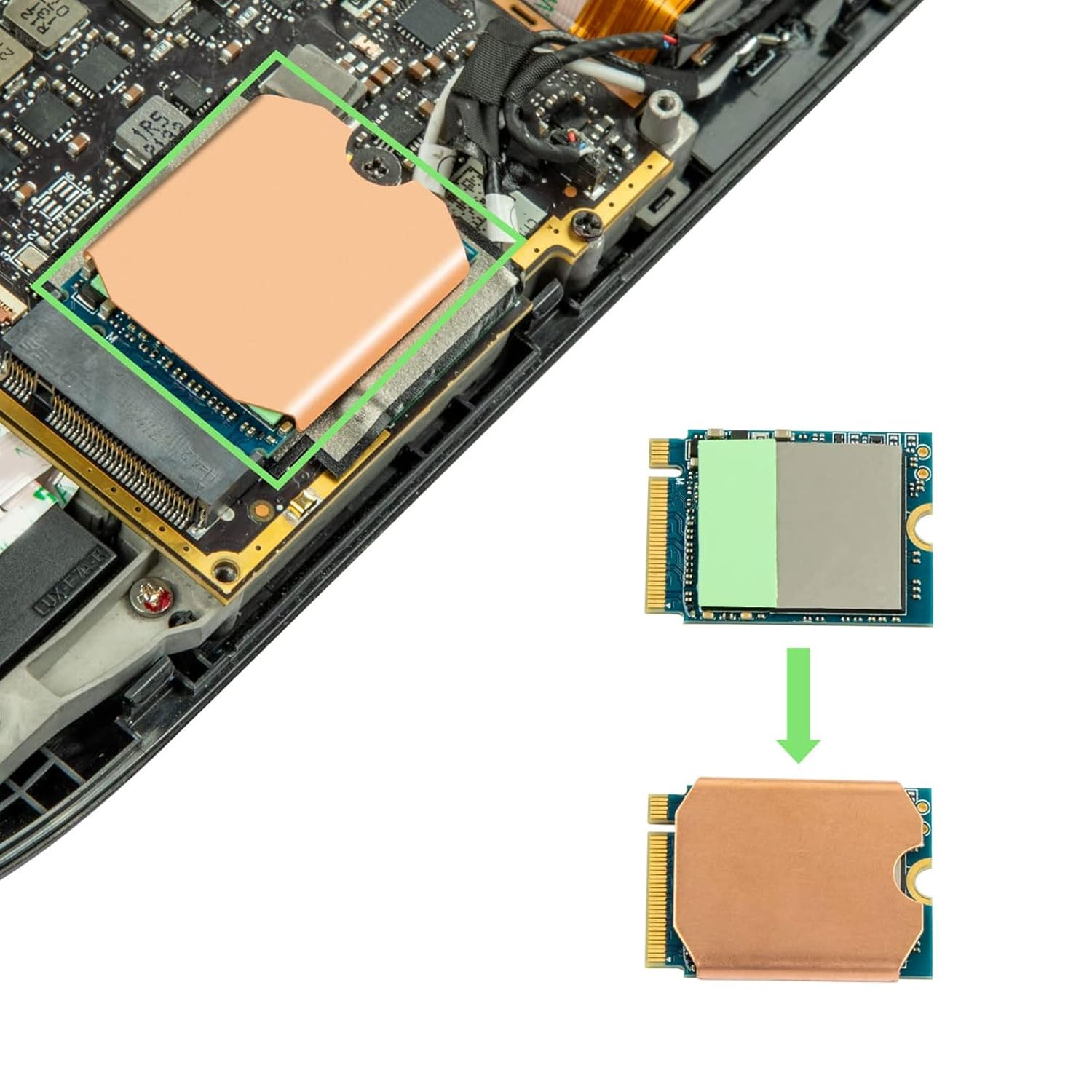

6. Install the heat sink (1) Peel off the heat sink protective film. (2) Tear off the protective film of the thermal paste and stick the thermal paste on the of the hard disk particles as shown in the picture. (3) Align the heat sink with the hard disk and press it into the thermal slot.
7. Install the SSD. Reinsert the SSD with the heat sink installed into the slot and tighten the screws
for Steam Deck SSD Heatsink Thermal Pad M.2 2230 NVME SSD Copper Heat Sink Cooling Thermal Paste Back Cover Opening Tool
SCOPE OF APPLICATION: SSD copper heat sink for Steam Deck and for ROG ALL , the installation is more convenient and easy, easy to meet your usage needs.
HEAT DISSIPATION: SSD heatsink thermal pad is made of pure copper material, which is not only very durable, but also has good heat dissipation performance to improve gaming experience.
INCLUDED: Includes 1 x 0.5mm / 0.02in Copper Heatsink, 2 x 0.13mm / 0.01in Phase Change Thermal Pads, 3 x 0.5mm / 0.02in Silicone Thermal Pads, 1 x Screwdriver, 1 x Split Pry Bar, 1 x Triangular Pry Tool, 18 x Screws.
PHASE CHANGE THERMAL PAD: Phase change silicone thermal pad not only improves heat dissipation, but also flattens the SSD surface to avoid bumping the shield cover.
STABLE OPERATION: Thermal copper sheet aids in passive heat dissipation, plus the high performance thermally conductive silicone sheet absorbs solid heat onto the top of the copper sheet, which quickly removes heat through the laptop's internal fan.
Spec:
Item Type: For Steam Deck SSD Heatsink Thermal Pad
Material: Copper, Silicone
Heat Dissipation Copper Sheet Size: Approx. 26 x 23 x 0.5mm / 1.02 x 0.91 x 0.02in
Compatible Brands: For Steam Deck, For ROG ALL
Applicable Hard Disk: M.2 2230 NVME SSD

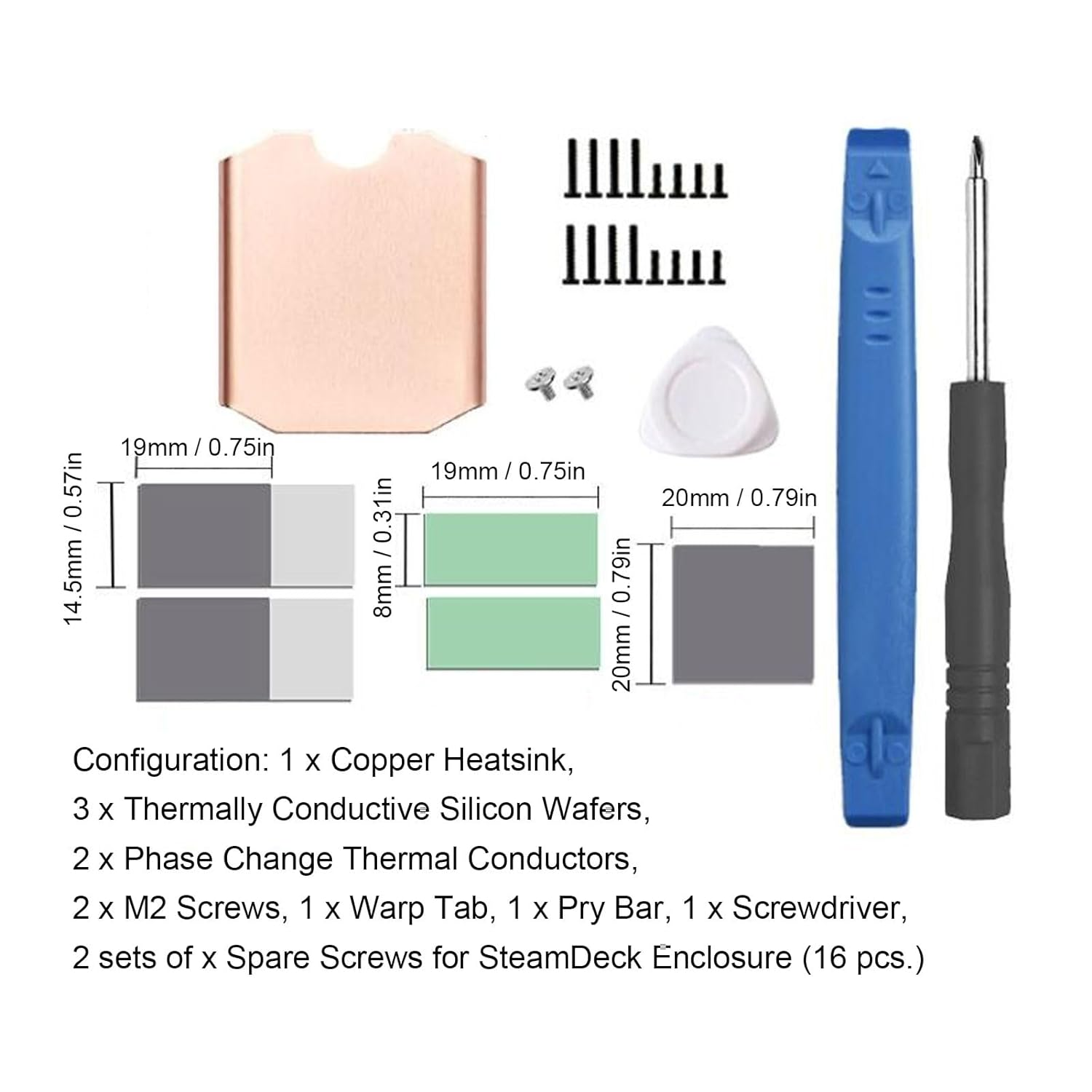

packing list:
1 x Copper Heat Sink
2 x Phase Change Thermal Pad
3 x Silicon Thermal Pad
1 x Screwdriver
1 x Open Pry Bar
1 x Triangle Pry Tool
18 x Screw

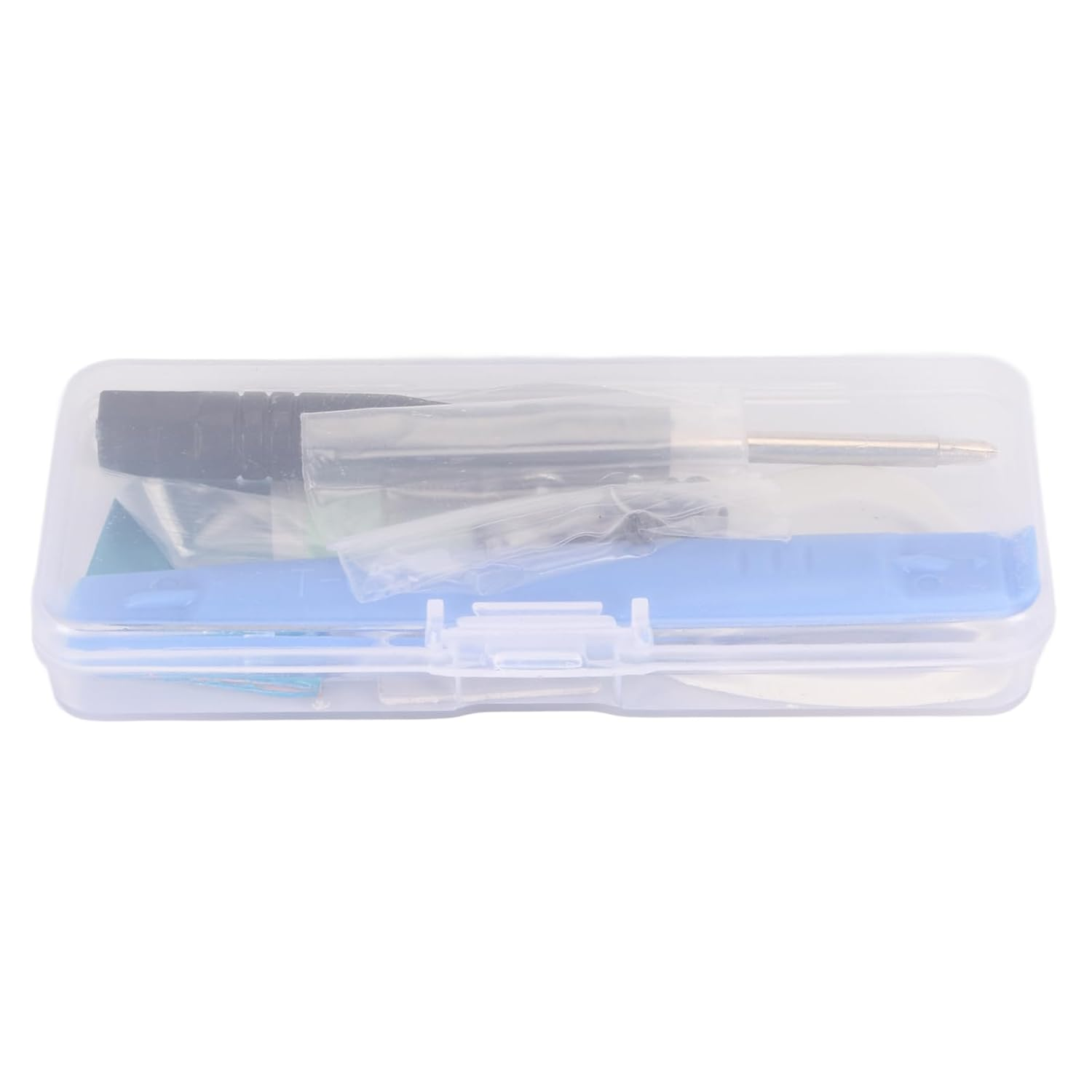

1 x Storage Box
- Item Model Number: Pomyad8tgcup56e
- Country of origin: China
- Package Dimensions: 10.5 x 9.3 x 1.7 cm; 10 Grams
- Manufacturer: Pomya
