Parameter

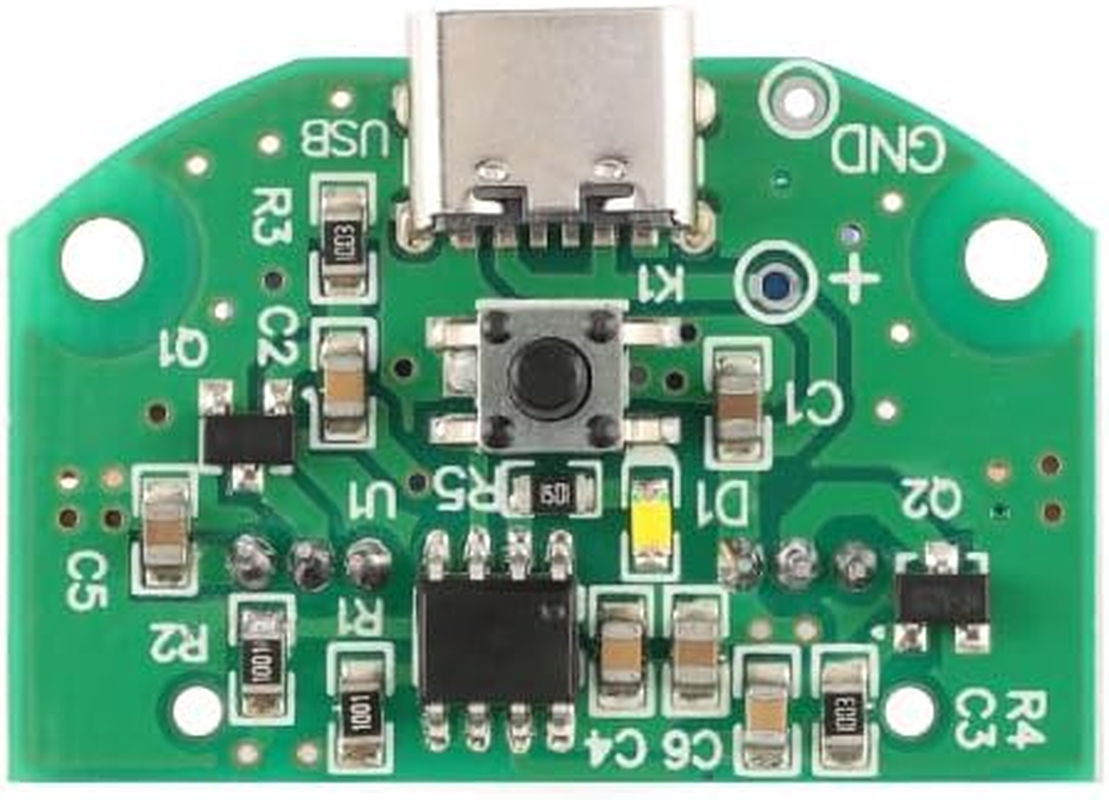

Product name: Atomization drive circuit board

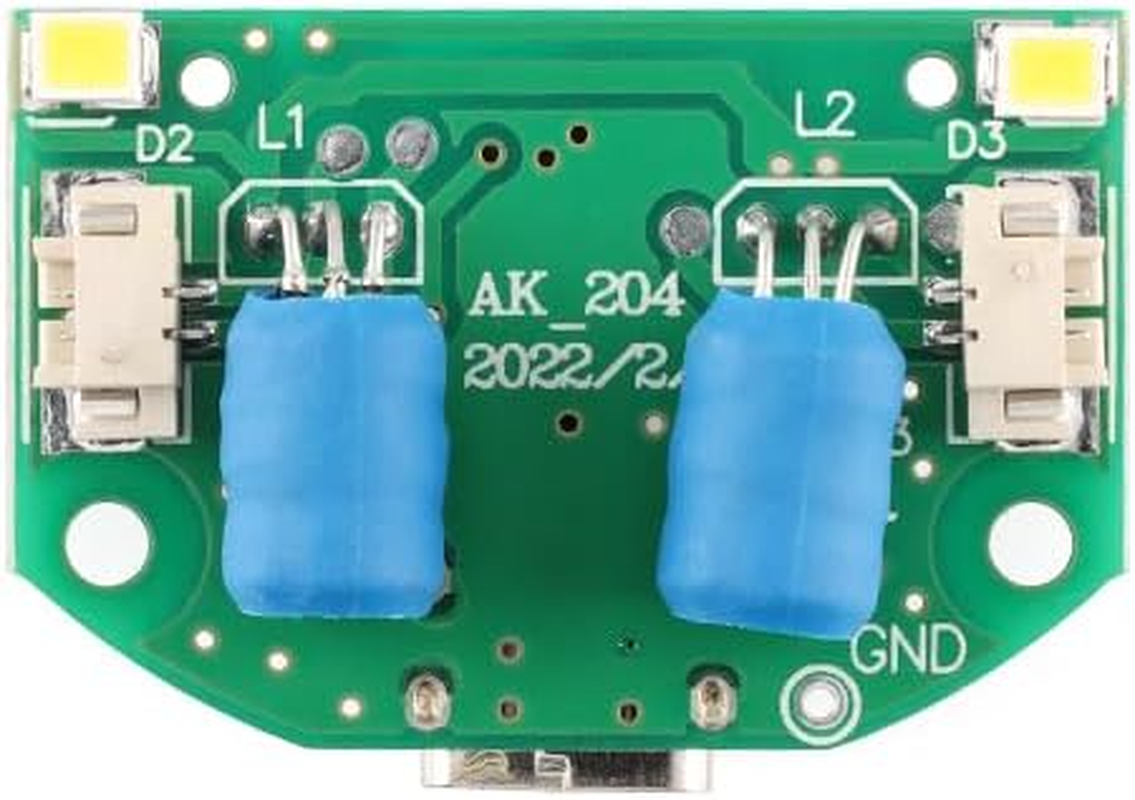

Model: AK-204
Rated voltage: DC 5V
Rated current: 300mA
Power: 2-3W
Resonant frequency: 108-110KHz
Material 1.2mm FR-4

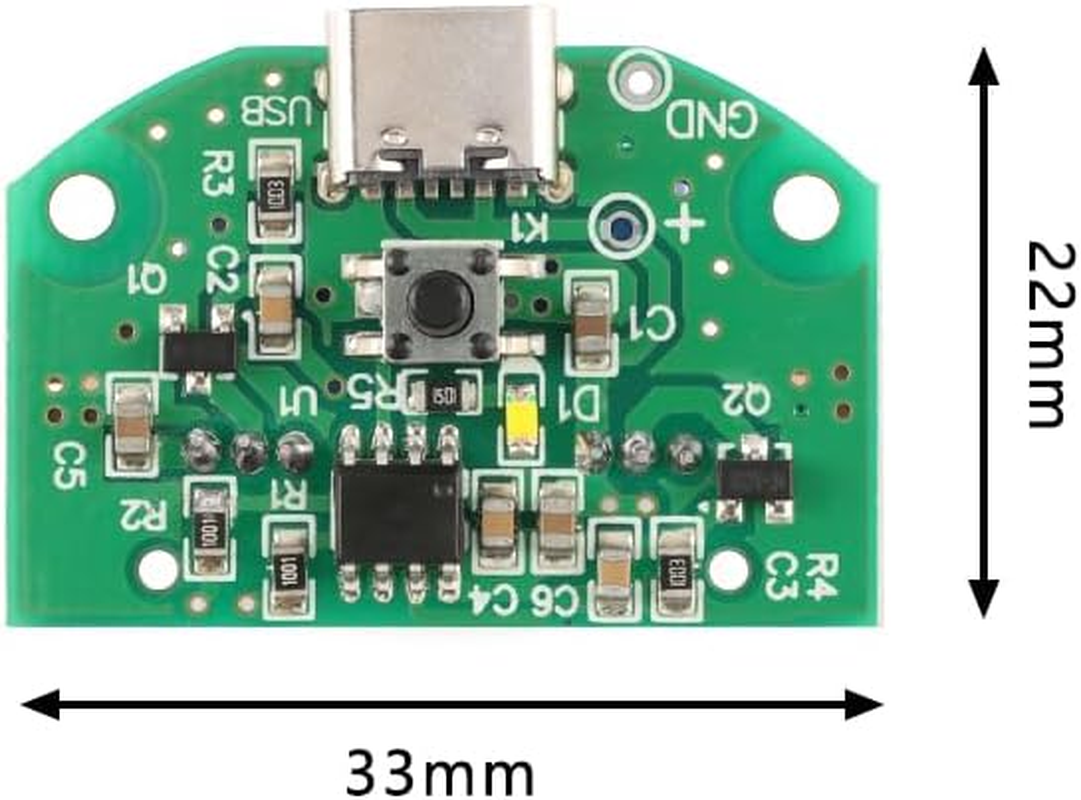

Size 33.9x22.6x17mm
Multiple spray modes Can be switched at will, Meet different functional requirements
Continuous spray mode: press the switch once, and the LED light is always on, In continuous spray mode, the double spray is always atomizing, spray 3 hours later with automatic shutdown protection.
Alternate spray mode: press the switch twice, and the LED light turns on alternately, and the alternate spray mode is to spray on one side for 20 seconds, and then spray on the other side for 20 seconds, and cycle in sequence. After 5 hours of spray, it will automatically shut down for protection.
Intermittent spray mode: press the switch three times, and the LED flashes. Discontinuous spray mode only applies spray on one side for 10 seconds, stops spraying for 5 seconds, and circulates in sequence. After 12 hours of spray, it will automatically shut down for protection.
Turn off: Press the switch four times, turn off.
