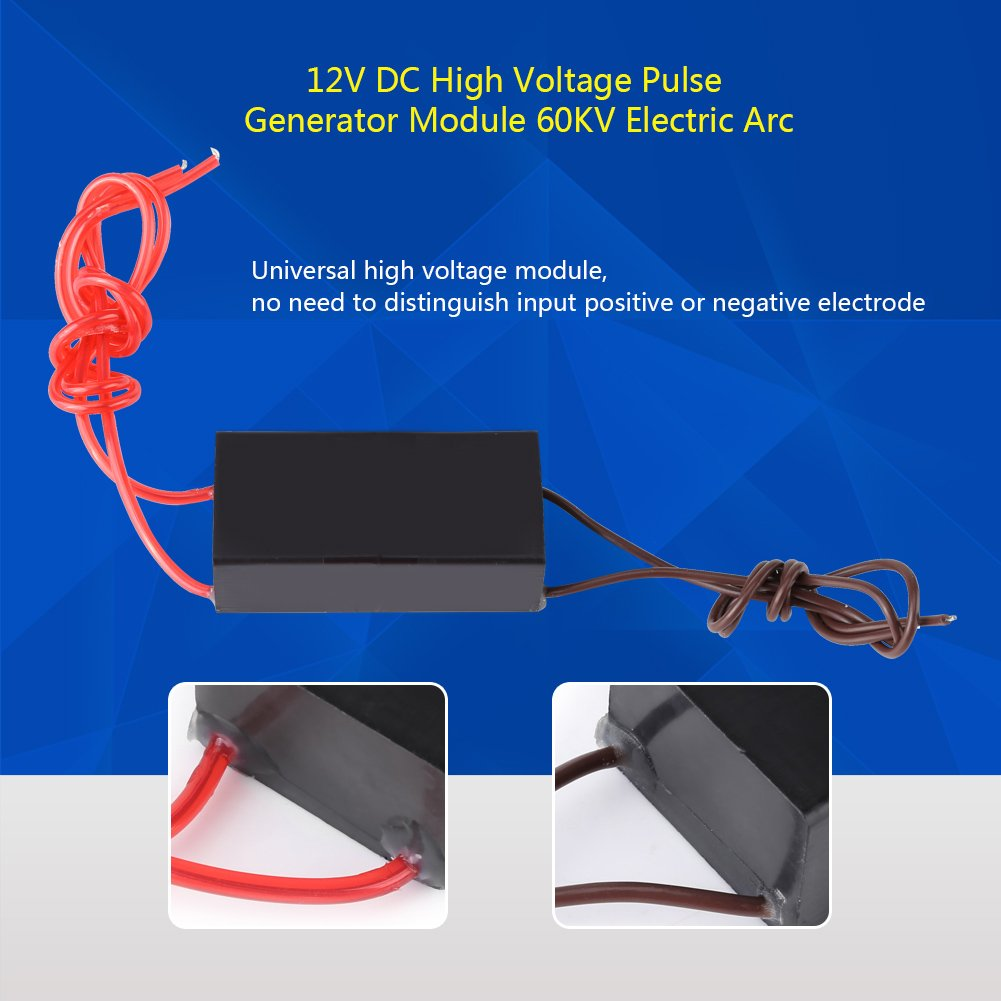

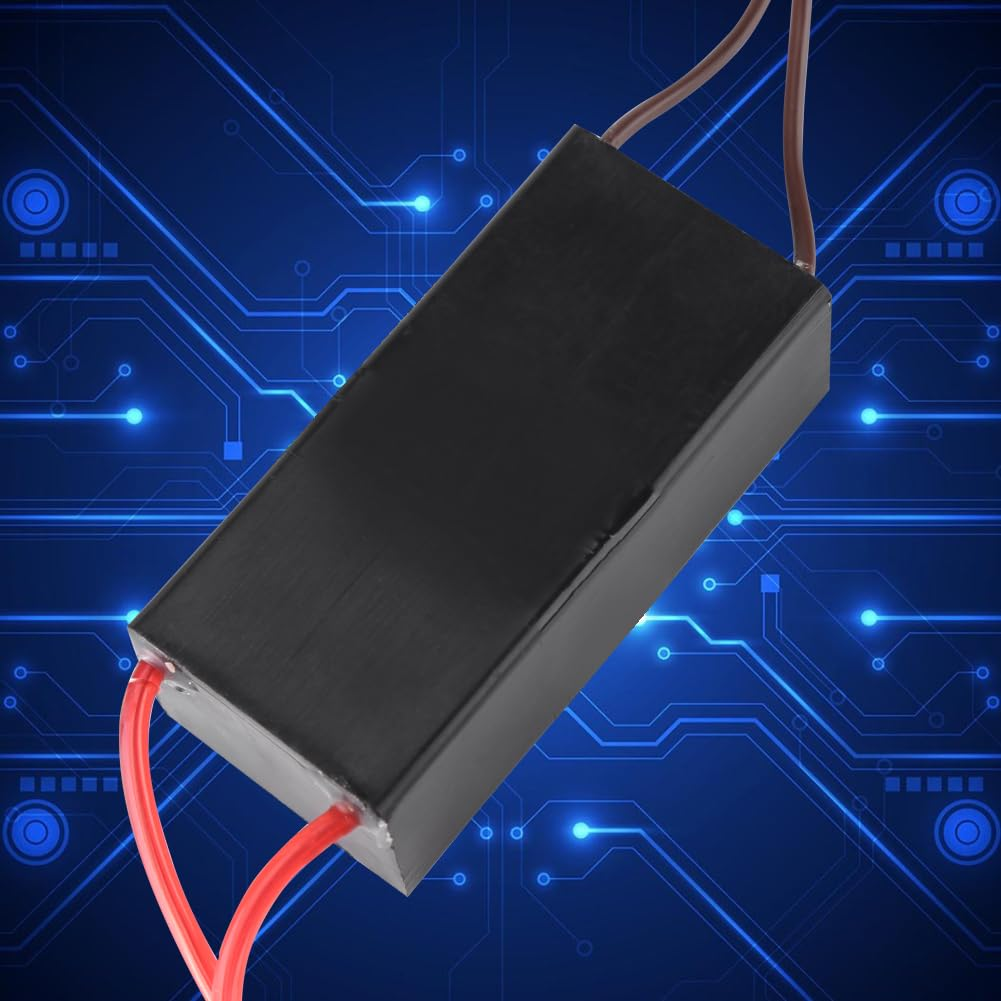

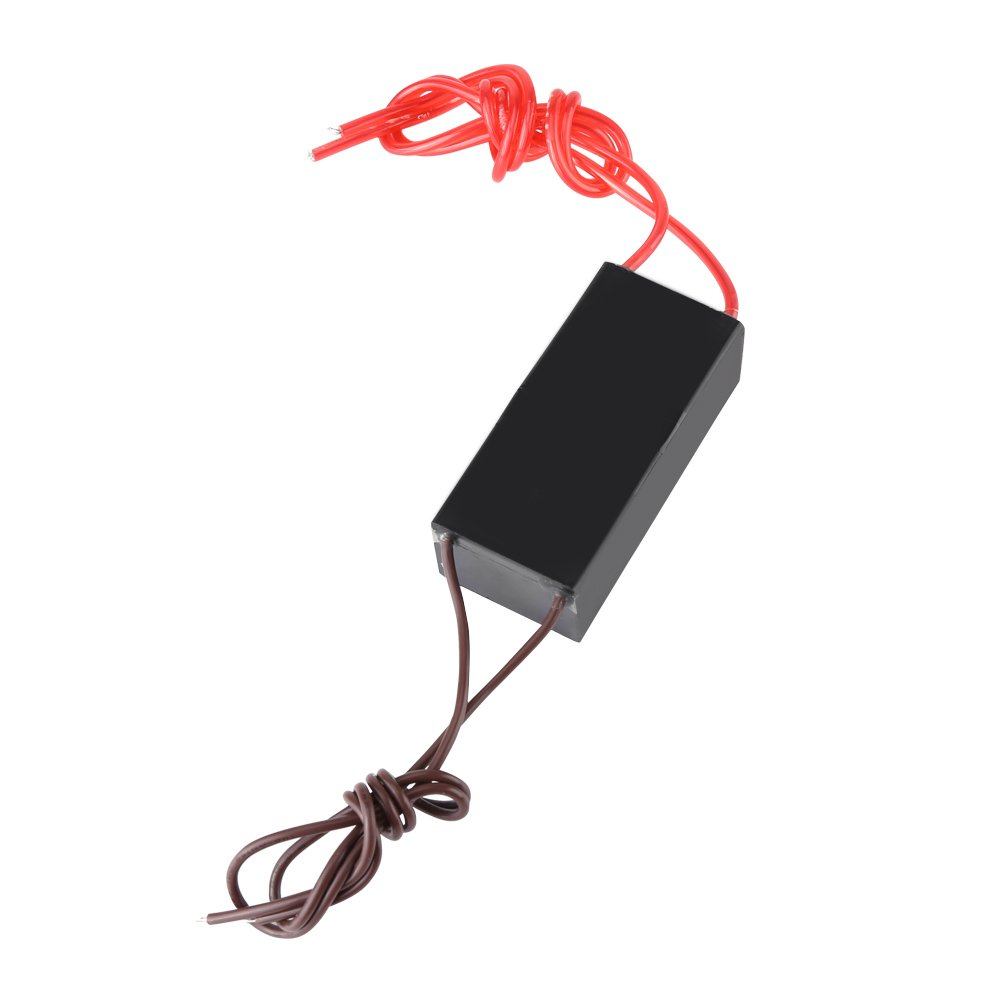

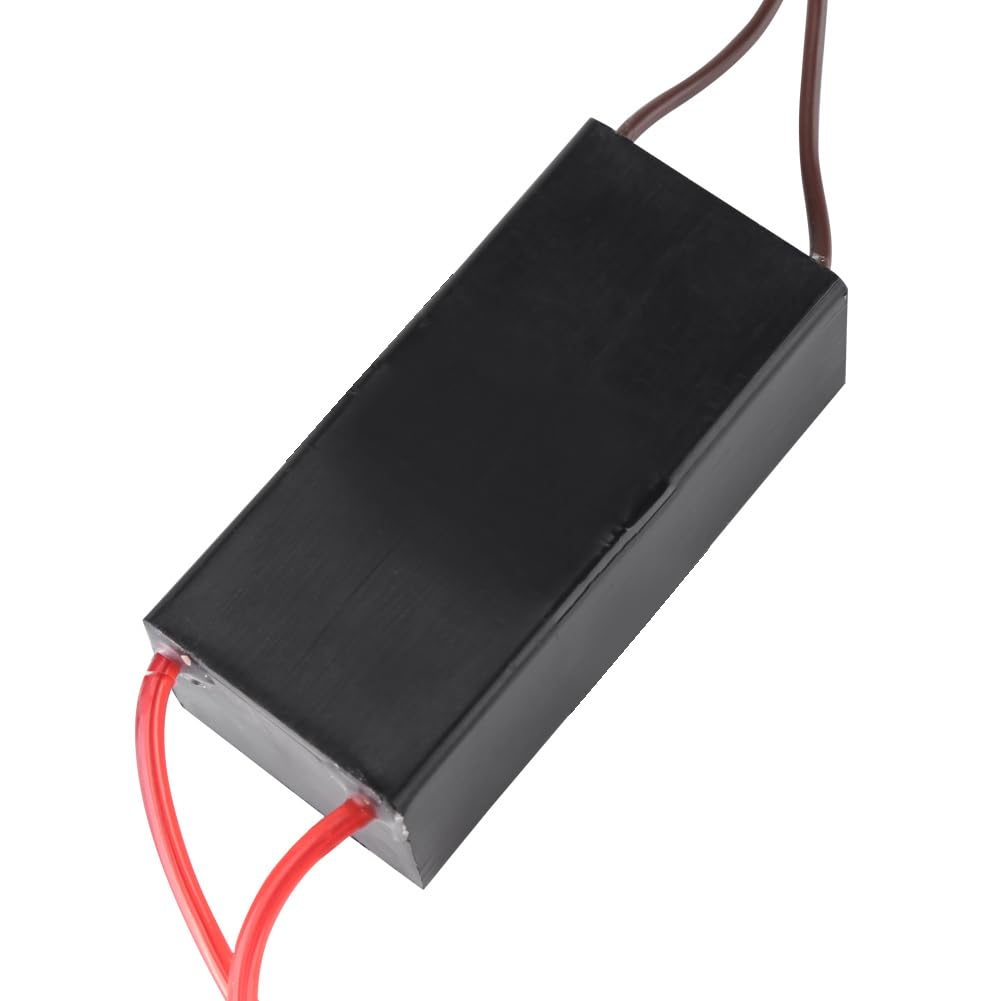

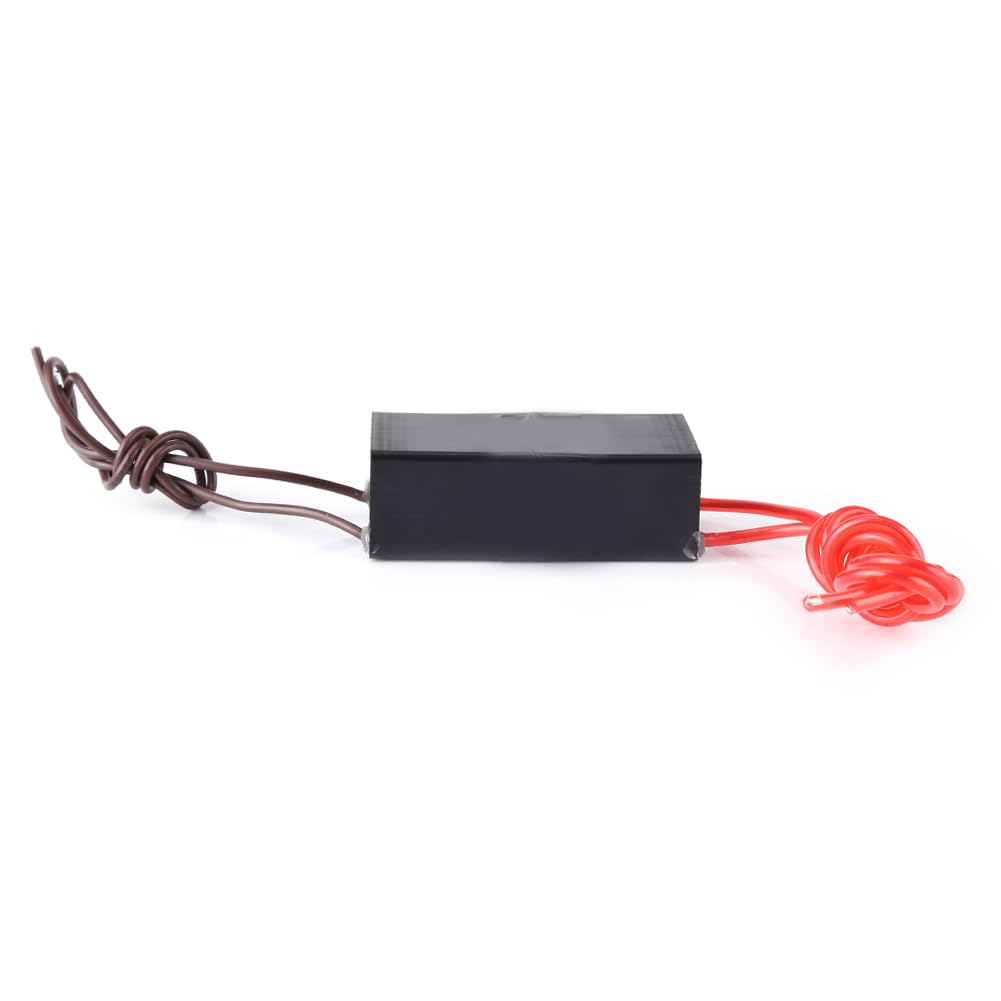

Specifications:

Size: 70*30*24mm/2.75*1.18*0.94

Input Voltage: 6V-12V DC

Input Current: 0.5A-1A

Input Cable Length: Approx. 26cm/10.23

High Voltage Type: Pulse DC

Output Voltage: About 60KV

Output Current: 0.5A-1A

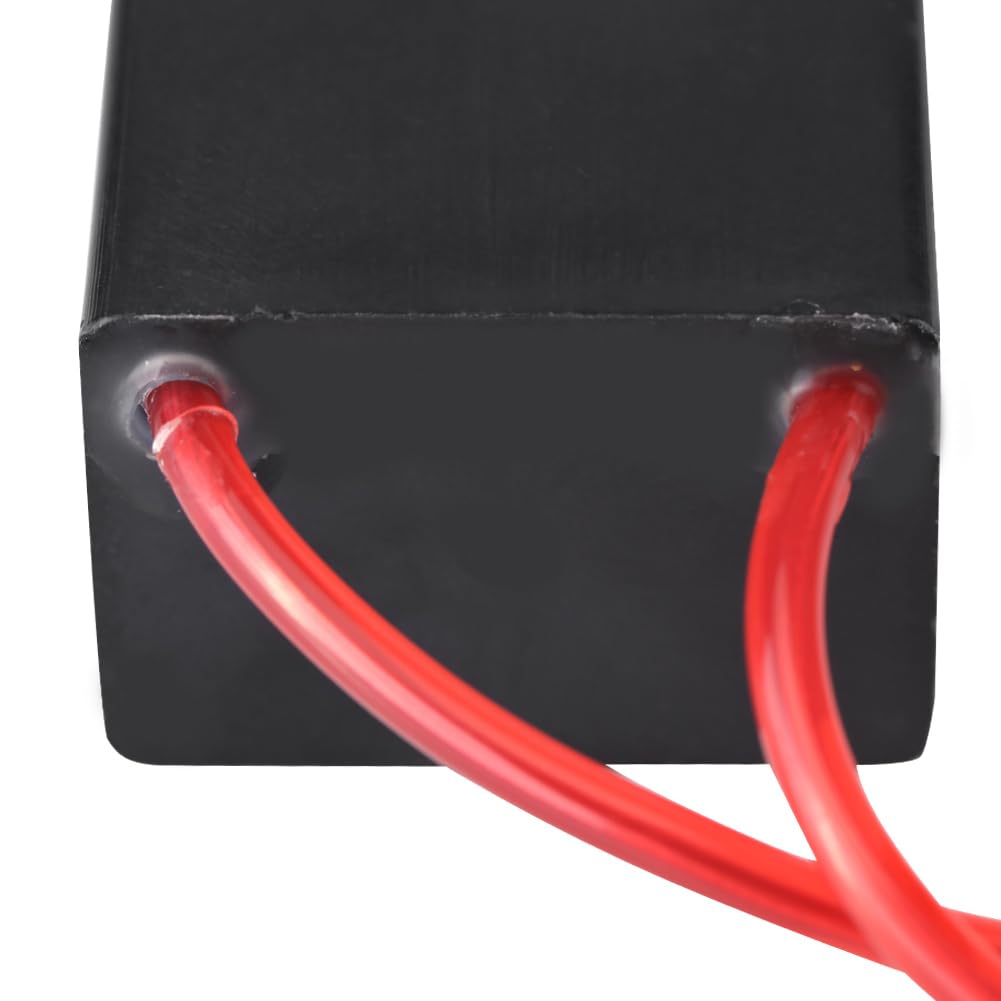

Output Cable Length: Approx. 48cm/18.89

Arc Discharge Distance: 1.5cm/0.59 to 2cm/0.78

Power Supply: Ni-Cd/Ni-mh battery pack, 6V or 12V battery(12V is better)

Note:

1, Output ends of cable should be adjusted properly before power on, and the arc distance depends on battery voltage and capacity.

2, The arc distance should be from short to long, do not produce a longest arc at first or the module might be damaged easily.

3, The module has high power and inner heat is not easily dissipated, so it can not work for long time.

4, The way to judge if a battery capacity is enough to output maximum power is to measure the battery voltage when producing arc. It the measured voltage is about 6V, then it can do the trick.

Package Includes:

1 x High Voltage Generator
