Meet or exceed the performance of desktop oscilloscope

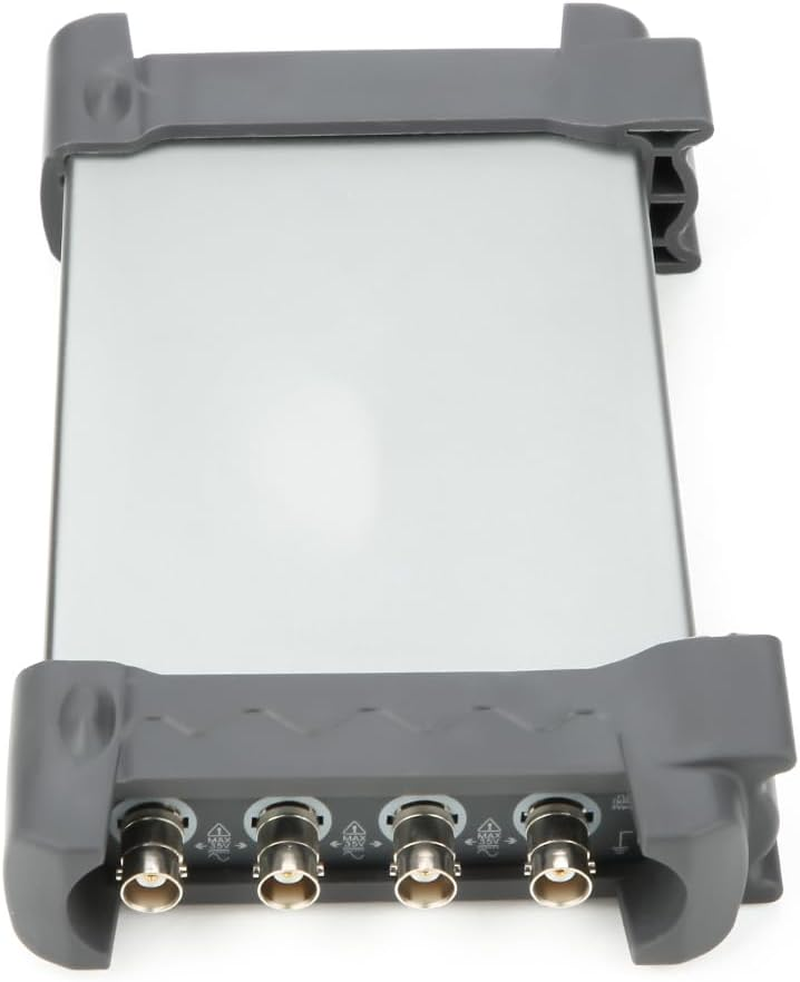

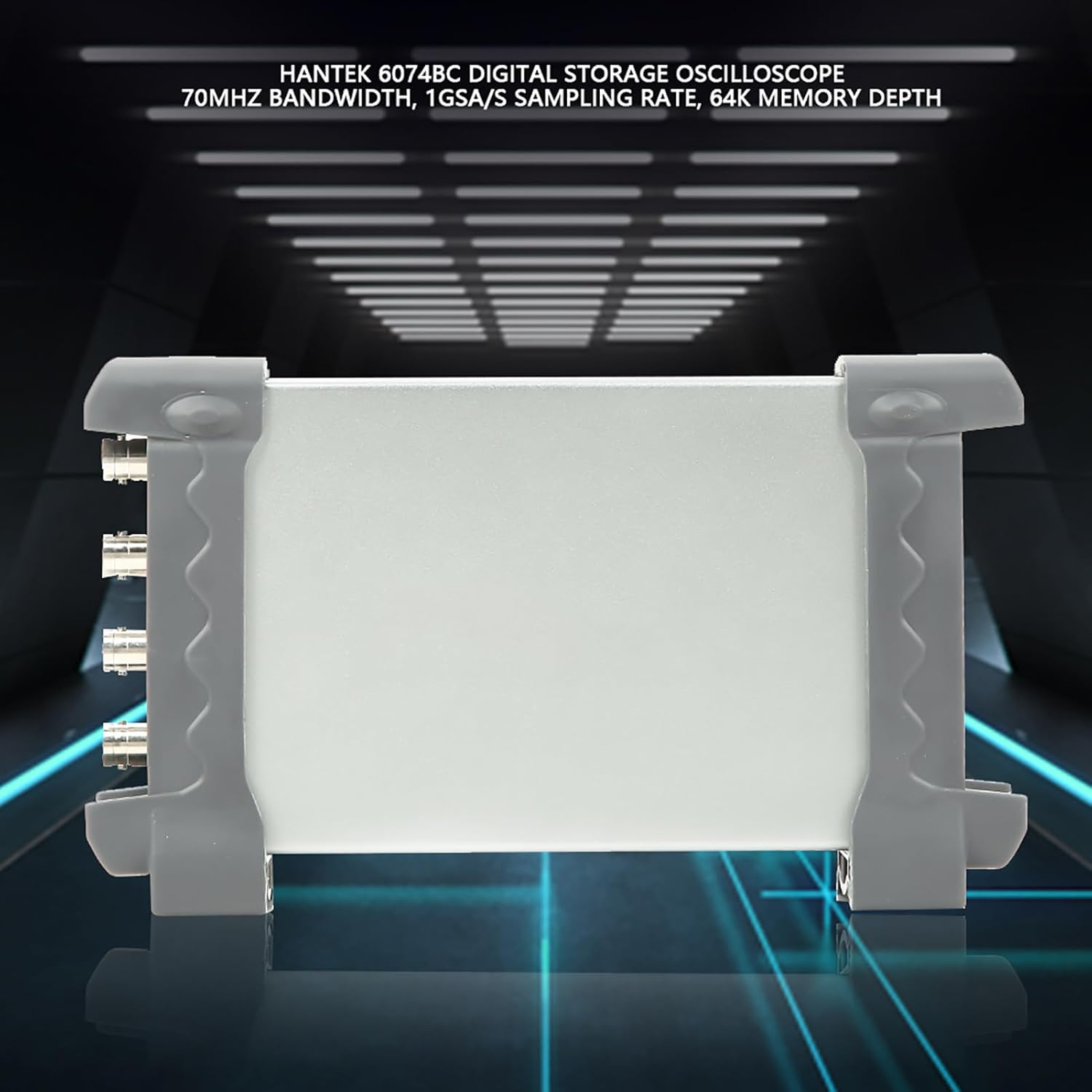

4 independent analog channels, 1GSA/S high-speed real-time sampling, 2MV-10V/DIV high input sensitivity, 70-250MHZ high bandwidth. Pass/fail test, rich trigger functions, dynamic cursor tracking, waveform recording and playback functions, and desktop oscilloscopes similar to the interface, easy to get started.

FFT spectrum analysis

USBXI standard interface, easy to plug into the USBXI chassis, composed of a combination of instruments, PASS/FAIL CHECK function, suitable for engineering applications.

More than 20 kinds of automatic measurement functions

Automatically measure the maximum value, minimum value, peak-to-peak value, top value, bottom value, middle value, RMS value, amplitude, average value, cycle average value, pre-shoot overshoot, cycle, frequency, rise time, fall time, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width.

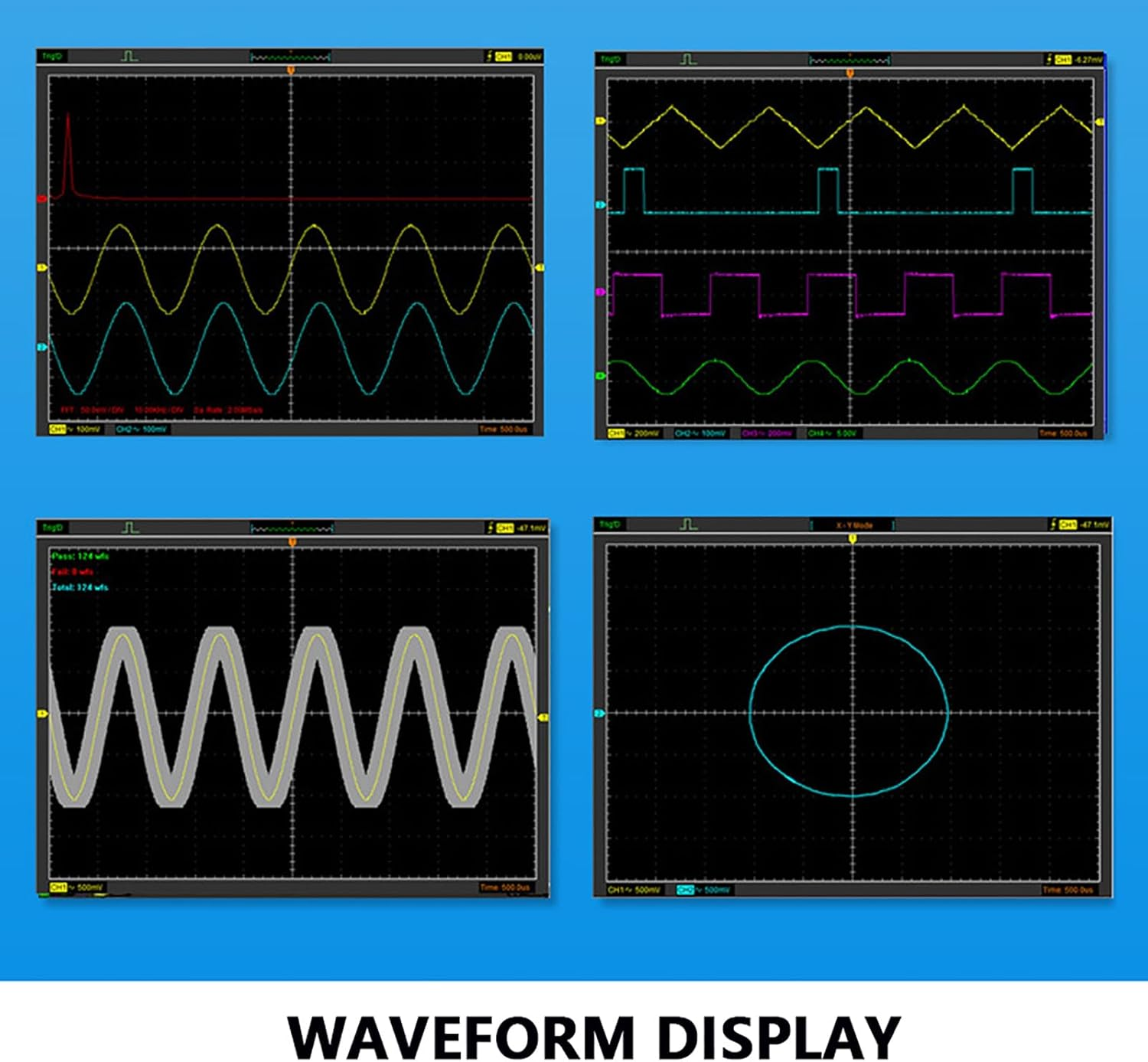

Waveform data can be output to EXCEL, BMP, JPG by time and voltage. Waveform averaging, brightness adjustment, inverse, addition, subtraction, multiplication, division, X-Y display.

USB2.0 interface, plug and play, no external power supply. Software support: Windows 10/8/7, more suitable for tablet PCs, laptops, production line maintenance adjustments, easy to travel and use. A computer can be connected to multiple oscilloscopes at the same time, easy to expand the number of channels.

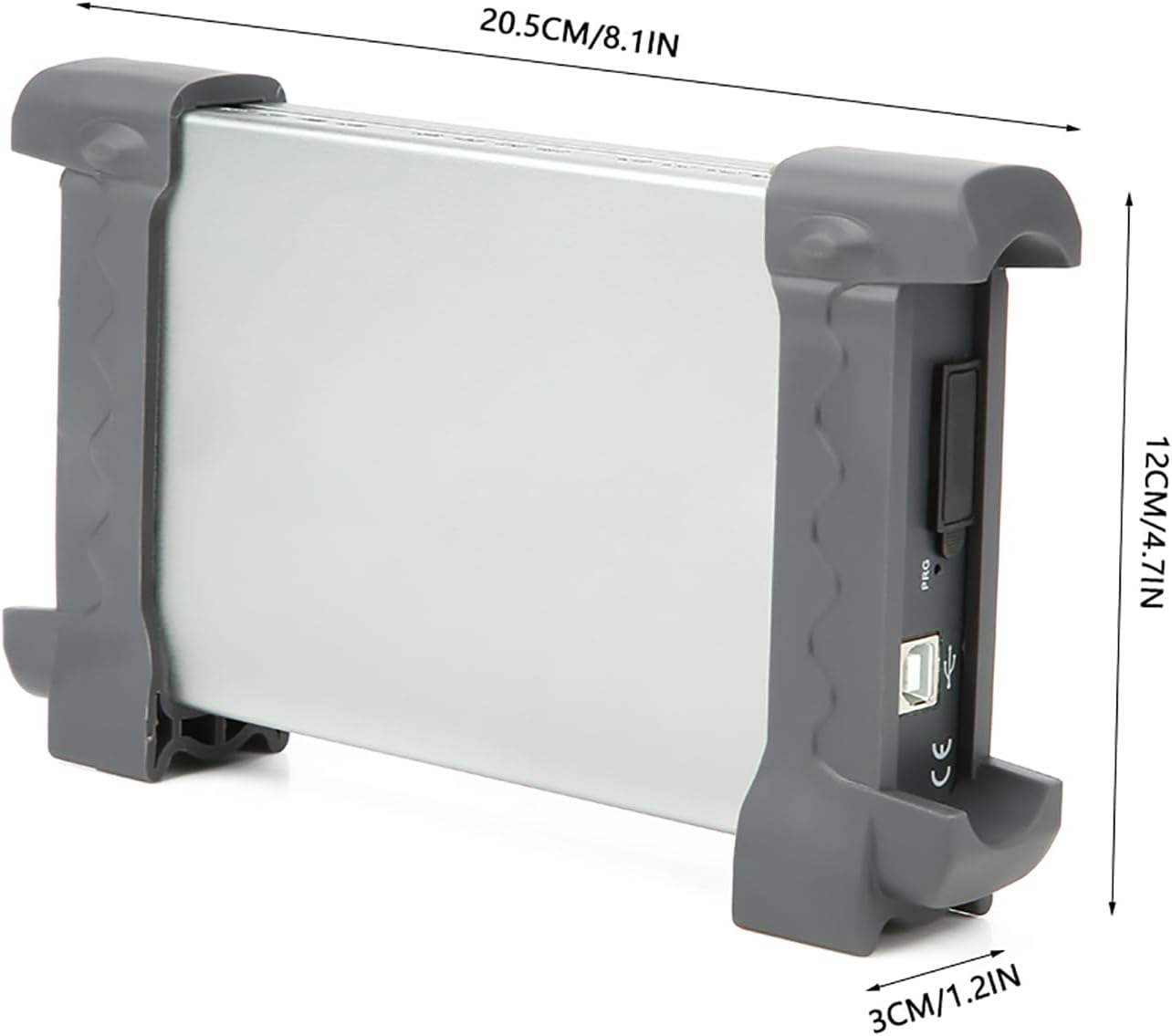

Excellent industrial design, compact size, easy to carry, the shell is made of the same anodized aluminum as IPAD, which is not only beautiful and generous, but also greatly improves the surface hardness of aluminum alloy, with good heat resistance and wear resistance.
