1. HIGH ACCURACY: The manifold pressure gauge adopts advanced digital circuits and high accuracy pressure sensors (0.5%), built in 90 types of refrigerants and corresponding temperature gauge data.

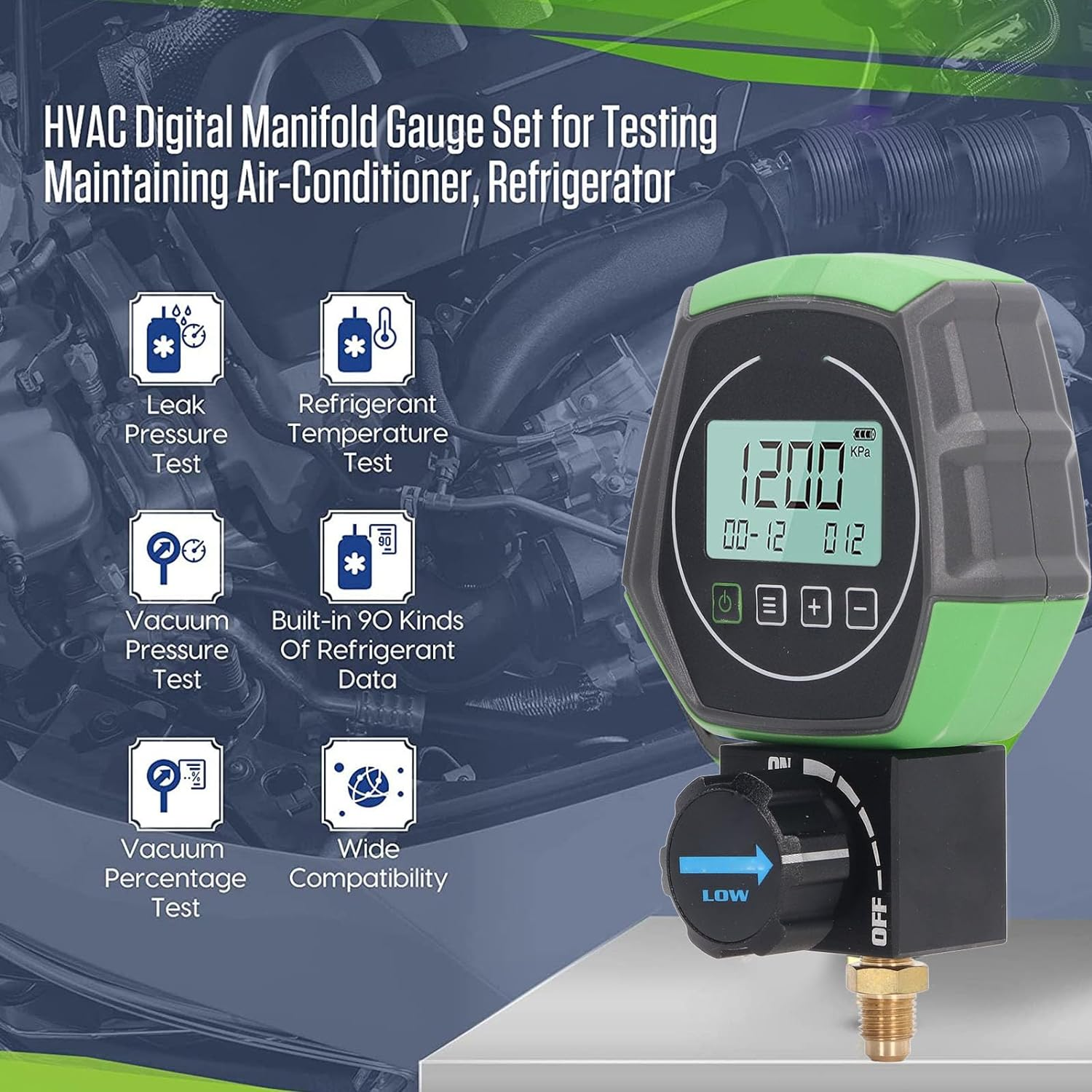

2. 3 WORKING MODES: This digital manifold gauge has 3 common working modes, namely refrigeration pressure mode, vacuum percentage mode, and leak detection mode, which is convenient and practical.
3. DETECTION RANGE: The AC manifold pressure gauge has a testing range of 0KPa to 6000 KPa, and supports KPa, Bar, PSI, InHg, KgF/cm² unit switching, ℃ and ℉ switching to meet different needs.
4. OTHER FUNCTIONS: By default, the system will automatically shut down after being idle for 10 minutes, and users can also cancel this function, and short press the button to turn on and off the backlight.
Specification:
Item Type: Digital Manifold Gauge
Battery: 1 x 9V 6F22 800mAh Dry Battery (included)
Mode: Refrigeration pressure mode, vacuum percentage mode, leak detection mode
Function: Built in 90 types of refrigerants and corresponding temperature gauge data, real time vacuum pressure testing and percentage indication

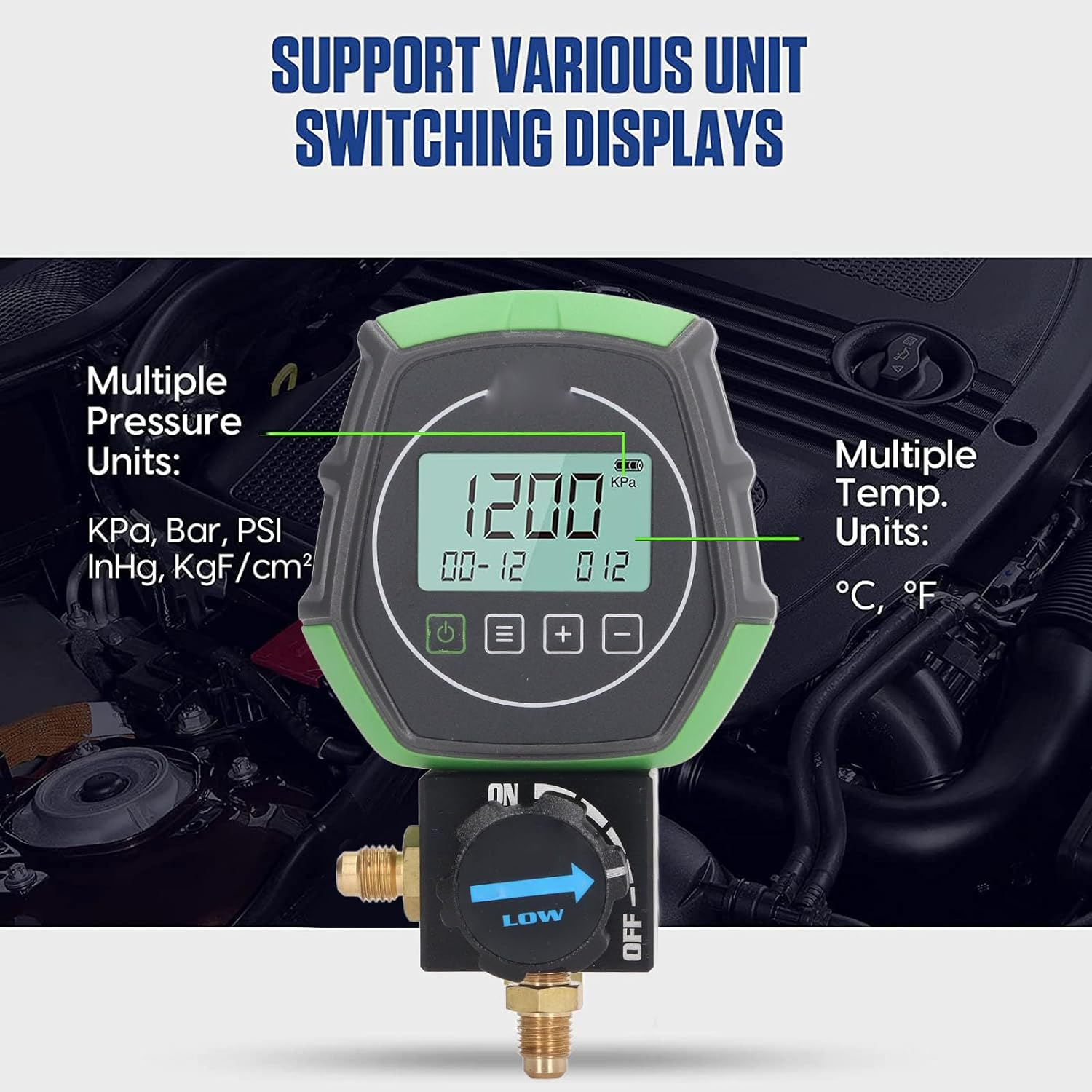

Pressure Units: KPa, Bar, PSI, InHg, KgF/cm2
Temperature Unit: ℃, ℉
Test Range: 0KPa-6000KPa
Resolution: 1KPa
Accuracy: ±0.5%
Overload: 10MPa
Working Temperature: -20℃-60℃ (-4℉-140℉)
Automatic Shutdown Function: 10 Minutes (switchable on off, default on)
Size: Approx. 90 x 60 x 150mm / 3.5 x 2.4 x 5.9in
How to Use:
Remove the product and install it before use.

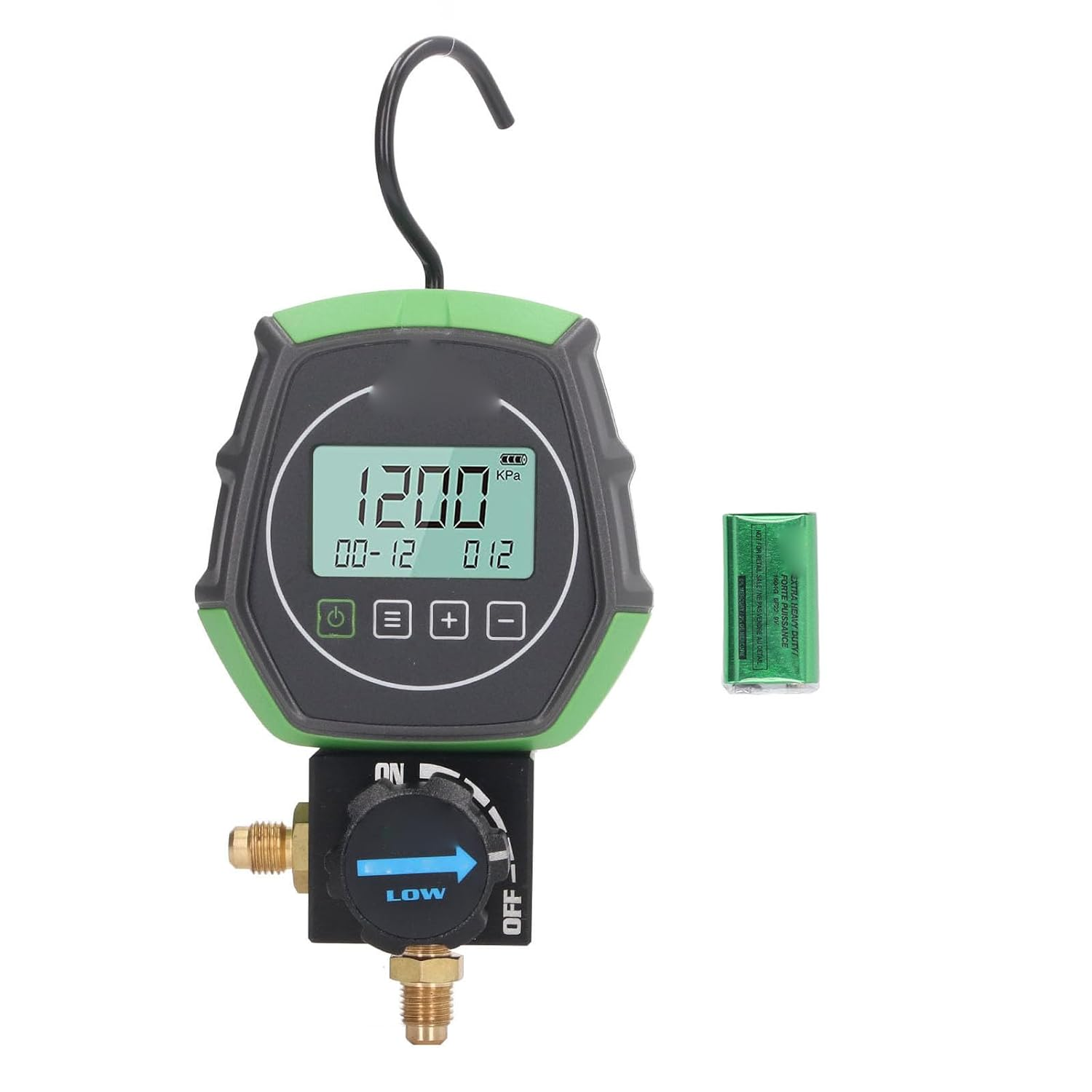

Package List:
1 x Host
1 x Battery
1 x User Manual
