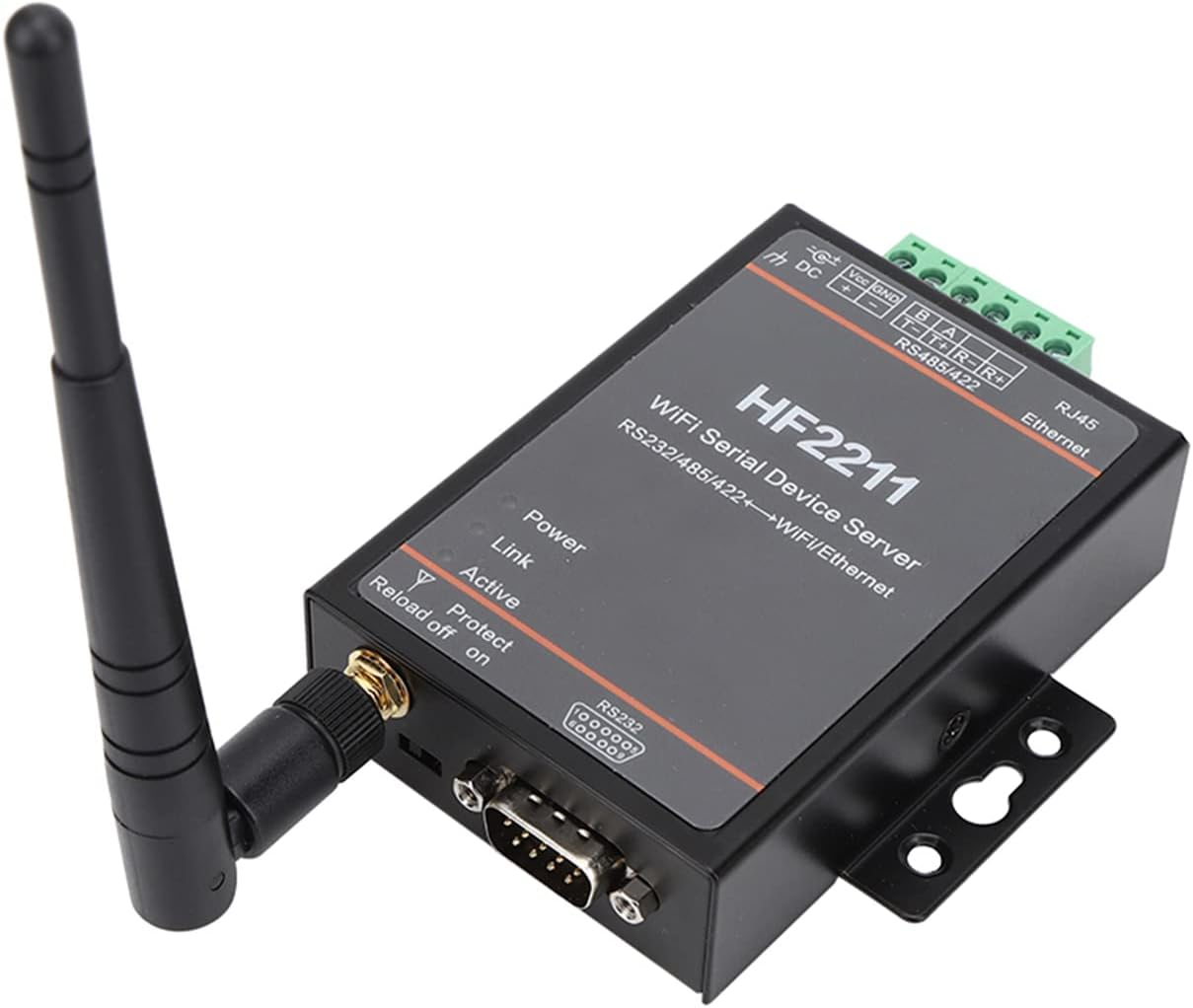

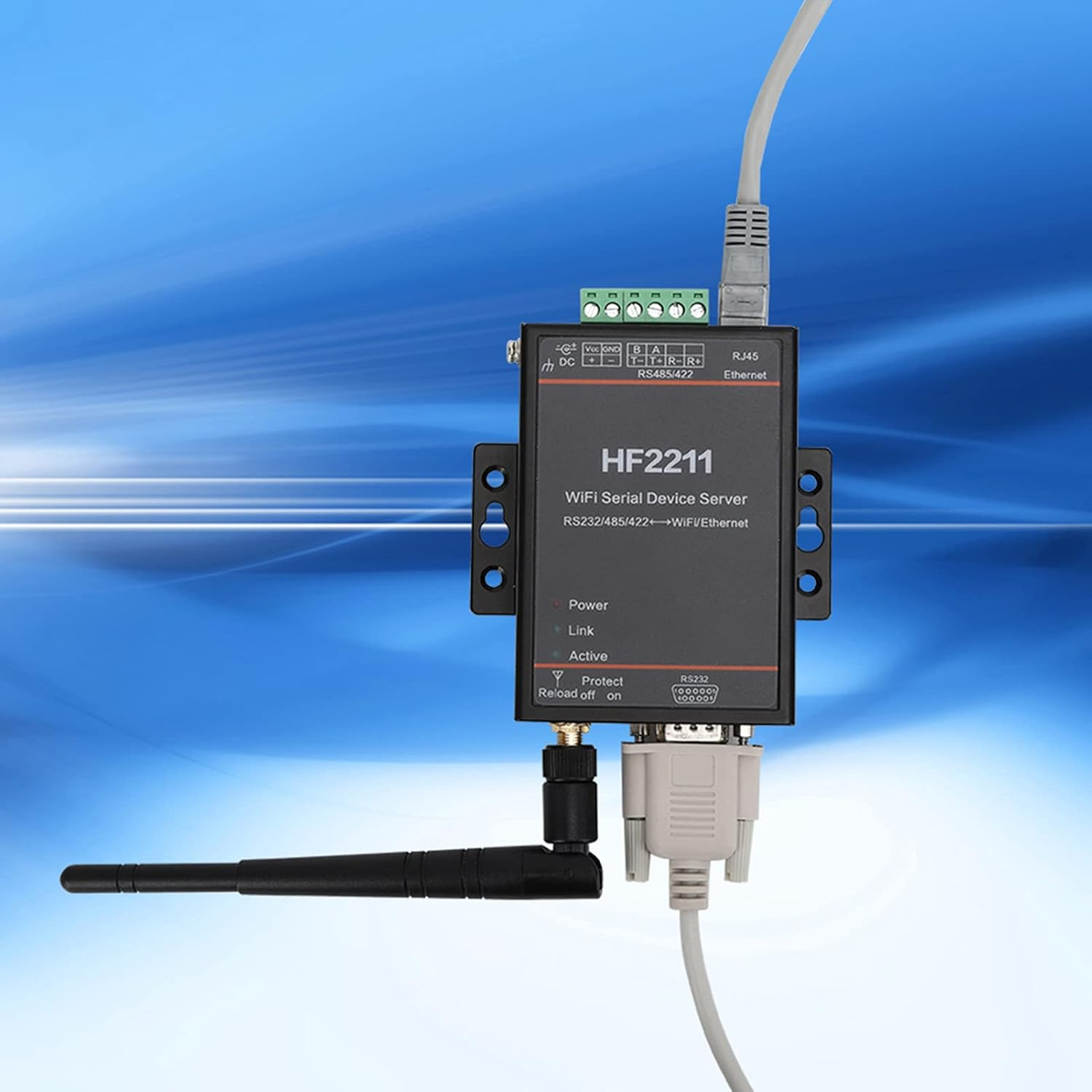

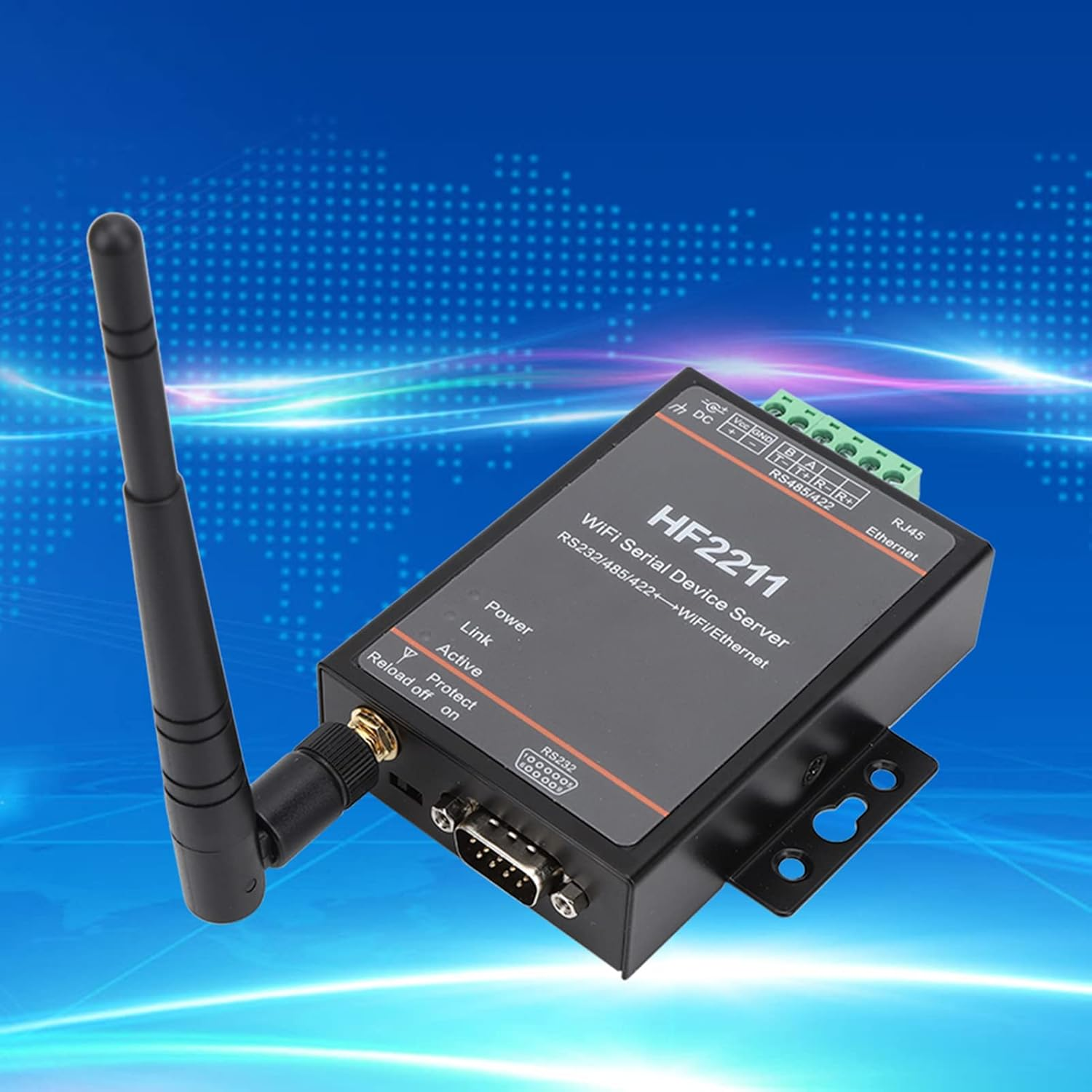

HF2211 Serial Device Server, RS232/485/422 to Wifi and Ethernet DTU Short Message Communication Module, 5-36VDC Serial Data Communication Device Support
HF2211 Serial Device Server, RS232/485/422 to Wifi and Ethernet DTU Short Message Communication Module, 5-36VDC Serial Data Communication Device Support
Brand: XTevu
A$141.15
Availability:
-
This item is currently not available
Shop with confidence
- HF2211 Serial Device Server: This device server is a powerful and versatile tool that allows you to convert RS232/485/422 serial data to WiFi and Ethernet connectivity. It provides a seamless and reliable solution for serial data communication in industrial and commercial applications.
- DTU Short Message Communication Module: This device server also features a DTU short message communication module, allowing for convenient and efficient data transmission via SMS. It enables real-time monitoring and control of your serial devices, even remotely.
- Wide Input Voltage Range: The HF2211 is designed to accommodate a wide range of power sources, with a voltage input range of 5-36VDC. This makes it versatile and suitable for various industrial settings where power supplies may differ.
- Easy Setup and Configuration: Setting up and configuring the HF2211 is simple and user-friendly. The device comes with easy-to-follow instructions and a user-friendly interface, ensuring a hassle-free installation process.
- Reliable Serial Data Communication: With its robust and reliable design, the HF2211 ensures stable and secure serial data communication. Whether you are connecting industrial equipment or commercial devices, this device server provides a seamless and efficient solution.
Feature:
1. Support routing / bridge mode network architecture.
2. Support webpage mode, PC software easy configuration.
3. Support data for TLS / for AES / for DES3 security encryption configuration.
4. Support web OTA wireless upgrade.
Specification: Item Type: HF-2211 Serial Port Server
Model: HF-2211
Input Voltage: Wide voltage 5 ～ 36VDC

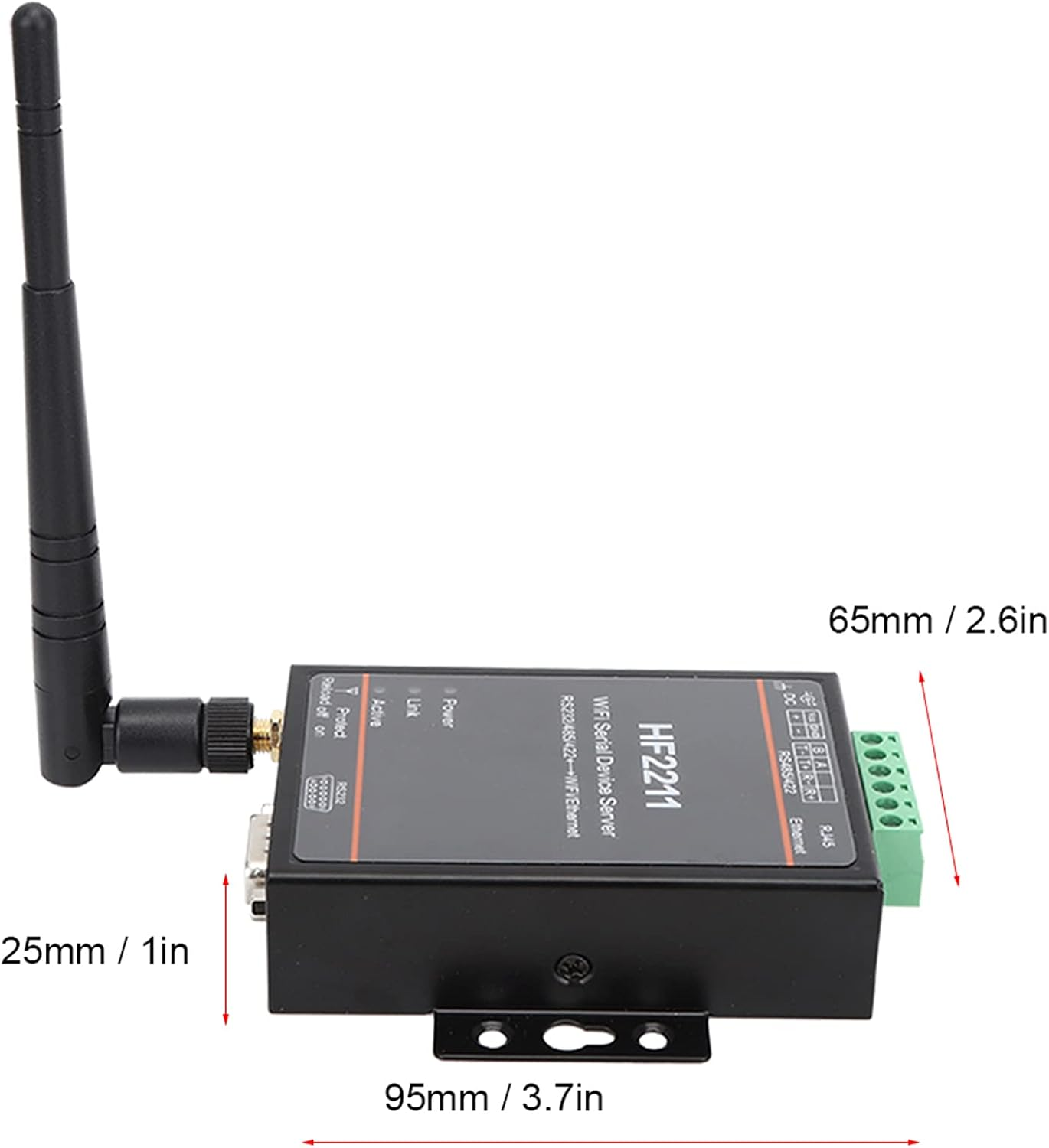

Size: Approx. 95 x 65 x 25mm / 3.7 x 2.6 x 1in
Working Temperature: -45-85 ℃
Interface Form: Ф5.5 x 2.1mm socket and 5.08mm terminal block
Working Current: 200mA
Power Consumption: <700mW
Core Resources:
Operating System: For Ecos
FLASH Resources: 4MB
RAM: 8MB
Ethernet Interface Parameters:
Ethernet Interface Form: 1 RJ45
Interface Standard: 10/100 Base-T auto-negotiation
Network Port Protection: Static: 8KV contact discharge, 15KV air discharge
Network Protocols: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP
Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for SSL
Serial Interface Parameters:
Number Of Serial Ports: 1 (RS232 / 485/422)
Interface Standard: RS232: DB9 pin type
RS485 / RS422: 5.08mm terminal block
Baud Rate: 600-230400bps
Data Bits: 8

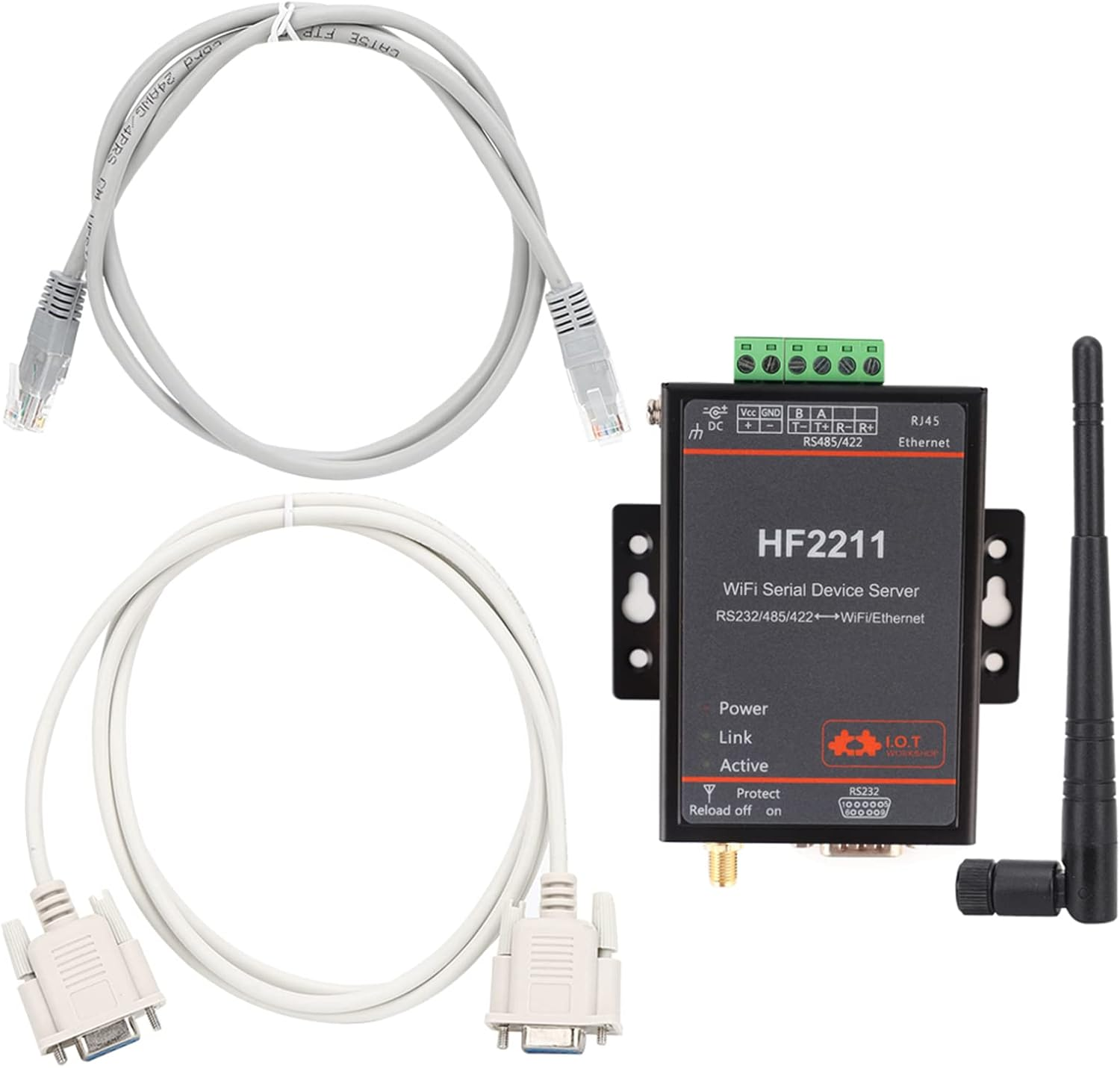

Package List: 1 x Serial Network Server
1 x Serial Cable 1 x Network Cable 1 x WIFI Rubber Antenna
Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
- Part Number: XTevuh6cseogw7r
- Manufacturer reference: XTevuh6cseogw7r
- Power Source: PowerSource
- Item Package Quantity: 1
- Item Weight: 400 g
- Manufacturer: XTevu
- Voltage: 1 Volts
- Installation Method: InstallationMethod
- Included Components: inc
