SVBONY SV221 Diagonal Mirror 1.25 Inches, 45-Degree Correct-Image Prism Diagonal Provides Sharp Views That Are Right-Side-Up and Correct Left-To-Right for Refractor Telescope

SVBONY SV221 Diagonal Mirror 1.25 Inches, 45-Degree Correct-Image Prism Diagonal Provides Sharp Views That Are Right-Side-Up and Correct Left-To-Right for Refractor Telescope

Brand: SVBONY
5.0
A$48.30
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Clear views; 45-degree correct-image prism diagonal provides sharp views
  • Innovative design; the main mirror housing is made of precision molded ABS plastic; and the two end barrels are precision machined from aluminum
  • Brass lock screw and compression rings; equipped with brass lock screw and compression rings for precise connection and protection against scratches and damages

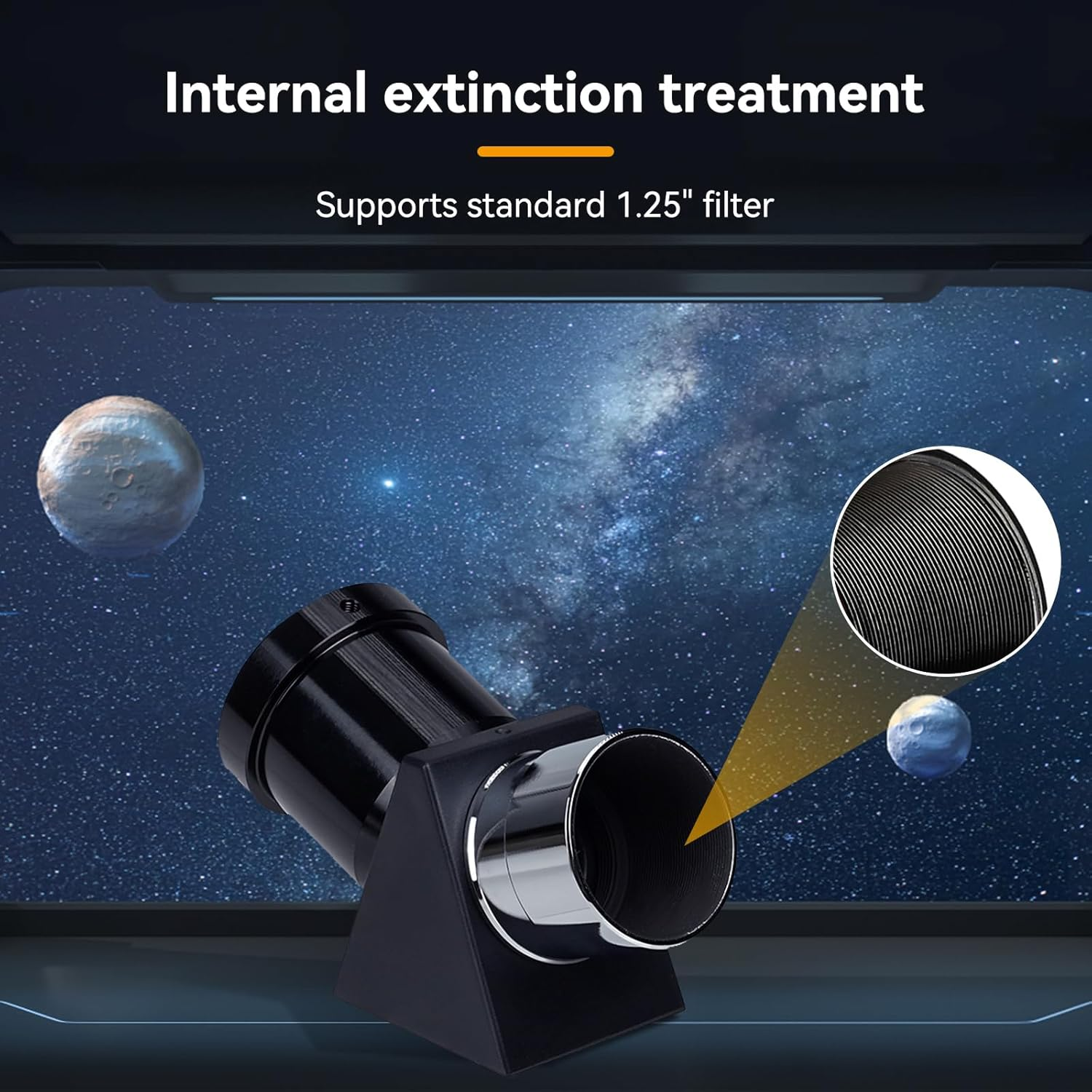

  • Supports 1.25-inch filters; featuring multi-coated (MC) surfaces; and supports the connection of 1.25-inch filters for versatile observations
  • Erect Image observation; provides erect image observation without image inversion
  • Full field coating; features multi-coating for comfortable viewing experience
  • Clear Aperture; offers a clear aperture of 19mm; ensuring clear observation results
  • Dustproof design; comes with a dustproof cover to keep the lens clean
  • Screw clamping system; features a screw clamping system for secure and easy usage
  • Wide compatibility; designed for refractor telescopes and some catadioptric telescopes like schmidt-cassegrain and maksutov-cassegrain; not compatible with newtonian/dob reflector telescopes

Product Description

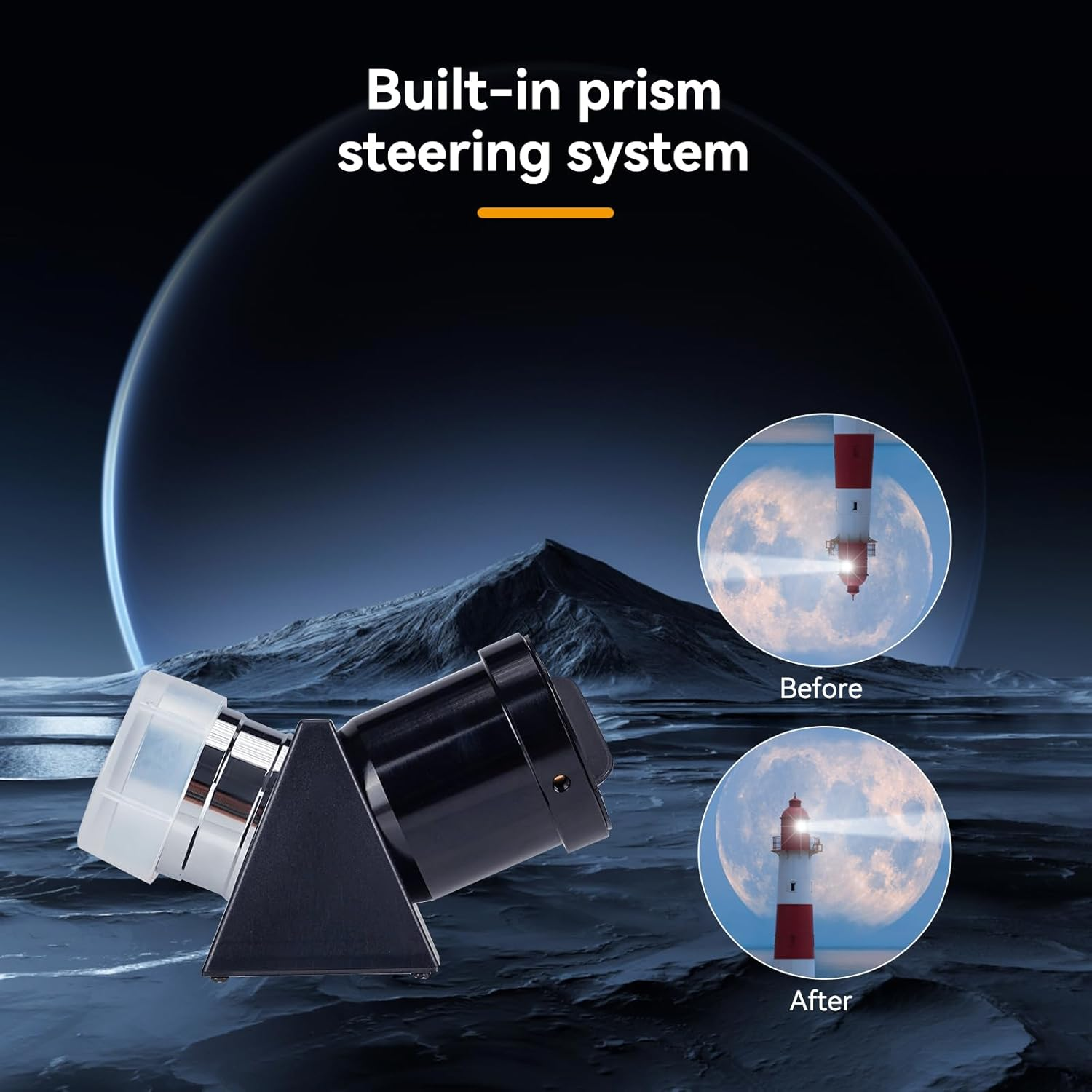

SV221 diagonal mirror reflects the telescope’s light path 45 degree to provide a more comfortable viewing angle, suitable for observing objects overhead. Correct upside down and left right reversed image, the view image is upright.

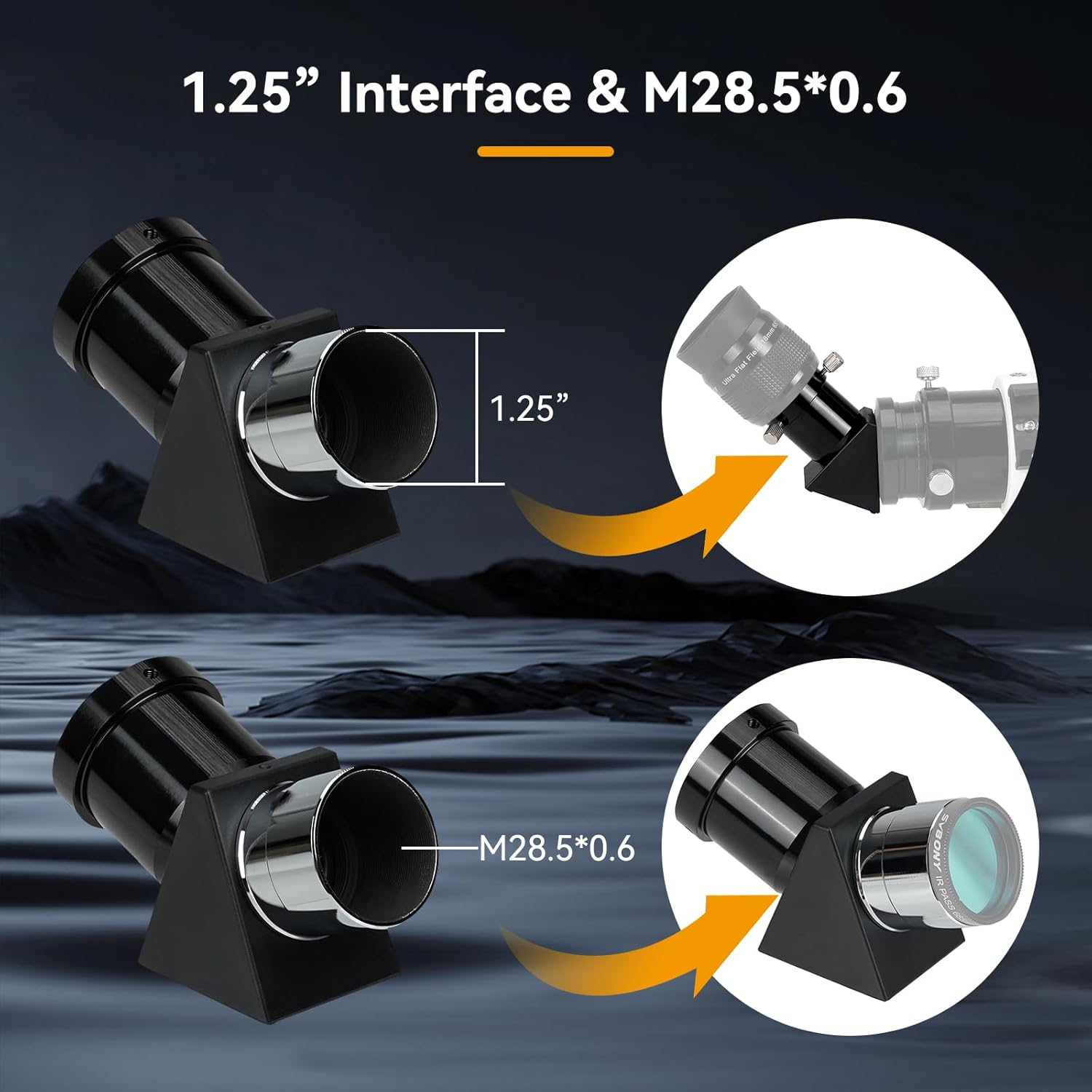

SV221 diagonal mirror interface is 1.25” and the thread size is 28.5*0.6, to connect to astronomical telescope with 1.25” interface and 1.25” filter, for a better observation experience.Standard 1.25 inches diameter can be used with 1.25 inches telescope accessories such as eyepieces and filters

Protect eyepieces

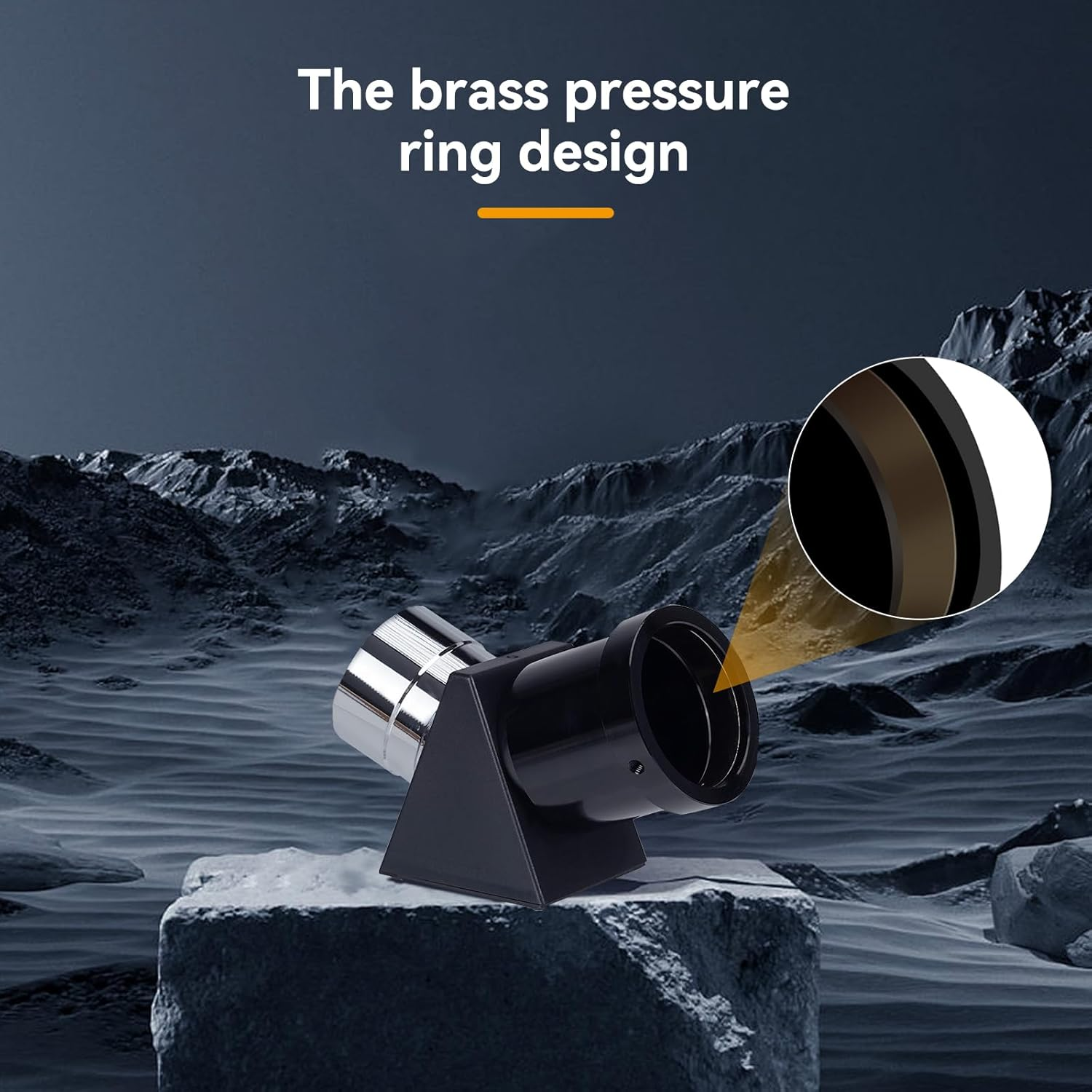

Brass pressure ring

SV221 diagonal mirror have brass compression ring design, provides a uniform pressure receiving area when holding the eyepiece, fingertip screw clamps accessories effortless fixes more firmly and will not damage your eyepieces

Convenient to use

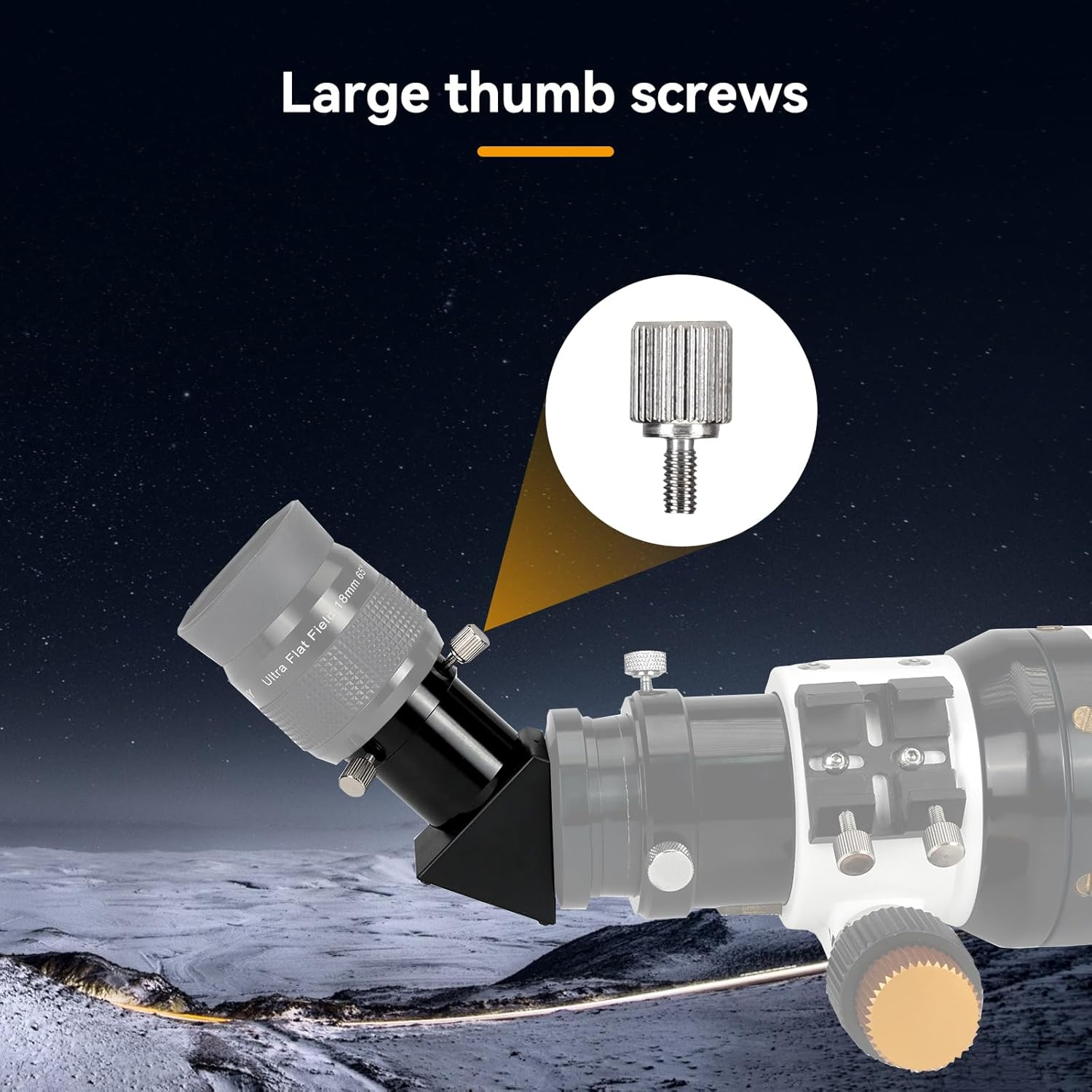

Large thumb screws

SV221 diagonal mirror have large thumb screws allow you to twist more conveniently during use, the operation is more portable, and it can be easily fixed even if wearing gloves in winter.

You can use SV221 diagonal mirror to observe the moon and planets, suitable for a variety of scenarios

Specification:

Inner Connection (Lens Sided) Thread M28.5x0.6
Outer Connection (Lens Sided) Barrel 1.25inch
Inner Connection Clamp 1.25inch

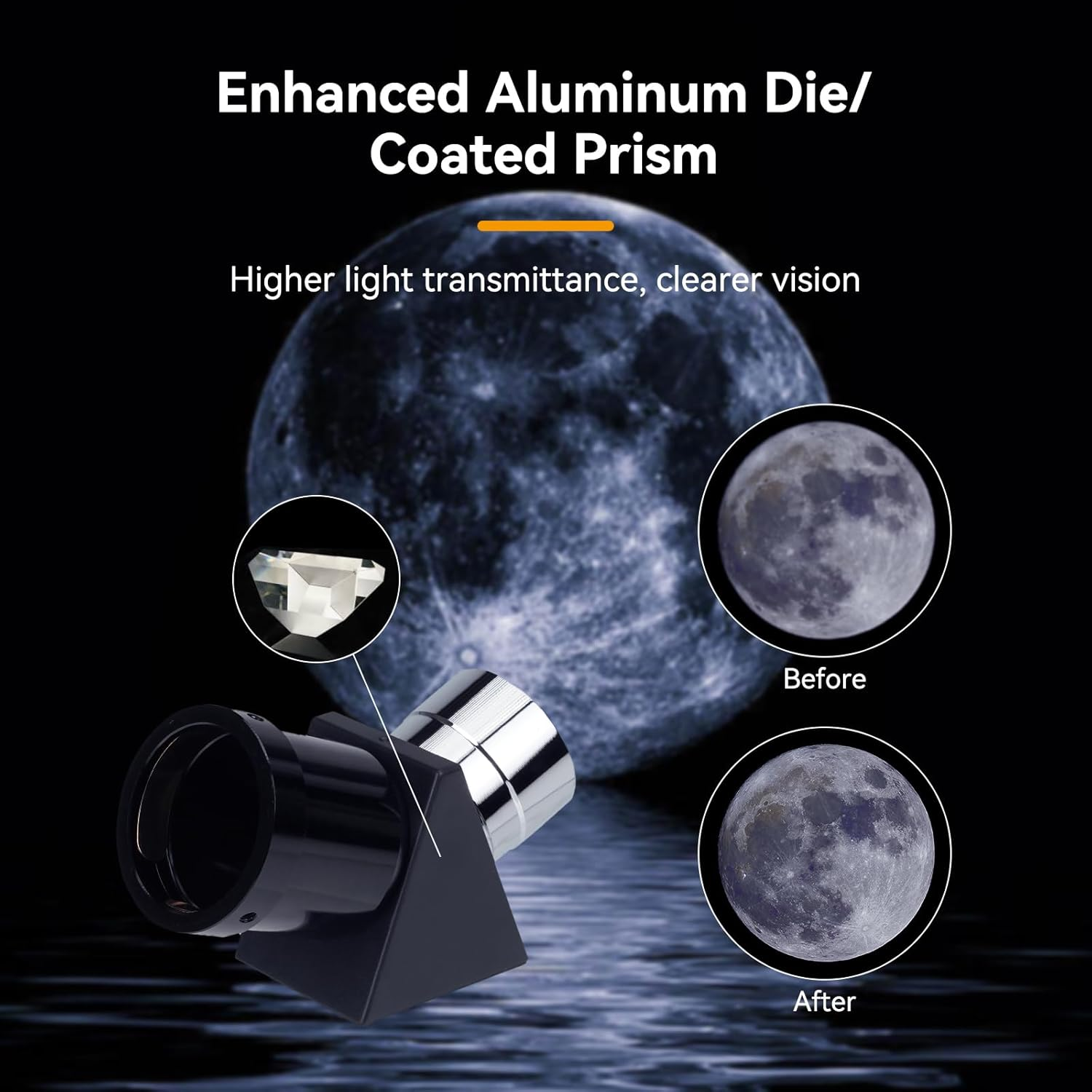

Coating Multi-Coated (MC)
Image Orientation Erect image, non-reversed
Optical Length appr. 86mm
Clamping System Screw clamps
Deflection Angle 45°
Clear Aperture 19mm
Material Plastic & metal
Net Weight 79g/2.78oz
  • Item Weight: 112 g
  • Item Model Number: FAUW9178B
  • Product dimensions: 8 x 4.3 x 5.2 cm; 112 Grams
  • Country of origin: China
  • Manufacturer: SVBONY
