1. DC 48V: M8 bus bar box adopts DC 48V, the bus bar is very suitable for DC power supply system and works very reliably.
2. Collecting Negative Wire Harnesses: The distribution block busbar can be used to collect negative wire harnesses and wires for neat and safe storage and wiring.
3. Low Brass Plate: The busbar module's brass plate as conductor has low resistance, conductivity and corrosion resistance.
4. Current Rating: Each stud of the busbar module is rated at 62.5A, the entire block is rated at 250A, and the auxiliary terminal screws at 20A.
5. Widely Used: The power distribution block busbar box can be widely used in cars, vehicles, RVs, ships, electrical equipment, etc. to meet your various working needs.
Spec:
Item Type: Bus Bar Duty Module

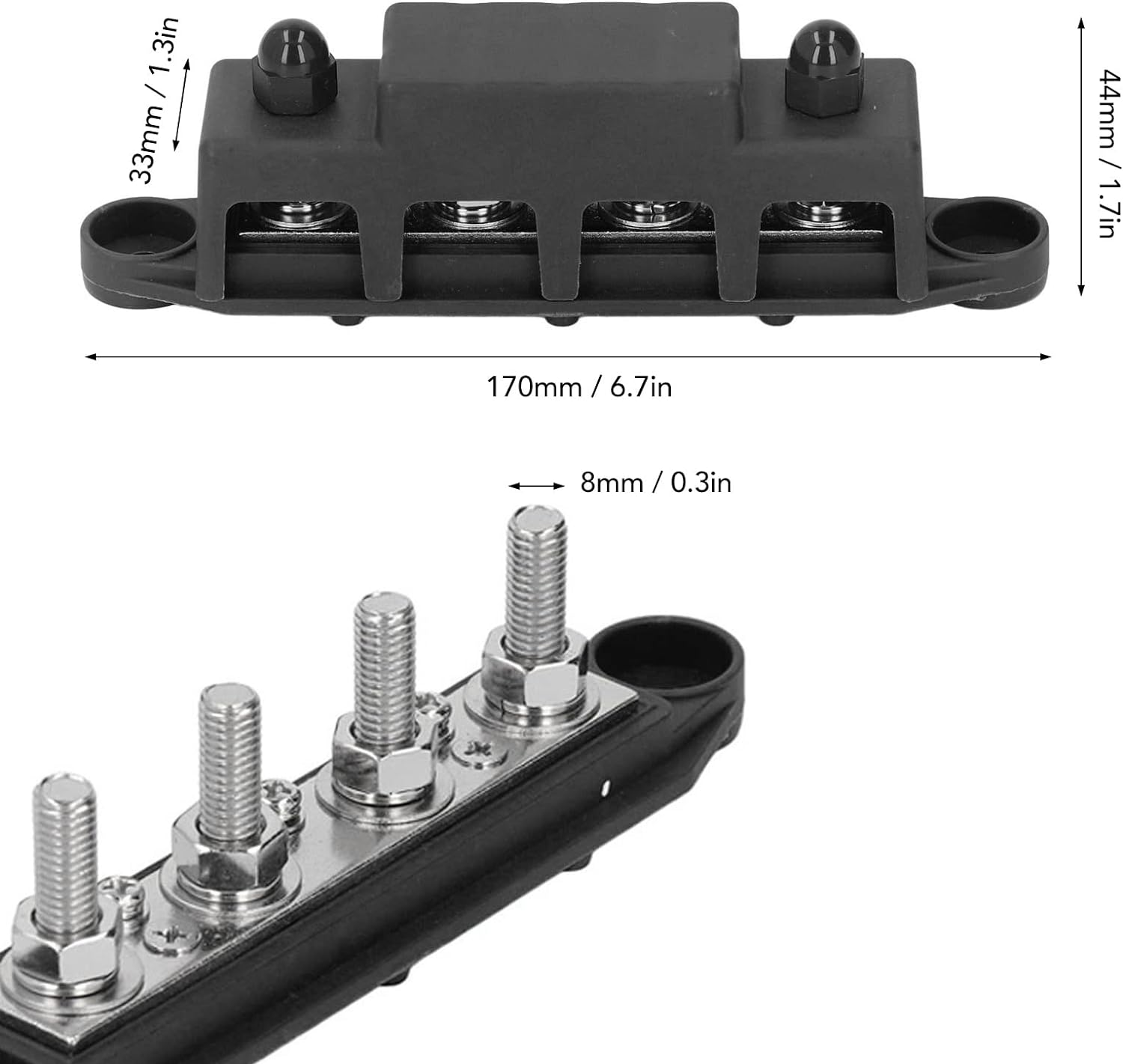

Specification: M8
Material: ABS, Zinc Alloy, Brass
Maximum Voltage: 48VDC
Each Stud Rated Current: 62.5A
The Whole Electric Block Rated Current: 250A
Auxiliary Terminal Screw Current: 20A
Function: Bring the wire harness together to reasonably store the wire inside the car or boat
Application: Automotive, RV, ship, yacht and other power systems
PackageList:

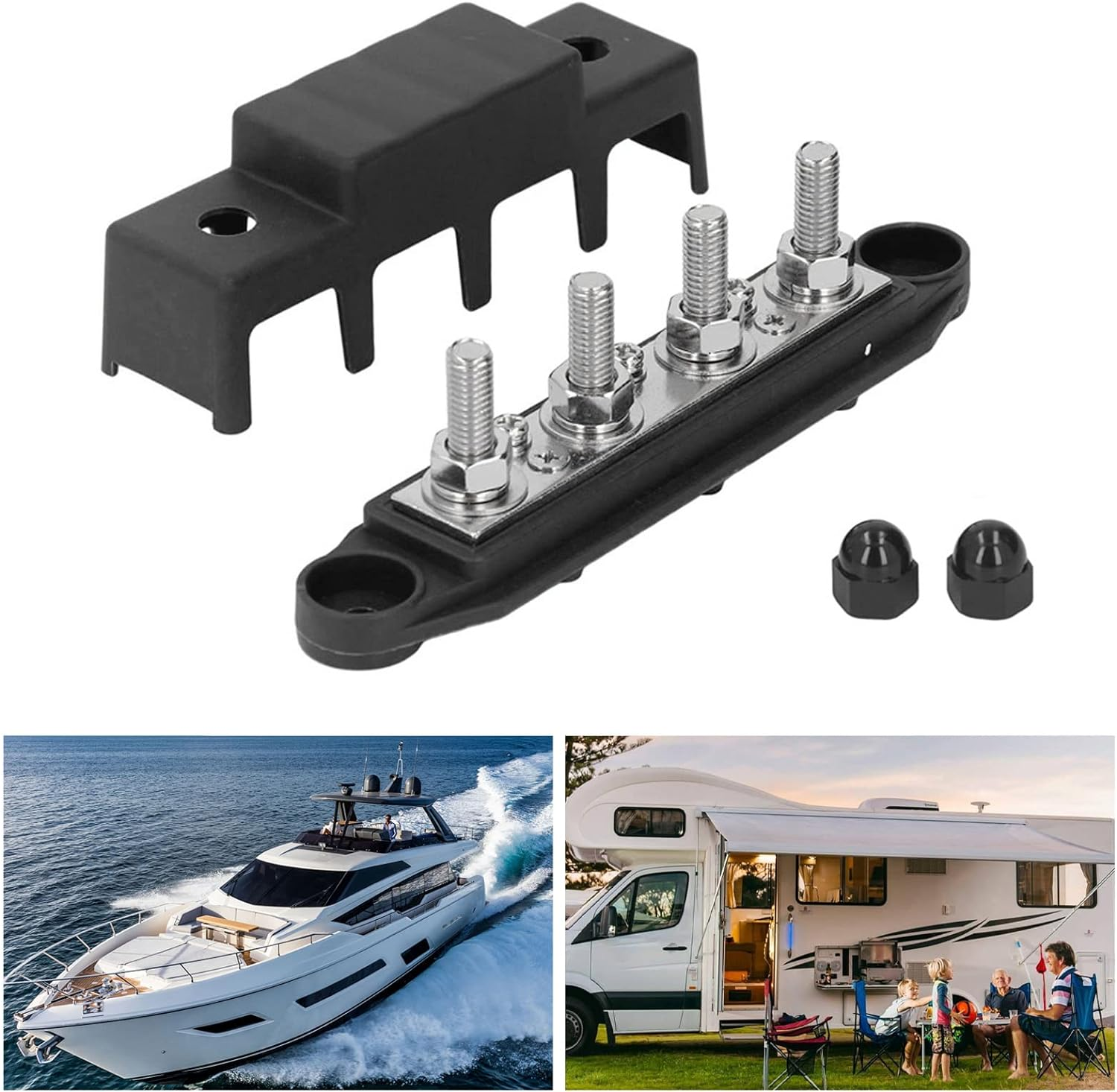

1 x Bus Bar Duty Module
