Features:

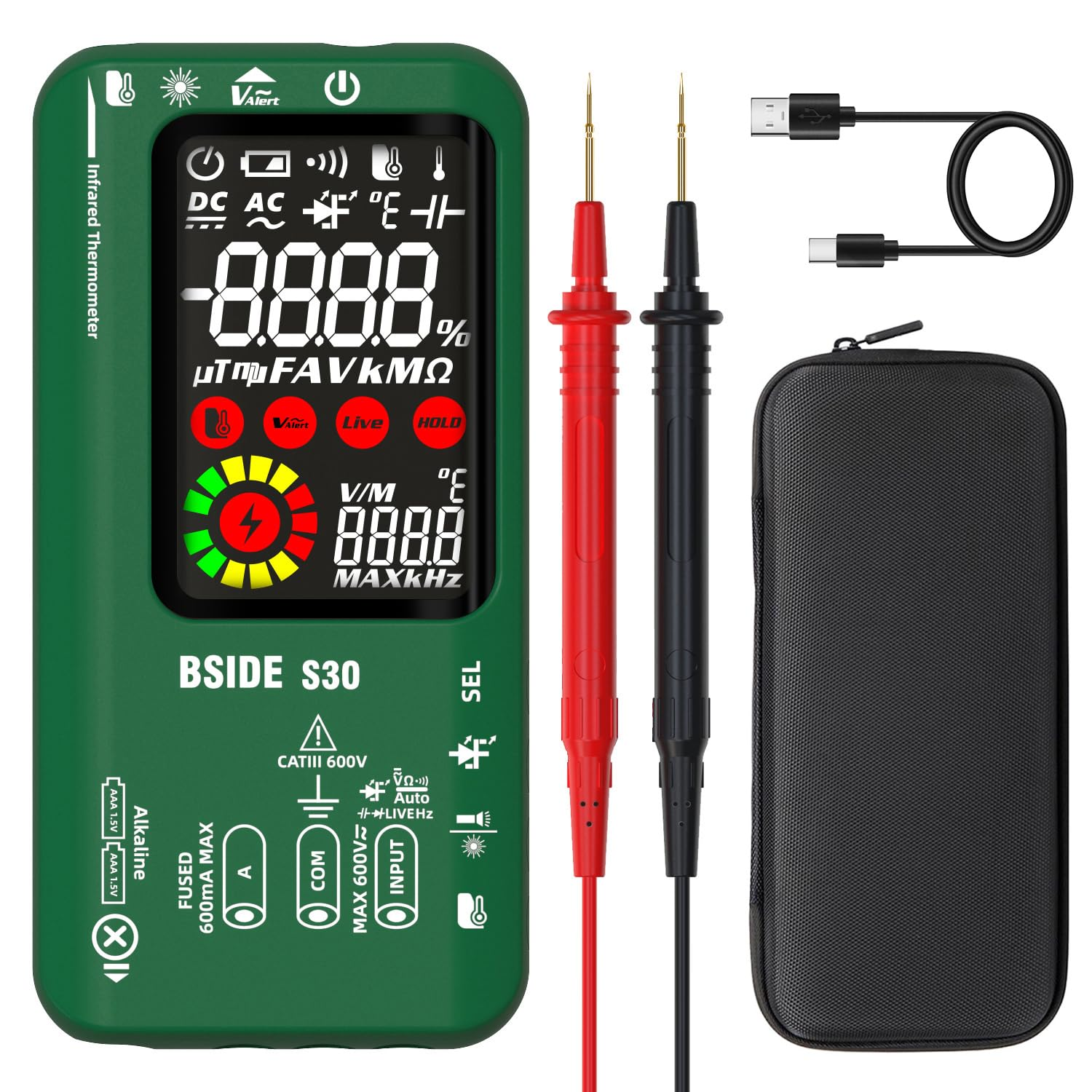

Professional digital multimeter tester
Smart multimeter with infrared thermometer
Rechargeable Automatic voltmeter with color screen
Measures capacitance, diodes, AC/DC current, AC/DC voltage
Measures, resistance, frequency, continuity, v-alert and live wire check
Measures environmental temperature, non-contact test real-time and MAX temperature
Also can be used as a professional voltage detector with adjustable sensitivity

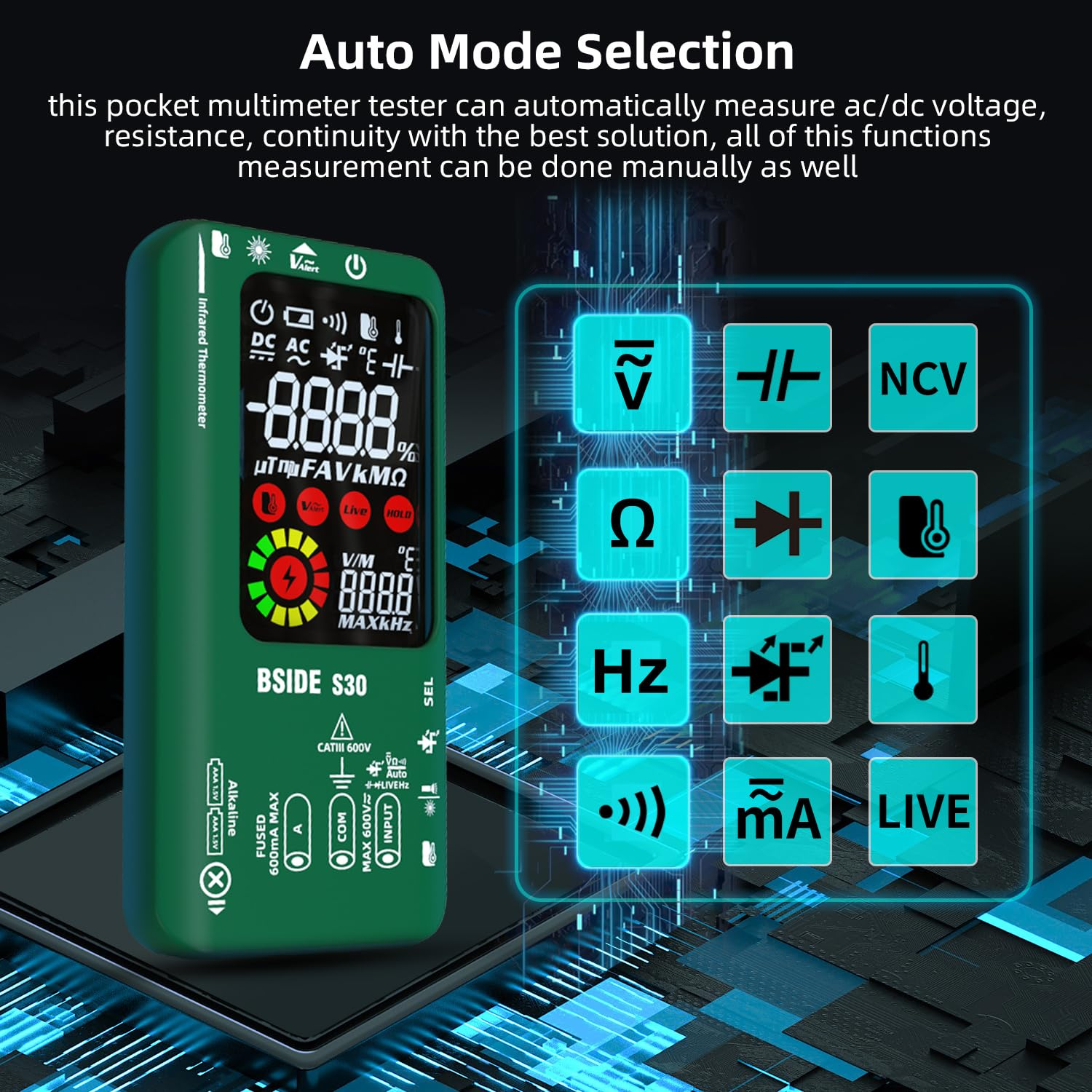

Auto range, Auto power off, low battery indication with flashlight
Specifications:
MAX Display: 9999 counts
DC Voltage: 0-9.999V 0.001V ±(0.8%+3); 10-99.99V 0.01V ±(0.8%+3); 100-620V 0.1V ±(1.0%+5)
AC Voltage: 0-9.999V 0.001V ±(1.0%+3); 10-99.99V 0.01V ±(1.0%+3); 100-620V 0.1V ±(1.2%+5)
DC Current: 1-610mA 0.1mA ±(1.5%+3)
AC Current: 1-610mA (40-200Hz) 0.1mA ±(2.0%+3)
Resistance:
0-99.9Ω 0.1Ω ±(1.2%+3); 100Ω-9999Ω 1Ω ±(1.2%+3); 10KΩ-99.99KΩ 0.01KΩ ±(1.2%+3);
100KΩ-999.9KΩ 0.1KΩ ±(1.2%+3); 1MΩ-9.999MΩ 0.001MΩ ±(1.5%+5)

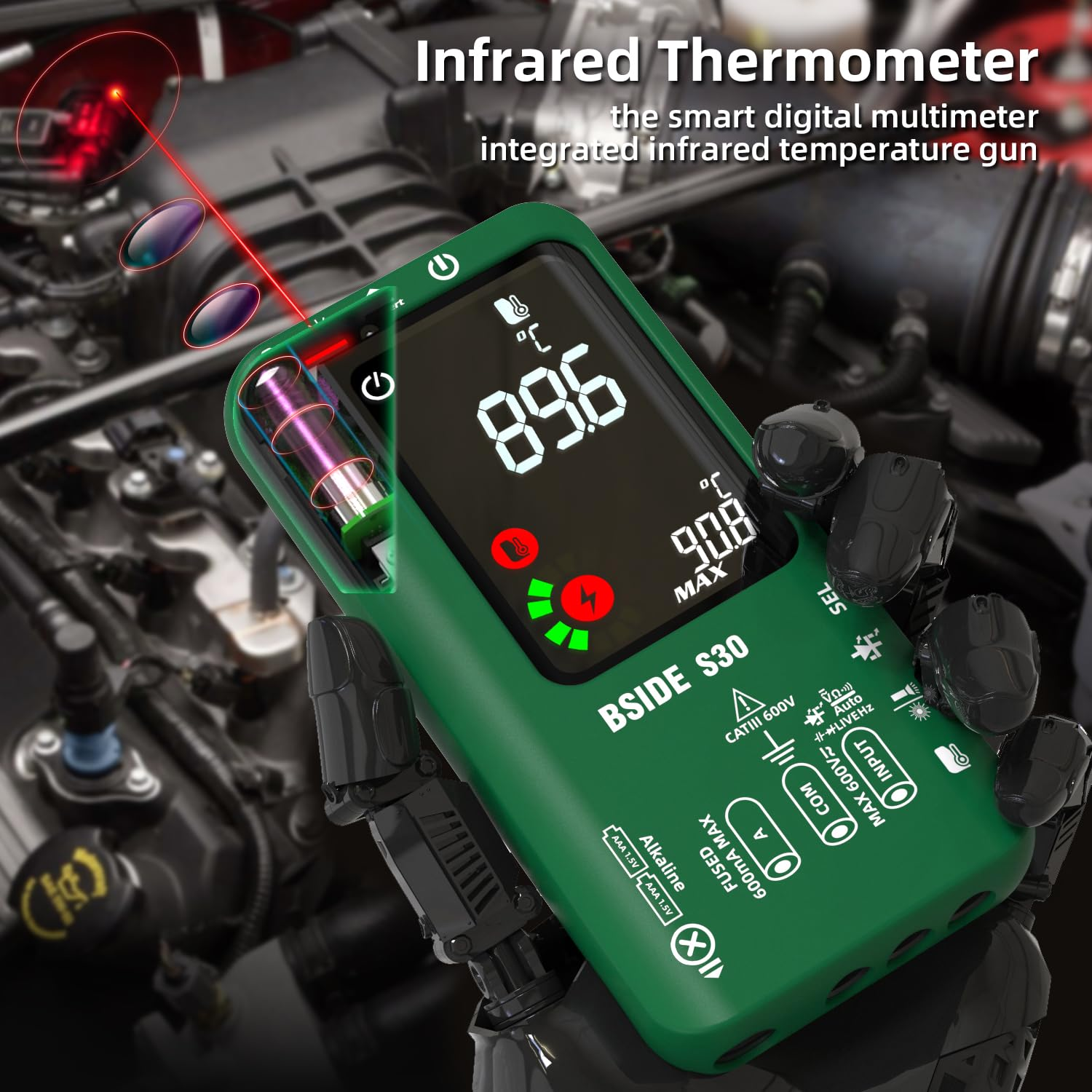

Infrared Thermometer: -20℃-0℃ 0.1℃ ±(3%+2℃); 0.1℃-400℃ 0.1℃ ±(2.5%+3℃)

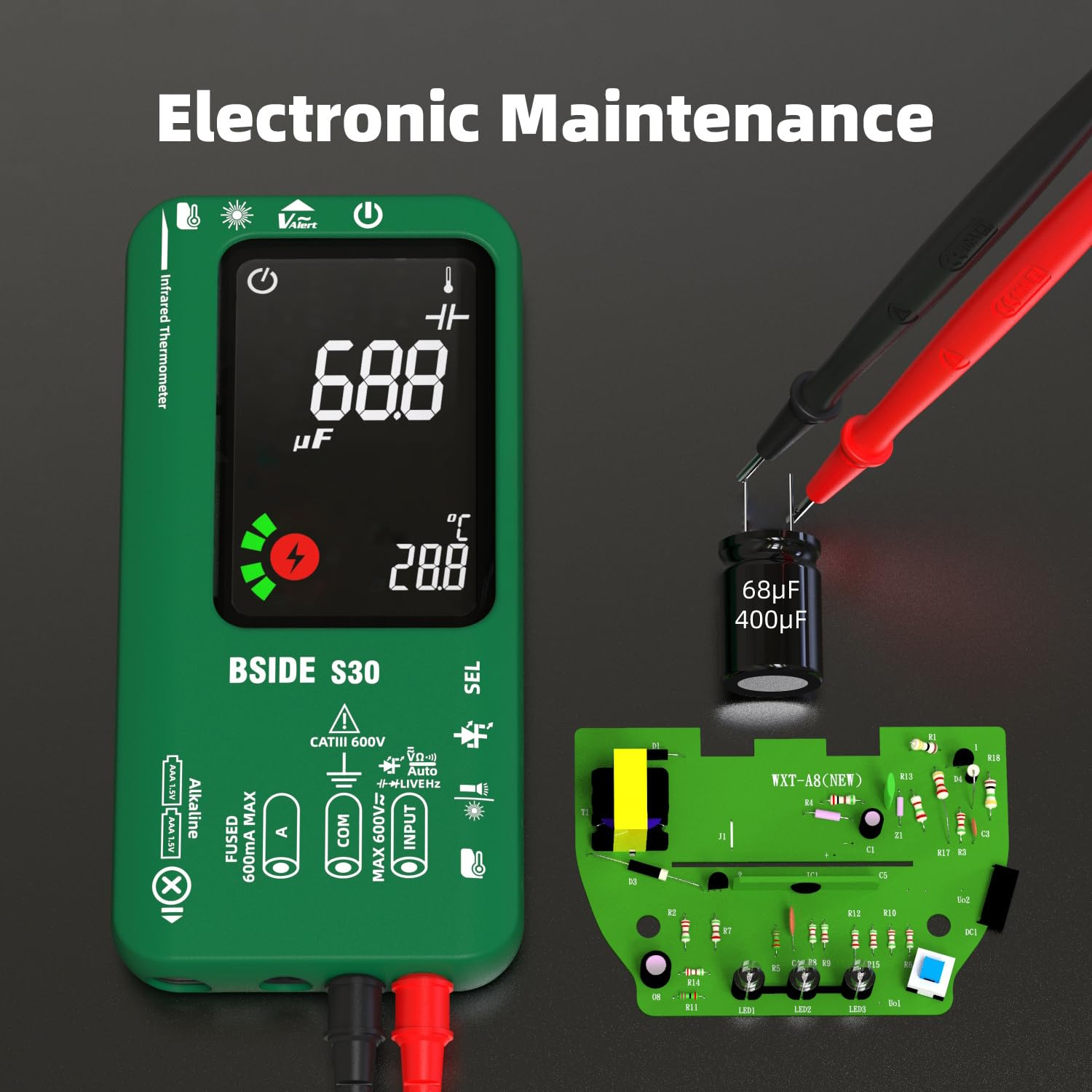

Capacitance: 0.5μF-999.9μF 0.1μF ±(3.5%+8); 1000μF-9999μF 1μF ±(4.5%+10)
Frequency: 10-99.99Hz 0.1Hz ±(1.0%+5); 100-1000Hz 1Hz ±(1.0%+5)
V-Alert (non-contact voltage detection): Yes
Live Wire Check: Yes
Continuity: If the resistance is less than 30Ω, the beeper sounds

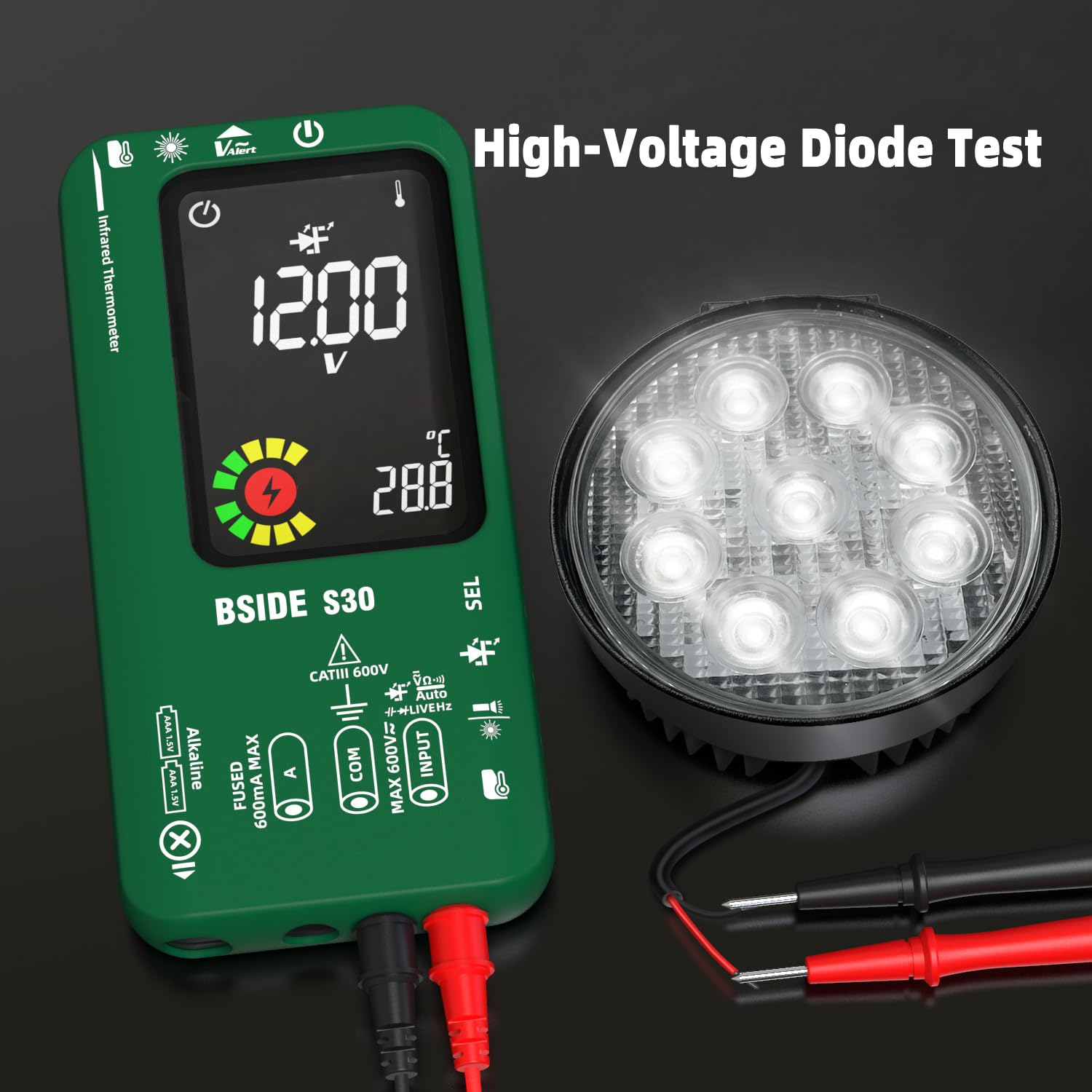

Diode:
1) Low Voltage Mode: Measure diodes within 2V
2) High Voltage Mode: Open circuit voltage 15V, current 1mA
Environment Temperature: 0-50℃ 0.1℃ ±2.0℃

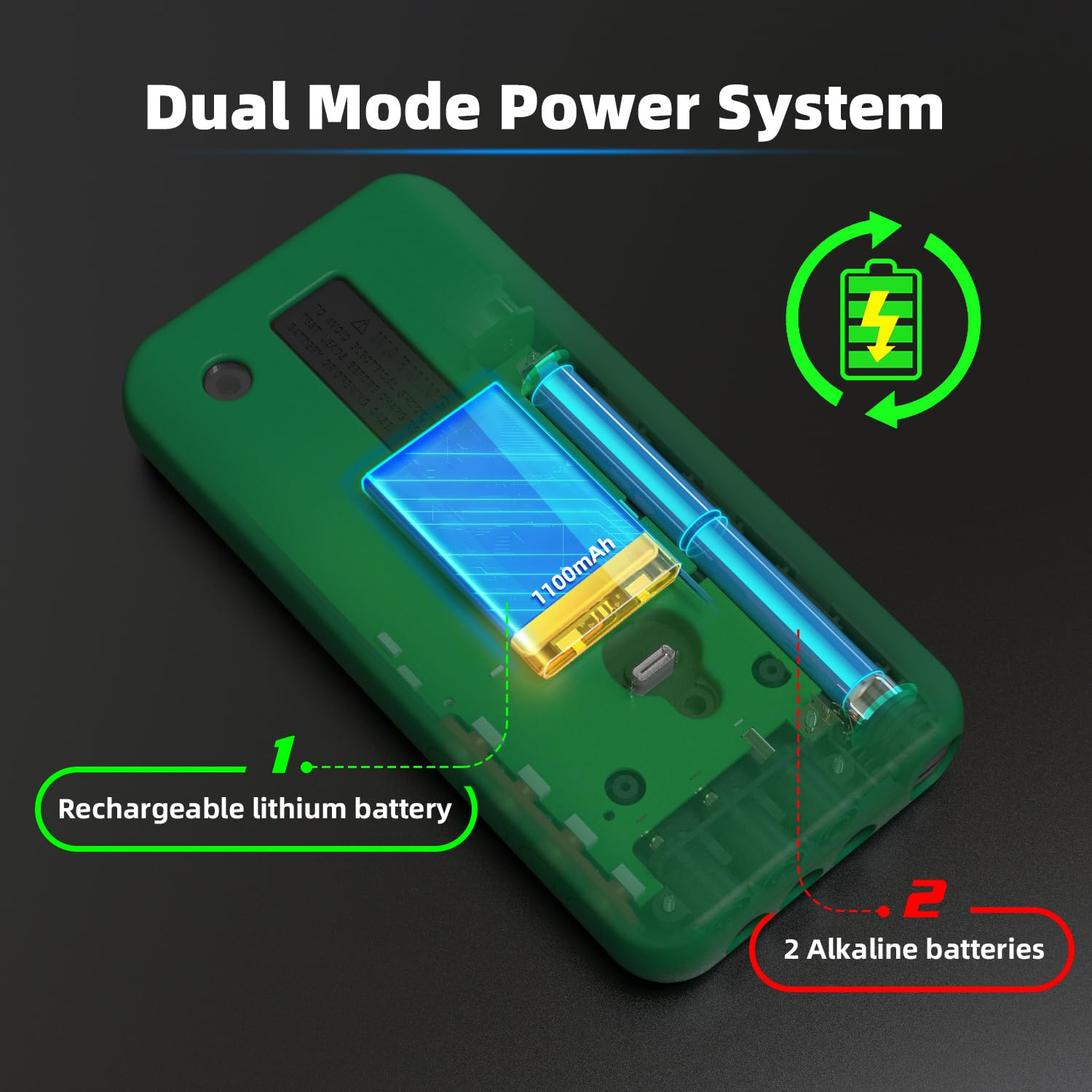

Power: 3.7V (built-in, rechargeable)
Size: 161*78*22mm
Weight: 245g
Package Includes:
1 x Digital Multimeter Tester
1 x Test Leads
1 x Charging Cable
1 x Carrying Case
1 x Rechargeable Battery
1 x User Manual
