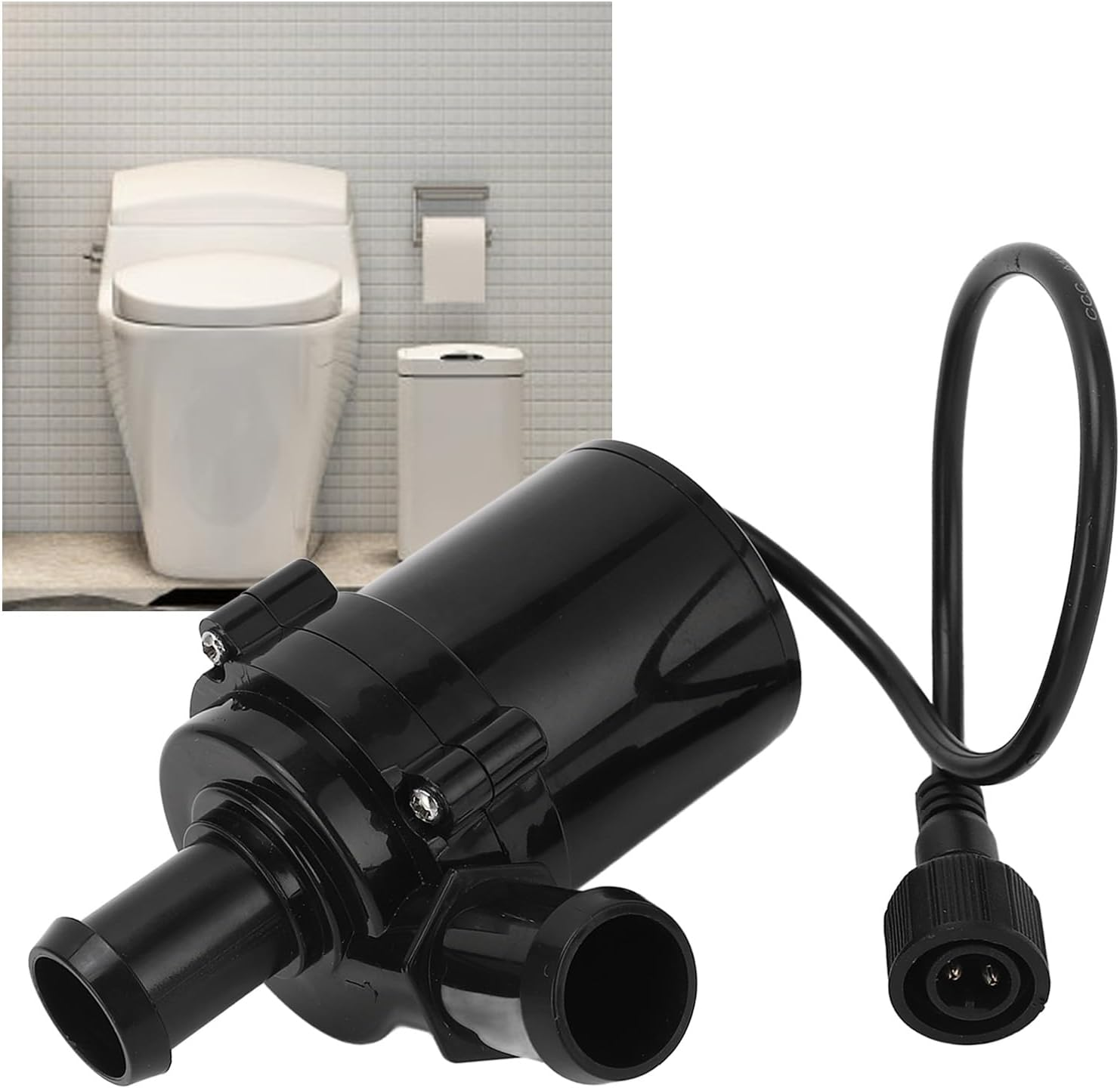

1. APPLICABLE SCENARIO: DC Submersible is widely used in smart toilet, fruit and vegetable machine, other kitchen bath electrical products; For aquariums, fish tanks, ponds, fountains, hydroponic gardens
2. FLEXIBLE AND SUBMERSIBLE: The aquarium DC has no self priming function and can be submerged in water when used
3. ULTRA QUIET DESIGN: DC electric reliable and repeatable motor does not make too much noise, providing you with a quiet environment
4. PROTECTION FUNCTION: When the pump body is idling without water, the pump will run at reduced speed for five consecutive times. Also with no load protection, over current protection, over voltage protection, under voltage protection
5. SCRATCH RESISTANT ABS: DC brushless adopt excellent ABS material, possess impact resistance, scratch resistance, environmentally friendly
Specification:

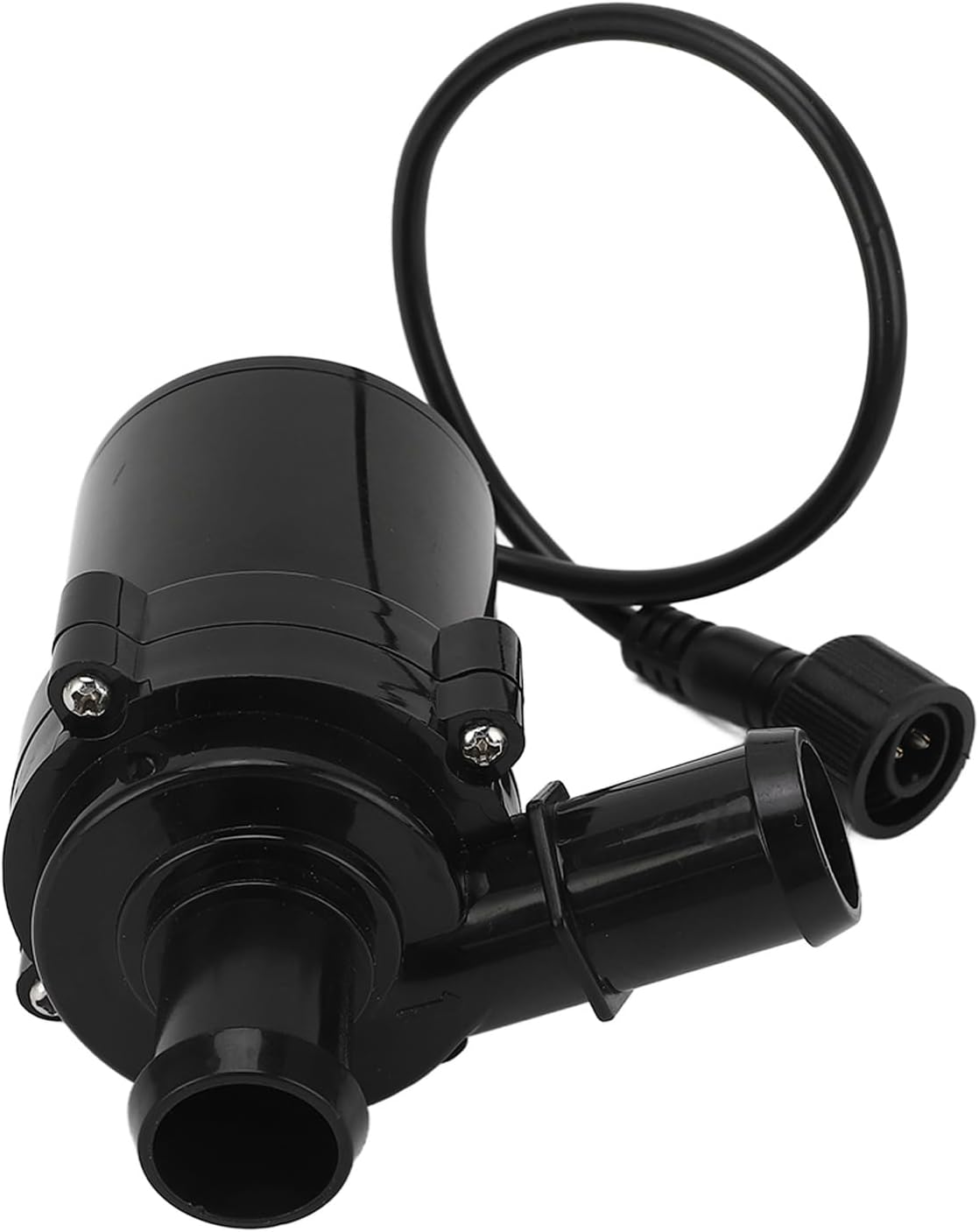

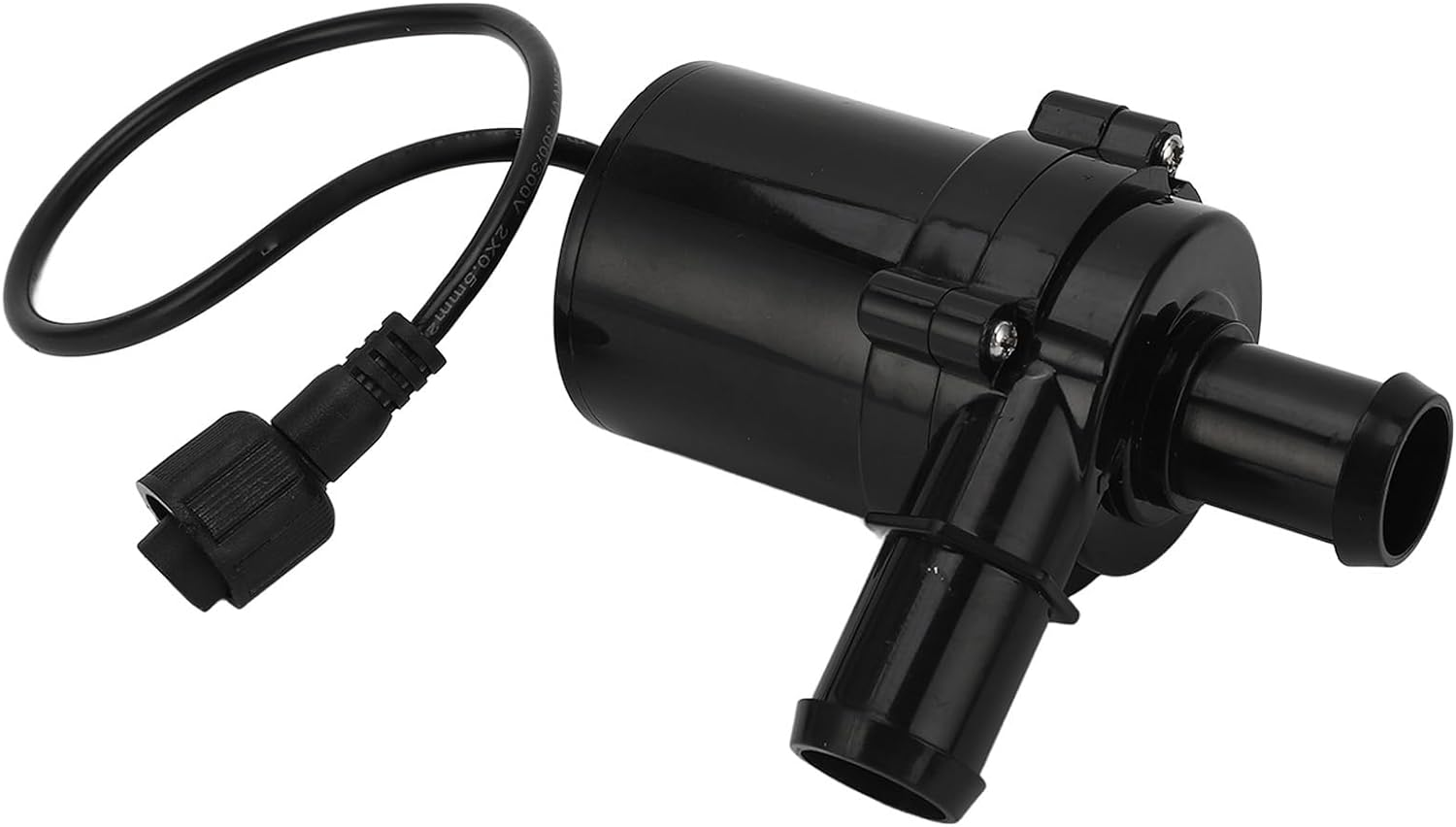

Item Type: DC
Model Number: AY4147
Frame Material: Pump Body: ABS, Pump Leaf: PPO, Pump Cover: ABS
Rated Current: 3.9A
Rated Power: 47W
Maximum : 36L/min
Maximum Lift: Approx. 10meter / 32.81ft
Life: ≥20000H
Noise: ≤45dB
Insulation Grade: F(155℃)
Ambient Temperature: -25~55℃
Ambient Humidity: Submersible
Type of Liquid Used: Clear water, prevent freezing solution
Liquid Temperature: 0~50℃
Protection Level: IP68
Environmental Protection Grade: Meet ROHS environmental protection requirements
Protection Function:
When the pump body is idling without water, the pump runs at a reduced speed for five consecutive times
No Load Protection: When the pump body is idling without water, the runs at a slow speed. It starts and stops for five consecutive times, and the stops working for a total of 50 seconds. It can only be started after being powered on again.
Overcurrent Protection: When the running current is greater than 6A, the stops working. When the current is less than
