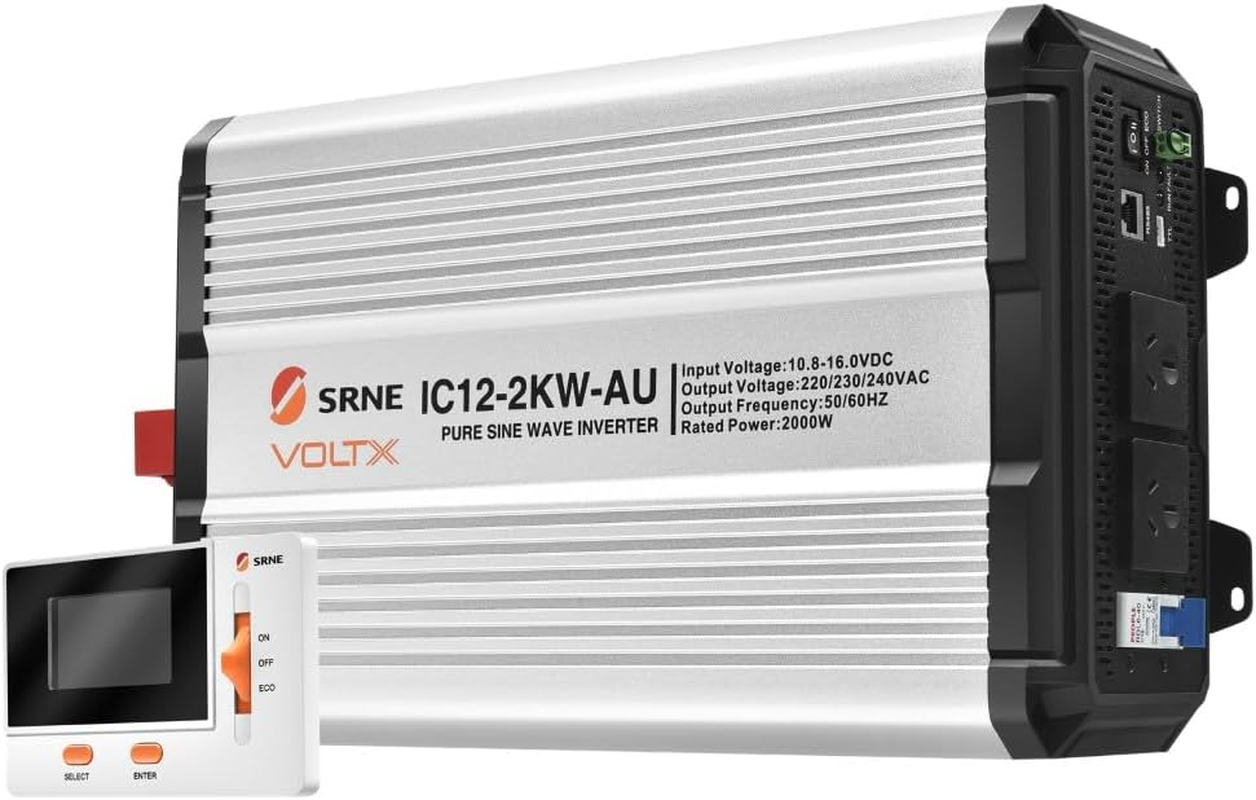

VoltX 12V 2KW Pure Sine Wave Inverter
Rated Output Power: 2000W
Rated Output Power VA: 2000VA
Withstand Instantaneous Impact Power: 4000W
Rated Output Voltage: 220VAC/230VAC/240VAC(±3%)
Output Frequency: 50/60HZ(±0.2%)
Output Wave: Pure sine wave
Output Harmonic Component: THDV > 3% (pure resistance load)
Load Power Factor: 0.2-1 (load power ≤ output continuous power)
Rated Input Voltage: 12VDC
Input Voltage Range: 10.8~16.0VDC
Rated Output Efficiency: >92%
Maximum Output Efficiency: > 93.5% (30% overload)
Standby Current: <0.24A
No-load Current: <1.0A
USB Interface: Dual USB output, 5VDC/2A
ON/OFF/ECO Mode: ON - AC normal output OFF - no AC output, standby ECO - energy-saving mode, auto switch
ECO Starting Power: ＜30W
ECO Interval Time: 1min
TTL Interface: Non-isolated TTL communication, power supply 12.5V/200mA
Indicator: Green - normal operation; Red - fault
External Switch Contact Interface: Switch on or off by control equipment such as external relay and mechanical switch
Protection Function: Input over-voltage/over-discharge protection, output overload/short-circuit protection, and device over-temperature protection
Operating Ambient Temperature: -20℃~60℃
Storage Ambient Temperature: -35℃~80℃
Relative Humidity: ≤95%
IP Grade: IP20
Heat-dissipating Method: Natural heat dissipation + intelligent air cooling
Noise Level: ≤60dB
Warranty: 3 Years
Dimensions: 409 x 249 x 120mm
Mounting Hole Spacing: 374 x 141mm
Fixed Hole Position: 5mm
Net Weight: 6.5kg
VoltX LCD Display
Input Voltage: 5V-12V
Stand-by Power Consumption: >0.1W
Operation Power Consumption: >0.36W
Communication Baud Rate: 1200-11520bps (9600bps by default)
Communication Mmethod: RS485
Communication Interface: RJ45
Operating Temperature: -35℃ ~+65℃
IP Grade: IP32
Altitude: ≤3000M
Dimensions: 79 x 52 x 32mm
Net Weight:
