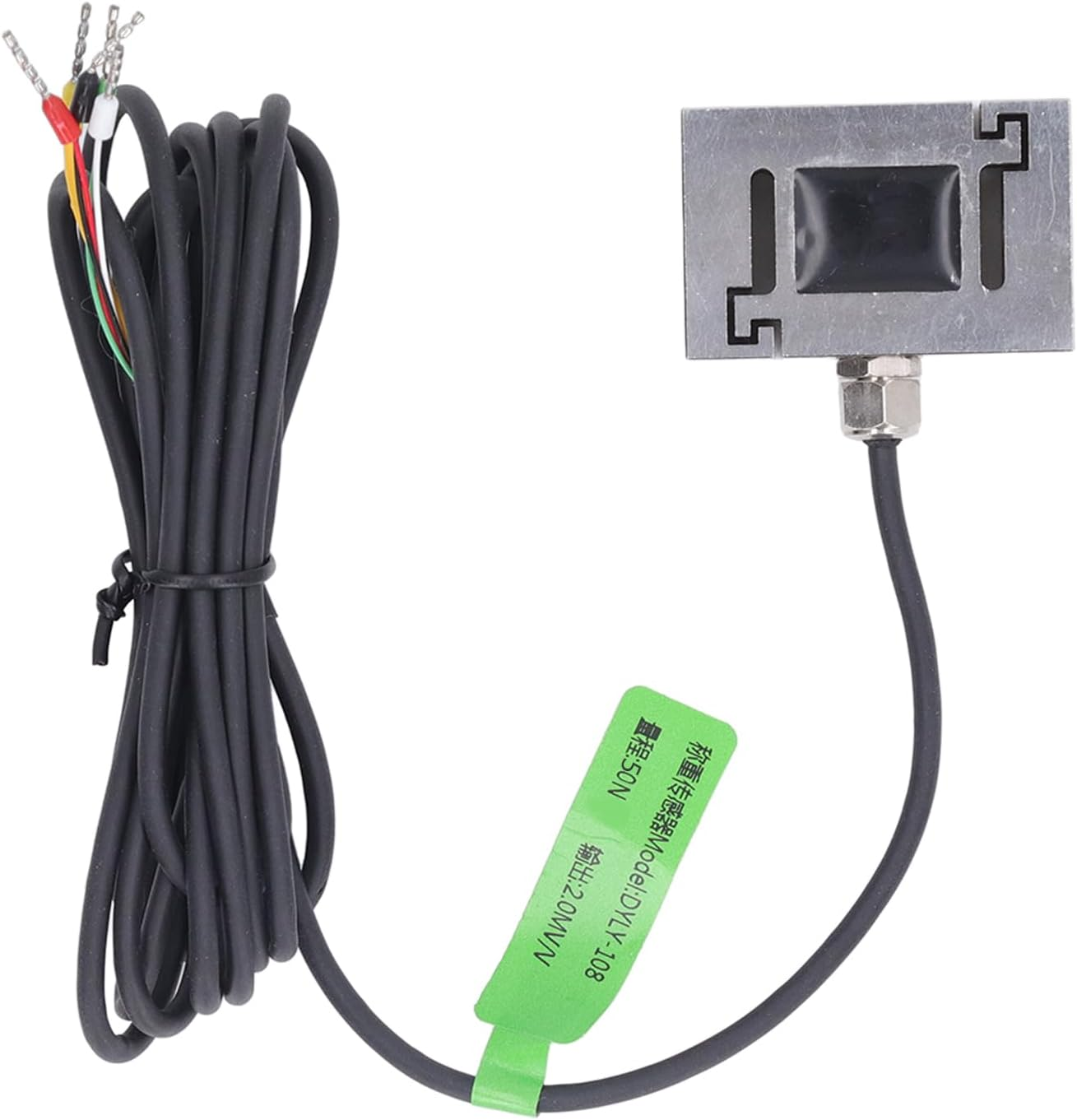

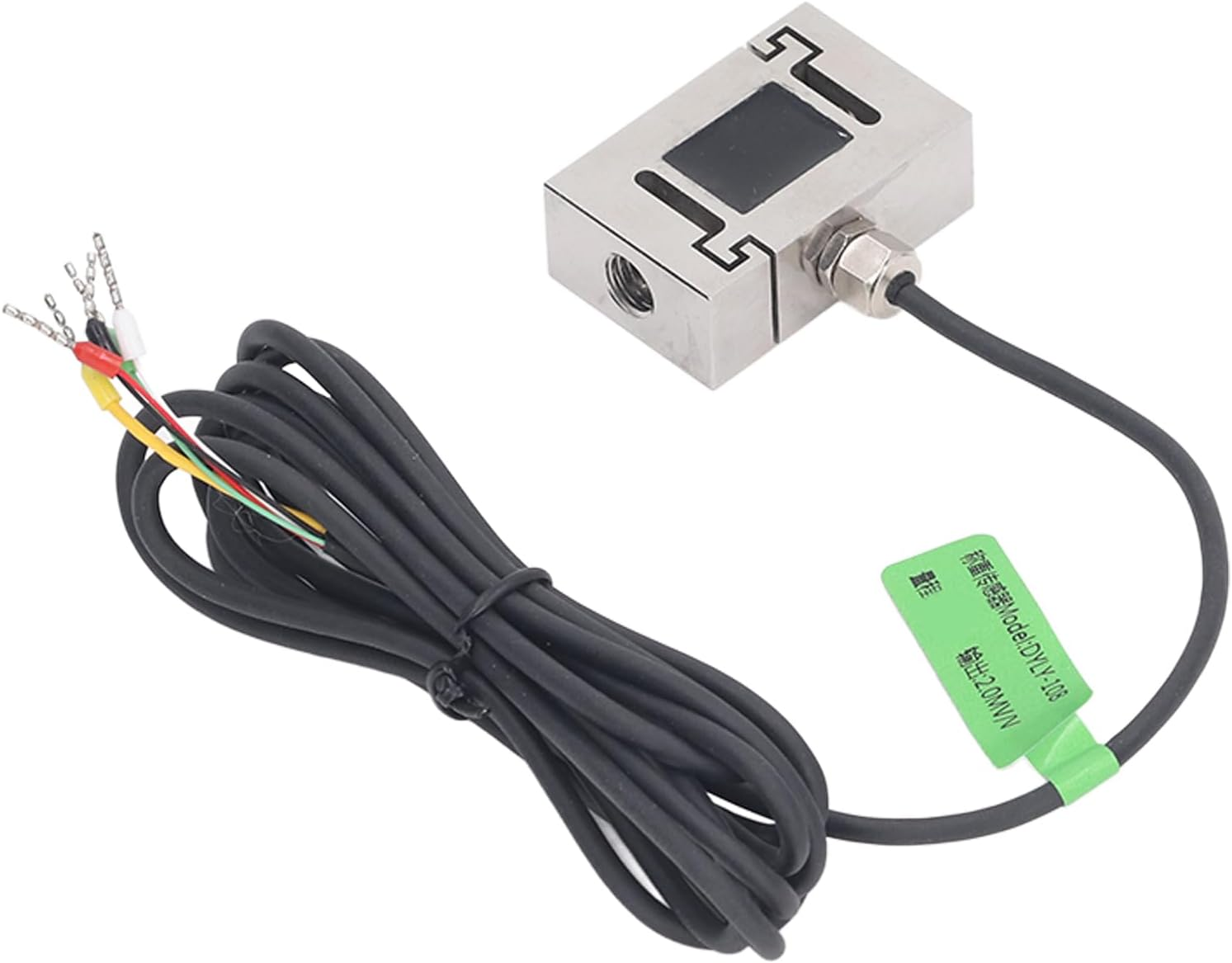

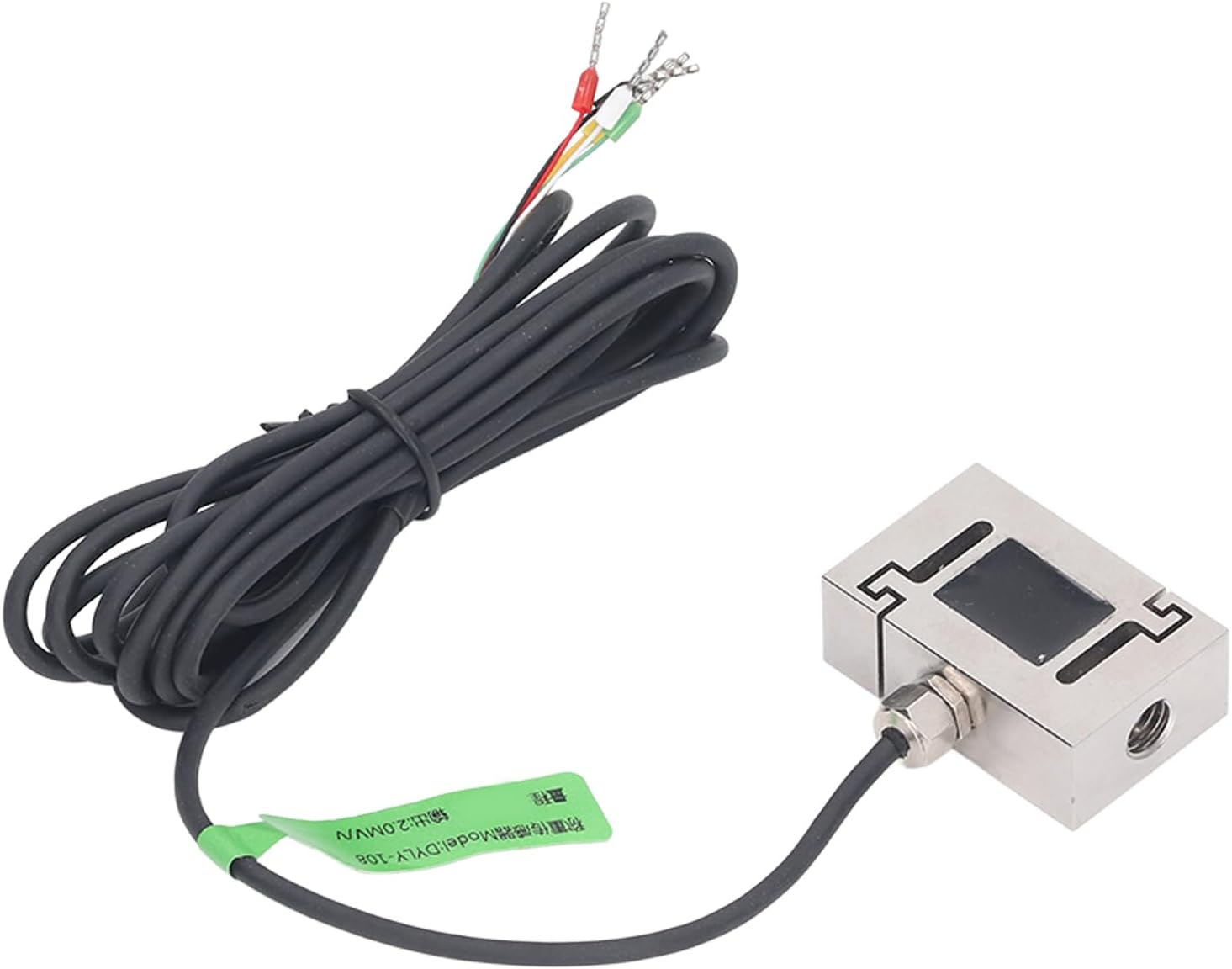

1. S TYPE LOAD SENSOR: The elastic body adopts S shape beam structure with threaded design at both ends, with small size and high accuracy.
2. MAIN FUNCTION: This sensor is mainly used for weighing and measuring tension, pressure, and tension, making it convenient and practical.
3. SUSTAINLESS STEEL: The sensor is made of stainless steel, with high hardness and corrosion resistance, can be used in various environments.
4. EASY CONNECTION: This sensor has standard wiring for easy connection, compact size for easy installation, meets more force measuring needs.

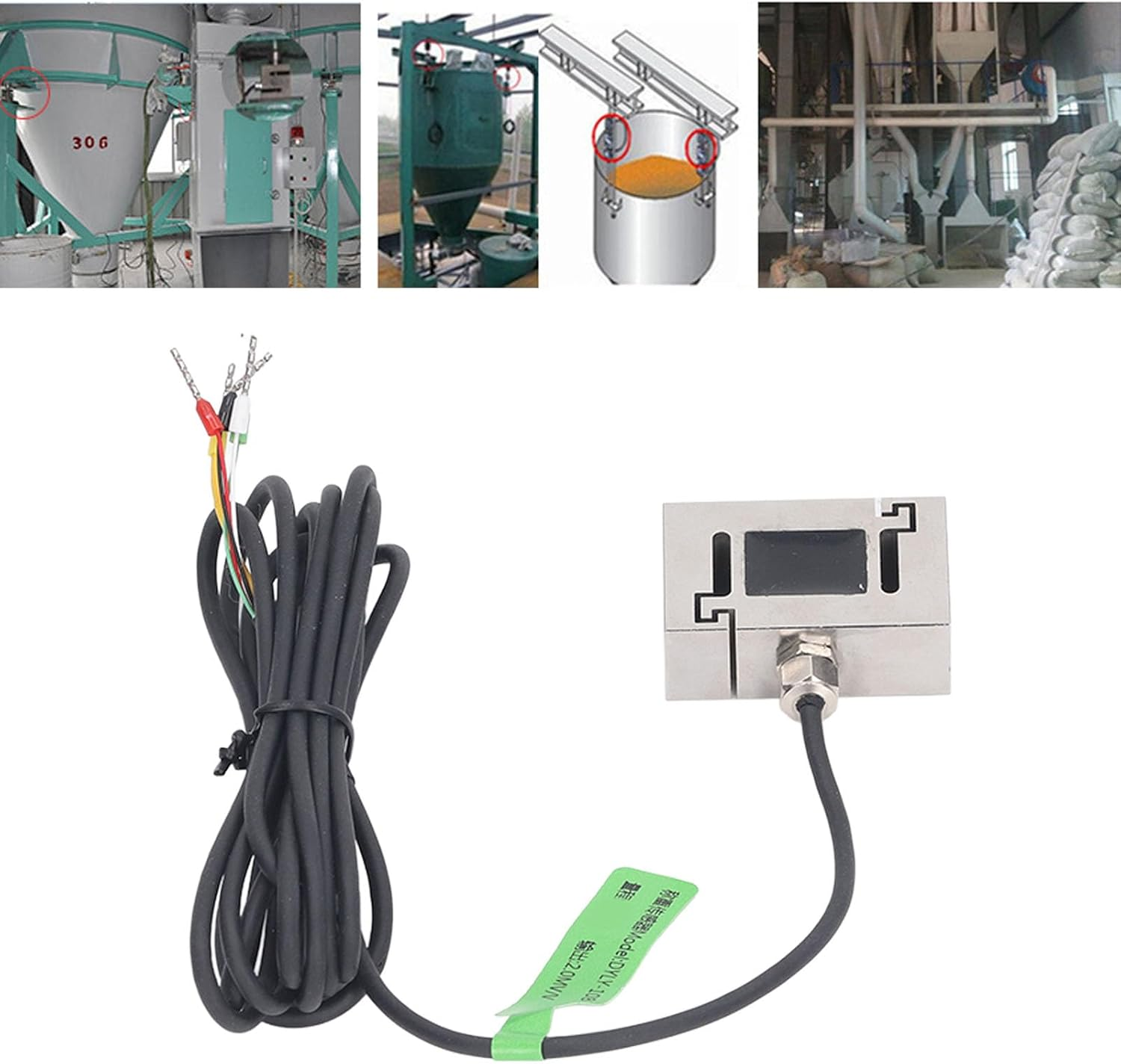

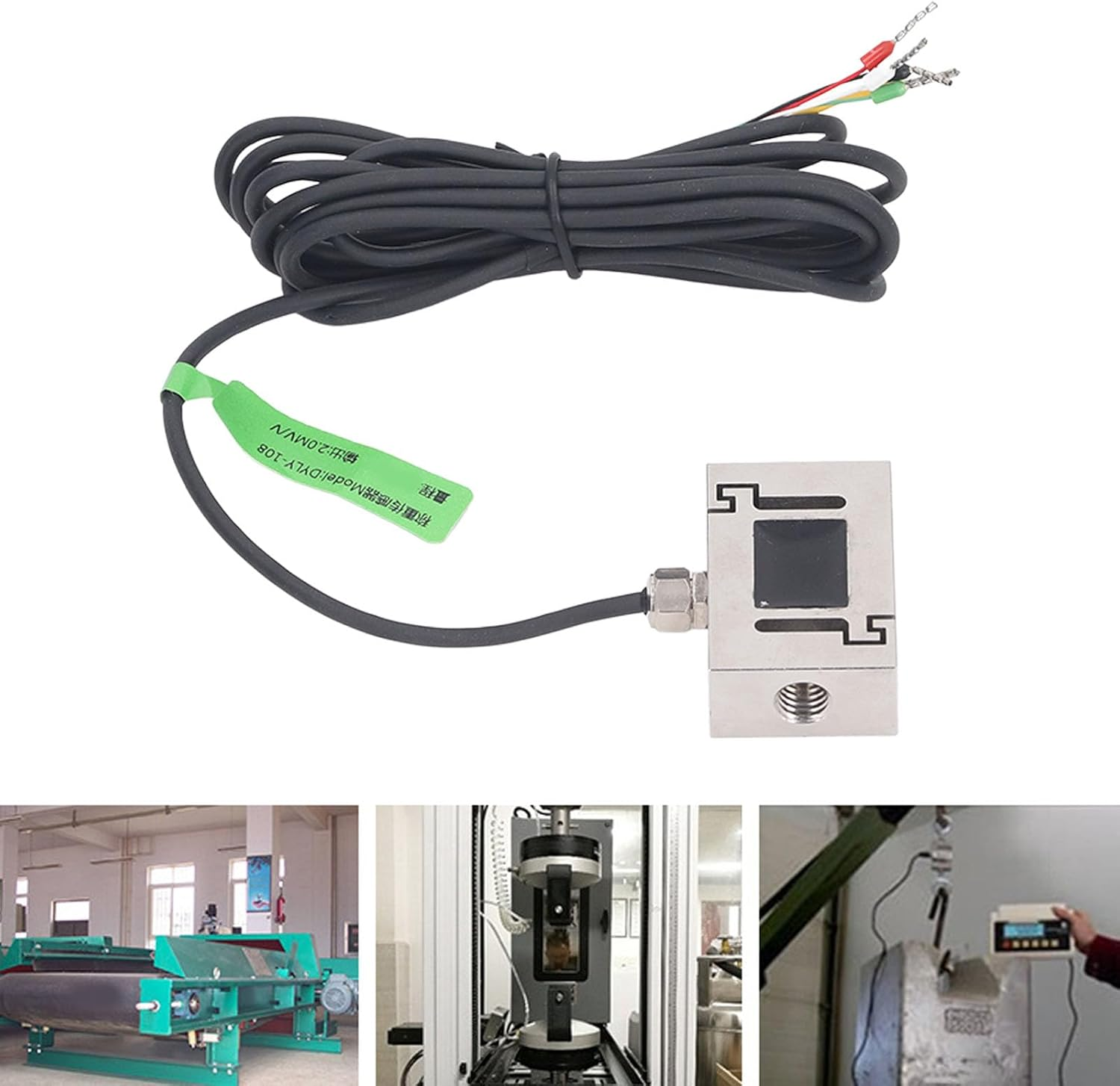

5. WIDE APPLICATION: Used for hand truck press fitting, automatic assembly, 3C product testing, robot hand grip, keyboard feel testing, etc.
Spec:
Item Type: Load Cell Sensor
Model: DYLY 108
Output Sensitivity: 2.0mV/V
Point Output: ±2%F.S
Non Linearity: 0.1%F.S
Lag: 0.05%F.S
Repeatability: 0.05%F.S
Creep(30 Minutes): 0.05% F.S
Temperature Sensitivity Drift: 0.05%F.S/10℃
Temperature Drift: 0.05%F.S/10℃
Response Frequency: 10kHz
Material: Stainless Steel
Impedance: 350Ω
Insulation Resistance: ≥5000MΩ/100VDC
Operating Voltage: 5-10V
Working Temperature Range: -20-80℃
Safe Overload: 150%
Ultimate Overload: 200%
Cable Specification: 100kg: Dia 3x2m
Cable Ultimate Tension: Approx. 10kg / 22lb
How to Use:
Install and use directly.
packing list:
1 x Load Cell Sensor
