Spec:

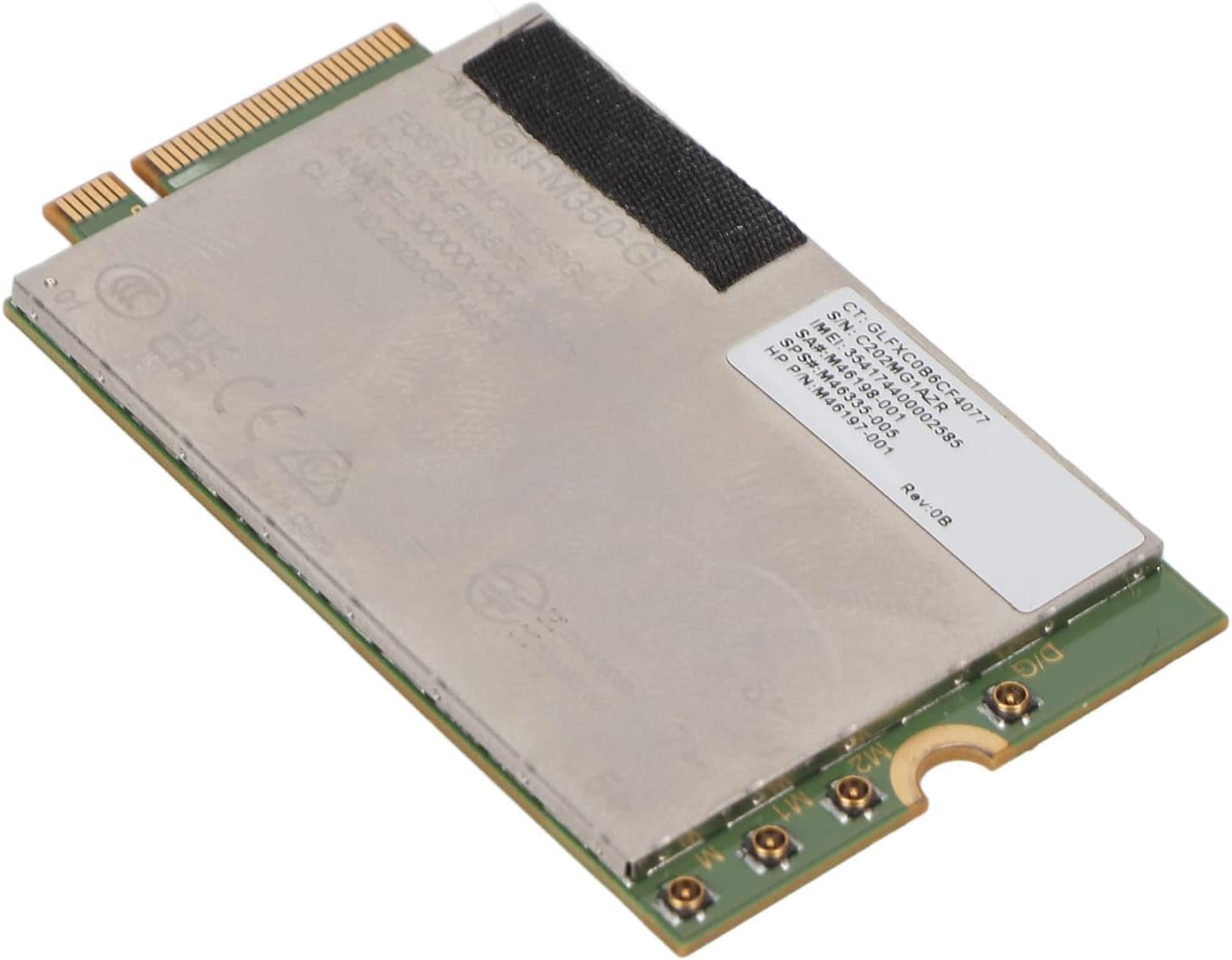

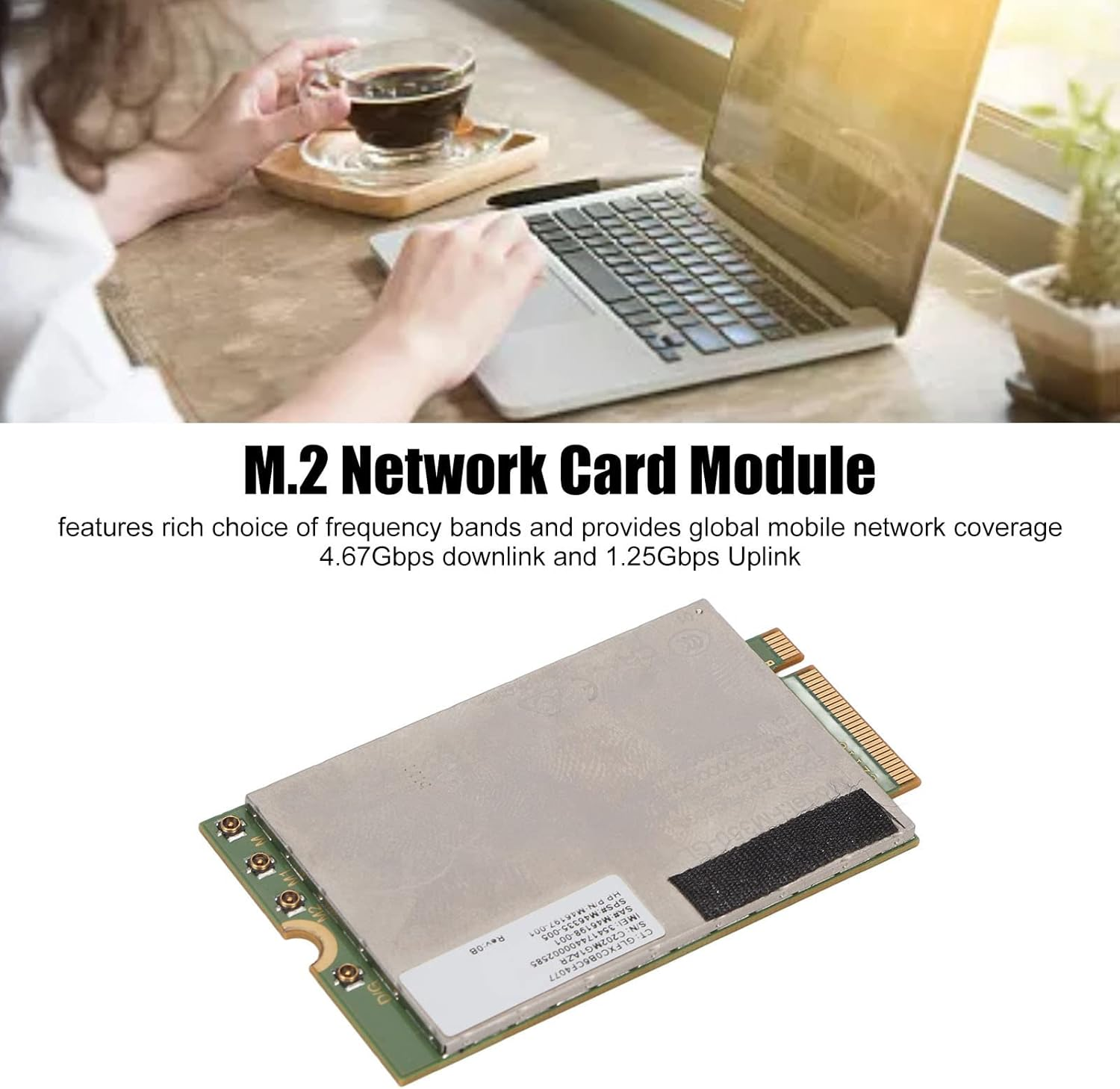

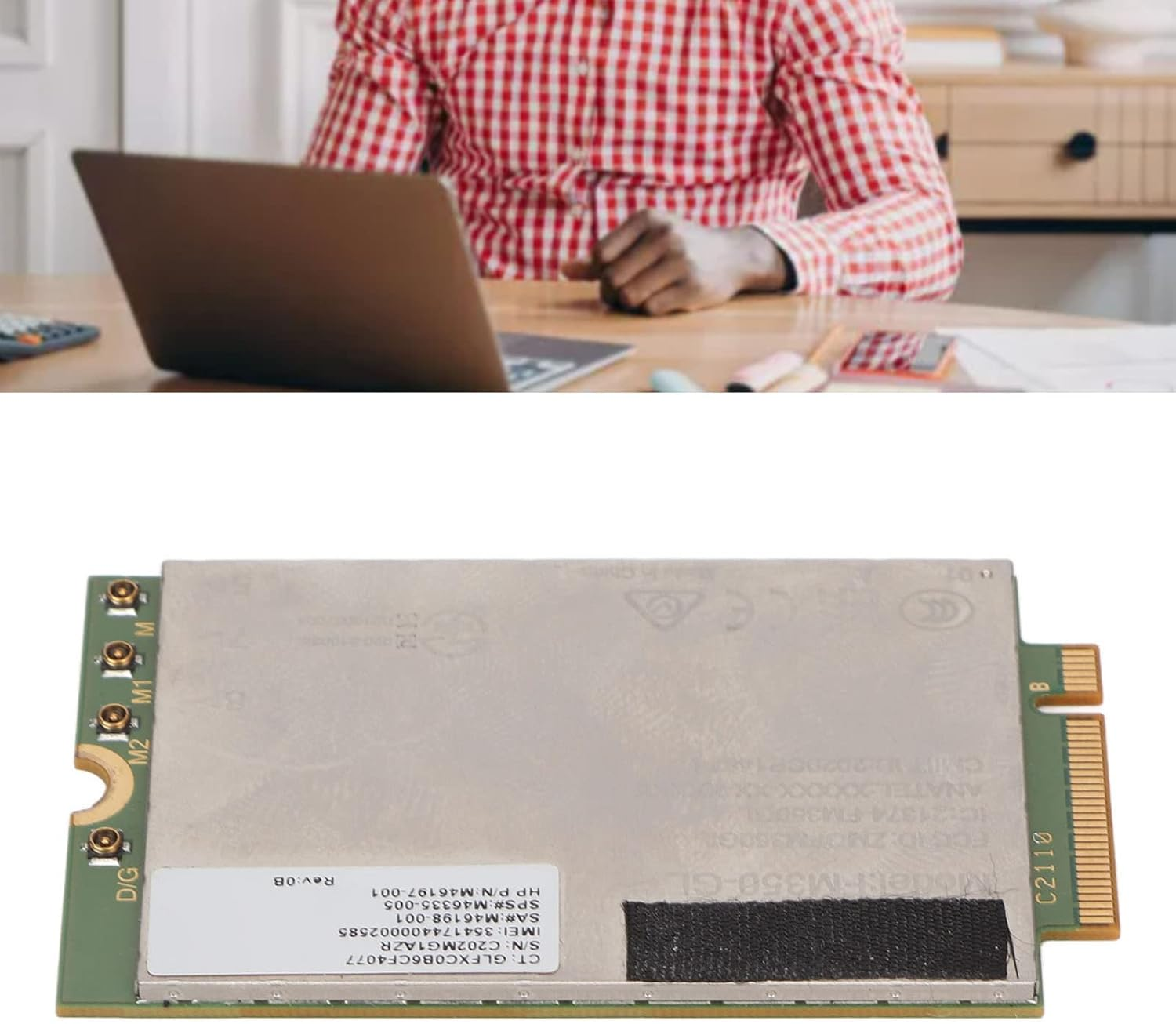

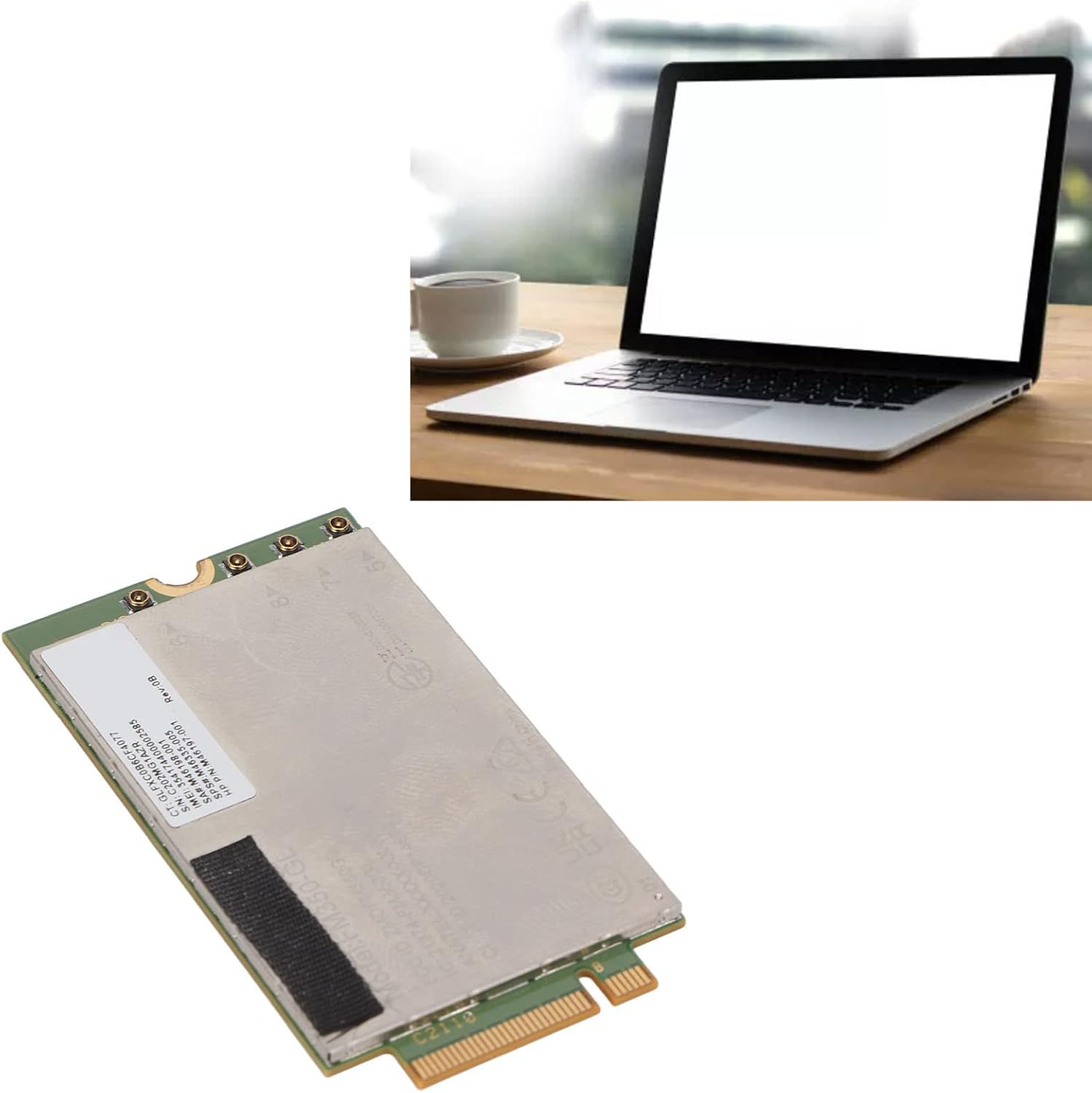

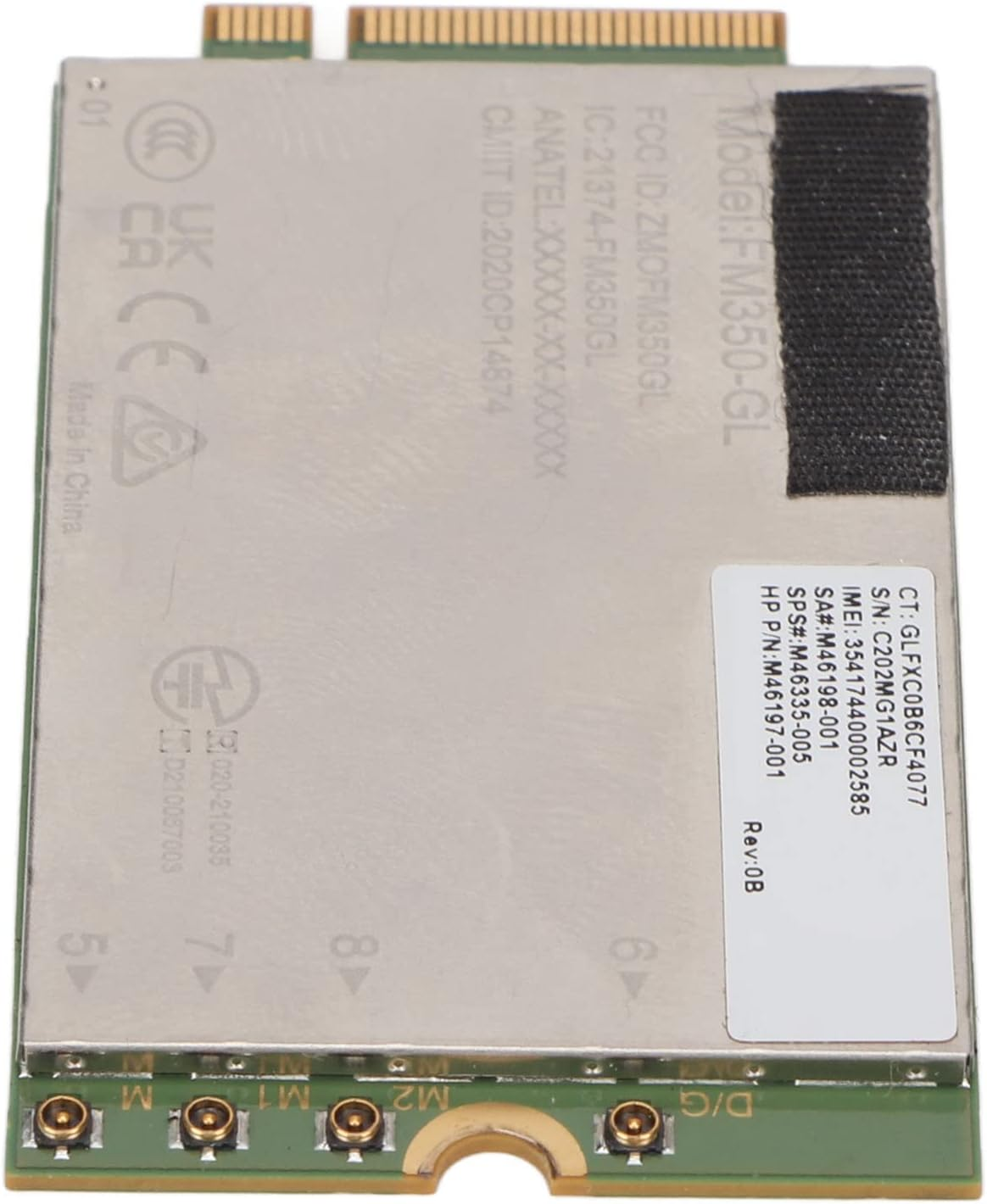

Item Type: 5G LTE Network Card
Material: Printed Circuit Board
NR FR1 (Sub6) : n1, n2, n3, n5, n7, n8, n20, n25, n28a, n28b, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
LTE: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28(a&b), B29, B30, B32, B34, B38, B39, B40 , B41, B42, B43, B46, B48, B66, B71
LAA: Band 46
WCDMA: Band1, 2, 4, 5, 8
NR CA: DL 2CC/ UL 2CC
LTE CA: DL 5CC/ UL 2CC
NR DL 4x4 MIMO: n1, n2, n3, n7, n25, n30, n38, n40, n41 (full), n48, n66, n77, n78, n79
LTE DL 4x4 MIMO: B1, B2, B3, B4, B7, B25, B30, B34, B38, B39, B40, B41(full), B42, B43, B48, B66
UL 2x2 MIMO: n41, n77, n78, n79
SRS: n41, n77, n78, n79. Support: 1T2R, 1T4R, 2T4R
CBRS: B48
HPUE: B41, n41, n77, n78, n79
Basic Parameter: GNSS: GPS, GLONASS, Beidou, Galileo, QZSS. A GNSS. Builtin eSIM. Body SAR. Antenna Tuner.
Transmitted Power:
NR and LTE: 23dBm
WCDMA: 23.5dBm
Receiving Sensitivity:
NR and LTE: -98dBm to 102dBm
Downlink:
NR FR1 (Sub6) Peak Value: 4.67Gbps MIMO 4x4, 256QAM
LTE: 1.6Gbps MIMO 4x4, 256QAM
ENDC Peak: 3.74Gbps MIMO 4x4, 256QAM
Uplink:
NR FR1 (Sub6) Peak Value: 1.25Gbps MIMO 2x2, 256QAM
LTE: 211Mbps MIMO 1x1, UL 256QAM
ENDC Peak: 835Mbps MIMO 1x1, NR: 256QAM; LTE: 256QAM
Interface: USIM 1.8V, 3V. PCIe Gen 3.0. I2C. Body SAR. MIPI Tuner. Tunable Antenna
Operating system: For Win 10, for Linux
Supported Carriers: For AT T, for Verizon, for T Mobile, for Vodafone, for Telefonica, for Swisscom, for DTAG, for CMCC, for CUCC, for CTCC, for Telstra, for Optus, for Docomo, for KDDI, for Softbank.
How to Use:
plug and play
PackageList:

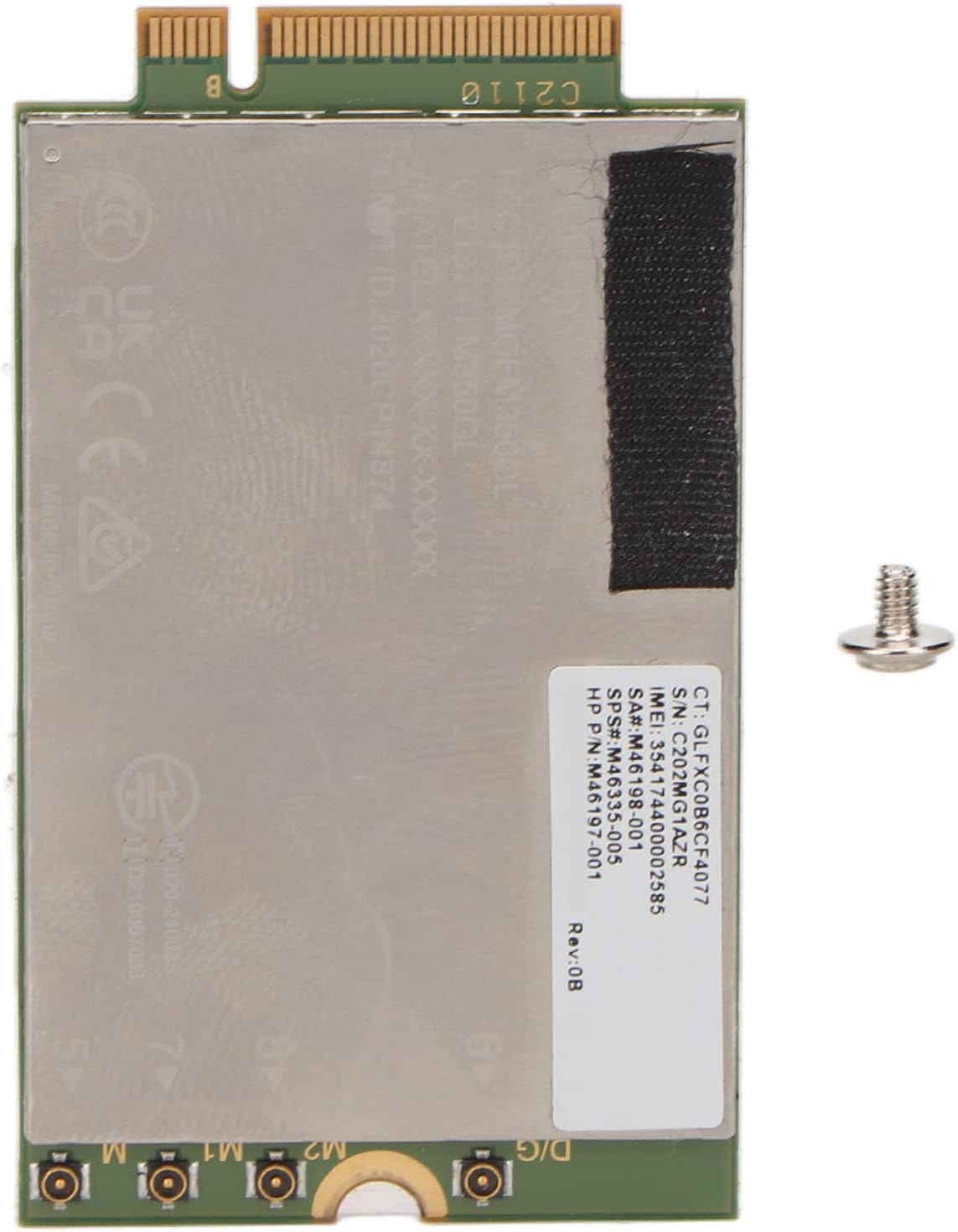

1 x5G LTE Network Card
1 x Screw
