Specification:

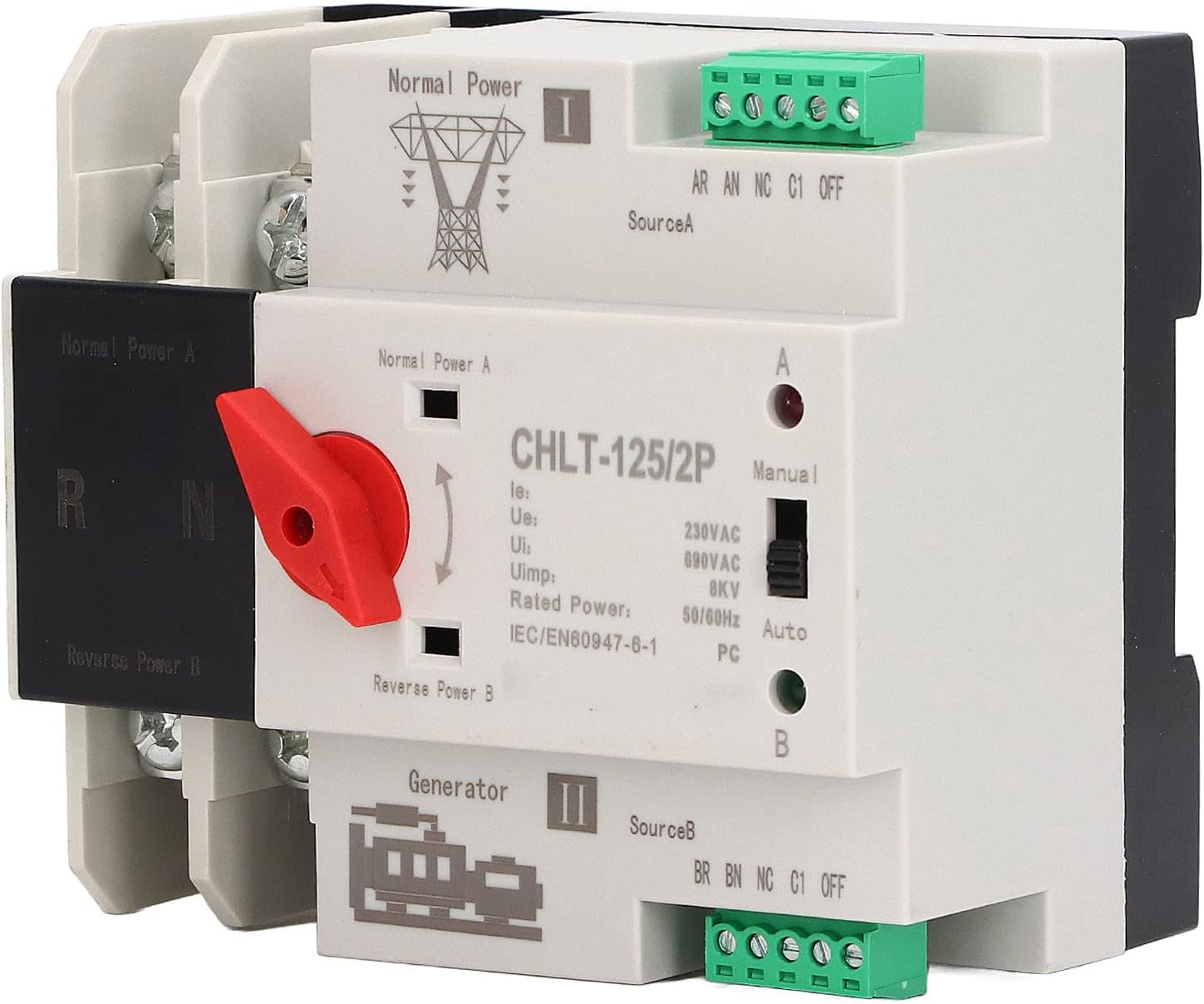

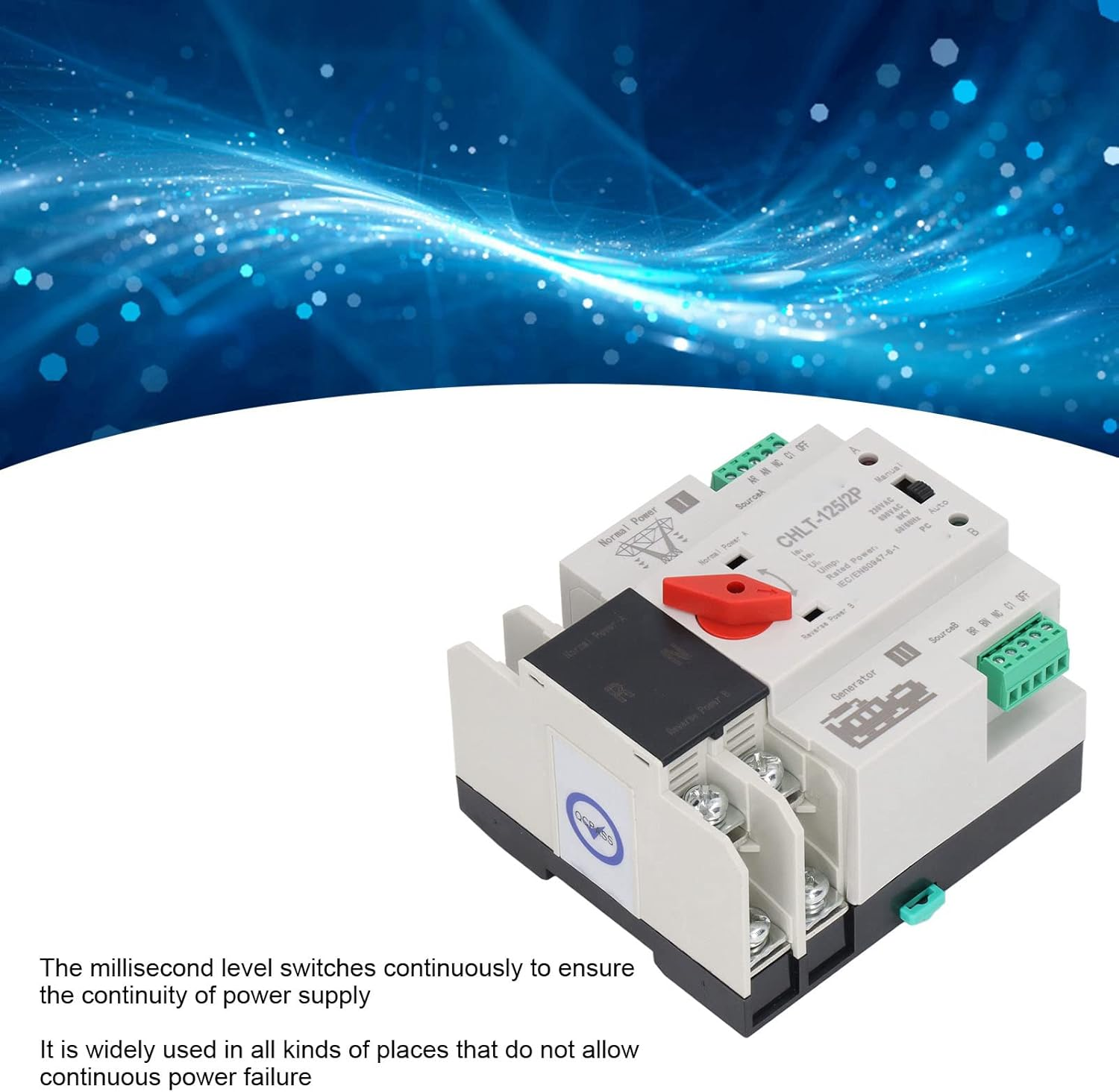

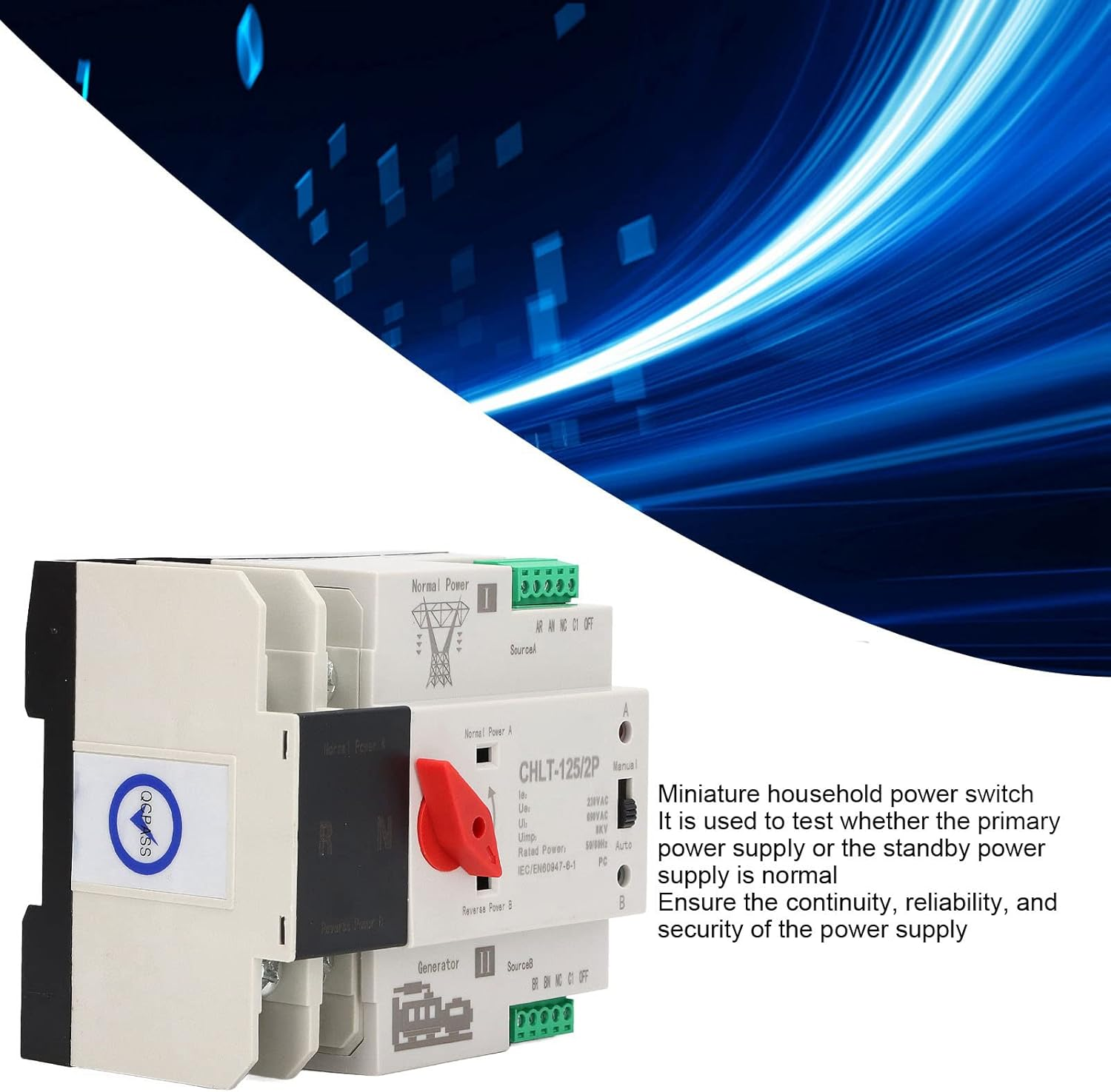

Item Type: Automatic Transfer Switch

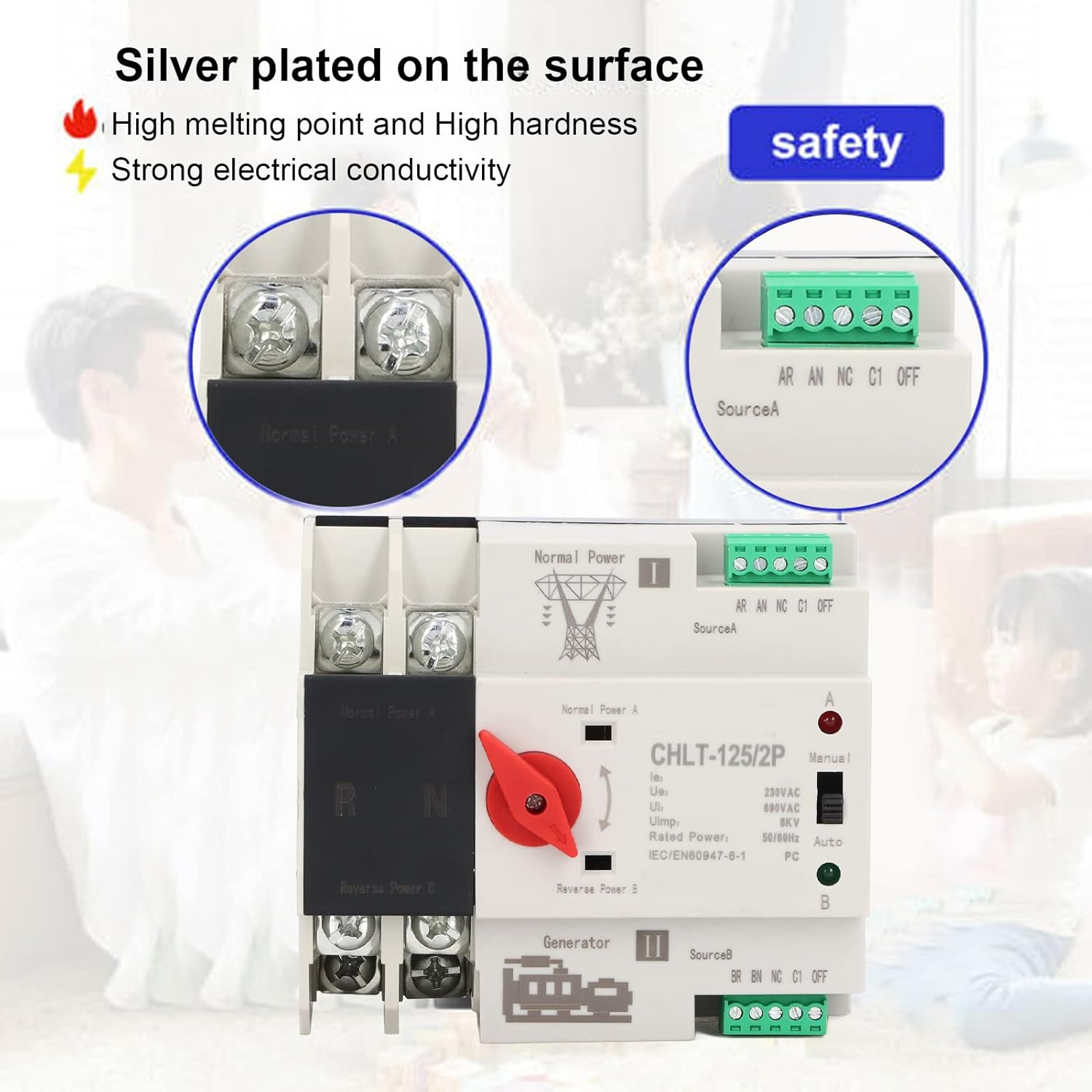

Material: PC and silver
Model: CHLT 125 2P
Insulation Voltage: AC690V
Rated Voltage: AC400V
Coil Voltage: 230VAC
Level: PC level
Specifications: 2P
Life:
Electrical: 2000 times
Mechanical: 5000 times
Rated Short Circuit Current: 50kA
Fuse: RT16-00-63A
Rated Impulse withstand Voltage: 8kV
Control Circuit:
Rated Control Voltage Us: AC220V 85% Us-110% Us
Auxiliary Circuit: Two relays, each with two sets
Capacity: AC220V50HZ le=5y
Touch Time: Transition Time: Return Time: Off Time:
How to Use:
Check the integrity of the ATS before installation, turn the ATS on or off with the operating handle, check the flexibility of the transmission and detect the normal and backup power load generation and disconnection conditions at each stage
Package List:
1 x Automatic Transfer Switch
1 x Instruction
Note:
1. The maximum ambient temperature should not exceed 40℃, the minimum should not be lower than ‑5℃, and the average temperature within 24 hours should not be higher than 35℃
2. The altitude of the installation site should not be higher than 2000m
3. When the maximum temperature reaches 40℃, the relative humidity of the installation site should not exceed 50%; when the temperature is the lowest temperature of ‑5℃, the relative humidity is higher, for example, if the temperature is 25℃, the relative humidity is 90%. Special measures should be taken to deal with occasional condensation on product surfaces due to temperature changes
