  • 【 High Performance 】Accurate output data: 3-axis XYZ (Pitch Roll Yaw) Acceleration + Gyro + Angle+ Magnetic field + Quaternion + Port status. Bluetooth coverage range: within 50meters (Open area without obstruction)
  • 【 Robust Design 】low consumption Bluetooth 5.0 (battery life about 40 hours), compatible with Andriod & iOS phone App, Windows computer(Support multiple-connection up to 4 sensors)
  • 【 WITMOTION Advantage 】8-year Professional Attitude Measuring Solution Provider, sensors integrated R&D dynamic fusion algorithm and Kalman Filtering ensuring stable data output and excellent bias stability, low noise level, increasing measurement accuracy
  • 【 What You Get 】1*WT9011DCL BLE 5.0 sensor Type-C interface, 1*BLE5.0 Adapter, 1*Type-C Charging Cable, 1 x Welcome Guide. (Free development kit：Phone APP & Window Software, Python sdk, Android sdk, Protocol etc.)
  • 【 Worry-free Support 】Enjoy 12-month warranty, lifetime friendly customer service by WitMotion team. Access support through three options: 1) Find the tutorial link on the guide card inside the package. 2) Visit wit-motion(dot)com to download the complete tutorial. 4) Contact us for any assistance, support (at) wit-motion (dot) com

Product Description

The Superiority of AHRS IMU High Precision Sensor

A sensor measures 3-axis angle, angular velocity, acceleration, and magnetic field. Its strength lies in the algorithm which can calculate the three-axis angle accurately.

The robust housing and the small outline makes it perfectly suitable for industrial retrofit application such as motion capturing, engineering machine monitoring, etc.

WTMOTION patented zero-bias automatic detection calibration algorithm and R&D dynamic fusion algorithm outperforms traditional accelerometer sensor.

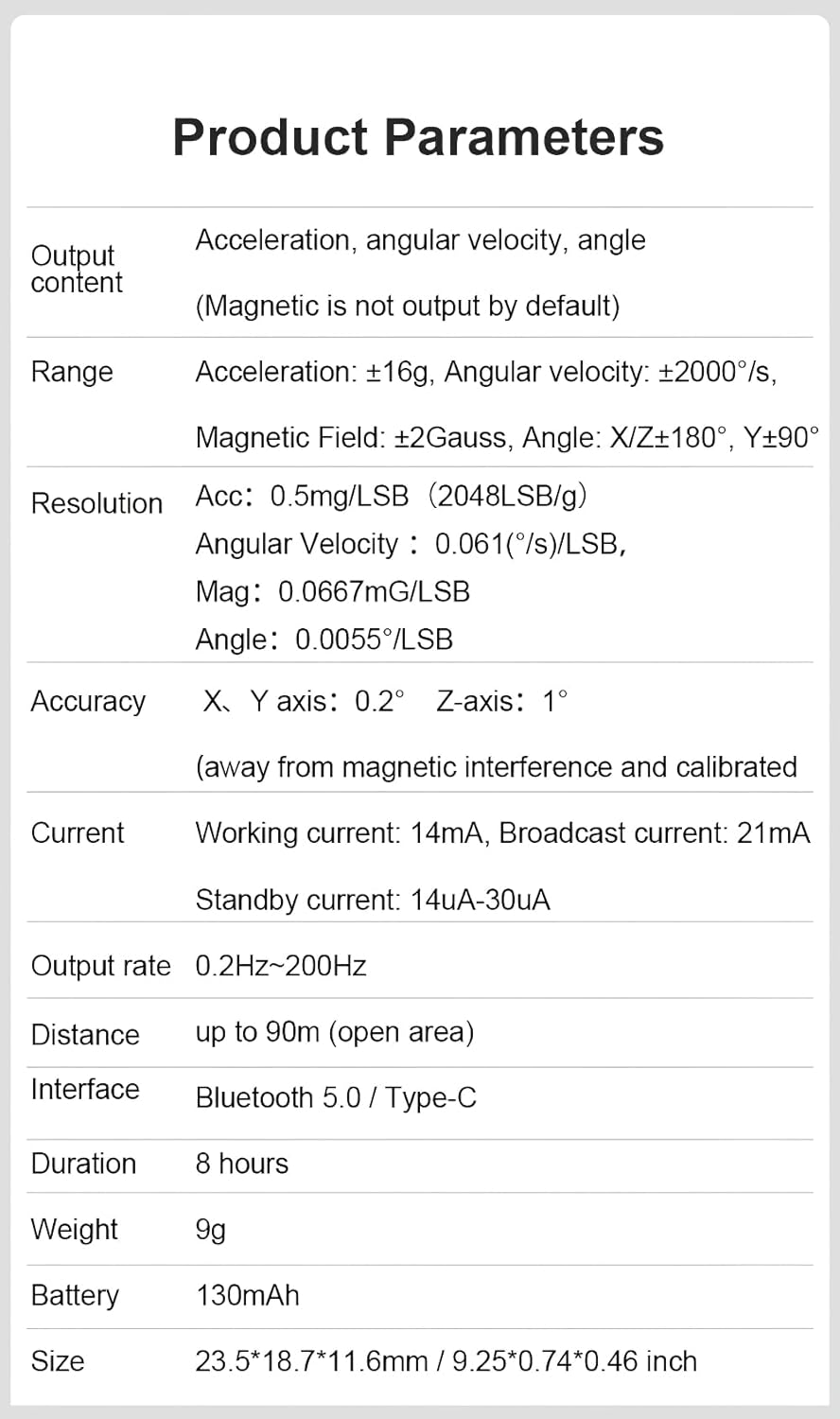

Current Working current:≈15mA, broadcast current: 150uA, standby current: 10uA-50uA
Working Temperature -40℃ ~ +85℃
Battery life about 8 hours
Data output frequency 0.2Hz~200Hz (50Hz~200Hz data package transmission, default 10HZ)
Interface Type-C, Low-energy Bluetooth 5.0
Multi-connection Recommend up to connect 4 devices (iOS/Android/Win)
Voltage 3.7-5V, built-in rechargeable battery (260mAh capacity, 3.7V)
Output Content 3-axis Acceleration+Angle+Angular Velocity+Magnetic Field
Range Acceleration (±16g), Gyroscope (±2000°/s), Magnet Field (±2Gauss), Angle (X, Z-axis: ±180°, Y ±90°)
Resolution Acceleration (0.5mg/LSB; 2048LSB/g), Gyroscope (0.061(°/s)/LSB), Magnet Field (0.0667mG/LSB), Angle (0.0055°/LSB)
Angle Accuracy X, Y-axis: 0.2°; Z-axis: 1° (no magnetic interference and after calibration)
Baud Rate 115200 (default, can not be changed)
Note Calibrated required and keep the sensor away from the magnetic sources. (like metal).
Free Development Kit iOS App/Andriod App/ Win Software; C#/Android App code
Tutorial Manual; Protocol for developing; Instruction video(search WITMOTION on Youtube)

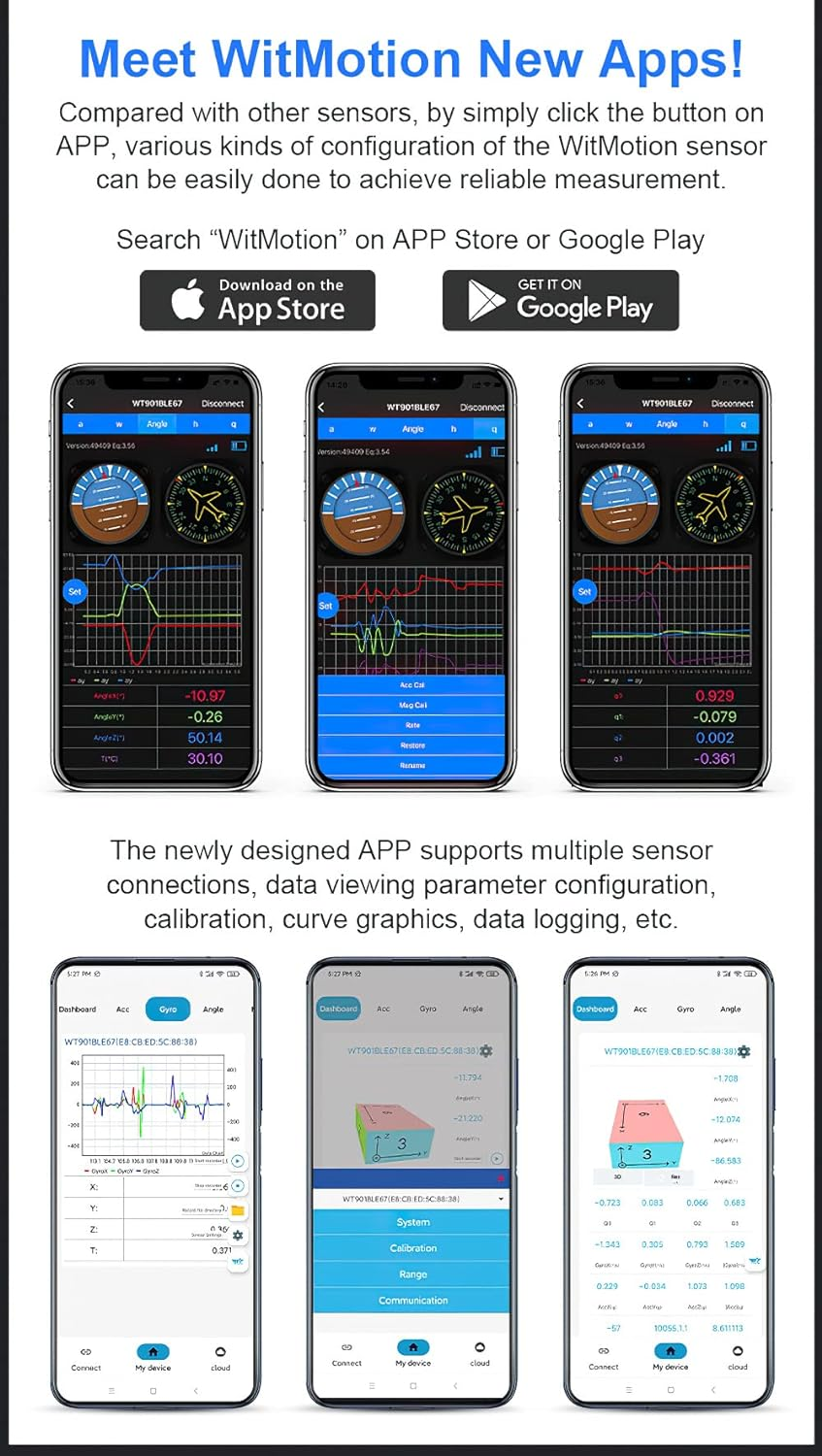

iOS/Android App

App: Search "Witmotion" in App Store

**supports up to 4 devices multiple-connection

How to connect

1.

Turn on Bluetooth and the sensor.

open WitMotion APP,select the model,

enabling the scanning.

2.

Choose the corresponding equipment, and thedevice will show"connection succeeded

3.

Click "My device"and start enjoying your sensor.

CONFIG MENU

Configuration Settings:

*System (algorithm config, installation direction)

*Calibration (angle reference setting)

*Range (bandwidth)

*Communication (output rate)

DATA RECORD

Able to record and export the data to TXT format,

offering you a clear data-changing track and

you can manipulate it in whatever you want!

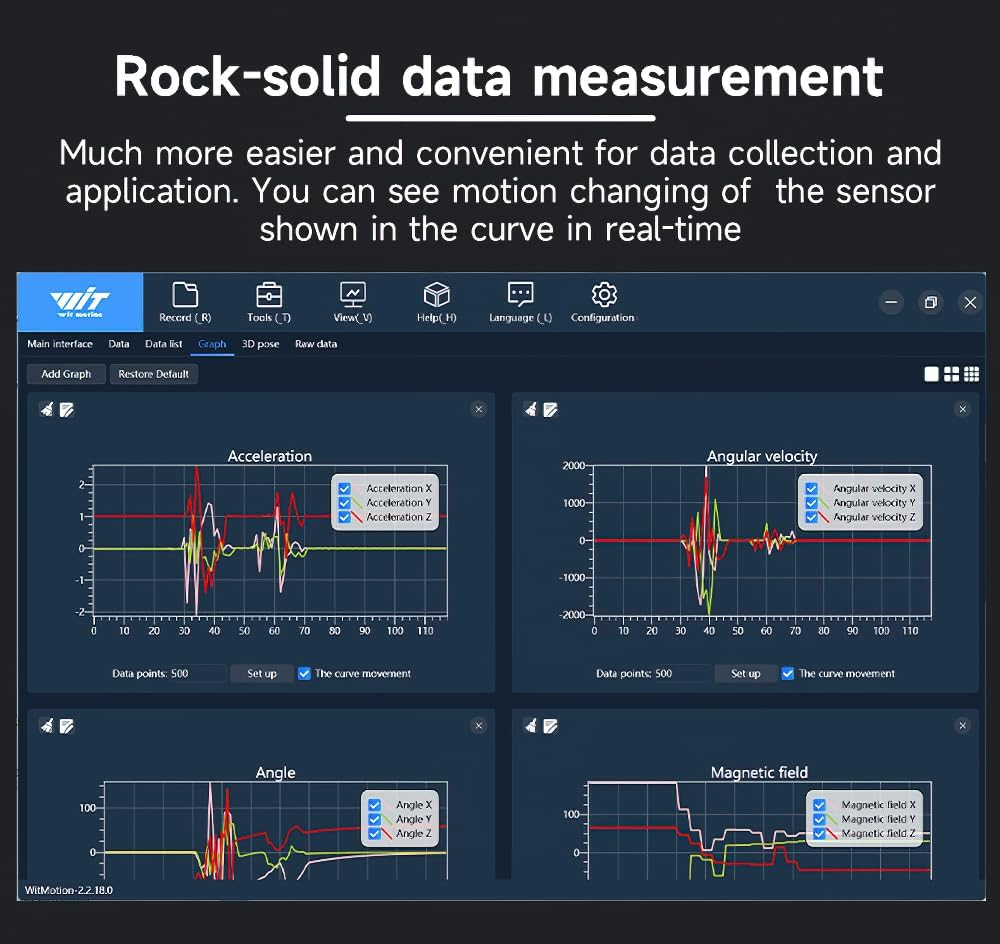

Real-time Monitoring on PC

The motion changing of the sensor will show on the data curve in real time.Simple and easier to check the data dispfay

Fully Functional

Capture all data at one glance!

More intuitive to view all sensor's attitude motion.

**Up to multiple connections 128 devices.

Free Configuration

Configuring the device enables the customer to address a broad variety of use cases by applying the sensor data filtered by WITMOTION algorithms.

3D Display & Raw Data

3D display and 3D Human Motion capture (**new features)

*Multiple types of recording files

(Matlab, XLS, WPLAY, Excel)

Recorded data can be played back

WIT Sensor for More Application

Note：

1.Does WT9011DCL work with Arduino or Python, Rasberry Pi or other microcontroller?

WITMOTION does not provide support or sample code for the WT9011DCL integration with other MCUs. The sensor can be compatible with many systems. However, it will require the development and code writing according to the sensor's protocol.

2. How to setup the sensor connection of WT9011DCL? If I get problem with it, what shall I do?

WITMOTION uploaded several step-by-step videos for PC software, iPhone, and Android APP connection to the product description page. Send message to us directly. Tech team response time: 12H

3. The WT9011DCL does not have the timestamp. You can search ASIN, B01N99BUMR for purchase.

4. Can it be a suitable sensor for measuring vibration?

The WT9011DCL IMU sensor can measure and output 3-axis acceleration, angle raw data. t will require a formula converting raw data to vibration data. Recommended vibration sensor: B0C94C373W

5. Can it measure the displacement?

Nope. It can only provide the angle data.

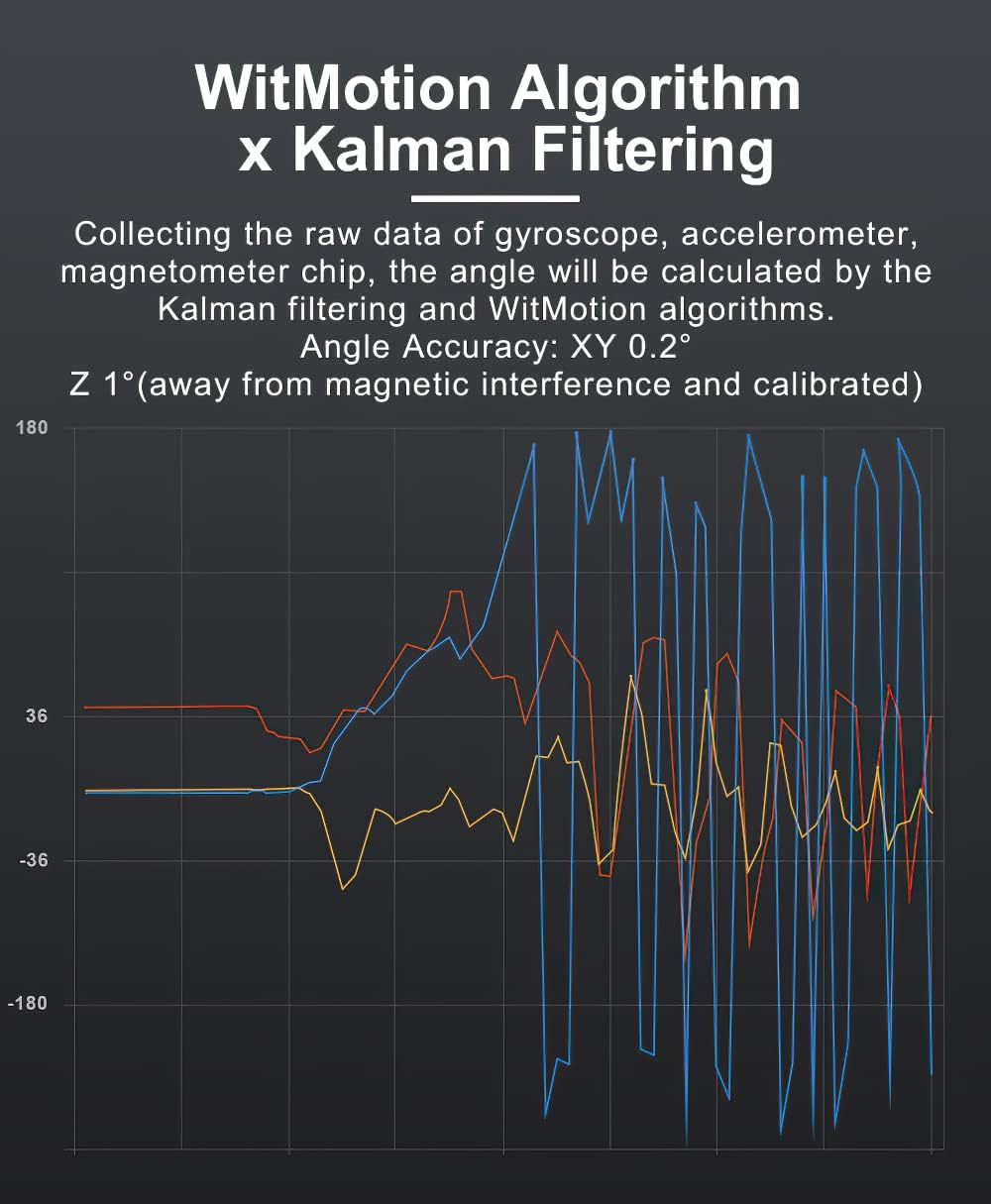

Algorithm

Magnetometer Chip

Size

Package

  • Includes Rechargeable Battery: Yes
  • Country/Region of origin: China
  • Battery cell composition: Lithium Ion
  • Batteries Required: Yes
  • Brand: WITMOTION
  • Batteries Included: Yes
  • Item Weight: 50 g
  • Batteries: 1 Lithium Ion batteries required. (included)
  • Voltage: 3.3 Volts
  • Product dimensions: 2.35 x 1.87 x 1.16 cm; 50 Grams
  • Manufacturer: WitMotion
