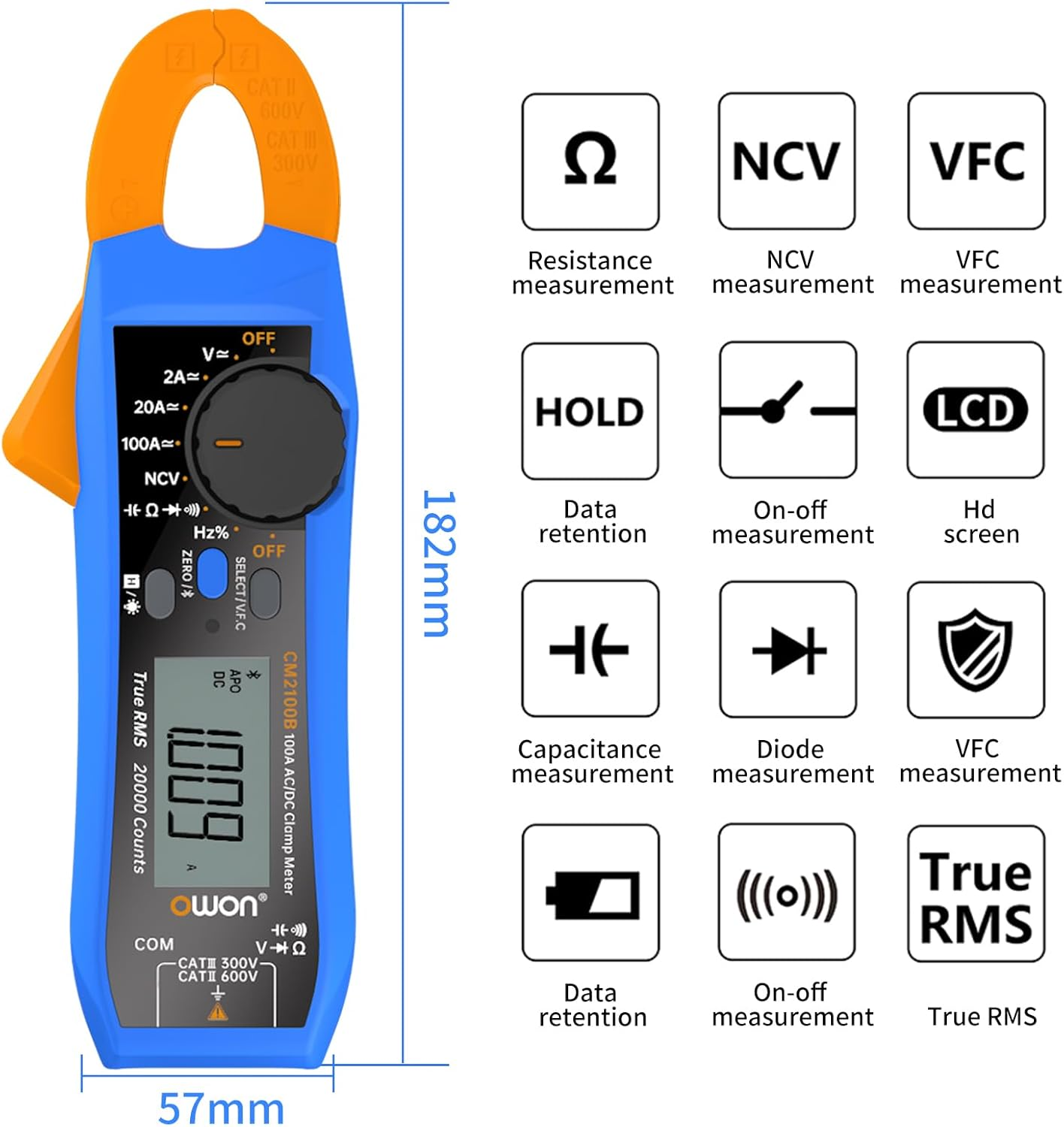

OWON CM2100B Bluetooth Mini Digital Clamp Meter 100A AC DC Current Voltage True RMS Pliers Ammeter Resistance, Capacitance, Diode Tester Multimeter

OWON CM2100B Bluetooth Mini Digital Clamp Meter 100A AC DC Current Voltage True RMS Pliers Ammeter Resistance, Capacitance, Diode Tester Multimeter

Brand: OWON
3.9
A$73.50
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Multimeter Function: It's not only a clamp meter, but also with multimeter function, you can test AC DC current/voltage, resistance, capacitance, Diode.
  • mA levelAC/DC resolution: 100A 1mA high resolution, it can test small current, multi-function fast response.
  • NCV Test: It with noncontact electric field measure if you want to measure whether there is AC Voltage or electromagnetic filed, you can chose range.
  • Small and Exquisite: You can put it in your pocket for easy carrying.
  • VFC function: Can reduce the interference of high-frequency signals on the measurement results.
  • Bluetooth communication function, supporting Android and Apple phones, enabling remote data viewing and instrument control.
  • Support the recording function, record and analyze the measured values, share the recorded data, and work together.

Specification:
AC Current (A):
2.000A±(3%+10dig) in VFC ±（4%+10）
20.00A / 100.0A±(2.5%+5dig) in VFC ±（4%+10）
AC Voltage（V）:
2.0000V / 20.000V / 200.00V / 600.0V±(0.8%+10dig) in VFC ±（4%+3)
DC Current (A):
2.000A±(2%+8dig)
20.00A / 100.0A±(2%+3dig)
DC Voltage（V）:
200.00mV±(0.7%+10dig)
2.0000V / 20.000V / 200.00V / 600.0V±(0.5%+5dig)
Resistance（R）:
200.0Ω±(0.8%+10dig)
2.0000kΩ±(0.5%+10dig)
20.000kΩ / 200.00kΩ / 2.0000MΩ±(0.5%+10dig)
20.000MΩ±(1%+10dig)
200.00MΩ±(5.0%+10dig)
Capacitance (F):
2.000nF±(4.0%+10dig)
20.00nF/ 200.0nF/2.000uF±(3.0%+10dig)
20.00uF / 200.0uF / 2.000mF/ 20.00mF±(3.0%+10dig)
Frequency (Hz):
200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz±(0.1%+5dig)
Duty cycle (%):
0.1% - 99.9%( typical：Vrms=1 V, f=1kHz)±(1.2%+3dig)
0.1% - 99.9%(≥1 kHz)±(2.5%+3dig)
Display: 20000 conuts
Frequency Respones: 40Hz - 1000Hz
Zero √
Auto Ranging√
Low-battery Indicator√
Date Hold√
Relative Measurement√
Diode√
Input Protection√
Continuity Buzzer√
In put Impedance≥10MΩ
NCV√
Overrange Alarm√
VFC√
On-off Warning√
Jaw Capacity: 17mm

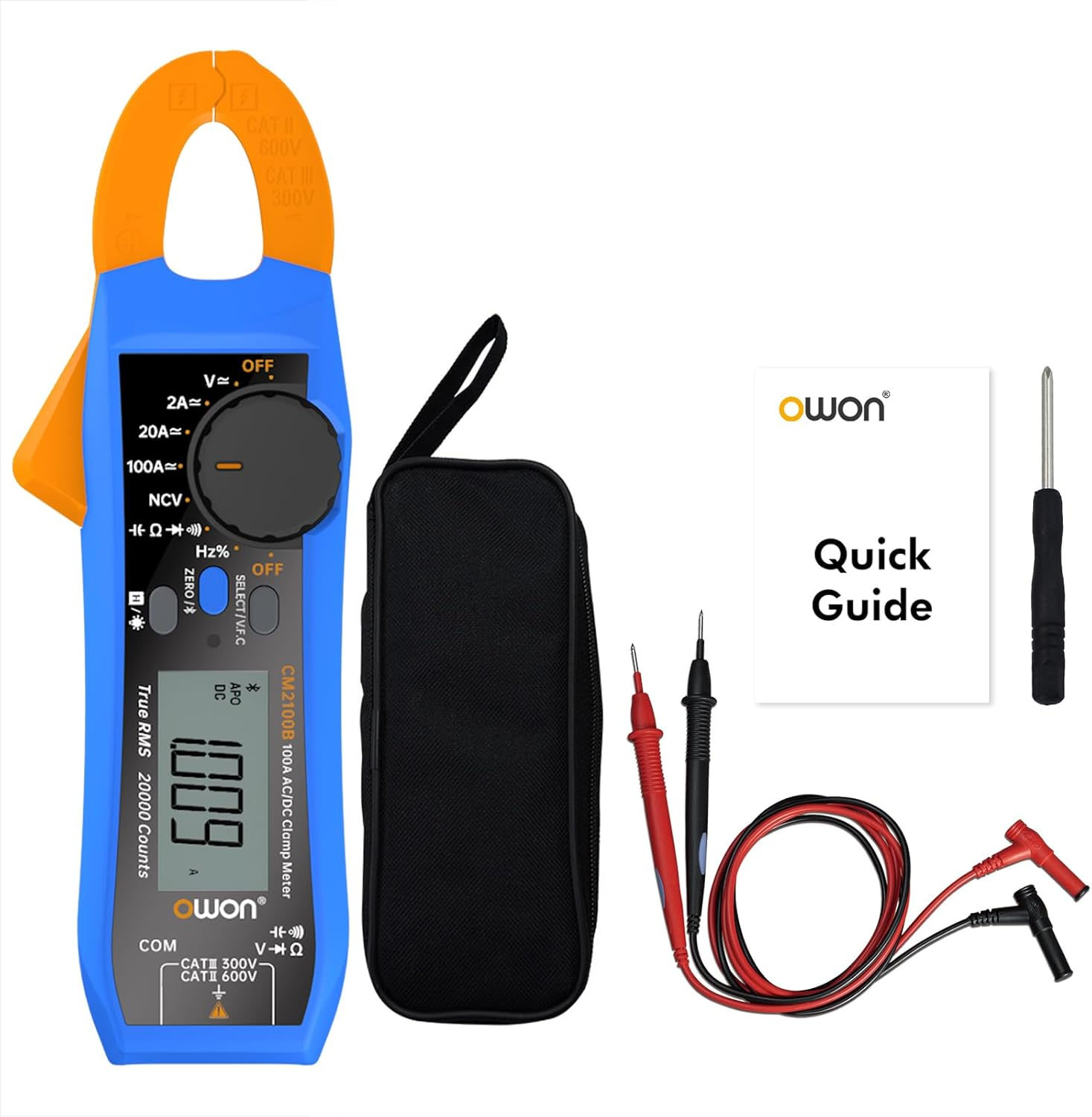

Package included:
1* Machine
1pair * Multimeter Lead
1 * Soft Bag
1* Manual

  • Item Model Number: CM2100B
  • Part Number: OW-2100B
  • Style: Modern
  • Power Source: Battery Powered
  • Batteries Required?: No
  • Item Weight: 440 g
  • Batteries: 3 AAA batteries required.
  • Batteries Included?: No
  • Package Dimensions: 22.1 x 10.2 x 5 cm; 440 Grams
  • Manufacturer: OWON
