LINOVISION 4 Ports Gigabit Poe Passthrough Switch and Poe Extender with 60W POE Input, Ieee802.3Af/At/Bt Poe Repeater, 1 in 4 Out POE Bosster, Poe Powed Switch for IP Cameras, IP Phone, Wireless AP

LINOVISION 4 Ports Gigabit Poe Passthrough Switch and Poe Extender with 60W POE Input, Ieee802.3Af/At/Bt Poe Repeater, 1 in 4 Out POE Bosster, Poe Powed Switch for IP Cameras, IP Phone, Wireless AP

Brand: LINOVISION
3.6
A$87.15
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

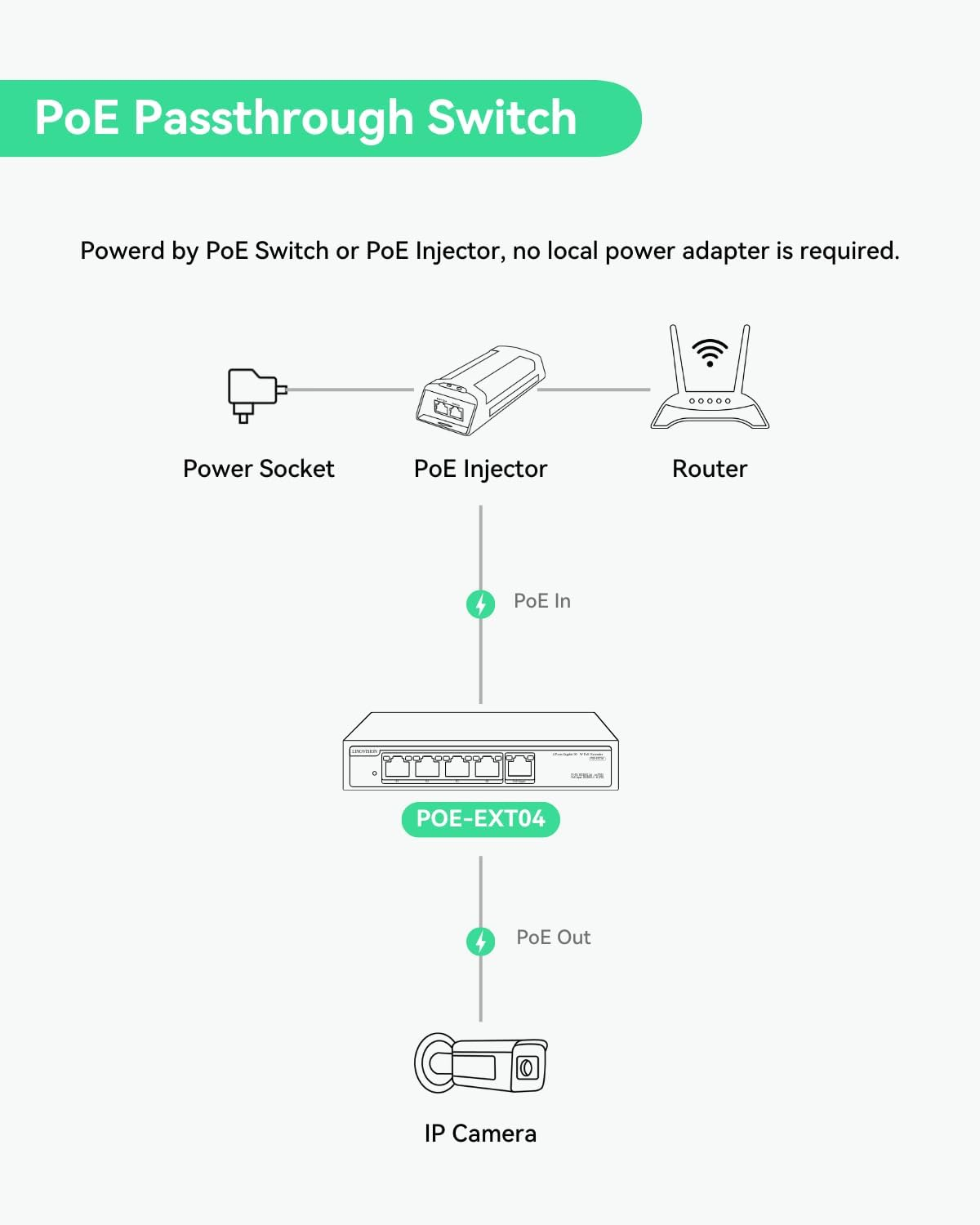

  • PoE PASSTHROUGH SWITCH -Powerd by POE Switch or PoE Injector, passes PoE power to other PoE devices, such as VoIP phones and cameras. Also know as PoE Powed Switch. No AC power supply required.

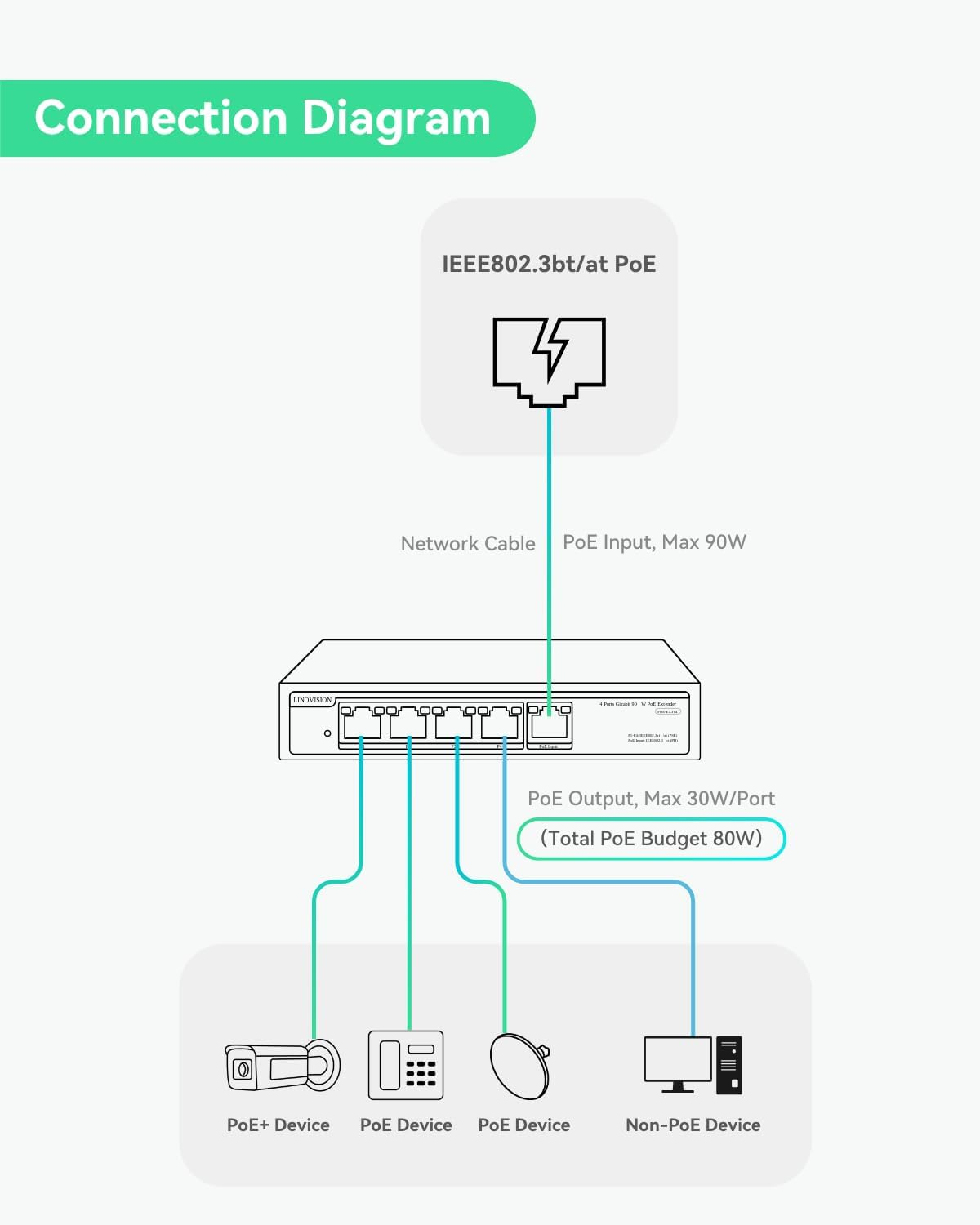

  • 4CH BT60W PoE EXTENDER- 1 x IEEE 802.3af/at/bt POE Input, max 60W; 4 x IEEE 802.3at/af PoE output. Total 56W PoE budget. PoE Input：Mode A/ Mode B; PoE Output: Mode A.

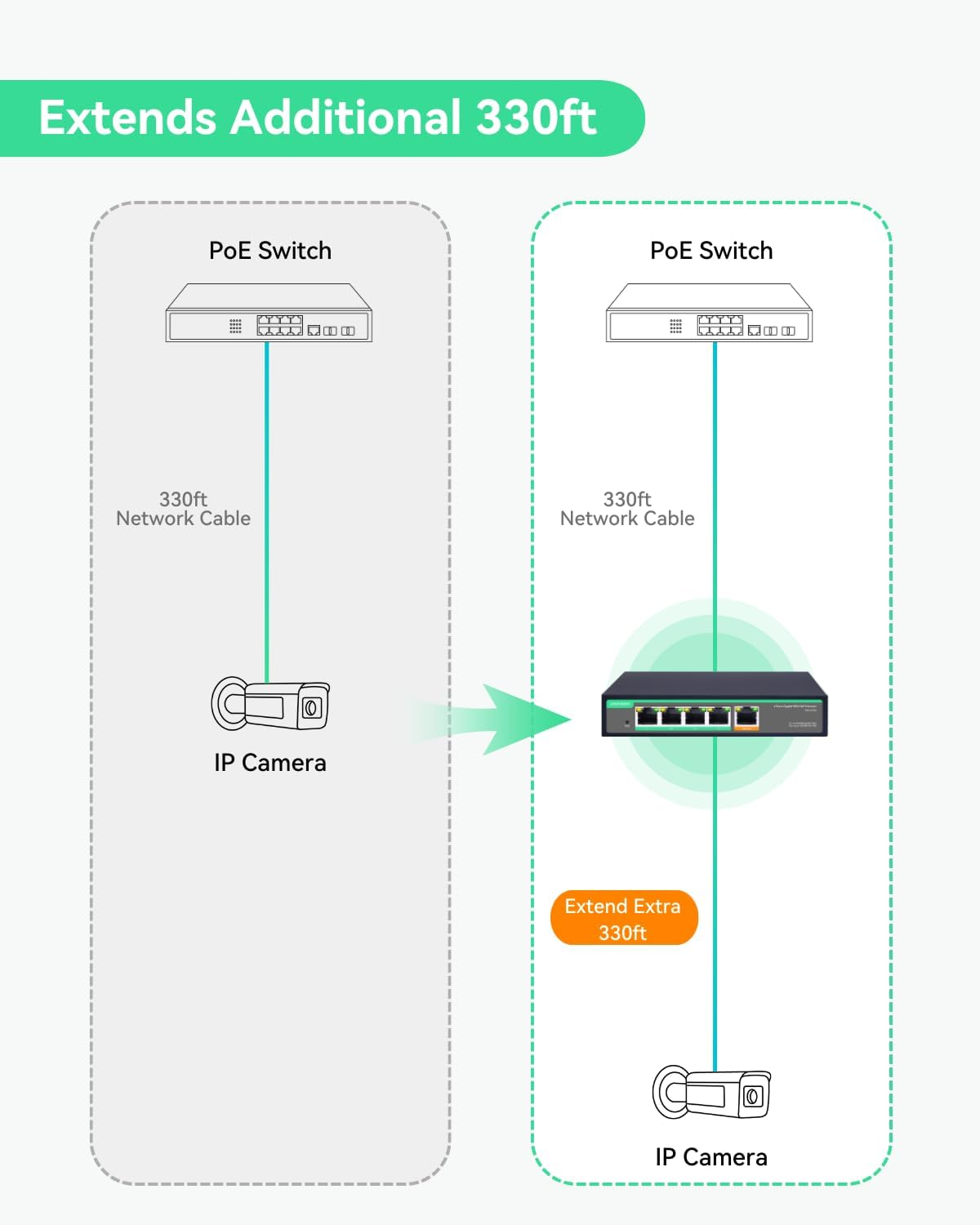

  • EXTEND PoE and DATA 330FT - Extends PoE and Gigabit Ethernet an additional 330ft.

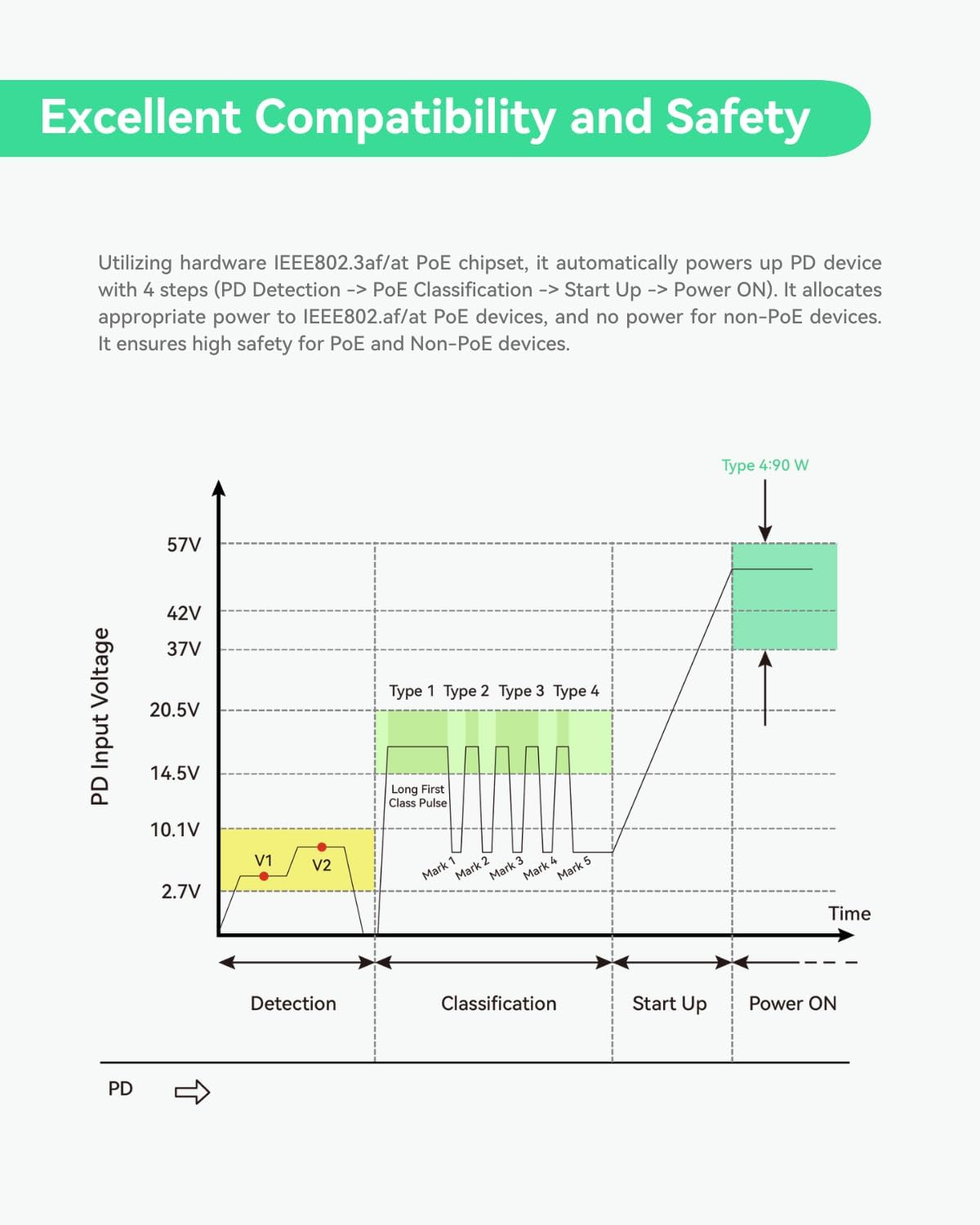

  • STANDARD PoE - Unlike some software emulated PoE, this PoE Extender adopts hardware IEEE802.3af/at/bt PoE chipset and compatible to Mode A PD device. It follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging.
  • SURGE PROTECTION - 6KV surge protection, keep the PoE Extender from lightning strikes and other electrical surges, offering reliable performance even in some harsh environments.
  • EASY to USE - Plug-n-Play Design. Equivalent to a small 4 ports POE Switch and powered by POE, much easier for cabling.

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

LINOVISION 4 Ports Gigabit PoE Passthrough Switch

Merchant video

Interface

Outstanding Features

Powered by POE

  • Powerd by POE Switch or PoE Injector, passes PoE power to other PoE devices, such as VoIP phones and cameras. Also know as PoE Powed Switch. No local power adapter is required.

Standard PoE

  • with hardware PoE Chipset and comfort to IEEE802.3af/at standard, it ensure highly reliable connection when working with standard PoE devices

Extend PoE and Data 100 meters

Key Specification

POE Input 1*10/100/1000 Base-T RJ45 port; Compliant to IEEE802.3af/at/bt standard;
POE Output 4*10/100/1000 Base-T RJ45 port; Compliant to IEEE802.3af/at standard;
POE Pin Assignment(POE Input) 1/2/4/5(-), 3/6/7/8(+)
POE Pin Assignment（POE Output） 1/2(-), 3/6(+)

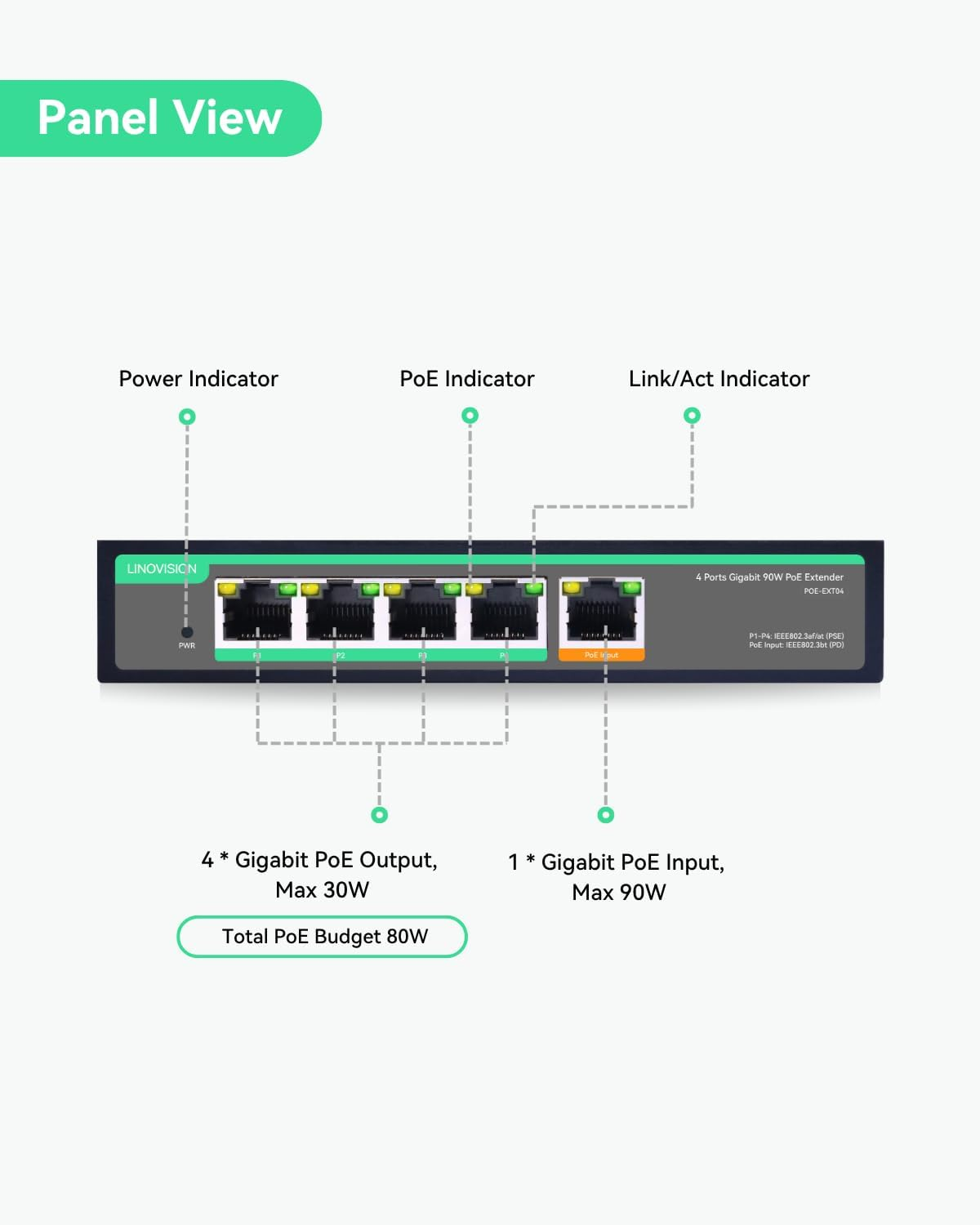

LED Indicator Green LED: POE Power Act Status ; Yellow LED: Ethernet Data Link Status；
Working Humidity Support POE Mode A: 1/2(-), 3/6(+)
Working Humidity 5~90%, (non-condensing)
Working Temperature -20°C ~55°C （-4℉~131℉ ）
Weight 1.01lb(0.46kg)

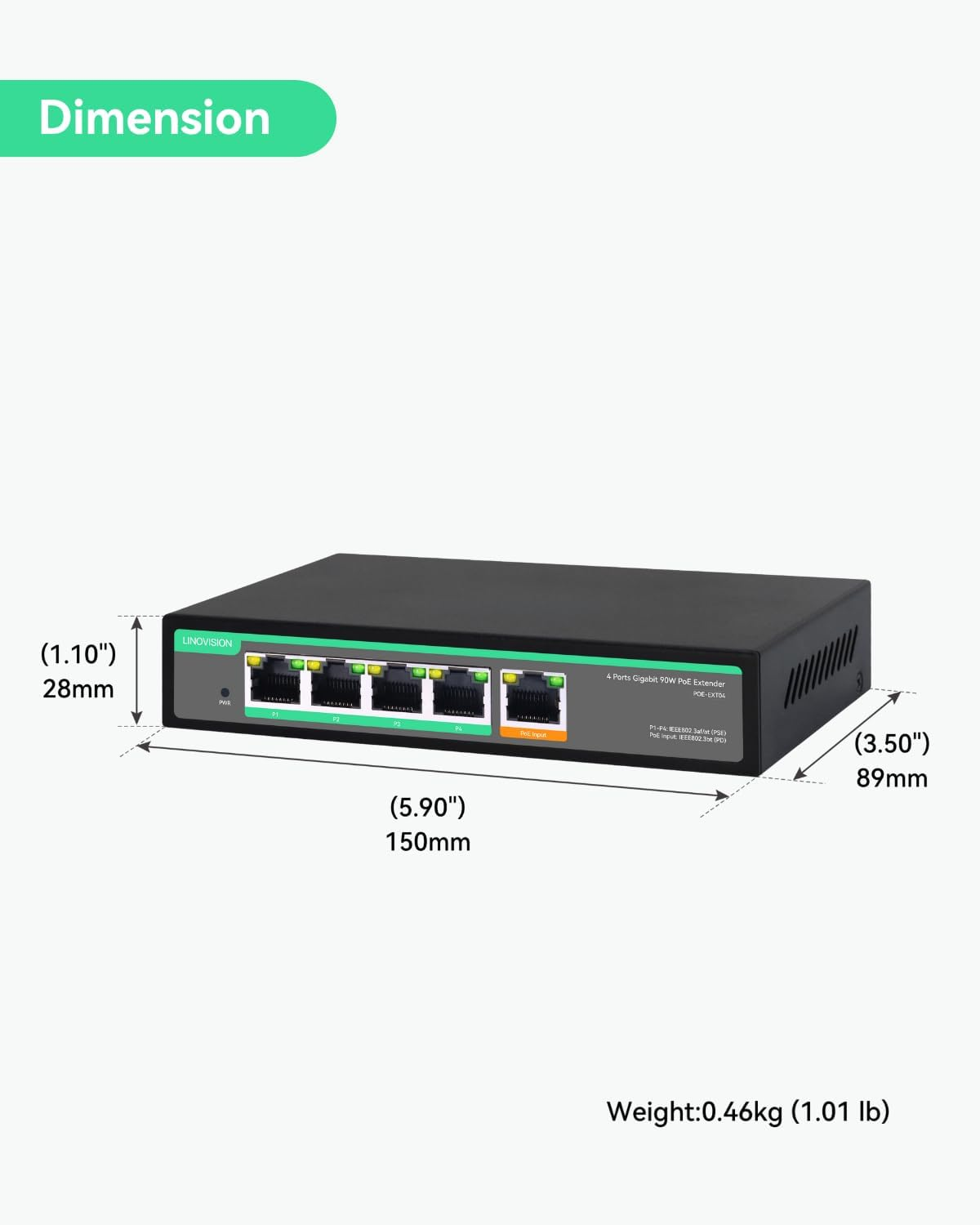

Dimension 5.9in x 3.5in x 1.1in (150mm x89mm x 28mm)

Selection Guide of Linovision POE Extender

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.6 out of 5 stars 7
3.8 out of 5 stars 5
4.2 out of 5 stars 182
3.7 out of 5 stars 20
5.0 out of 5 stars 1
3.6 out of 5 stars 26
4.2 out of 5 stars 53
Price
$82.99$82.99 — $54.99$54.99 — $139.99$139.99 $69.99$69.99 $109.99$109.99
POE Input
Max 90W Max 30W Max 30W Max 90W Max 30W Max 30W Max 30W
PoE Output
4 x 30W 2 x 30W 1 x16W + 1 x 8W 1 x 60W + 1 x 30W 1 x16W + 1 x 8W 1 x 30W 1 x 30W
PoE Standard
IEEE802.3af/at/bt IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at/bt IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
Total POE Budget
80W 30W 30W 90W 30W 30W 30W
Ethernet Speed
10/100/1000Mbps 10/100/1000Mbps 10/100Mbps 10/100/1000Mbps 10/100Mbps 10/100/1000Mbps 10/100Mbps
Transmission Distance
100meters 100meters 100meters 100meters 100meters 100meters max 800meters
Installation Method
/ Wall/Din Rail Mounting Wall/Din Rail Mounting Wall Mounting Wall Mounting / /
Waterproof
✘ ✘ ✘ ✔ ✔ ✔ ✔
  • Item Model Number: POE-EXT04
  • Part Number: POE-EXT04
  • Data Transfer Rate: 1E+3 Megabits Per Second
  • Number of items: 1
  • Mounting Hardware: POE-EXT04
  • Batteries Included: No
  • Batteries Required: No
  • Brand: LINOVISION
  • Compatible Devices: Camera
  • Item Weight: 400 g
  • Number of Ports: 5
  • Language: German
  • Voltage: 48 Volts
  • Model: POE-EXT04
  • Manufacturer: LINOVISION
  • Package Dimensions: 22.2 x 12.8 x 5.69 cm; 400 Grams
  • Country/Region of origin: China
  • Does it contain liquid?: No
