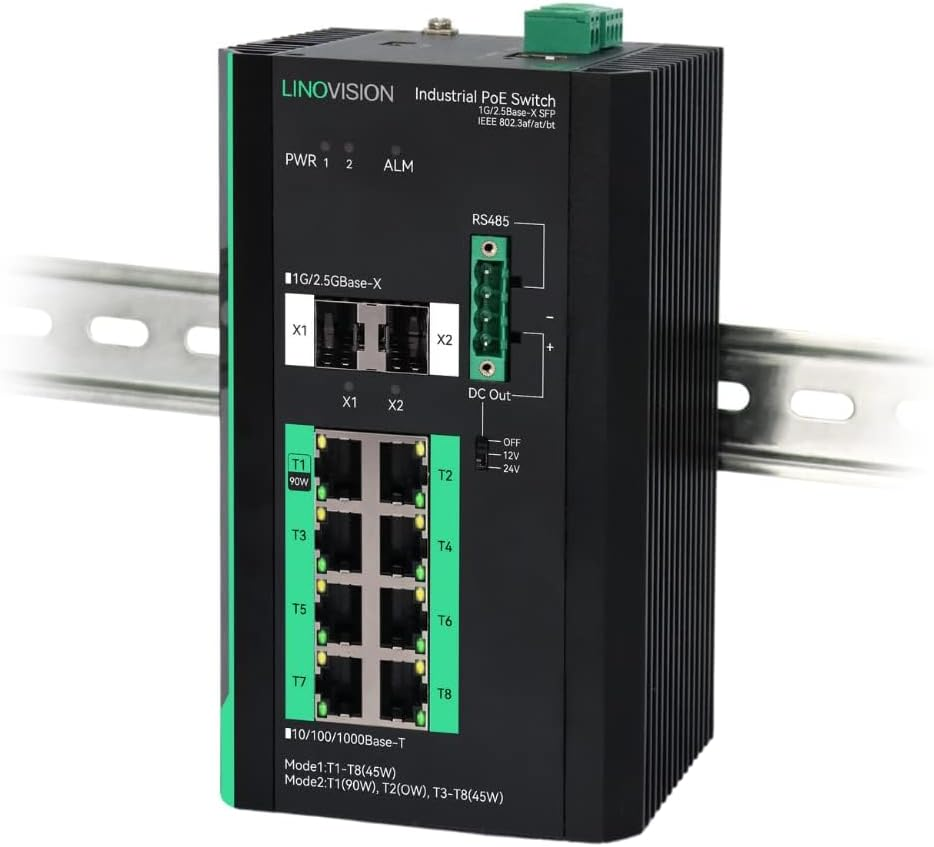

LINOVISION Industrial 8 Ports Full Gigabit Managed POE Switch with DC12~57V Voltage Input, L2 Management, RS485 Serial Port, 12/24V DC Output, BT 90W POE Output，Q-Poe and P-Poe without Interruption
LINOVISION Industrial 8 Ports Full Gigabit Managed POE Switch with DC12~57V Voltage Input, L2 Management, RS485 Serial Port, 12/24V DC Output, BT 90W POE Output，Q-Poe and P-Poe without Interruption
Brand: LINOVISION
A$640.50

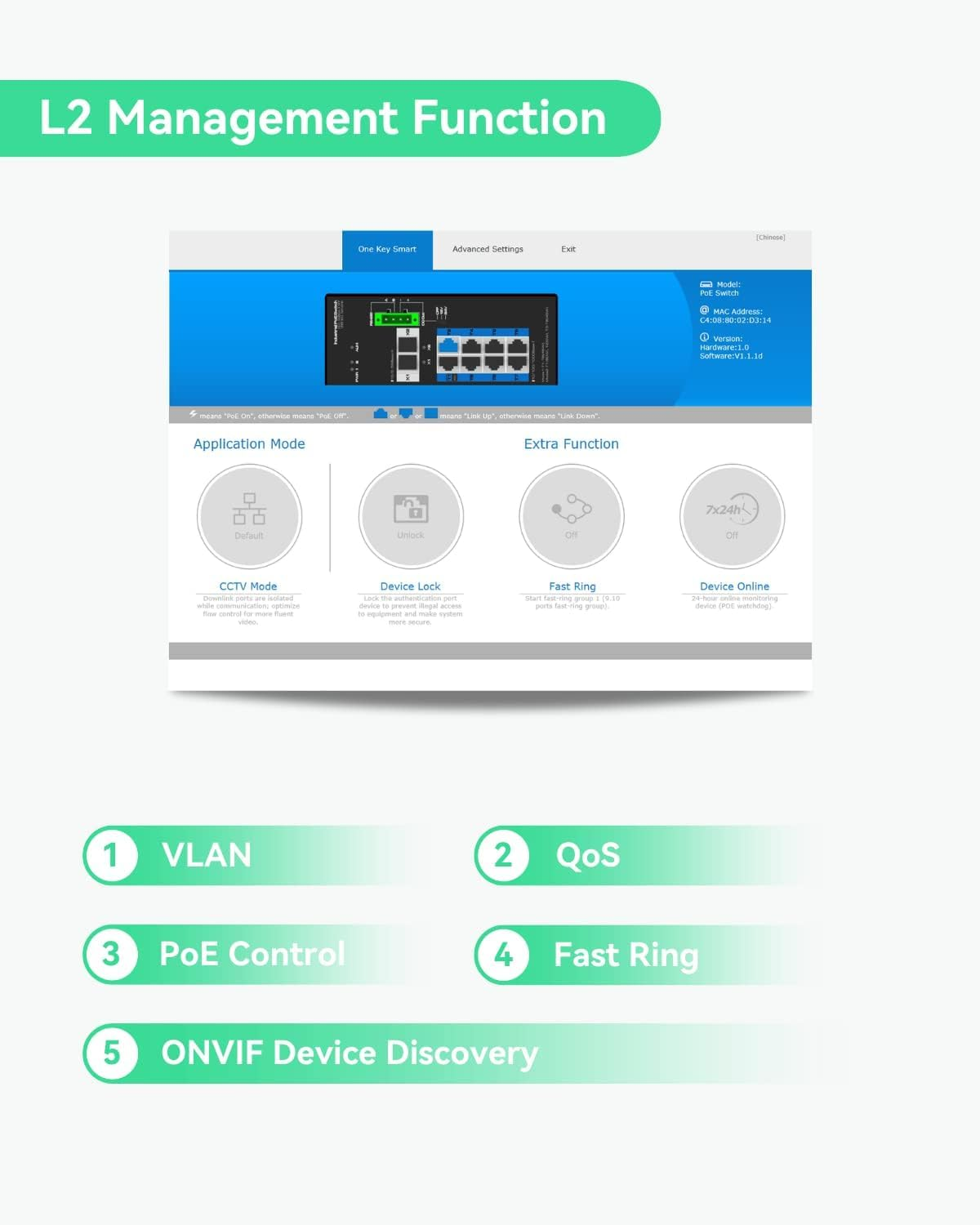

- LAYER 2 MANAGED PoE SWITCH - Provides 8 * 10/100/1000Mbps Ethernet RJ-45 ports, 2 * 1G/2.5Gbps SFP uplink ports. Supports L2 management functions like VLAN, QoS, PoE Management and PoE port control, as well as automatic ONVIF cameras discovery. It can be managed via WEB, CLI or SNMP.

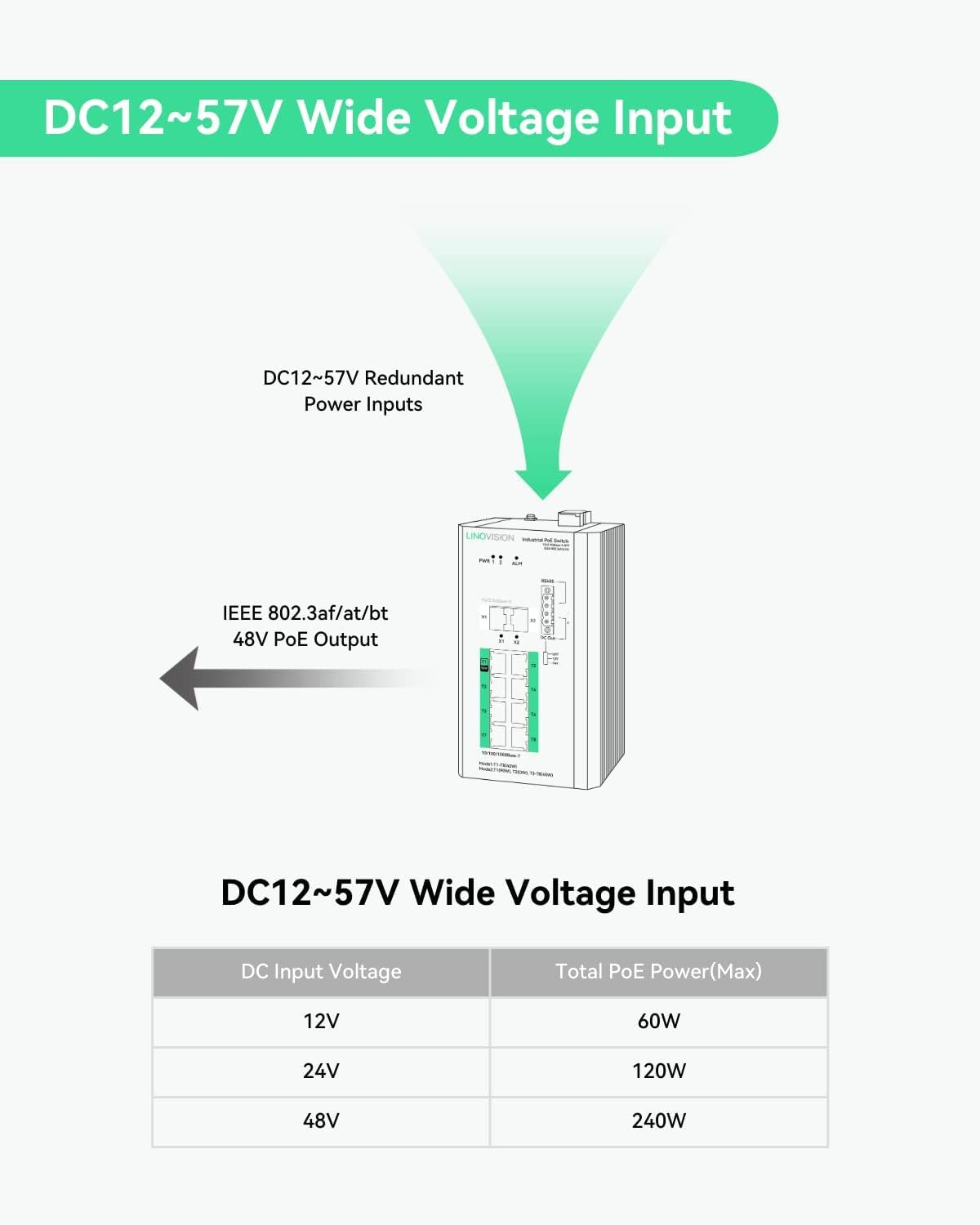

- DC12~57V WIDE VOLTAGE INPUT - Supports 2 channels of DC12~57V redundant power inputs. It is designed for reliable PoE power output in solar power systems, vehicles or other applications that without AC power input.
- RS485 SERIAL DATA INPUT - Provides RS485 serial port for IoT sensors integration or remote control, for example, humidity sensor, smoking sensor, light control, etc.
- Q-PoE and P-PoE - Its Quick PoE technology enables PoE power supply immediately upon switch starup, and the Perpetual PoE ensure non-stop PoE supplying even if the switch is restarting. They are unique features for many IoT devices that rely on non-interruption operation.
- Q-PoE and P-PoE - Its Quick PoE technology enables PoE power supply immediately upon switch starup, and the Perpetual PoE ensure non-stop PoE supplying even if the switch is restarting. They are unique features for many IoT devices that rely on non-interruption operation.

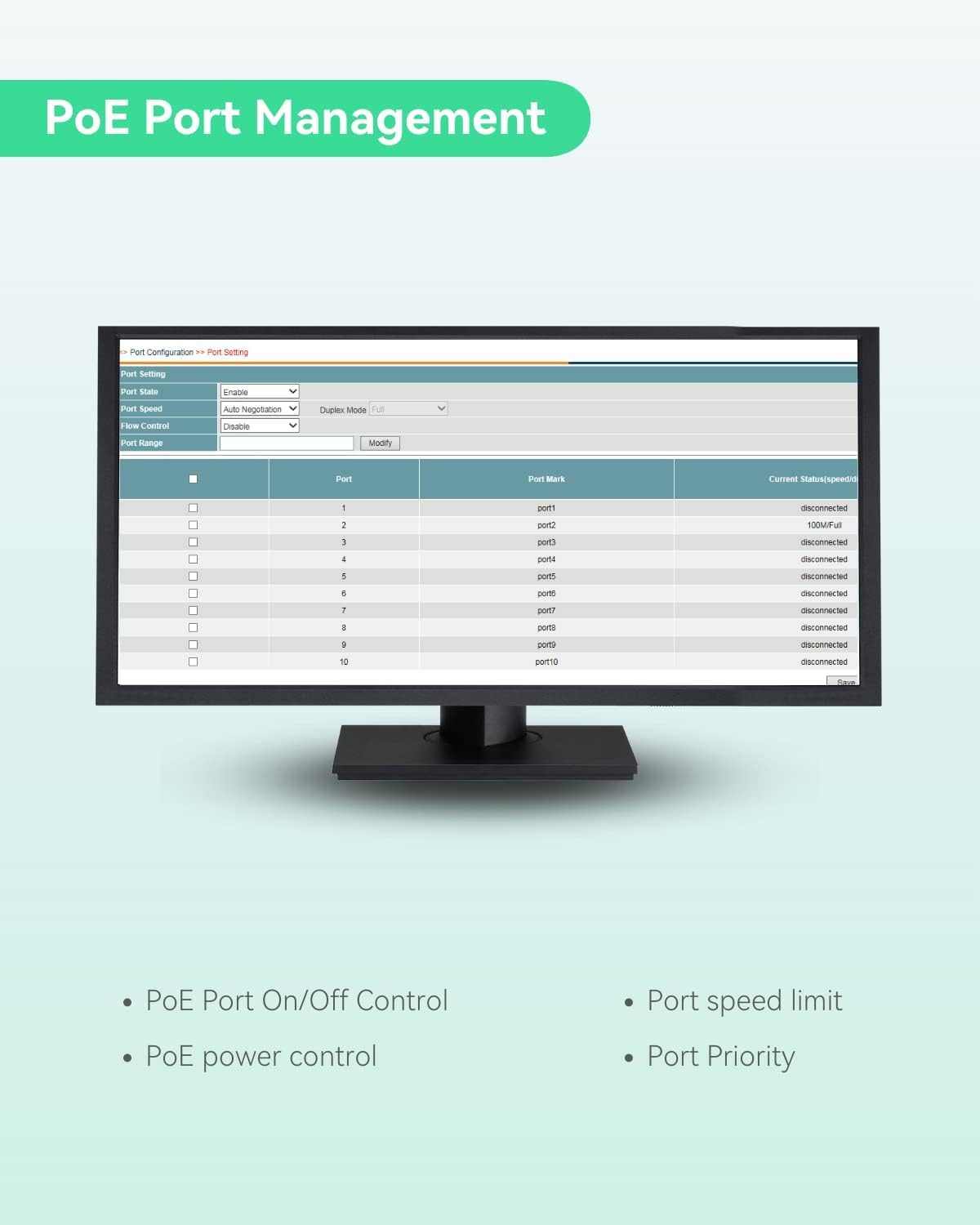

- PoE WATCHDOG -Continuously monitoring PoE ports and automatically reboot PD device if it is freezing.
- 90W BT PoE - All the PoE ports support IEEE802.3af/at PoE output, the first port can be configured as 90W BT PoE. Total PoE budget 240W @ 48V, or 120W @ 24V, or 60W @ 12V.
Product Description
Product Description
LINOVISION Industrial 8 Ports Full Gigabit Managed POE Switch with DC12~57V Voltage Input, L2 Management, RS485 Serial Port, 12/24V DC Output, BT 90W POE Output，Q-PoE and P-PoE Without Interruption.
Connection Diagram
Outstanding Features
Choosing LINOVISION POE Switch for Your Bussiness!
| Customer Reviews | 2.8 out of 5 stars 2 | 2.0 out of 5 stars 2 | 4.4 out of 5 stars 116 | 3.8 out of 5 stars 13 | — | — |
| Price | $609.99$609.99 | — | $149.99$149.99 | $329.99$329.99 | — | — |
| Input | Dual DC Input: 12V~57V DC | Dual DC Input: 48V~57V DC | Dual DC Input: 9V~54V DC | Dual DC Input: 9.5V~57V DC | Single DC Input：AC 110-240V | Dual DC Input: 48V~56V DC |
| Output | 48V POE; 12/24V DC Output | 48V POE Standard | 48V POE Standard | 48V POE Standard | 48V POE / Passive 24V POE | 48V POE Standard |
| Uplink Ports | 2 Gigabit SFP | 2 Gigabit SFP | 1 Gigabit Ethernet Uplink | 2 Gigabit SFP | 2 Gigabit Uplink+1 Gigabit SFP | 2 Gigabit SFP |
| Ethernet Ports | 8 Gigabit PoE Ports | 8 Gigabit PoE Ports | 4 Gigabit PoE Ports | 8 Gigabit PoE Ports | 2 Gigabit + 6 10/100Mbps Port | 8 Gigabit PoE Ports |
| POE++ Ports | 1 * BT 90W Port | 4 * BT 90W Ports | / | / | 2 * BT 60W Ports | 4 * BT 90W Ports |
| POE budget | 240W (DC48V), 120W (DC24V ) | 360W | 120W (DC24V/48V), 60W (DC12V) | 240W (DC48V), 120W (DC24V ) | 120W | 120W |
| L2/L3 Management | VLAN, QoS, SNMP, Fast-Ring | VLAN, QoS, SNMP, Fast-Ring | / | / | / | / |
| PoE Port Control | Turn On/Off PoE | Turn On/Off PoE | / | / | / | / |
| Installation Method | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | Pole/Wall-Mount | DIN-Rail |
| Waterproof | ✘ | ✘ | ✘ | ✘ | ✔ | ✘ |
- Item Model Number: POE-SW708GM-DC12V
- Part Number: POE-SW708GM-DC12V
- Data transfer rate: 1000 Megabits Per Second
- Number of items: 1
- Country/Region of origin: China
- Batteries Included: No
- Batteries Required: No
- Product dimensions: 11 x 9.56 x 16.3 cm; 2.02 kg
- Item weight: 2.02 Kilograms
- Item Weight: 2.02 kg
- Voltage: 24 Volts
- Model: POE-SW708GM-DC12V
- Does it contain liquid?: No
- Manufacturer: Linovision
