236575 RV In-Wall Slide-Out Motor for Lippert Schwintek In-Wall Slide System 300:1 High Torque Gear Ratio 12V IG-42 10Mm Motor Assembly, Slide Motor for Travel Trailer and Camper
236575 RV In-Wall Slide-Out Motor for Lippert Schwintek In-Wall Slide System 300:1 High Torque Gear Ratio 12V IG-42 10Mm Motor Assembly, Slide Motor for Travel Trailer and Camper
Brand: MOCW
A$107.05
- 【Replace OE Number】This In-Wall Slide-Out Replacement Motor Replace Part Number: 236575. Directly fit for Lippert Schwintek In-Wall Slide System, for lippert motor, suitable for RV, travel trailers, camper, safe and secure.
- 【Durable Material】The 236575 rv in-wall slide-out motor made of hardware and plastic, durable and long-lasting. Extends and Retracts Slide-Out with Ease. No Assemble Required. for use on LCI In-wall Slide-Outs Only.
- 【Fitment】 236575 slide motor perfect match: In-wall slide-out replacement motor, 300:1 high torque gear ratio. This RV slide motor to make your slide run smoothly.
- 【Easy Installation】Very simple and plug and play that campers can easily replace themselves, and you can start camping again and enjoy your RV to the fullest.
- 【Package Content】Package Include: 1x In-Wall Slide-Out Motor. Also known as IG-42 Motor - 10 mm.

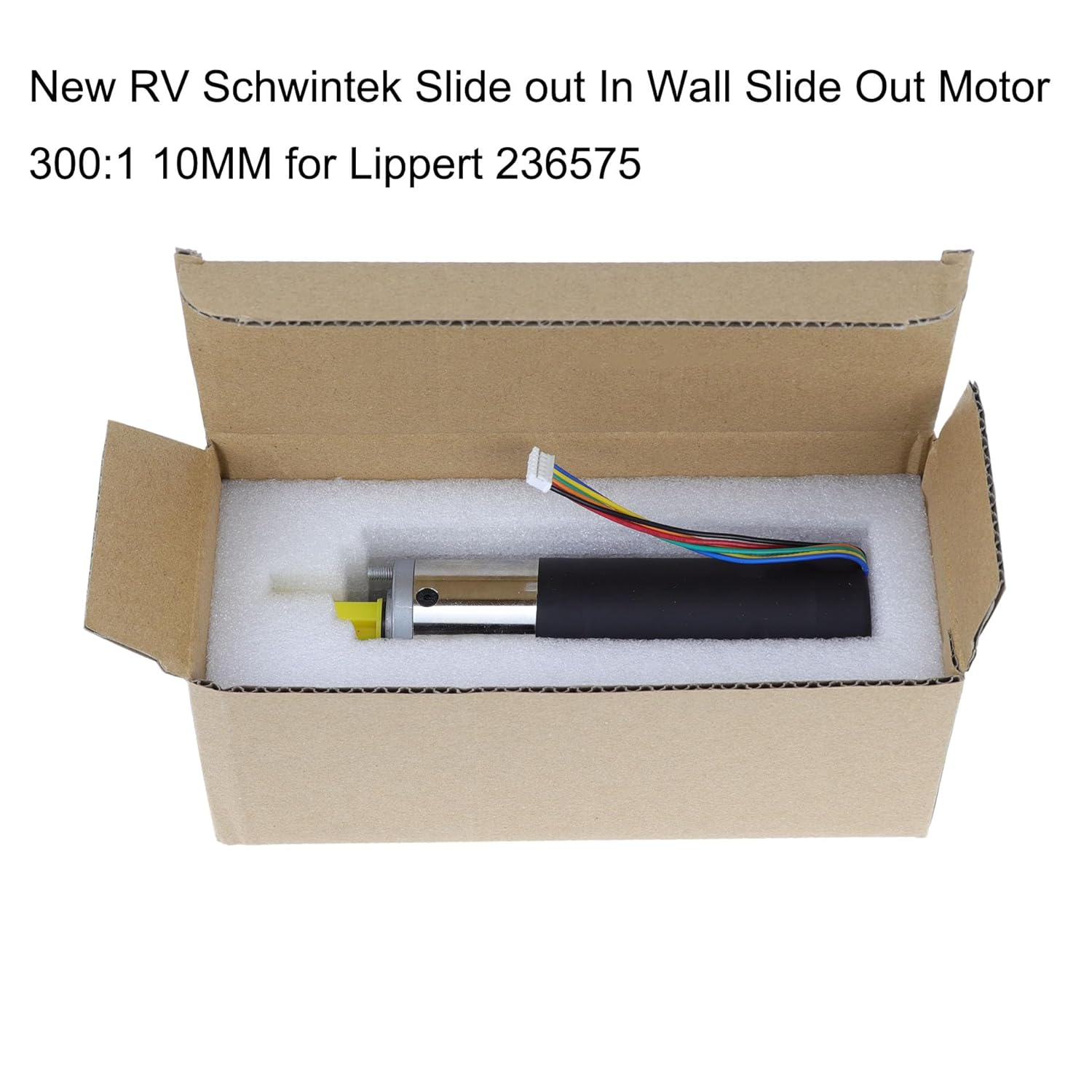

New RV Schwintek Slideout In Wall Slide Out Motor 300:1 10MM for Lippert 236575
Description:
Part Number: 236575
Perfect Match: In-wall slide-out replacement motor, 300:1 high torque gear ratio.
Made of hardware and plastic, durable and long-lasting.
Easy Installation: Direct replacement, easy to use.
High reliability and high performance. RV slide motor to make your slide run smoothly.

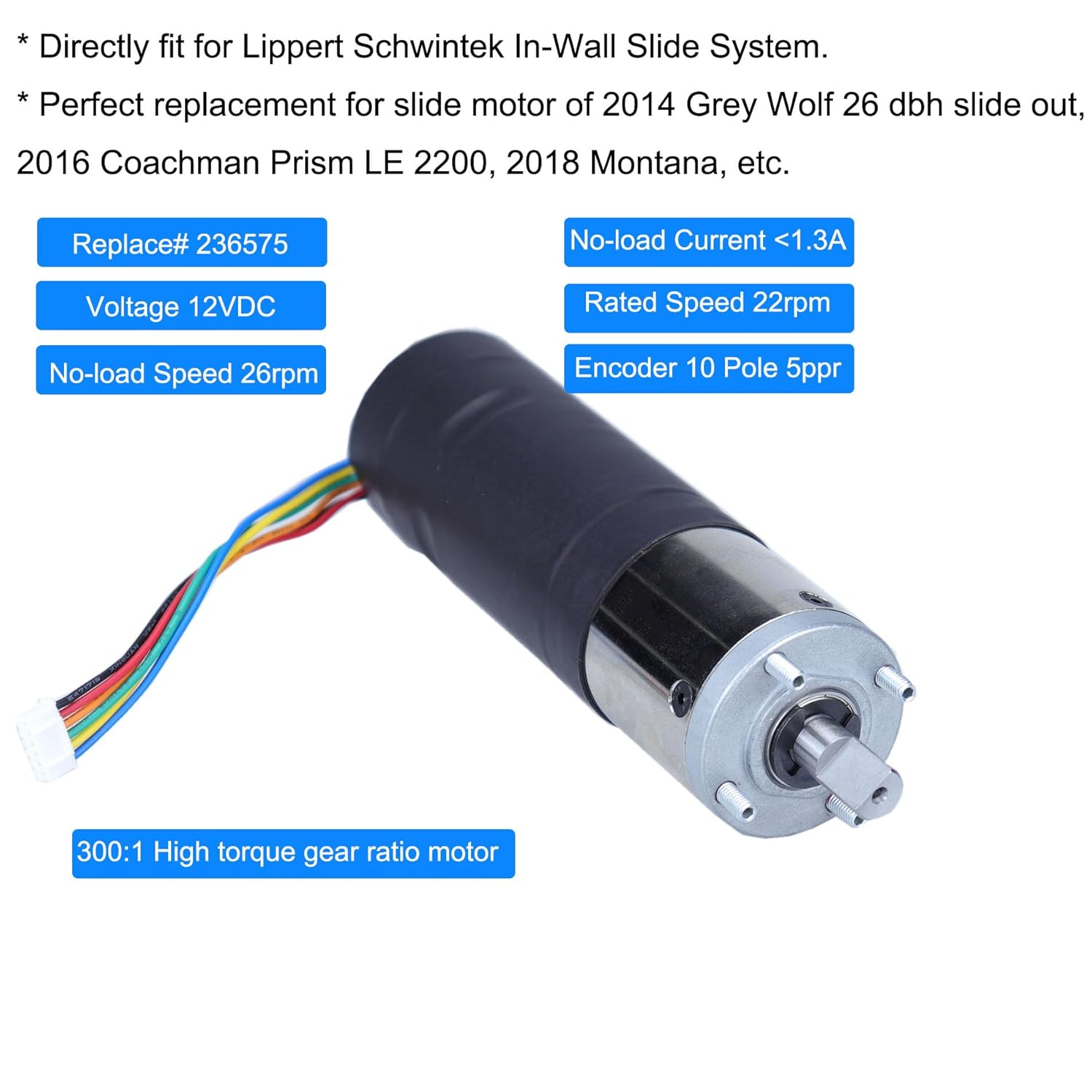

Specification:
Series: In-Wall Slide-Out
Model: IG-42
Type: 300:1 High Torque Gear Ratio (NOT 500:1 RATIO!!!)
Voltage: 12V DC
No-load Speed 26rpm
No-load Current<1.3A
Rated Speed 22rpm
Encoder 10 Pole 5ppr

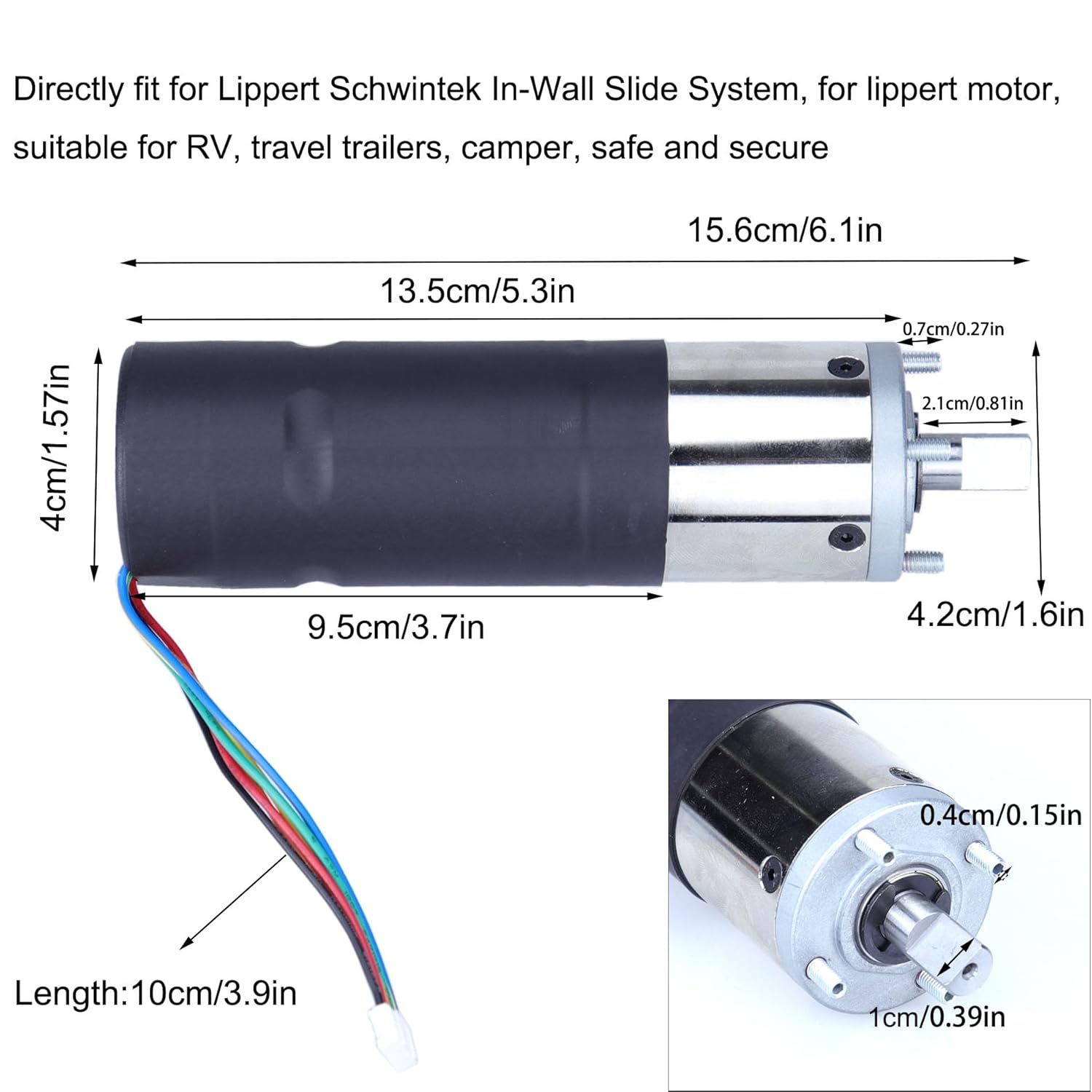

Size Chart:
Size: 70x200mm/2.76x7.87inch
Application:
For Travel Trailer, Caravan, Motorhome, Camper, RV.
For Electric Lippert Schwintek In-Wall Slide-Out System. ( For 2014 Grey Wolf 26 dbh, 2016 Coachman Prism LE 2200, 2018 Montana, etc.)
For Use on LCI In-wall Slide-Outs Only !!!
Replace Part Number: 236575/ For Lippert 236575
Package included:
1 Piece RV In-Wall Slide-Out Motor
How to Replace and Install?
1. Outside the coach, locate and remove the motor retention screw.
2. Inside the coach, remove the seal to access the motor notch. unplug the motor and lift the motor up within the h-column, then pull out of the motor notch once the shaft is clear/visible.
3. Replace the new motor. Reinsert the motor wiring harness, restore the seal and replace the motor fixing screws.
- Item Model Number: 236575
- Package Dimensions: 20.98 x 8.59 x 8.48 cm; 771 Grams
- Manufacturer: MOCW
