Engine Generator Controller, Remote Start Stop Generator Controller, DC 9-33V Flame Retardant Universal Generator Controller for Ships or Generator Communication
Engine Generator Controller, Remote Start Stop Generator Controller, DC 9-33V Flame Retardant Universal Generator Controller for Ships or Generator Communication
Brand: Gugxiom
A$55.05

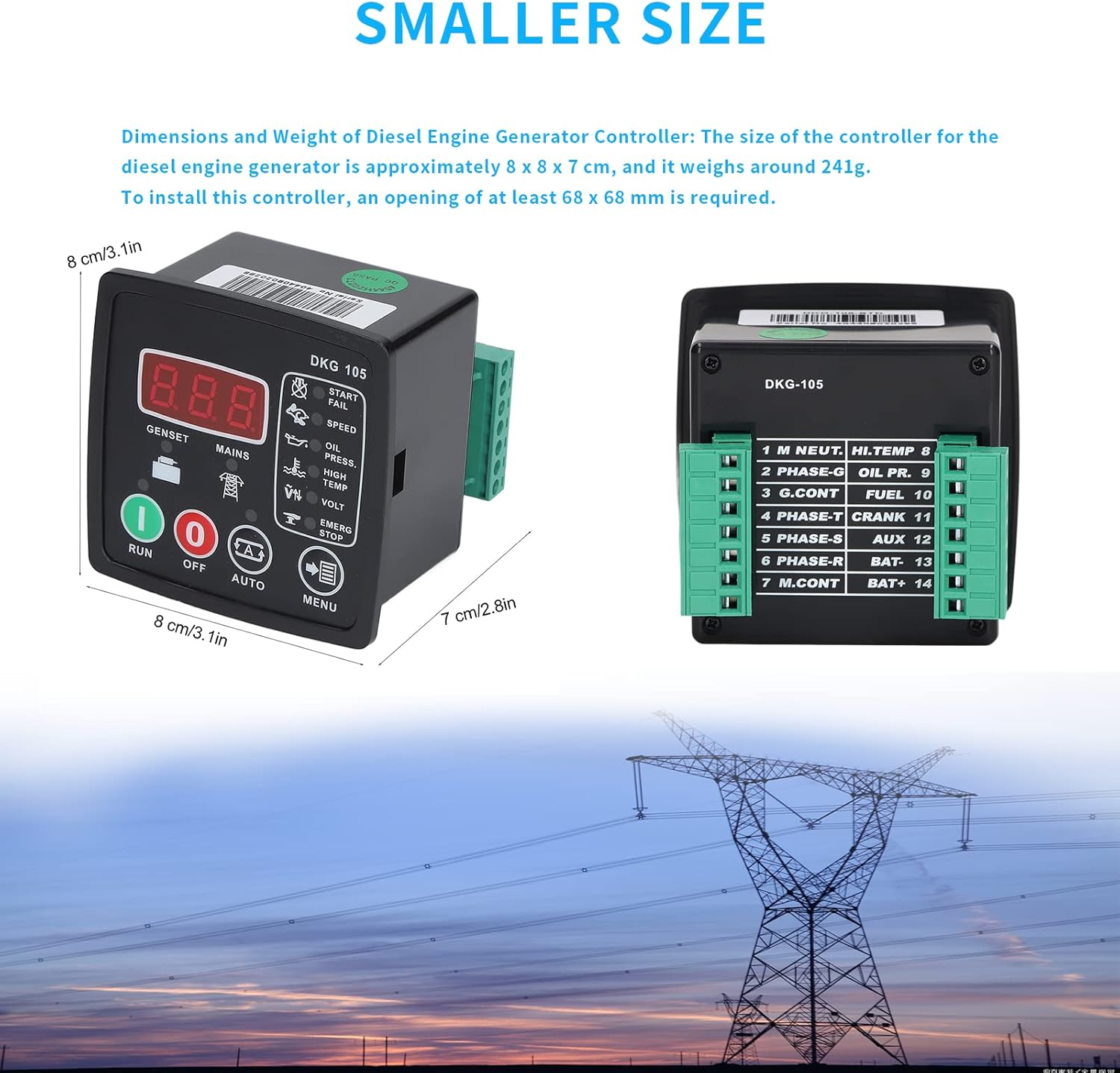

- 8 * 8 * 7CM, 241G： engine generator controller size is about 8 * 8 * 7cm, and the weight is about 241g.The installation opening size of this generator controller shall be at least 68x68mm.
- DKG105 ENGINE：Generator controller is applicable to DKG105 engine, and can also be used for grade 1 to 3 gasoline and generator sets.It can automatically start or stop the generator.

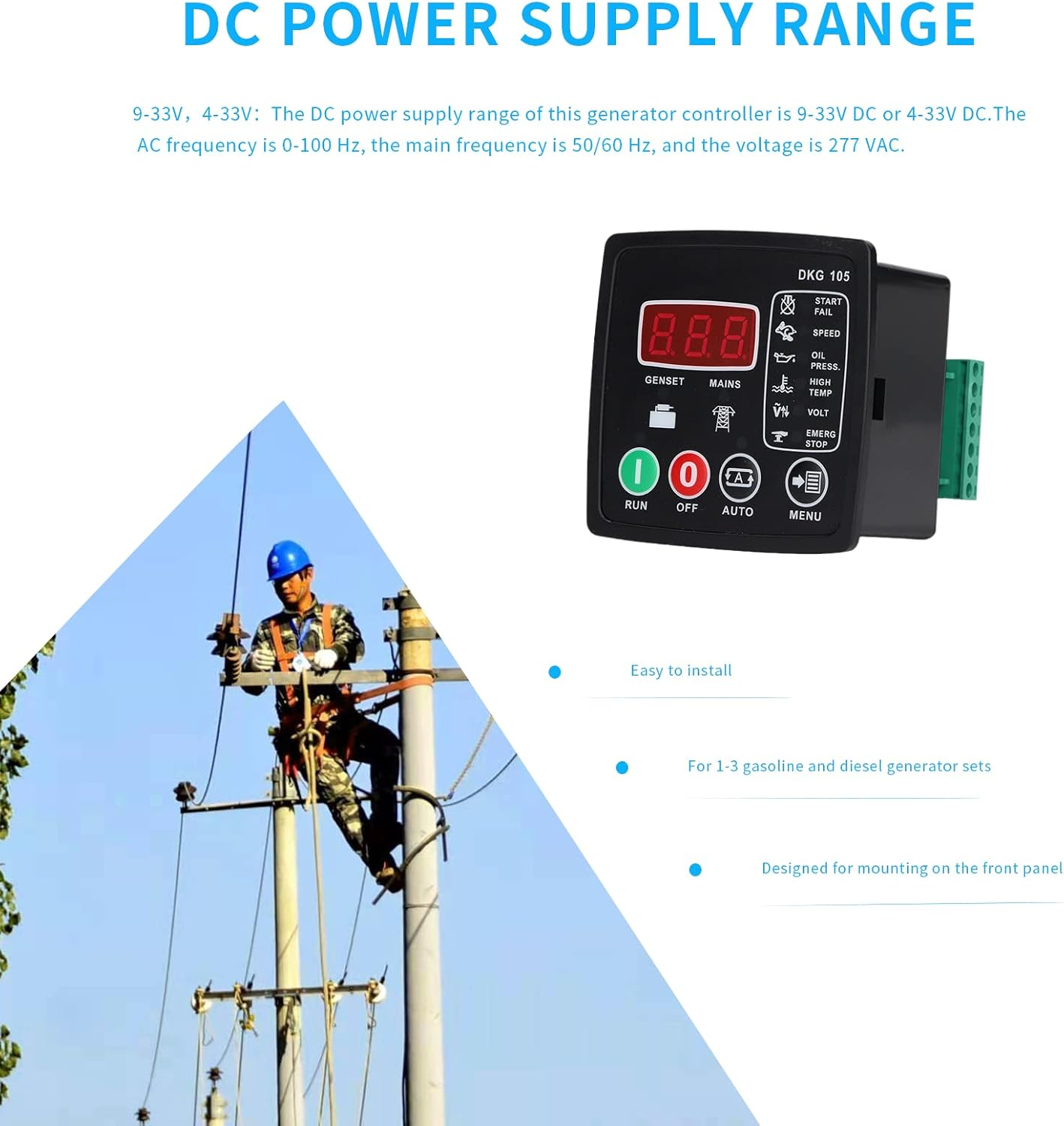

- 9-33V，4-33V：The DC power supply range of this generator controller is 9-33V DC or 4-33V DC.The AC frequency is 0-100 Hz, the main frequency is 50/60 Hz, and the voltage is 277 VAC.

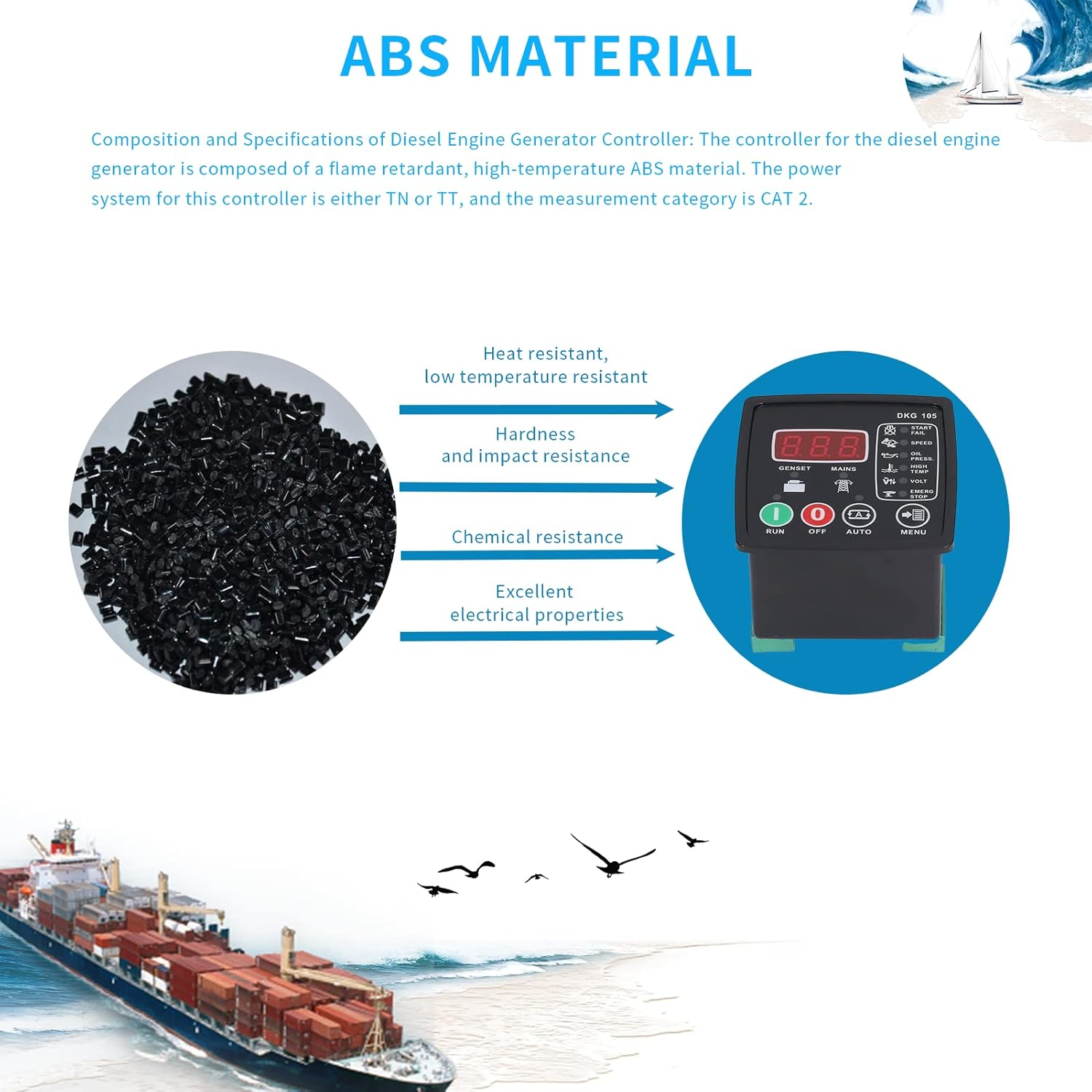

- ABS MATERIAL：The generator controller is made of flame retardant and high temperature ABS material.The power system type of the generator controller is TN or TT, and the measurement category is CAT 2.
- FOR GENERATOR： engine generator controller is designed to be installed on the front panel of the generator and communicate with the ship or generator equipment through the controller.It can be used in ships, electric power ect.
Product Description
- 8 * 8 * 7CM, 241G：Diesel engine generator controller size is about 8 * 8 * 7cm, and the weight is about 241g.The installation opening size of this generator controller shall be at least 68x68mm.
Generator Controller
Power Supply: 277 VAC (Ph N). Main Frequency: 50 60 Hz. Type of Power System: TN or TT. AC Generator. Voltage: 277 VAC(Ph-N). AC Frequency: 0-100 Hz. Measurement Category: CAT 2. Dc Power Supply Range: 9-33V DC 4.0-33V DC. The Current Consumption of Crank: 60 mADC Typical (Automatic Mode, Normal Power Supply) Up to 200mADC (Relay Output On). Total DC Current Output Rating: 10 ADC.
- Storage Temperature Range:-30℃ (-22℃) to 80℃ (176°F) Maximum Humidity: 95% Non Condensation.
DIESEL ENGINE ELECTRONICS CONTROLLER
Generator Engine Controller
- DKG105 DIESEL ENGINE：Generator controller is applicable to DKG105 diesel engine, and can also be used for grade 1 to 3 gasoline and diesel generator sets.It can automatically start or stop the generator.
- 9-33V，4-33V：The DC power supply range of this generator controller is 9-33V DC or 4-33V DC.The AC frequency is 0-100 Hz, the main frequency is 50/60 Hz, and the voltage is 277 VAC.
- Total AC Current Output Level: 10 AAC Current Level of Each Output Terminal: 10 ARMS Operating Temperature Range:-20℃ (-4°F) to 70℃ (158°F)
- Installation Opening Size: Approx. 68x68mm / 2.68x2.68in (Minimum) Phase Voltage: 2%+1V Generator Frequency: +/-0.5Hz
- Purpose: It is commonly used in ships, electric power, communication, and places where generators are needed.
- ABS MATERIAL：The diesel generator controller is made of flame retardant and high temperature ABS material.The power system type of the generator controller is TN or TT, and the measurement category is CAT 2.
- FOR GENERATOR：Diesel engine generator controller is designed to be installed on the front panel of the generator and communicate with the ship or generator equipment through the controller.It can be used in ships, electric power ect.
- Batteries required: No
