Specification:

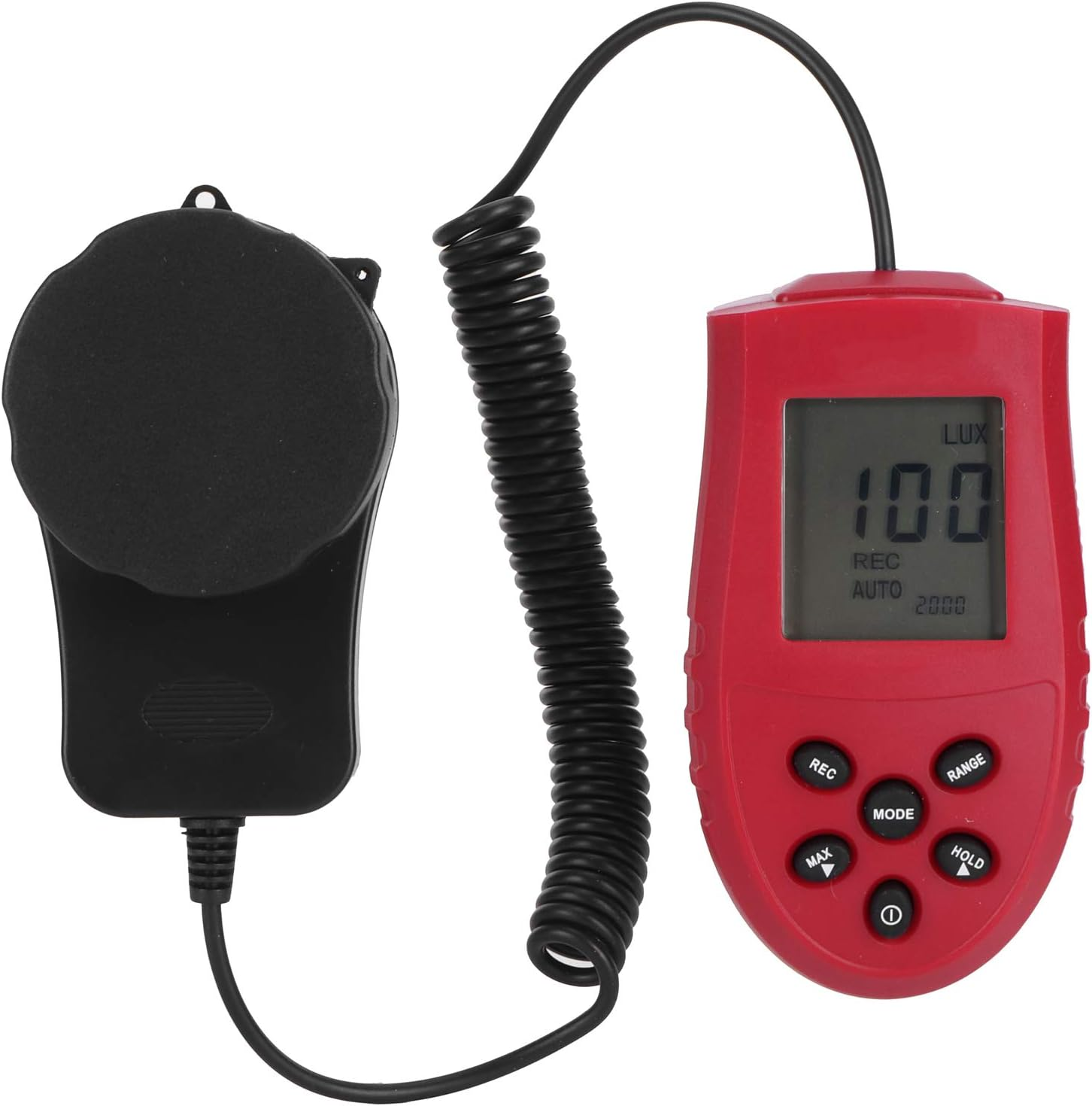

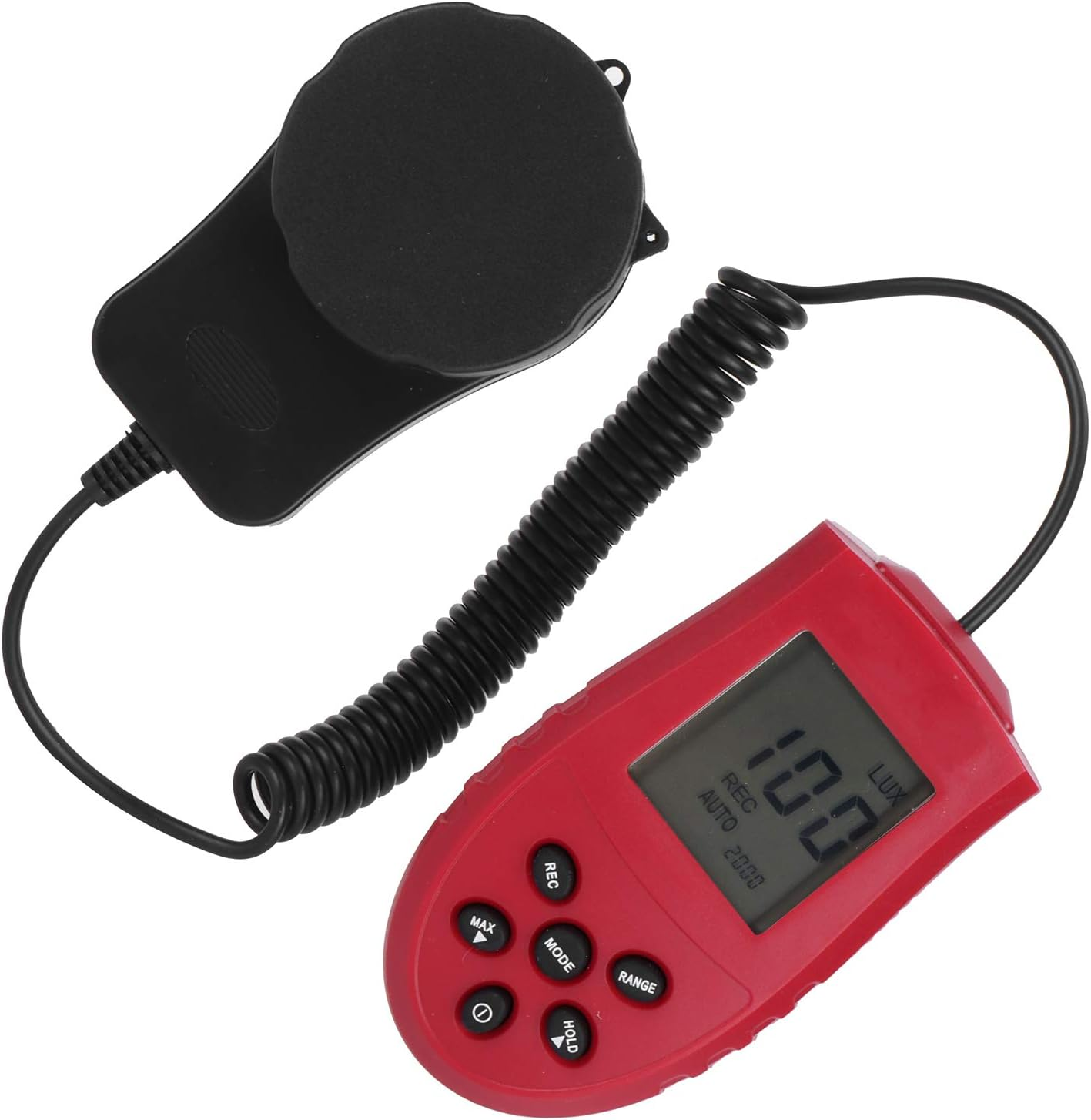

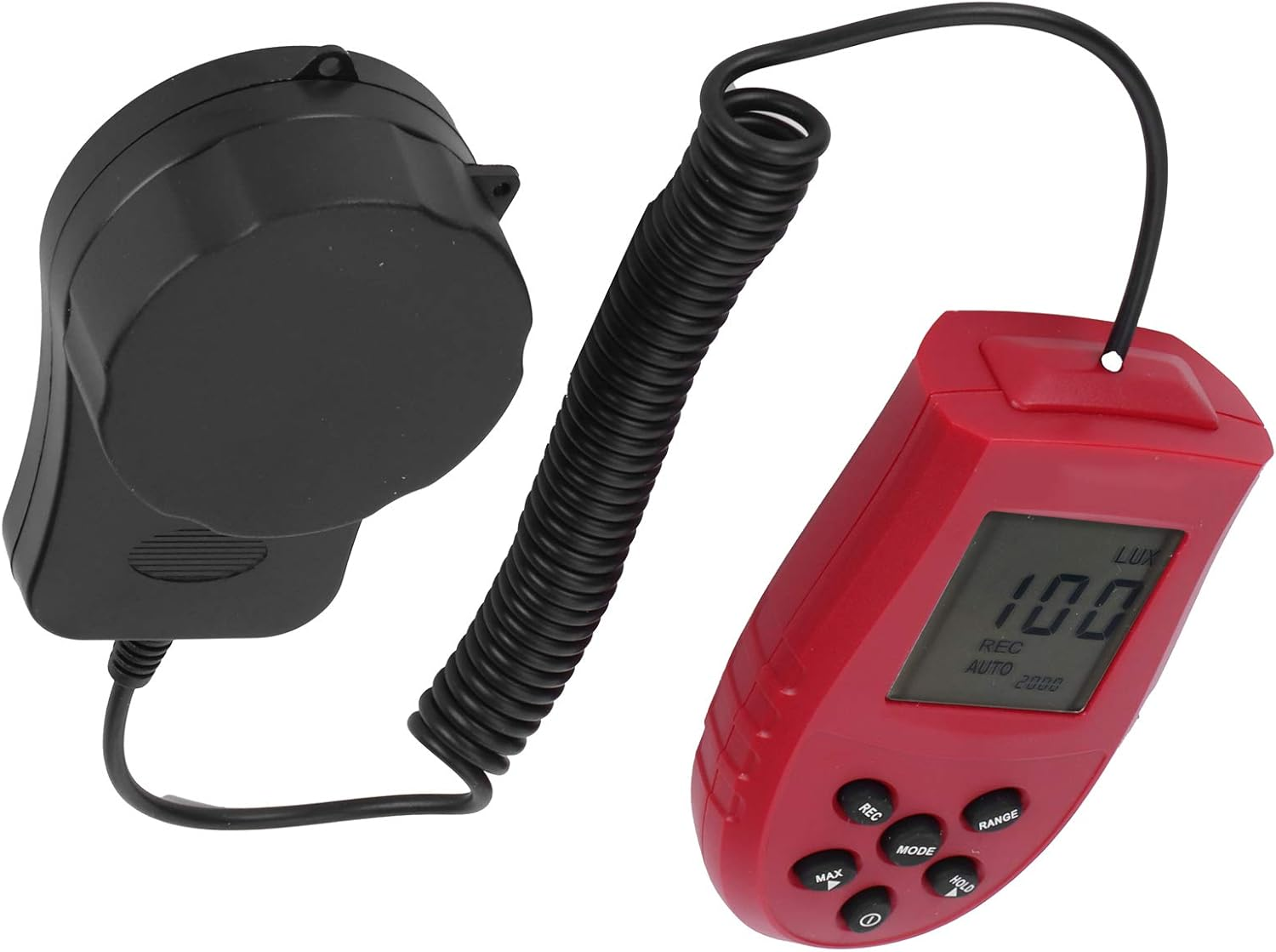

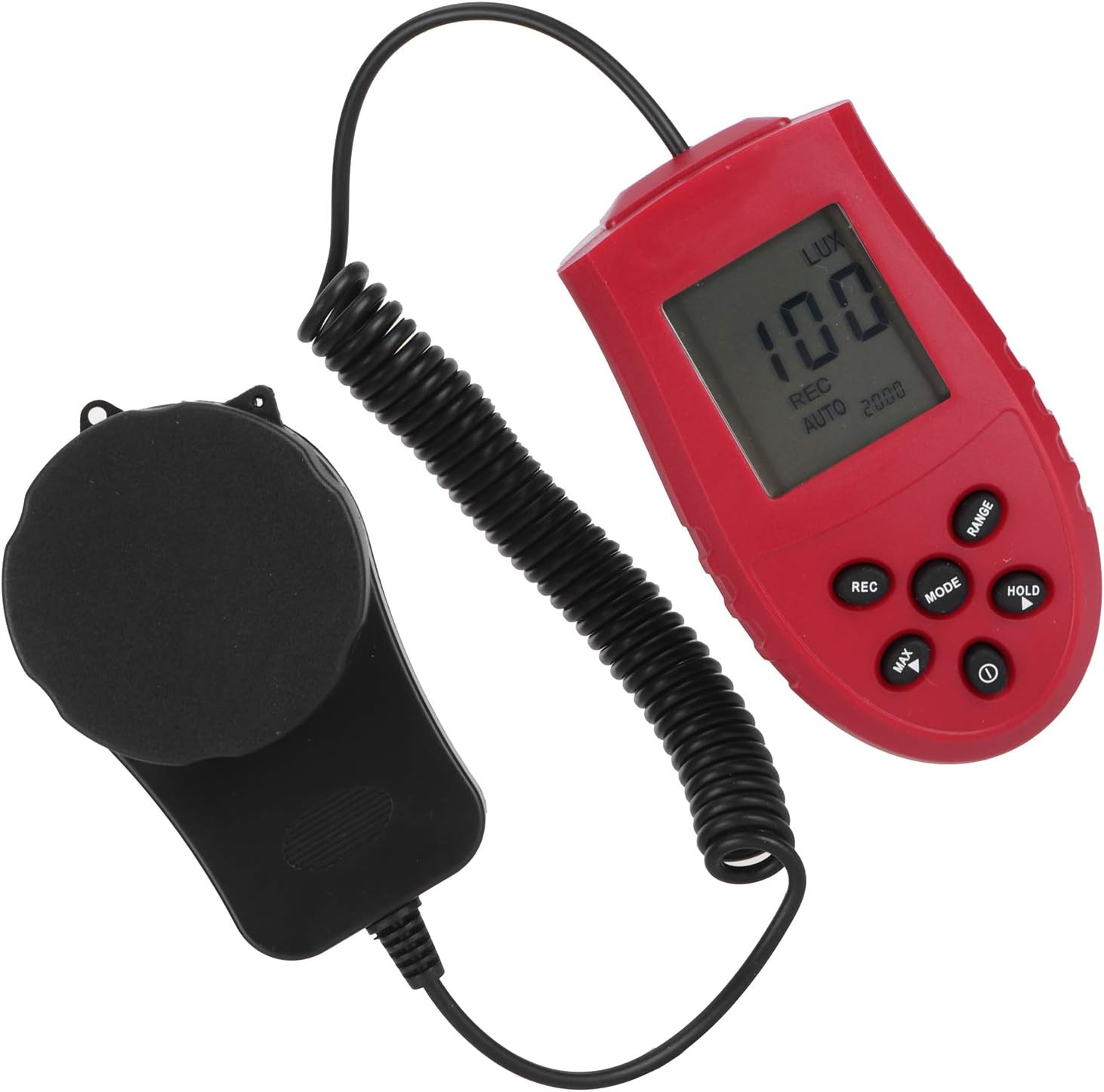

Item Type: Luminometer
Material: Plastic
Color: As shown in the picture
Weight: Approx.194g/6.8oz
Unit of Measurement: Lx / FC unit
Display Resolution: 0.1Lx/0.01FC

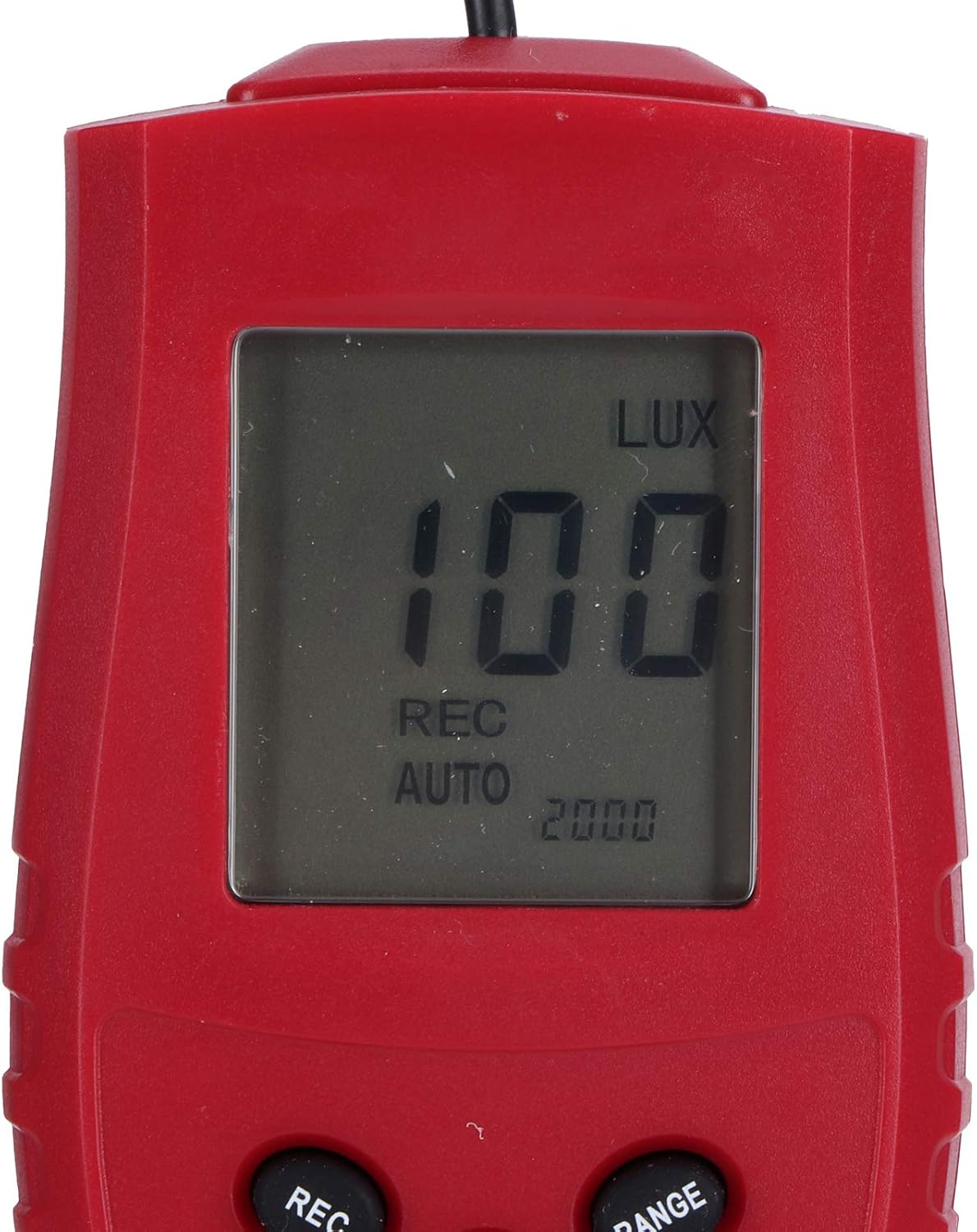

Display: 3 1/2 digit LCD display
Measuring Range: 1Lx-200,000Lx
Sampling Rate: 2.0 times/sec
Repeat Test: ±2%
Temperature Characteristics: ±0.1%°C
Photosensitive Film: Photodiode with filter lens

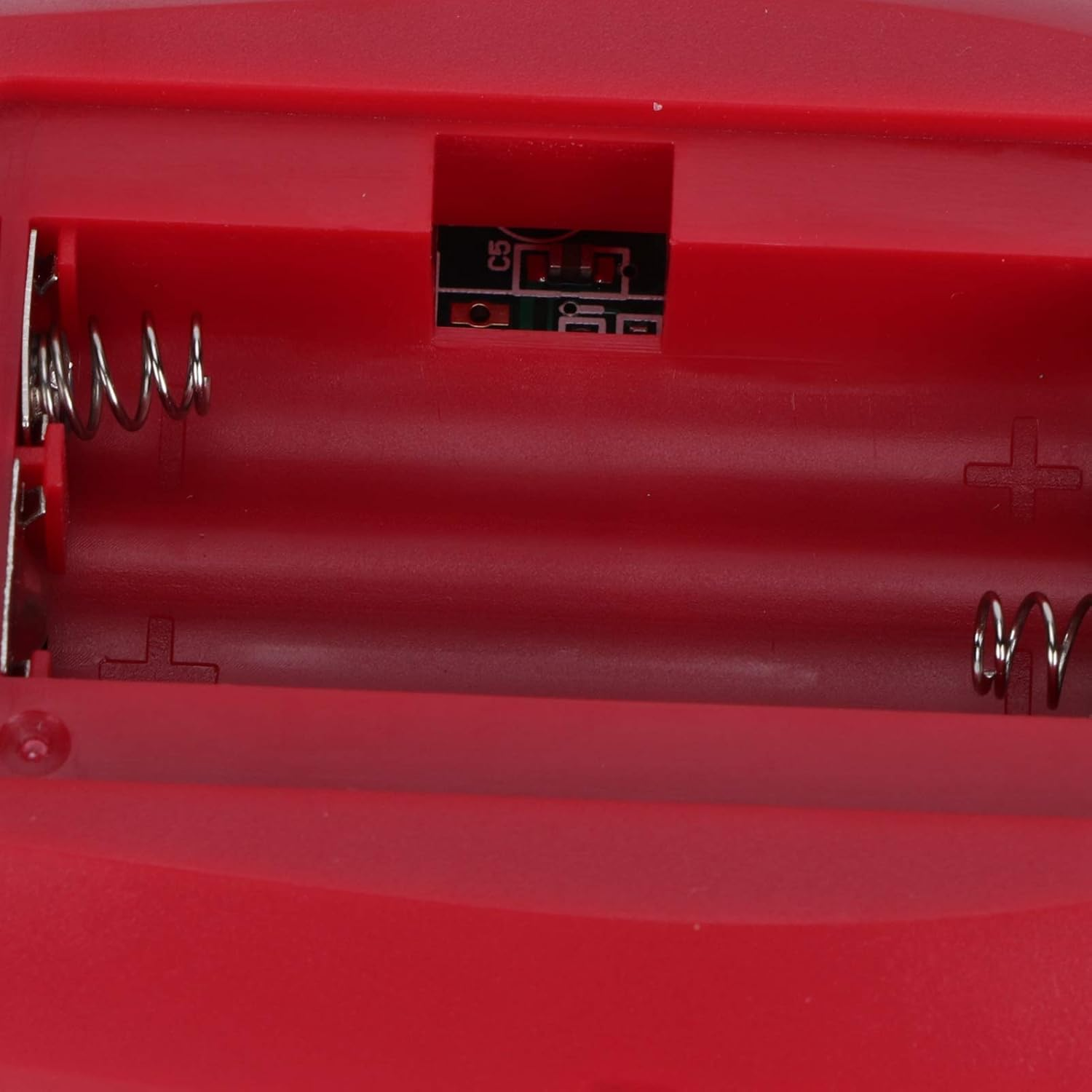

Power Supply: 2 x AAA batteries (not included)

How to Use:

1. Power switch button: Press the power button to switch the power ON/OFF.
2. Maximum/minimum measurement selection button: Press the MAXIMUM button once, the LCD screen displays the MAXIMUM symbol, enter the maximum measurement function, only the maximum value during the measurement process is displayed; press again, the LCD screen displays the MIN symbol , Enter the minimum value measurement function, only the minimum value in the measurement process is displayed; press the MIN key again, the MIN symbol disappears, and the real-time measurement data is displayed.
3. Measurement data hold function key: Press the hold key once, the LCD screen displays the 8 symbol, the measurement data is locked, and the illuminance measurement cannot be performed; press the 8 key again to cancel the lock, the symbol disappears, and the illuminance is measured again.

Package List:

1 x Luminometer(Battery Not Included)

1 x Instruction Manual
