Feature:

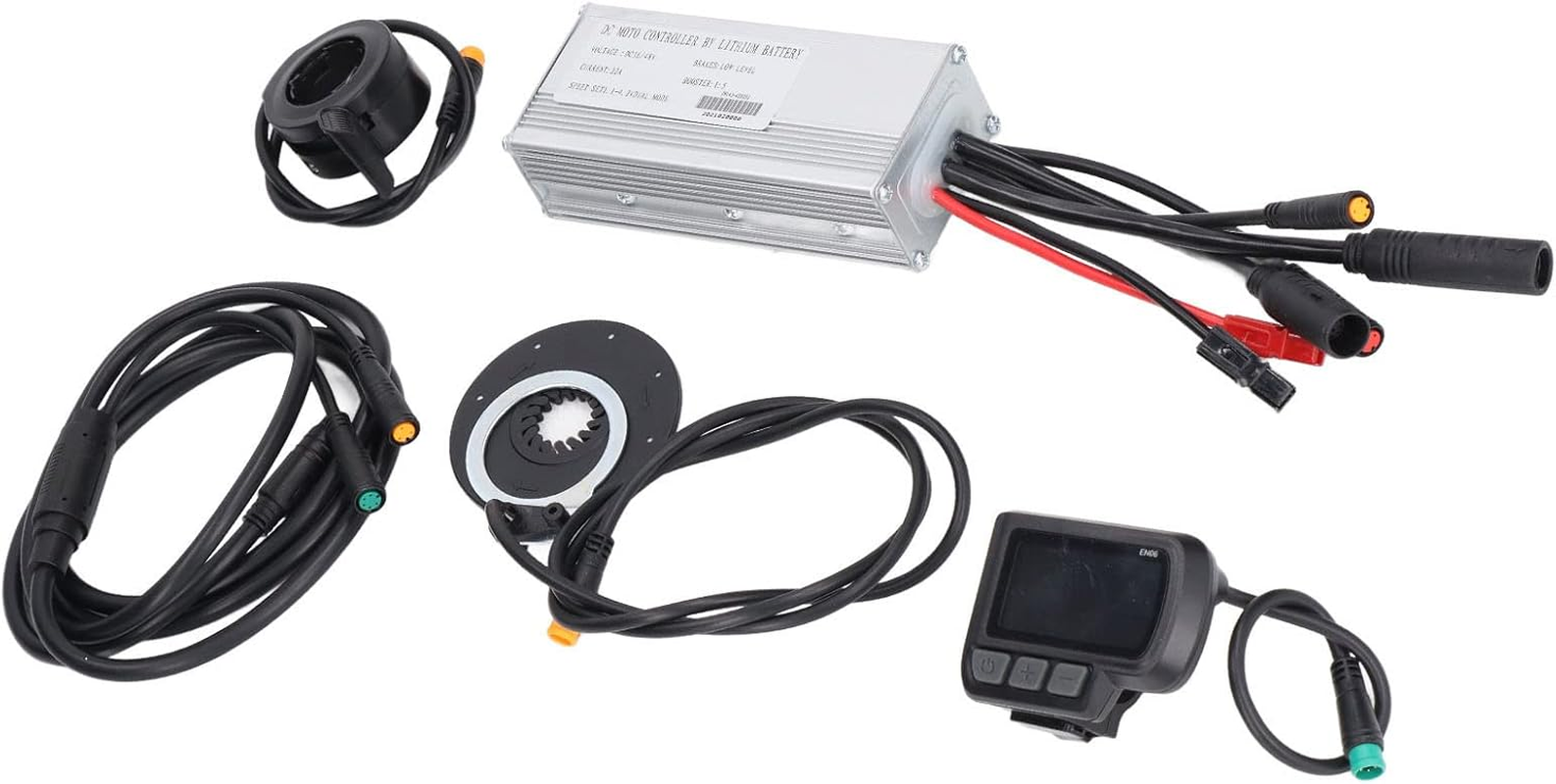

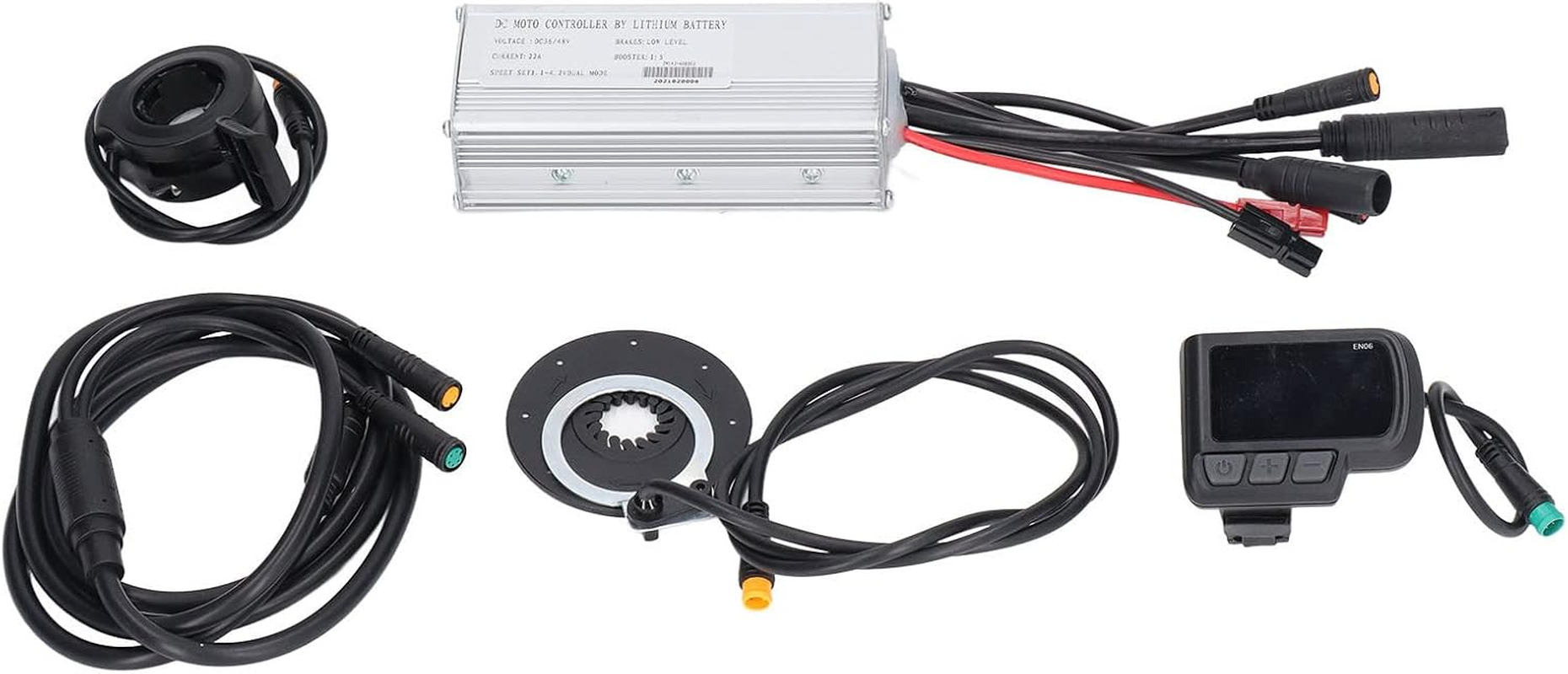

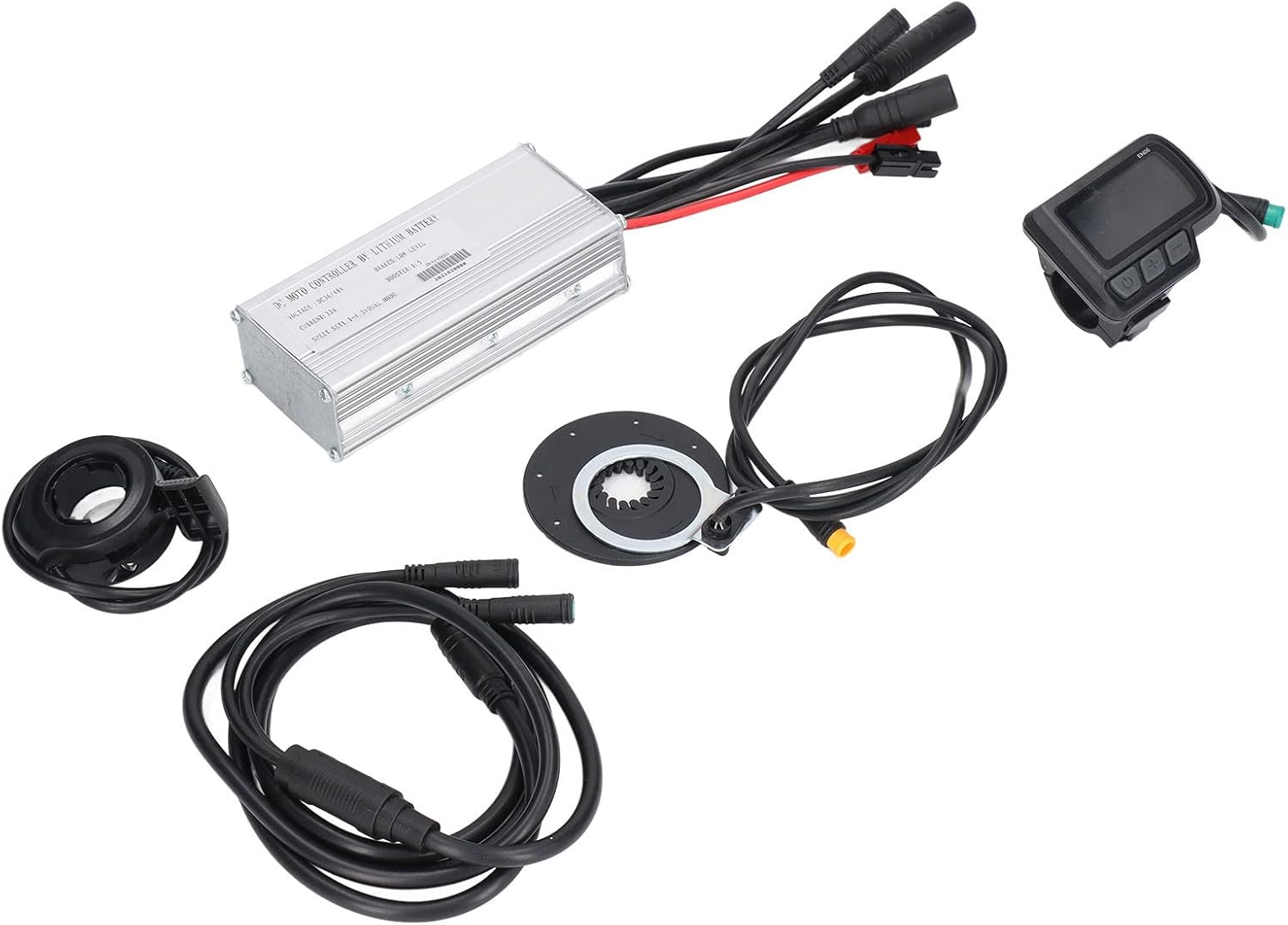

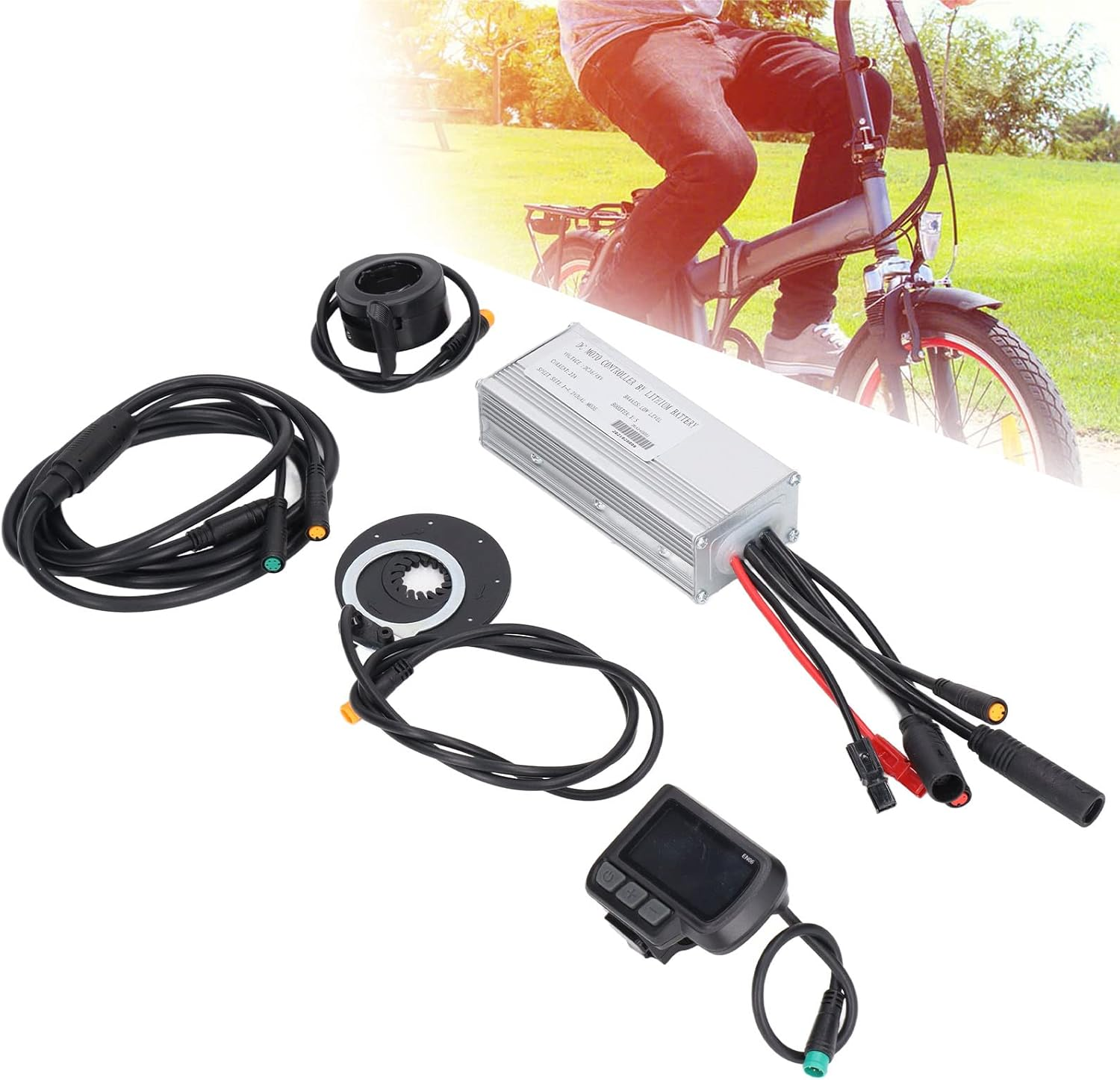

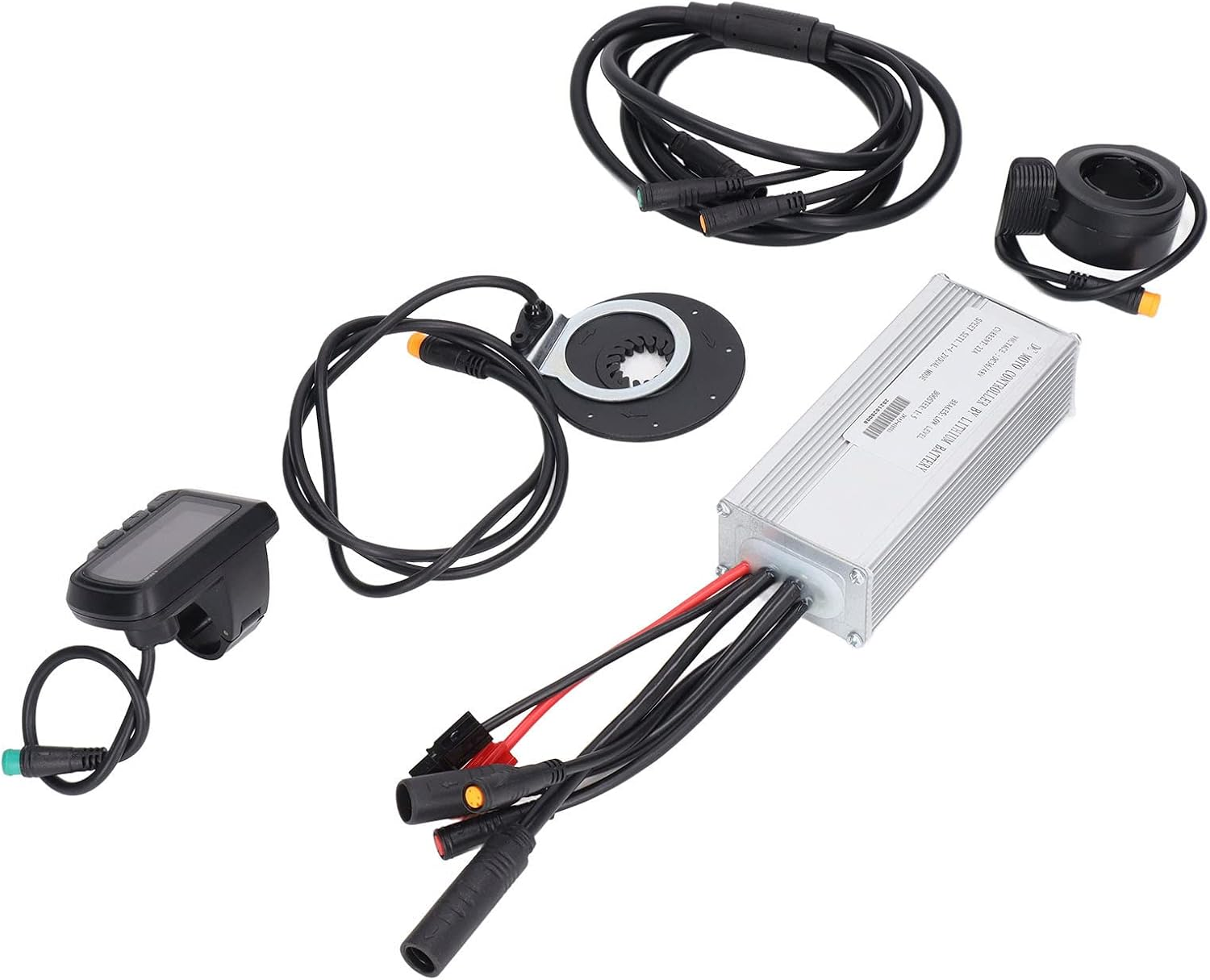

1. Fully Configured: Bike lithium battery modification controller kit includes 22A controller, EN06 meter, 1 to 2 connecting line, throttle dial, power assist sensor wiring and power assist sensor boosting sheet.
2. Metal Shell: The controller shell is made of high quality metal material with grooved design, it prevents the internal circuit from thermal overload due to good heat dissipation.
3. EN06 Meter: The meter is made of high quality ABS material, which is light, strong and durable, with fine workmanship, good toughness and waterproof performance, providing better protection.
How to Use:
Connect the wires in sequence, please refer to the manual for details.
Specification:
Item Type: Bike Lithium Battery Modified Controller Kit
Material: ABS, rubber, aluminum alloy, metal
Gross Weight: 668g / 23.6oz
Controller Rated Voltage: DC 36V 48V
Controller Current: 22A
Controller Speed Setting: 1.1-4.2V
Controller Brake Input: Low level
Supercharger: 1:5
Applicable Motor Power: 500W
Brake: Input low level
Controller Line Definition:
1. Red, Black Single Wire: 2pcs power wire
2. Black Wire (2pin): light wire
3. Black Wire (3pin): power sensor wire
4. Black Wire (9pin): 1 to 2 wire
5. Black Wire (9pin): motor wire
Package List:
1 x Controller
1 x EN06 Meter (Including Bracket and Connector)
1 x 1 to 2 Connecting Line
1 x Throttle Dial
1 x Power Assist Sensor Wiring
1 x Power Assist Sensor Boosting Sheet
1 x Manual
Note:
Note that the communication protocol is UART.
