E-TING 42PCS Solar Panel Connector IP67 Waterproof Solar Connectors 1000V 30A Male/Female Plug with 2PCS Wrench Spanners (10 Pairs)
E-TING 42PCS Solar Panel Connector IP67 Waterproof Solar Connectors 1000V 30A Male/Female Plug with 2PCS Wrench Spanners (10 Pairs)
Brand: E-TING
A$21.00

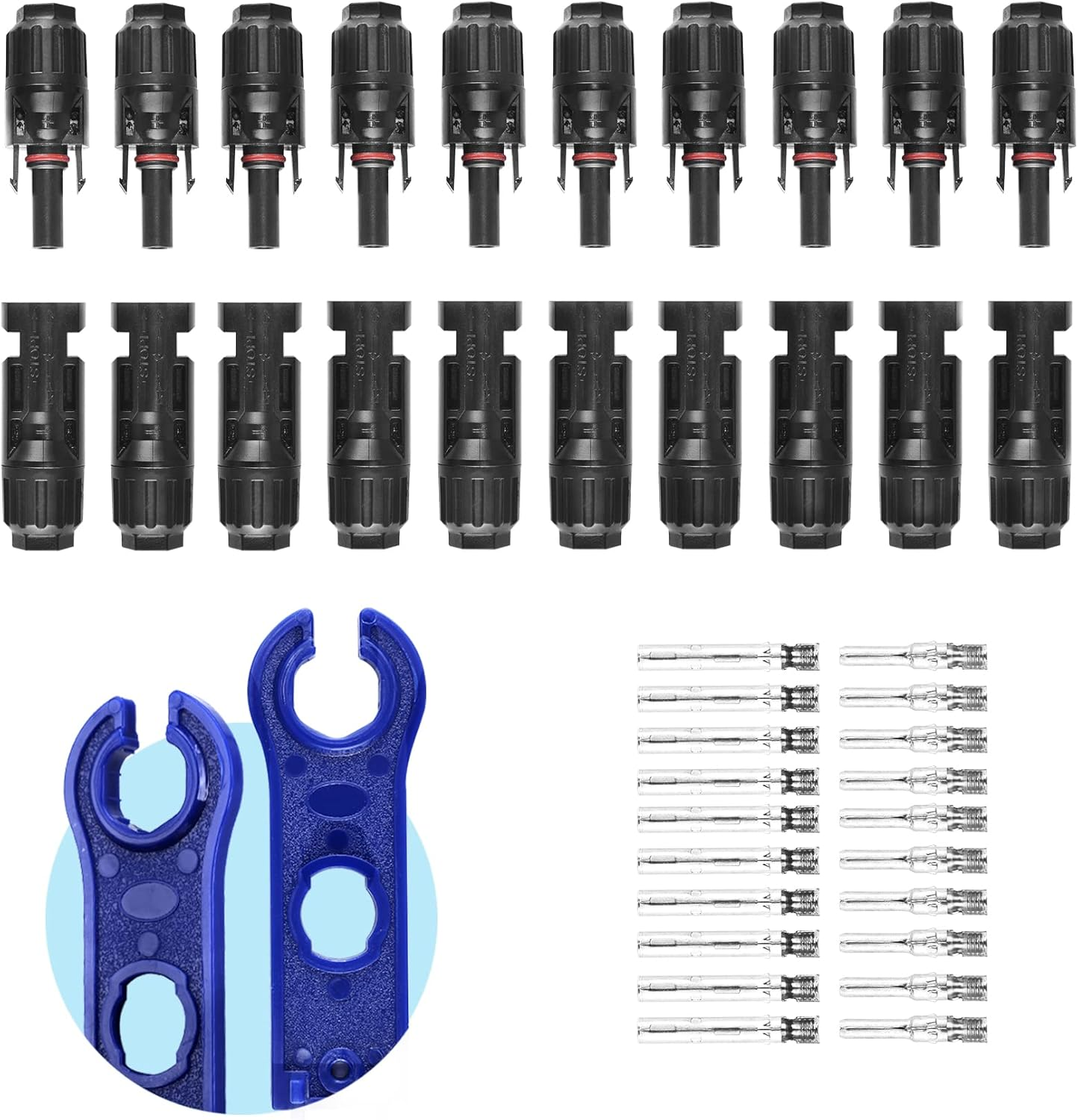

- 【Package Contents】Comes with 10 pairs solar panel connectors Male & Female + 10 pairs solar connector pins (male & female) + 2pcs spanners.
- 【Compatible Cable】Compatible with PV cables with different insulation diameters (2.5m㎡~6m㎡/AWG14-10).
- 【Product Features】Operating temperature: -40℉ to 257℉; Rated voltage: 1000V DC; Rated Current: 30A.
- 【Waterproof & Dustproof】Design with sealing ring for dust resistance and waterproof, degree of waterproof is IP67; Flamebility rating is UL94-V0.
- 【Premium Material】Made of PPO insulation material, contact material is tin-plated copper. PPO material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain, snowstorm or heat for a long time.
Product Details
Rated voltage 1000V DC
Rated current: 30A
Test voltage: 6KV(50Hz)
Waterproof degree: IP67
Insulation material: PPO
Contact material: Red Copper sliver plated
Operating temperature: -40°C~+125°C
Safe class:II
Flame class: UL94-VO
Contact resistance of plug connectors: ≤5mΩ
Insertion force: ≤60N
Withdraw force: ≥89N
Suitable cable:
2.5mm²/4mm²/6mm²(AWG14/12/10)
Locking system: Snap in

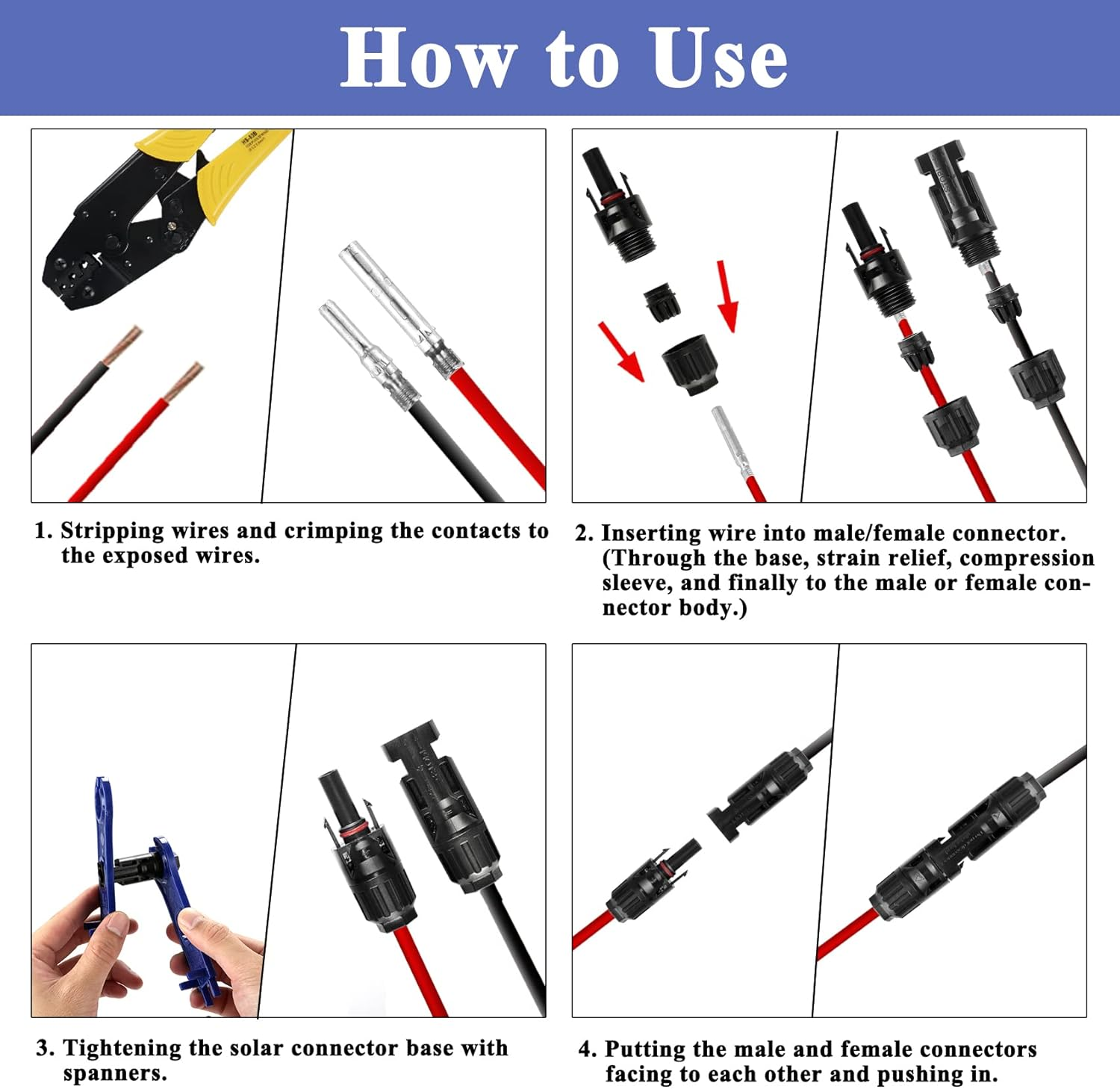

Connecting system: crimping connection
- Item Model Number: Solar Panel Connectors
- Batteries Required?: No
- Product dimensions: 1.8 x 1.8 x 5.5 cm; 230 Grams
- Material: PPO, Tin-plated Copper
- Country of origin: Switzerland
- Item Weight: 230 g
- Amperage Capacity: 3E+1 Amps
- Included Components: Wrench, Bag, Solar Panel Connectors, Pins Terminals, Crimper
- Manufacturer: E-TING
