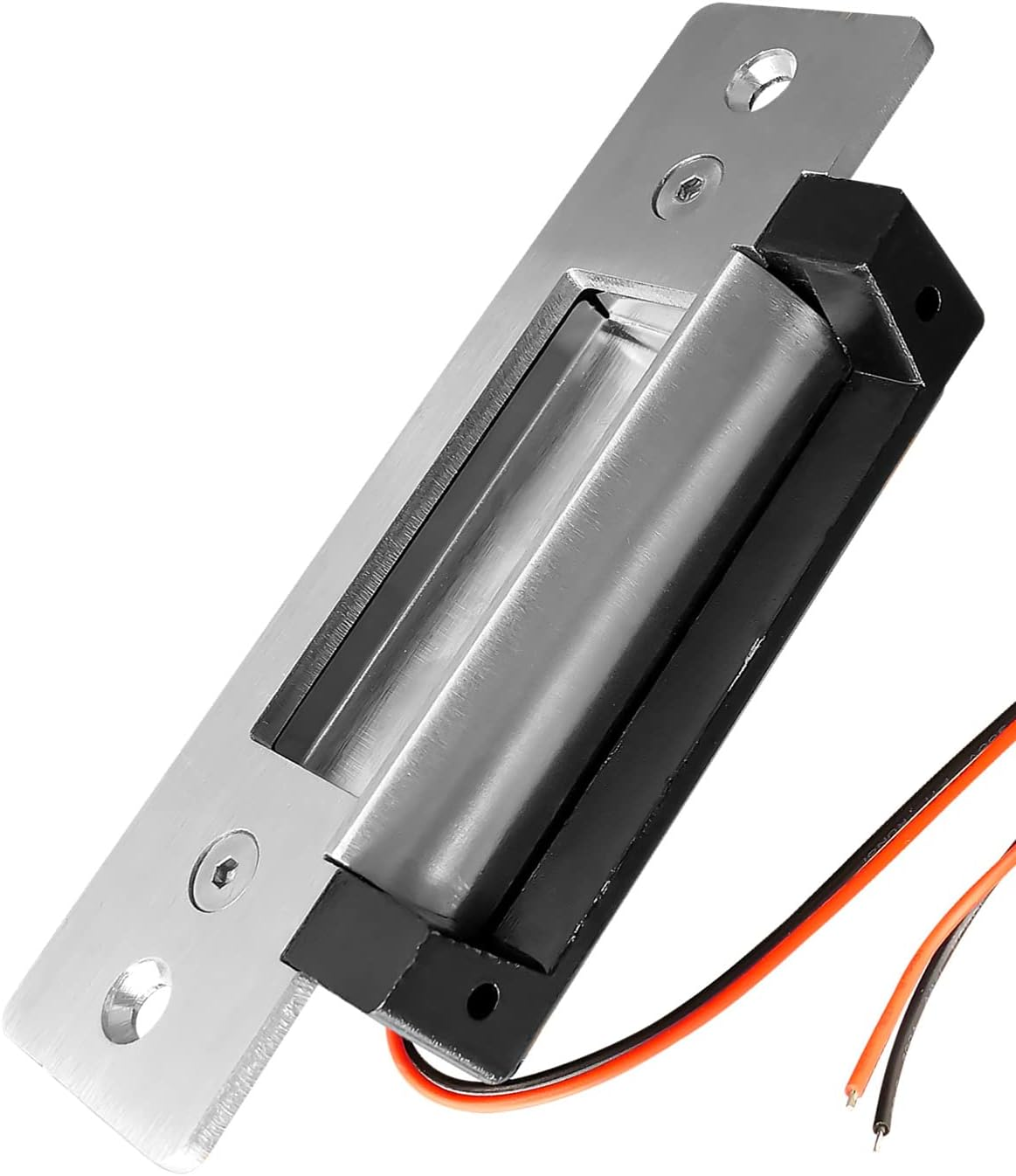

EMIHO Heavy Duty Electric Strike Lock ANSI Standard Fail-Secure/Fail-Safe Adjustable Fit for DC Electric Door Lock Door Access Control System Mortise or Cylindrical Lock, Input Voltage 12VDC
EMIHO Heavy Duty Electric Strike Lock ANSI Standard Fail-Secure/Fail-Safe Adjustable Fit for DC Electric Door Lock Door Access Control System Mortise or Cylindrical Lock, Input Voltage 12VDC
Brand: EMIHO
A$54.60
- Compatible Models: Heavy duty electric door locks can be used in access control systems, cylinder locks, mechanical locks. This electric door lock can be used to convert a cylinder lock into an electronic access lock system. Voltage : DC12V
- Good Performance: The maximum impact resistance is 1000kg/2200lbs after electrification, tested to 500000 cycles. The precision casting rotary shaft switch is flexible, made of all copper coils, with high hardness, low power consumption, and low heat generation. It is treated with white nickel electroplating, safe and flexible
- High Quality Material: Electric door stricke is made of high-quality stainless steel material and features a 3MM thick stainless steel panel with wire drawing treatment. Zinc alloy integrated lock body, baked paint process, sturdy and durable, with longer service life
- 2 modes: Electric door strike lock provides fail safe (NC Mode) and fail secure (NO Mode) modes. Fail Safe(NC): When power off, the door is in the open status. Fail Secure(NO): When power off, the door is in the closed status. Make your choices more diverse
- Easy to Install: DC electric door locks are easy to install. Please pull down to see the specific installation steps. If you have any questions about the product or installation, please contact our technical team
Installation Steps:
1. Determine the position of the locking tongue and cut out the locking tongue groove
2. Drill out the vacancy of the extension piece according to the determined position and chamfer the vacancy of the extension piece
3. Insert the extension piece from the slot and tighten the screws
4. Install the electrical lock and screw in the screws, and the installation is complete

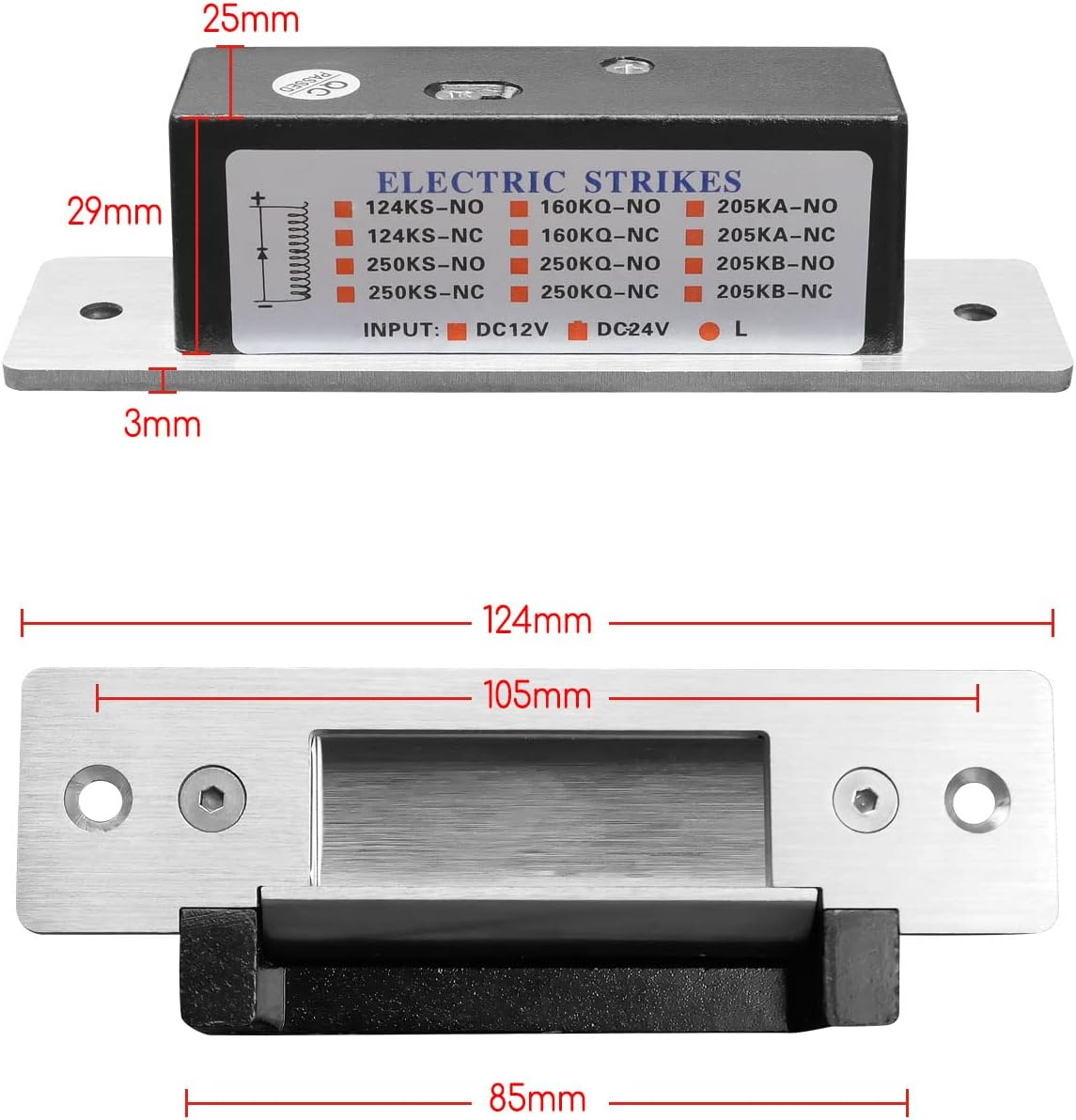

Specification:
Product Name: DC Electric Door Locks
Product type: Electric door locks
Input voltage: DC12V
Working current 240MA
Thrust bearing: 1000KG
Product Material: Stainless steel+zinc alloy

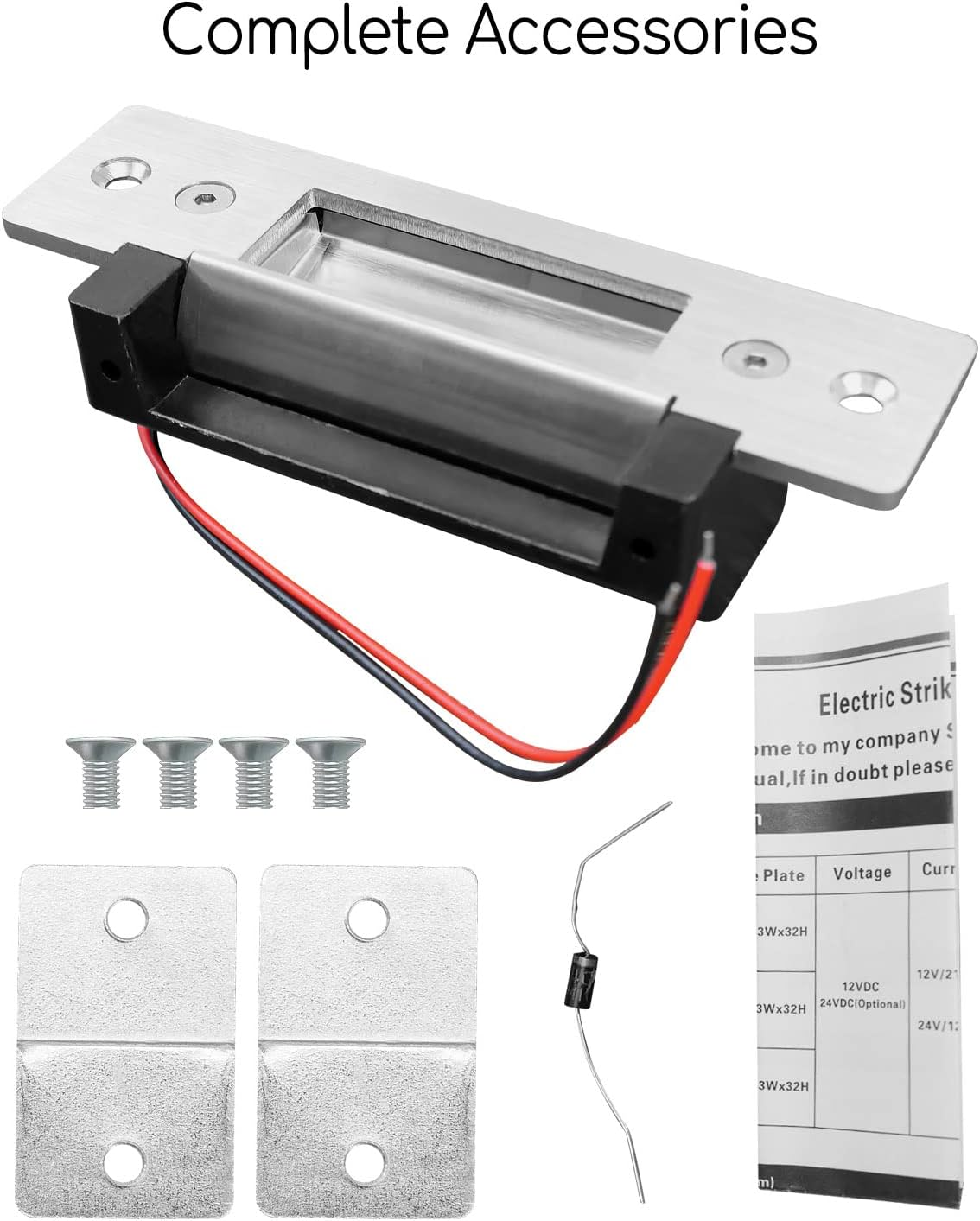

Package Include:
1 x Electric Lock
1 x Diode
2 x Mounting Tabs
2 x Screw
1 x Manual
- Item Model Number: KFMSDD010427
- Part Number: KFMSDD010427
- Style: Electric Strike Lock
- Finish: Painted
- Item Package Quantity: 1
- Included Components: User Manual, Screws
- Material: Stainless Steel Zinc
- Batteries Required?: No
- Item Weight: 381 g
- Shape: Rectangular
- Batteries Included?: No
- Special Features: Adjustable Fit
- Number Of Pieces: 6
- Package Dimensions: 19.2 x 5.31 x 3.91 cm; 381 Grams
- Manufacturer: EMIHOus
