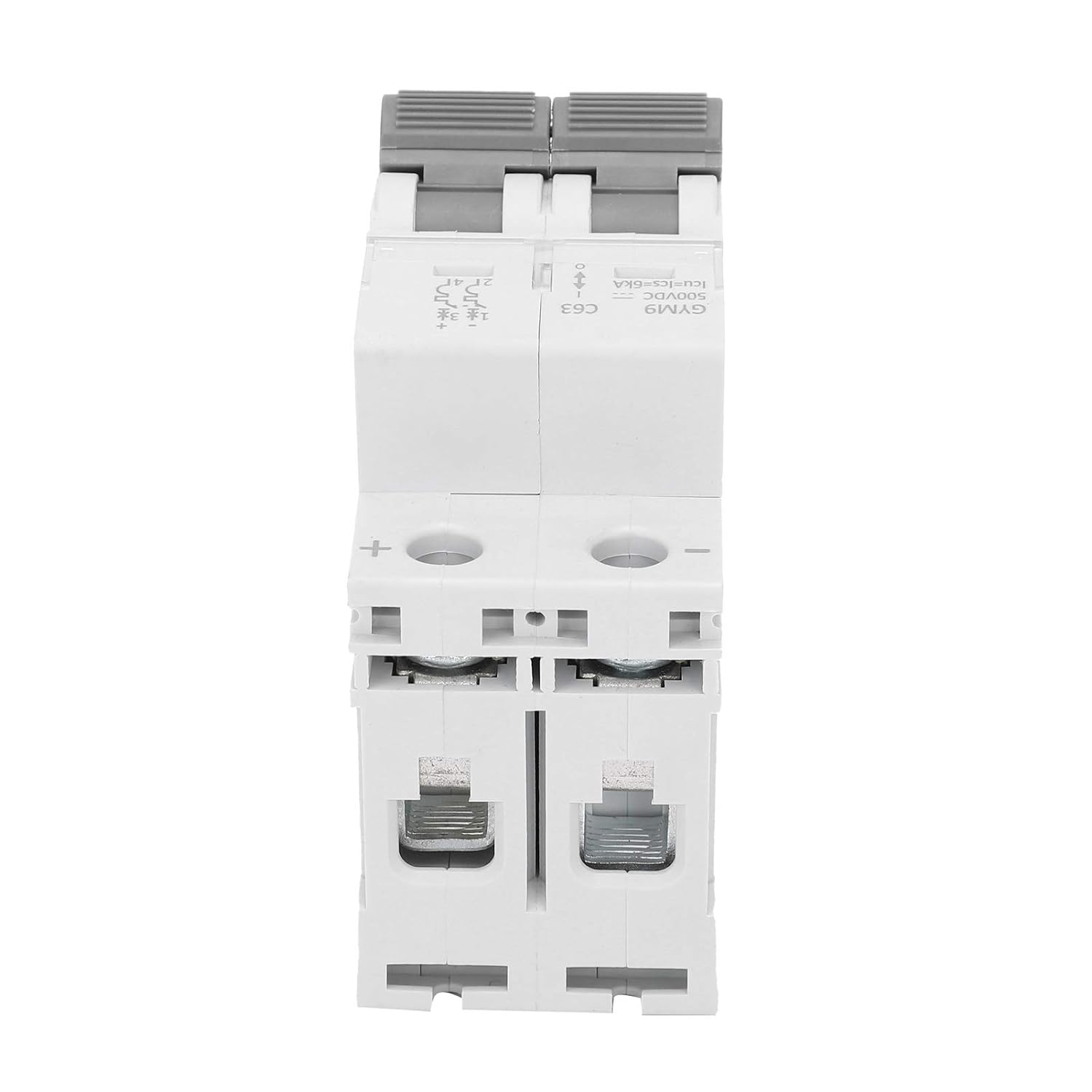

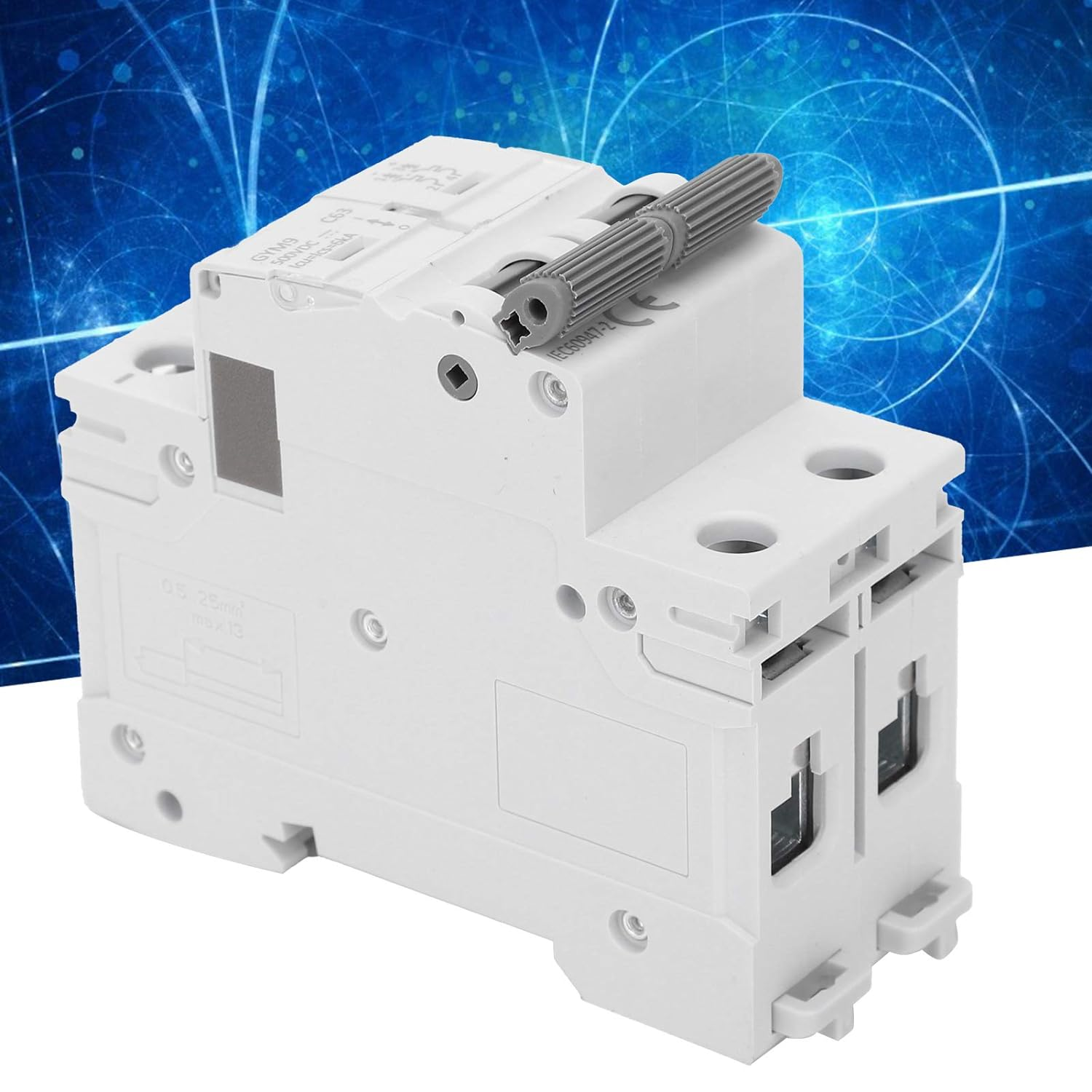

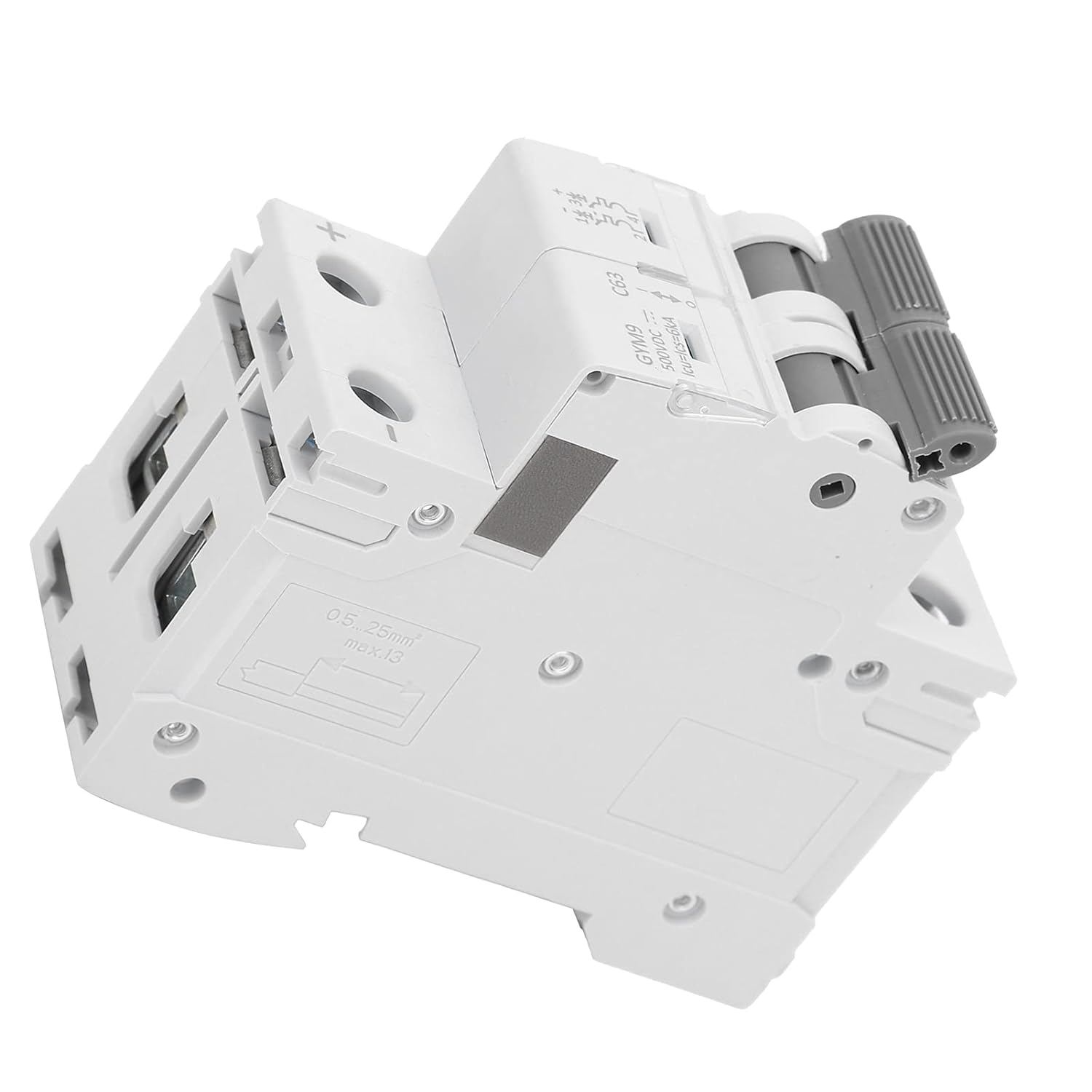

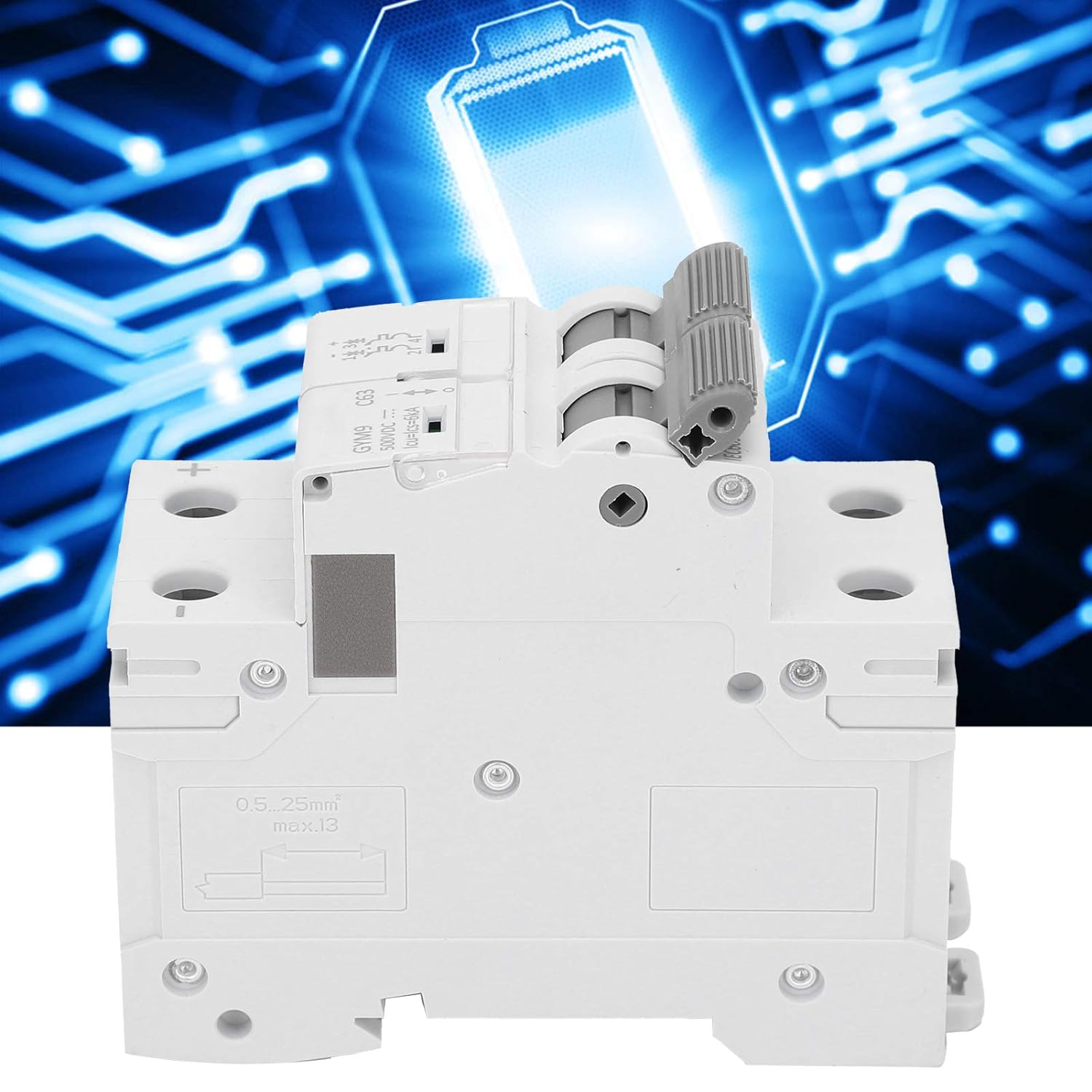

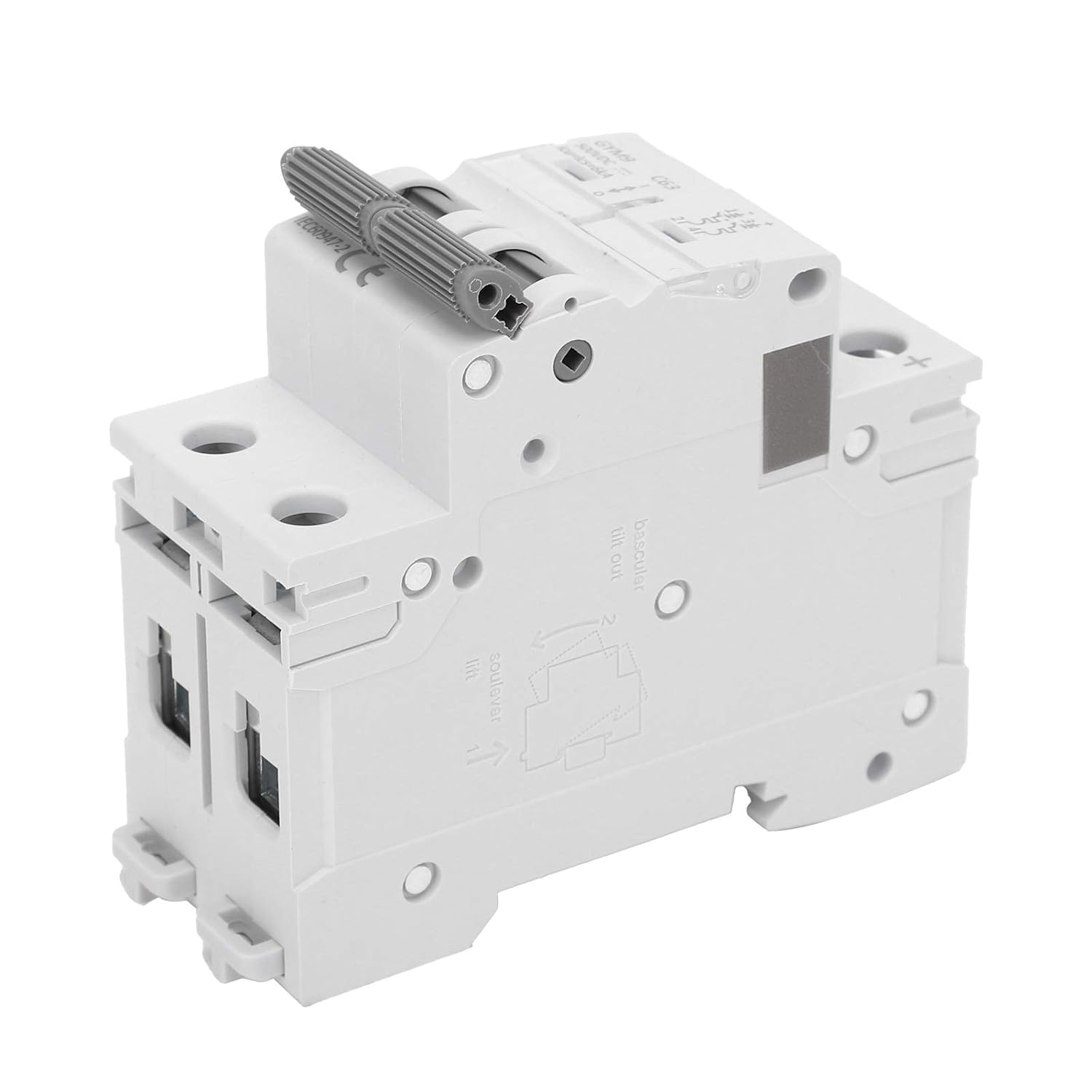

DC Miniature Circuit Breaker, 2 Pole 63 Amp 500V IC65N Isolator for Solar PV System and Other DC System,Thermal Magnetic Trip, Din Rail Mount, DC Disconnect Switch C40
DC Miniature Circuit Breaker, 2 Pole 63 Amp 500V IC65N Isolator for Solar PV System and Other DC System,Thermal Magnetic Trip, Din Rail Mount, DC Disconnect Switch C40
Brand: Alvinlite
A$34.25

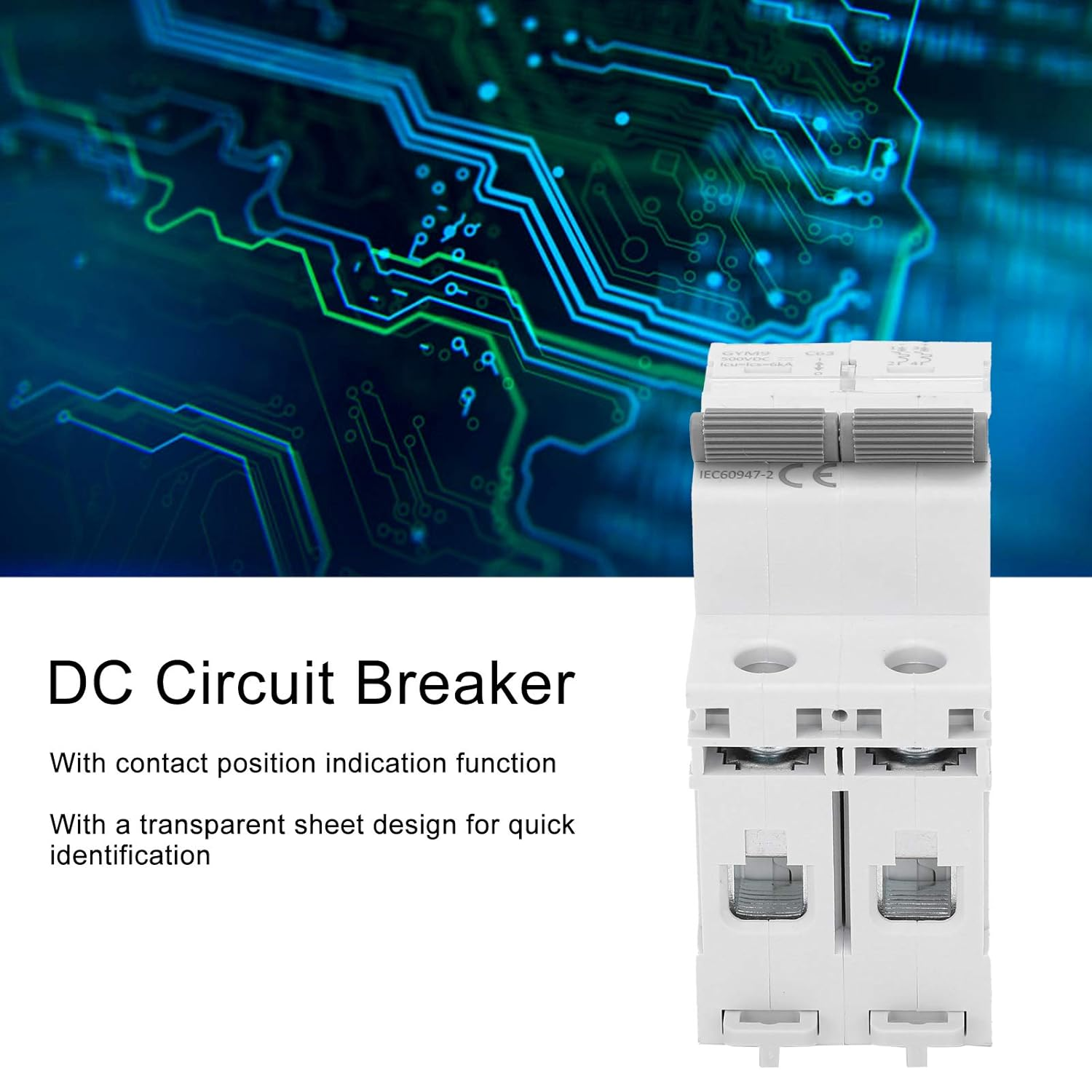

- The product has the function of contact position indication, with a transparent sheet design, which is convenient for customers to quickly identify.
- With a double return row design, which is convenient for customers to connect quickly.
- Has a fast closing function to ensure reliable operation of impact loads and prolong the service life of the circuit breaker.
- There are 3 wiring methods: wire and cable / U‑shaped female cable / pin‑shaped female cable .
- Small size, easy to carry and store, convenient to use and with good performance.
Product Description
1、The product has the function of contact position indication, with a transparent sheet design, which is convenient for customers to quickly identify.
2、With a double return row design, which is convenient for customers to connect quickly.
3、Has a fast closing function to ensure reliable operation of impact loads and prolong the service life of the circuit breaker.
Rated Impulse Withstand Voltage: 6kV Power Frequency Withstand Voltage (1min): 2kV Pollution Degree: 2 Trip Curve: B: 6In ± 20%: C: 12In ± 20% Mechanical Life: 10000 Mechanical Characteristics: Contact Indication: Yes
Protection Level: IP20 Adjusting Temperature: 30℃ Ambient Temperature (average Daily Temperature s35℃): -5~+40℃ Storage Temperature: -25-+70℃
Connection Method:
Wire and cable / U‑shaped female cable / pin‑shaped female cable .
Wire Connection Specification (up/down): 25mm²18-3 Torsion: 3.0N m, 22
Installation: DIN60715 (35mm) standard rail Wiring: Refer to the wiring diagram
- Rated Current: 1-63A
- Number of Poles: 2P
- Rated Voltage: 2P: 500V
- Insulation Voltage: 1000V
- Rated Breaking Capacity: 6000A
- Manufacturer: Alvinlite
