Signal fire fiber fusion splicer is designed with core alignment technology W/ auto focus and 6 motors. 8 seconds splicing and 18 seconds heating time makes your working efficiency increased by 50% compared to ordinary splicing machines.

This fiber cleaver kit is suits for SM(G. 652&G. 657)、MM (G. 651)、DS(G. 657)、NZDS (G. 655), bare fiber, pigtail, rubber-insulated, multi fiber cable; Splice Loss: 0.025dB (SM) 、0. 01dB (MM) 0. 04dB (DS/NZDS).

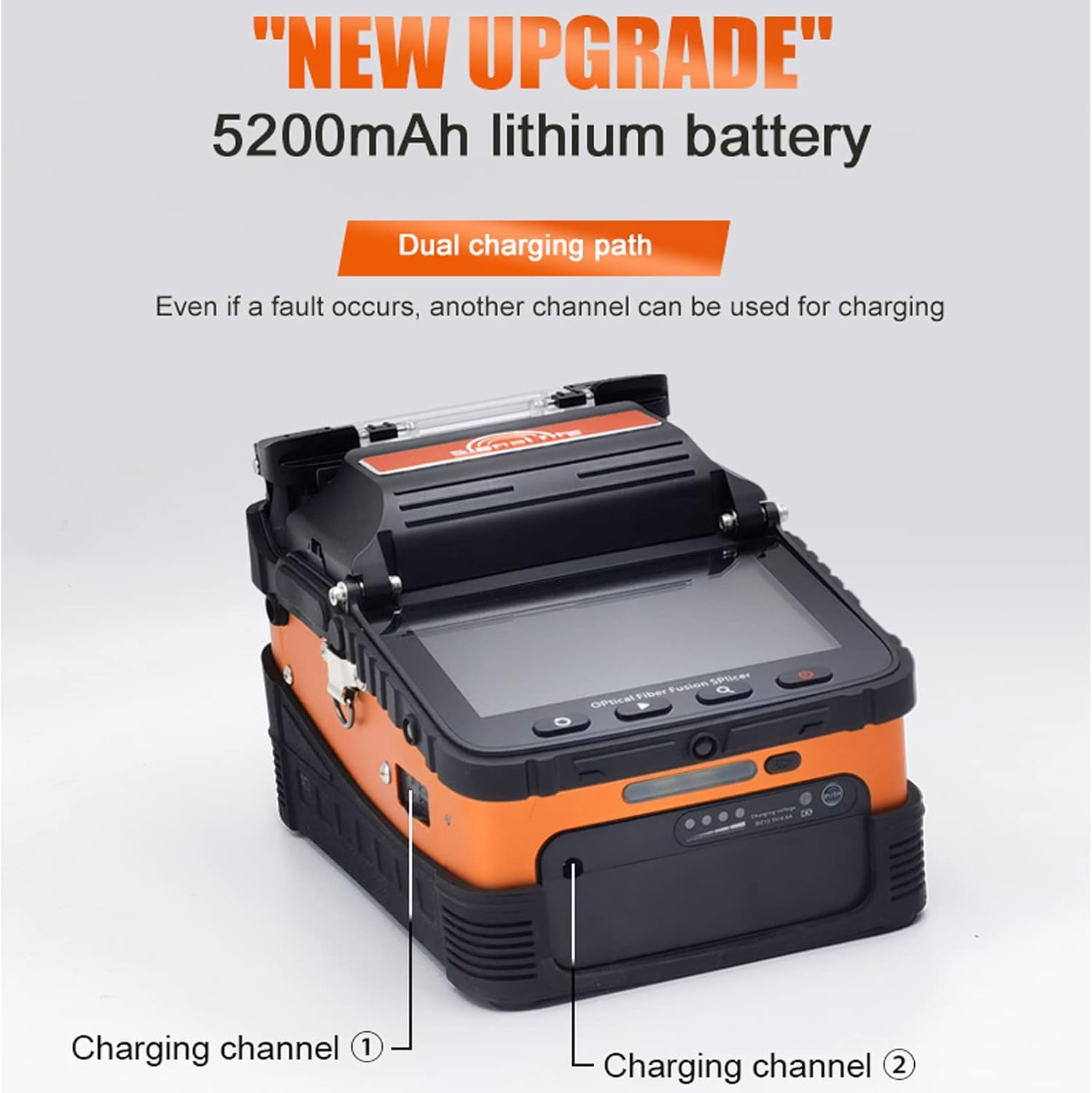

2 charging path and 3 charging method available. The machine comes with two charging ports, and you can charge the battery directly. Even if a fault occurs, another channel can be used for charging.

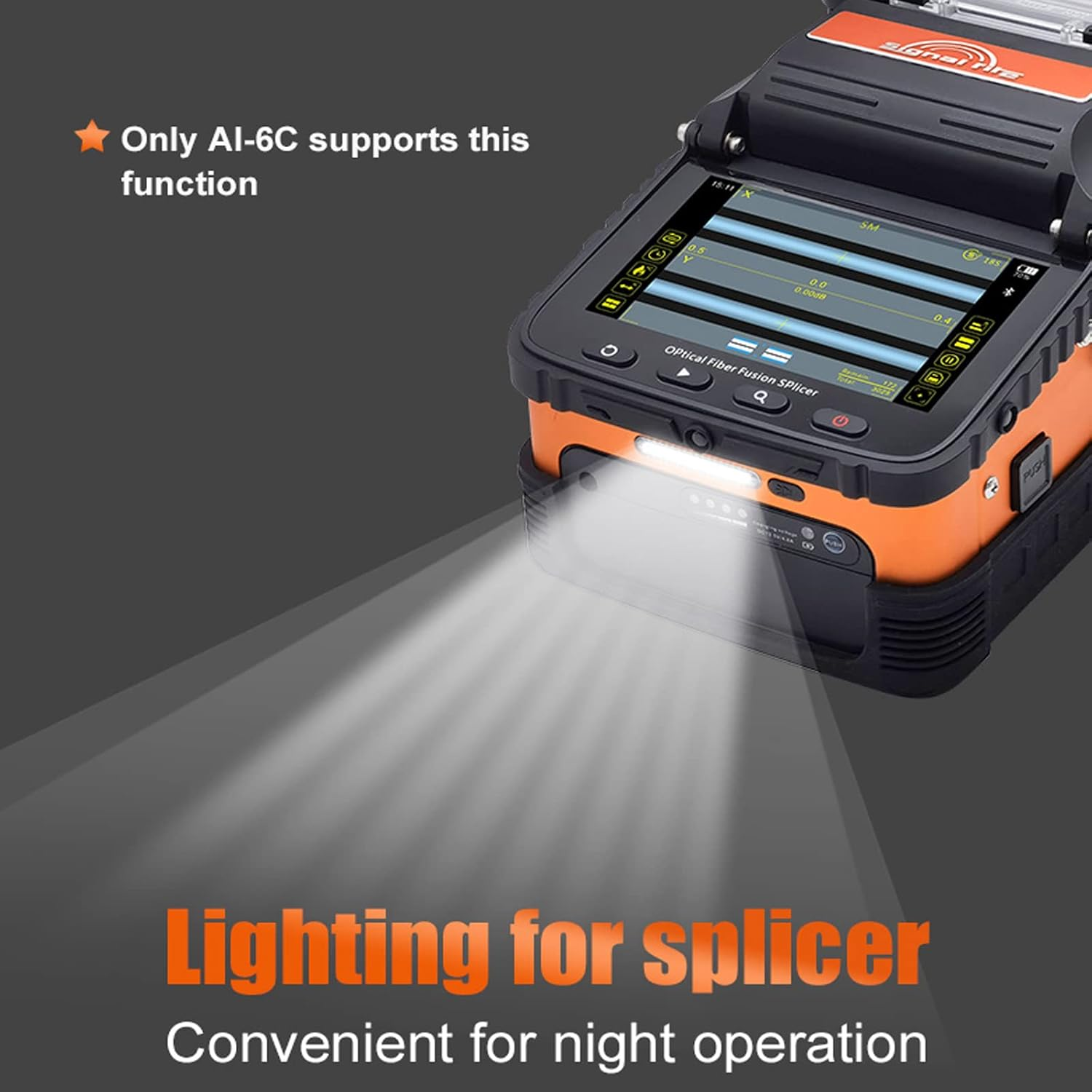

You can use the external LED light in dark environment for the precise operation.

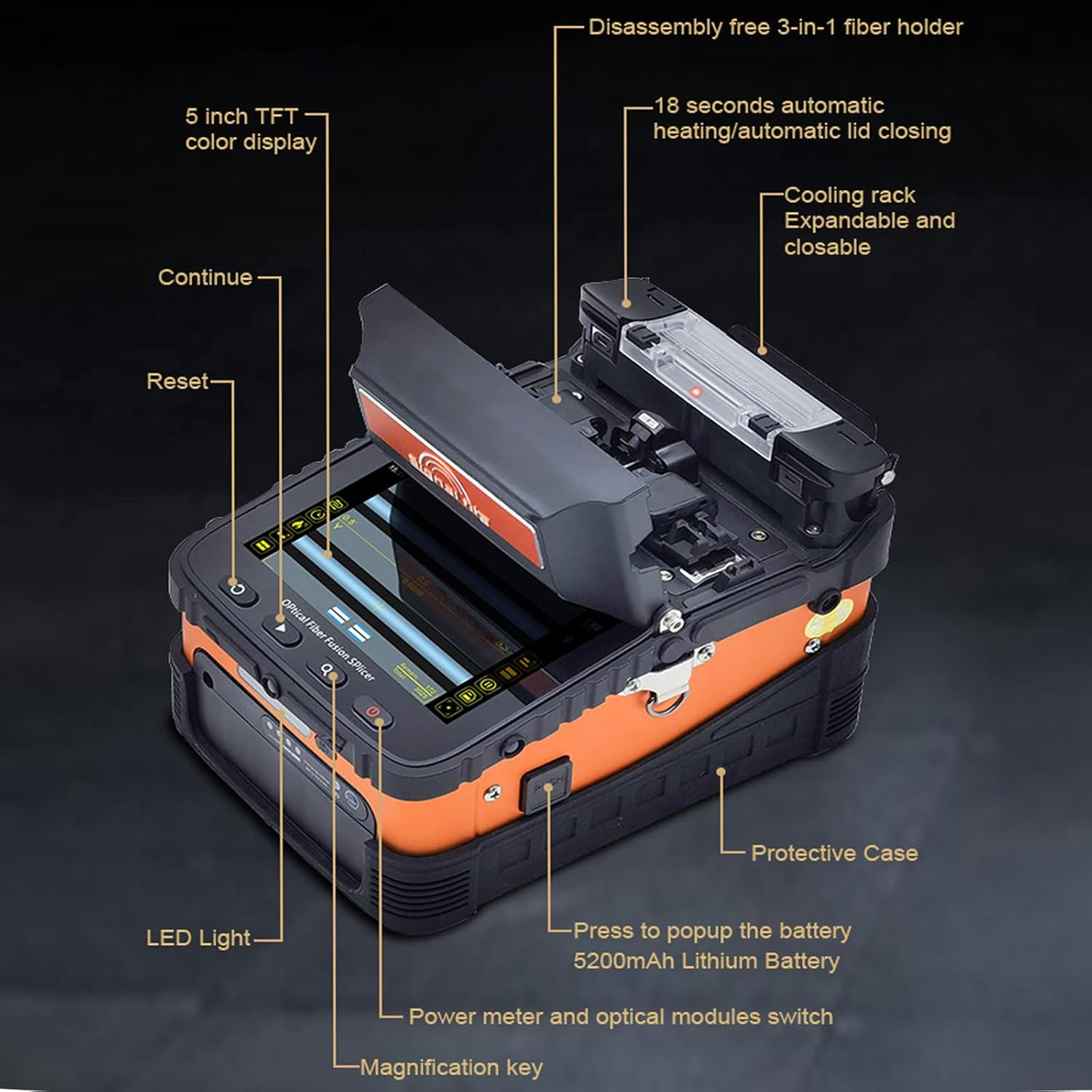

With 5-inch high-resolution screen, it is up to 300 times the focus magnifications when X/Y Axis displayed separately, 150 times focused magnifications when X and Y Axis displayed simultaneously.

5200 mah high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 160 times. The battery can be easily removed with a light press.

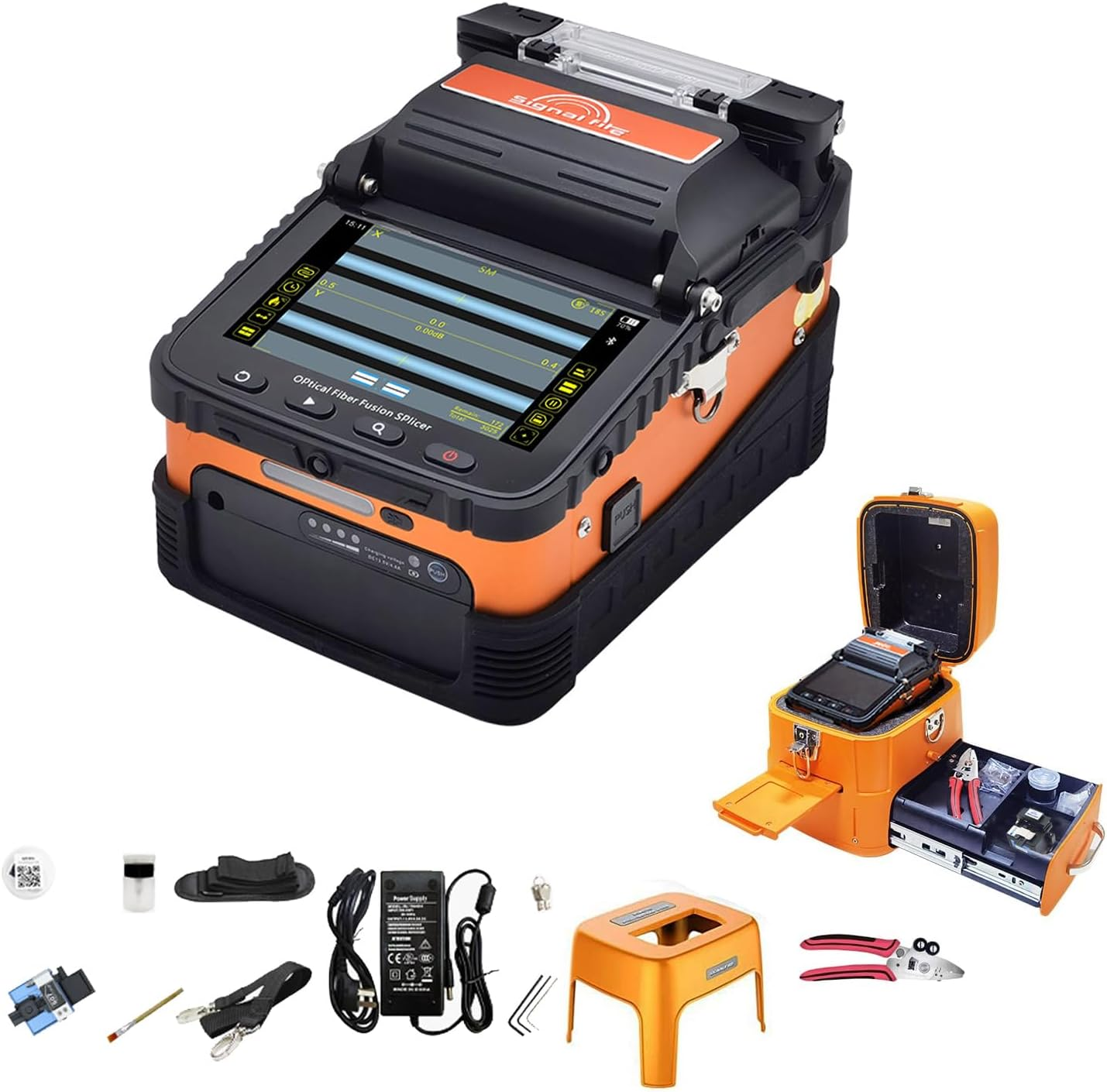

Signal fire AI-6C+ fiber fusion splicer gives a separable toolbox, which can take out a stool for relaxing during work. And the box has two layers, featuring a large capacity.
